Post your "Ghetto Mod" pics

  • Thread starter Deleted member 96510
  • Start date

guitarslingerchris

Supreme [H]ardness
Joined
Oct 29, 2004
Messages
6,880
Is that a shuttle SFF?

I had one of those for my Core i7-920. I hated the built in cooler and was considering doing something like this, but was limited from doing what I really wanted by th esmall form factor PSU, so I decided to sell it and get a full tower instead.

I learned my lesson to never go small form factor again, back in 2010. It's just too limiting, and in the grand scheme of things has no benefits, as there is always plenty of space under the desk for a large case.
I think this could fit in here, altough the first iteration wasn't that getto:
View attachment 84365 View attachment 84366 View attachment 84367 View attachment 84368 View attachment 84369 View attachment 84370
But it just overheated like hell,, and the outside surface of the case got up to 60C°

So I took drastic measures:
View attachment 84371 View attachment 84372

And then abandoned the whole small gaming PC project. Now it's just a home server / HTPC with a GT1030. And a Xeon E5-2670 at stock. Without any protruding parts.

You can find the story here.
These two posts reminded me of something amazing and terrible I did way back with my i7 920 :D

qEzXvrP_URKvFgpQLyuBfPDo8L8SqP5l-MM5cq6Liw2891HPQe0YyW_rSLFJz-gkIoK3bStdQwG5W8hL8=w1840-h1380-no.jpg


ktdm8zfyGn8SCeuJ6FJVbwH571b8EQKI7kfYlC3SmSawrtPYIEyL3YBTdkYr6ECoXLKy98awqwcOKBbp8=w1840-h1380-no.jpg


RgcjHY_DAkbtng2bbGpzKhkvfy7tZs6iBxDxVFIMWZlAv2GudcpL4xOZd0gIIsCP95aMIxogHAamLljTo=w1840-h1380-no.jpg


M76

[H]F Junkie
Joined
Jun 12, 2012
Messages
11,285
Is that a shuttle SFF?

I had one of those for my Core i7-920. I hated the built in cooler and was considering doing something like this, but was limited from doing what I really wanted by th esmall form factor PSU, so I decided to sell it and get a full tower instead.

I learned my lesson to never go small form factor again, back in 2010. It's just too limiting, and in the grand scheme of things has no benefits, as there is always plenty of space under the desk for a large case.
Yes, it is. But it's an X79.

I don't know why, but I just like to experiment with small / unique form factor cases. I've had so many over the years, all filled to the brim with hardware. Before this one I used a Node304 and fitted 9 HDDs in it. I had an Aerocool M40, a PointofView M2 Station, and a Thermaltake Bach in the past 10 years.


Zepher

[H]ipster Replacement
Joined
Sep 29, 2001
Messages
17,704
My Intel case uses a ribbon cable for the front panel connections, plugs right into an Intel Server/Workstation board but not into a consumer board.
I took off a front panel connector from a dead motherboard and soldered front panel connector wires that I took from a case years ago to make a conversion interface.
IMG_0862.JPG IMG_0860.JPG IMG_0863.JPG


RazorWind

2[H]4U
Joined
Feb 11, 2001
Messages
3,741

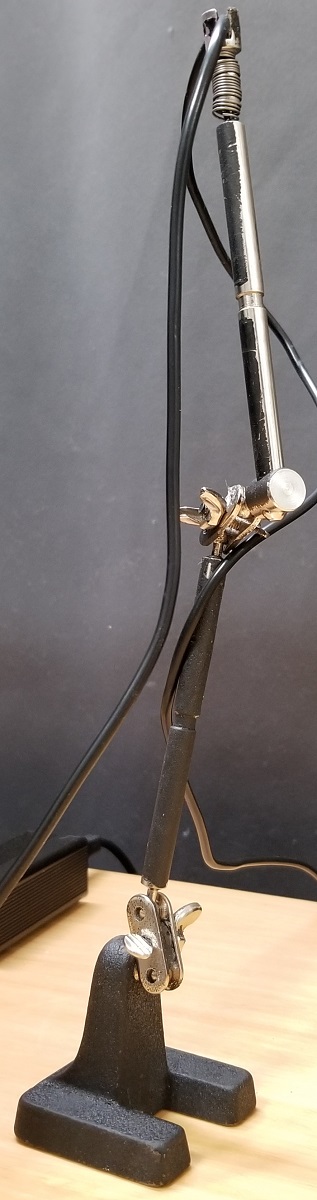

My ghetto mouse bungee is the pinnacle of things that kind of hold the mouse cord out of the way.

View attachment 90428

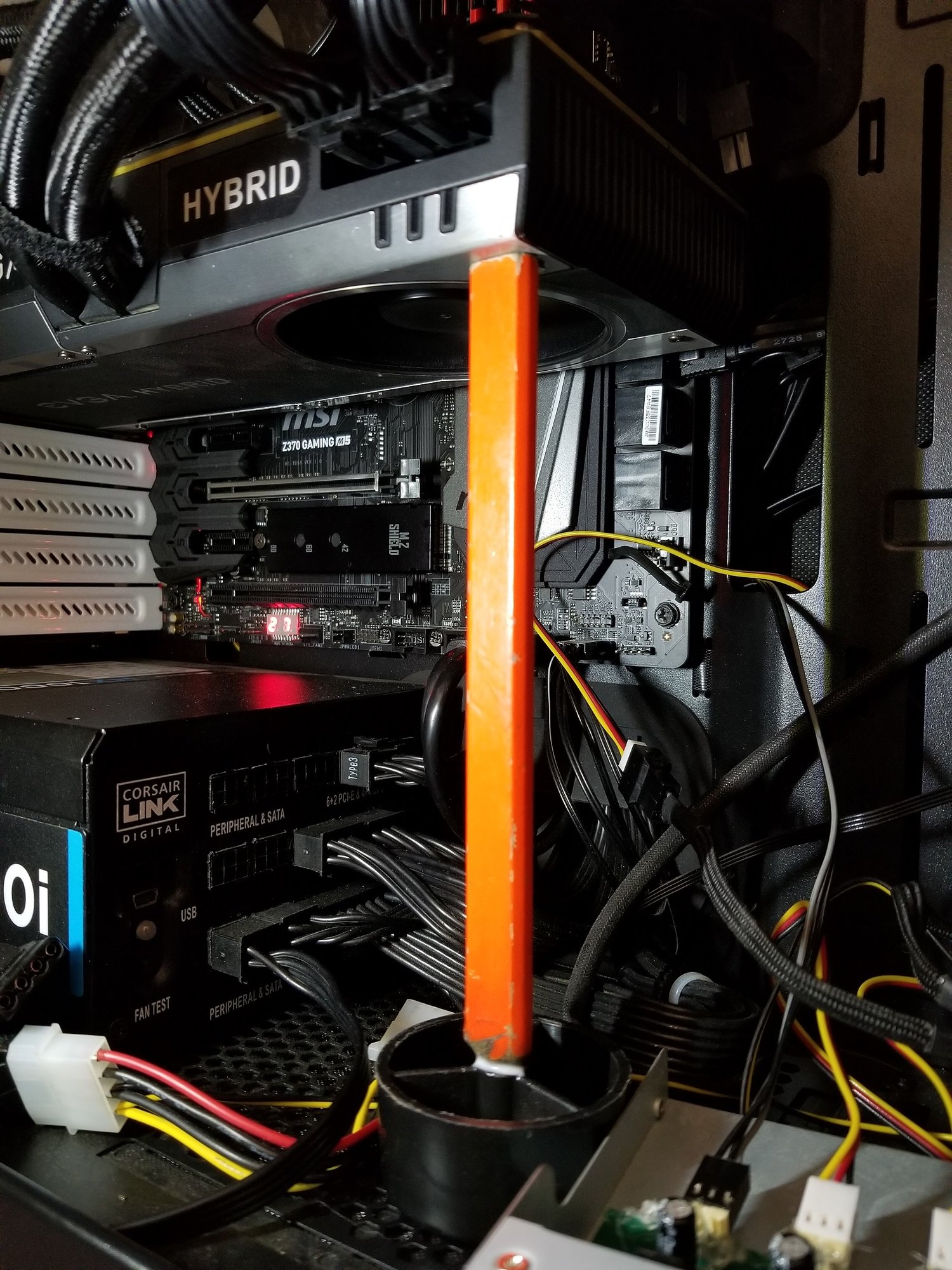

My GPU bracket, however, is a marvel of technology and an example of engineering genius heretofore unknown to man.

View attachment 90427
Why bother making the GPU not sag if the solution is that ugly, though? Were you having actual problems with it pulling out of the connector on the motherboard?


mnewxcv

Supreme [H]ardness
Joined
Mar 4, 2007
Messages
7,215

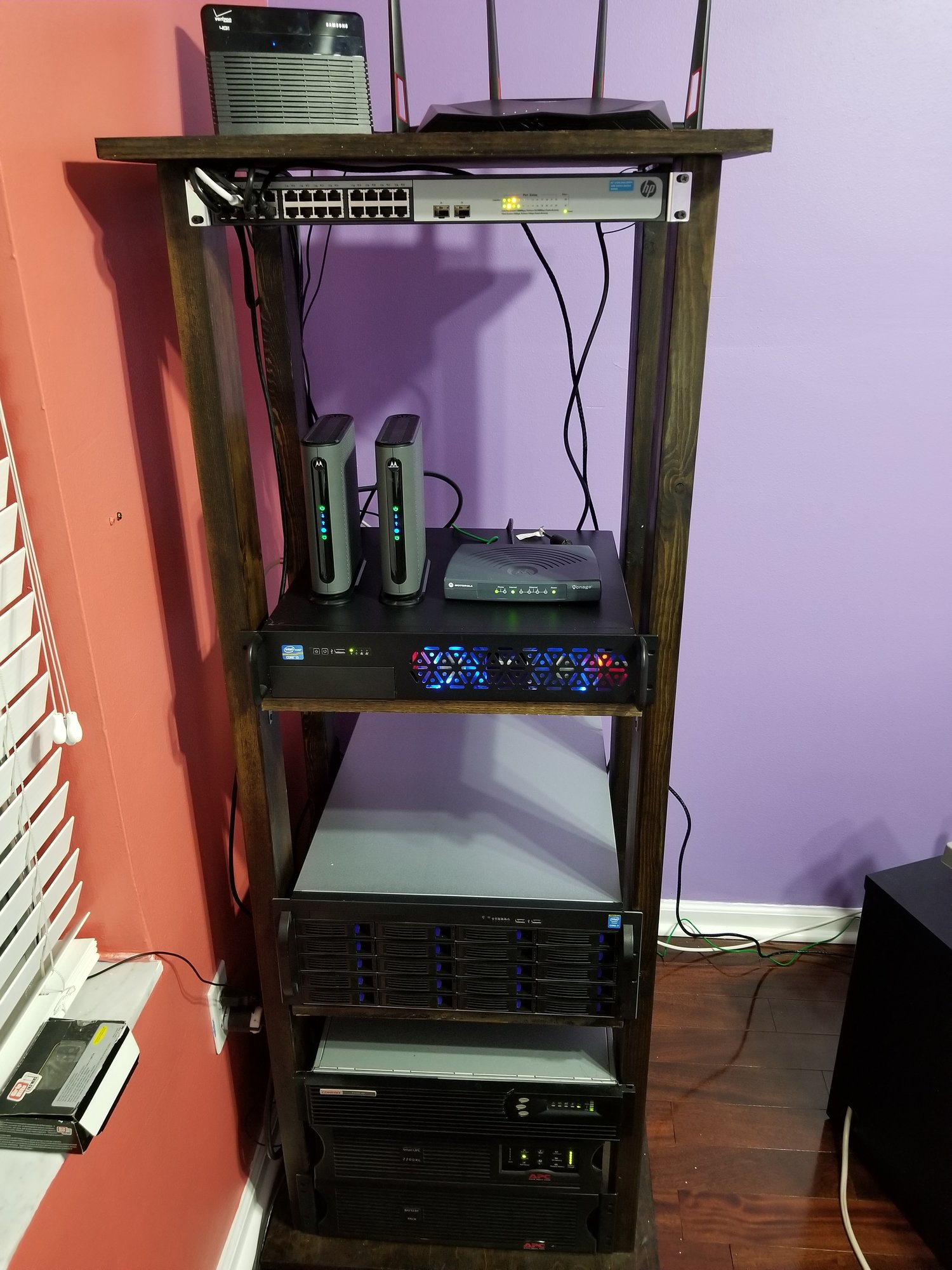

My ex girlfriend moved out and left the bookcase that we built together. So I turned it in to a server/network rack. Not exactly the right spacing but will do. Not exactly done either, still need to do some cable management.

View attachment 118568
Not ghetto enough. Could be marketed as 'premium hardwood server rack' and appeal to people who want something to match their furniture.


faugusztin

2[H]4U
Joined
Mar 9, 2008
Messages
2,666
MSI GeForce GTX 1050 AERO ITX has no zero fan mode, and minimum fan speed it allows me to set is 35%. All this is solvable with fan controller tied to the GPU temperature (like Speedfan).

But ordering and delivering a 2-pin GPU to 3-pin fan cable would take long time. Say hi to my ghetto mod - wiring 2-pin to 3-pin fan connector via jumper cables i had for my Raspberry Pi :):


viivo

[H]ard|Gawd
Joined
Sep 7, 2005
Messages
1,698
What's a man to do when he needs to attach a ModMic to some headphones without a proper adhesive in the world? That's right, he hot glues the shit out of it.



Bonus for the 3.5mm jack I installed. Instead of using bondo or some other filler to smooth out the old one, I piped in glorious hot glue and finished it off with electrical tape.


rob2000

Gawd
Joined
Dec 24, 2005
Messages
970
had to mount my h100i pro crooked as the new mobo heatsinks would not allow the fans to fit inside in the stock mounting location. Had tried mounting fans on top but without a guard it was not my favorite plan. place holder till i get a photo


dbz_ssj4

n00b
Joined
Jun 14, 2009
Messages
44
Been awhile thought I'd post some stuff, first headphones

Phillips citiscape downtowns ownership 7 years

Replaced flat flex cable and internal left to right bridge wire


Eventually the pads desintigrated and my replacement wire went bad as well so...



And I have an old KOSS set and had a crappy platronics headset with microphone so this happend at the suggestion of a friend "Why don't you just rip the microphone off and glue it to your other headset." Had these for 19 years.



dbz_ssj4

n00b
Joined
Jun 14, 2009
Messages
44
Network equipment is never designed to last long enough, I get all my equipment from goodwill so it usually ends up there due to overheating.

Cable modem


Wasn't happy with the way it looked...




ah that's better

After doing that didn't take any crap from my router, same procedure



dbz_ssj4

n00b
Joined
Jun 14, 2009
Messages
44
And some random stuff...

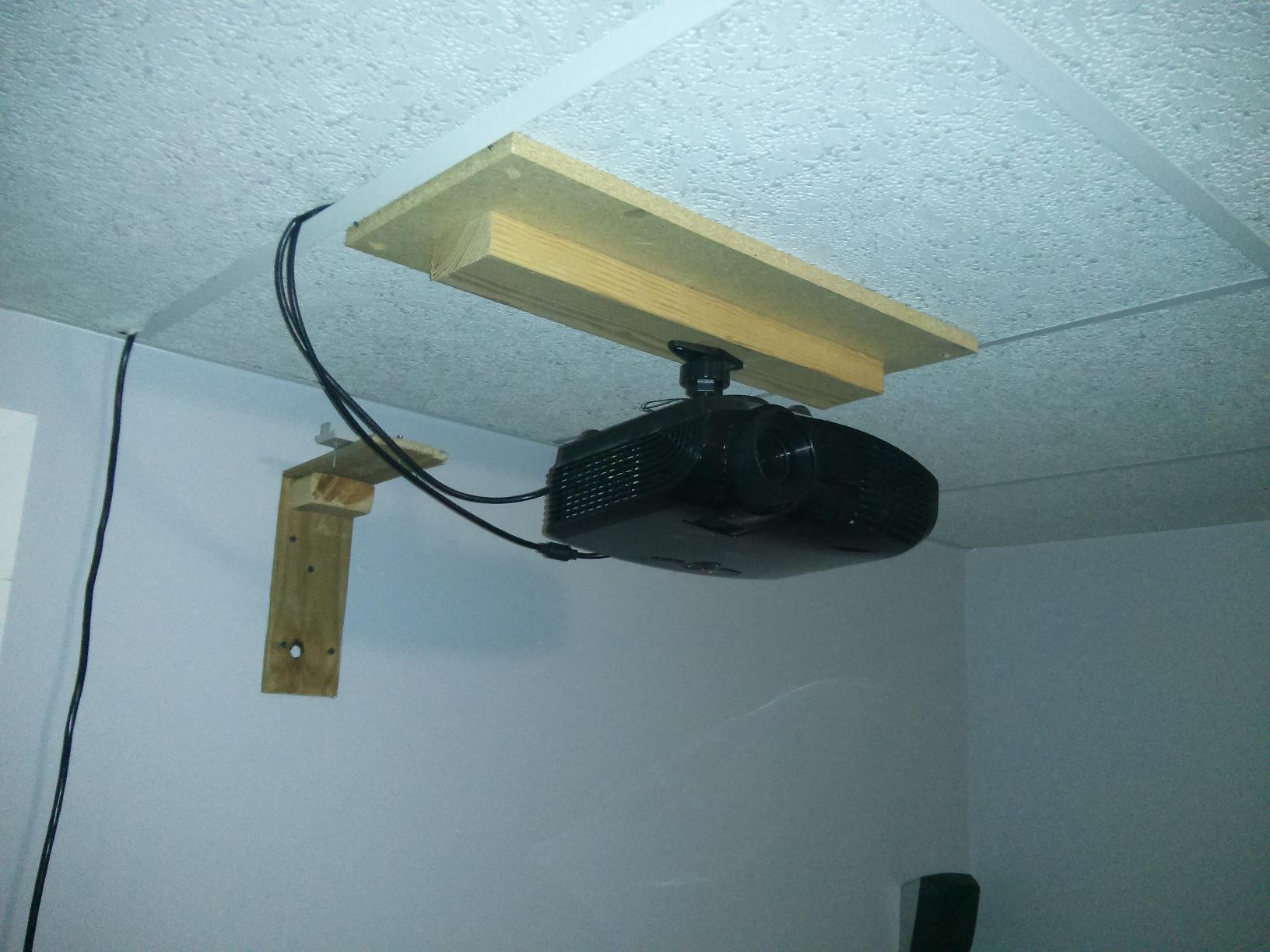

Drop panel mount for a projector, downside was that the wind outside would bounce the image up and down



Had to find a way to mount some speakers in my Saquoia's factory mount... Bought some adaptors, decided that I didn't want to lose my mids so I glued/screwed this ring in, placed a foam pad(not pictured) to cover the holes and soldered the new speakers to the OEM wire harness.



Fixed a bluetooth speaker. Only one speaker was attached electrically and I had to attach this red wire to the speaker post without removing the speaker. Solution, cut a bit of paperclip tin the ends and heat the whole thing up until the solder melted to the post. Had to hold the paperclip post whit a needle nose pliers.



Replaced a 2 4400uf caps with 4 2200uf caps. Thats all I had on hand...




And just something I'm playing with right now



w1retap

[H]F Junkie
Joined
Jul 17, 2006
Messages
12,335

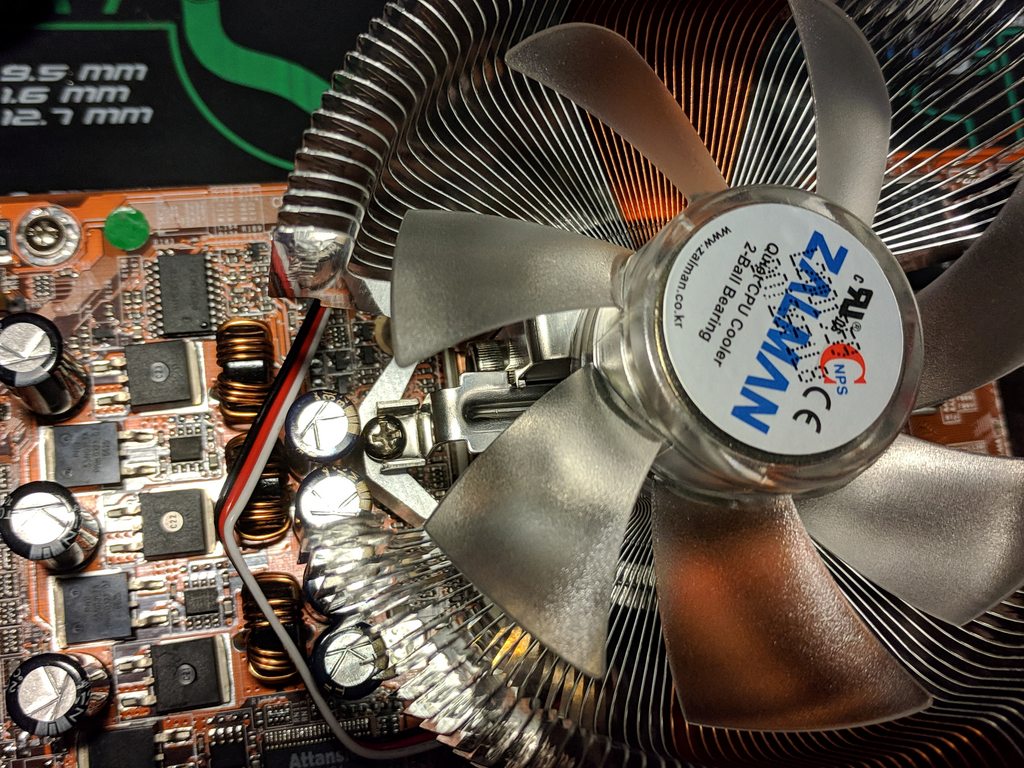

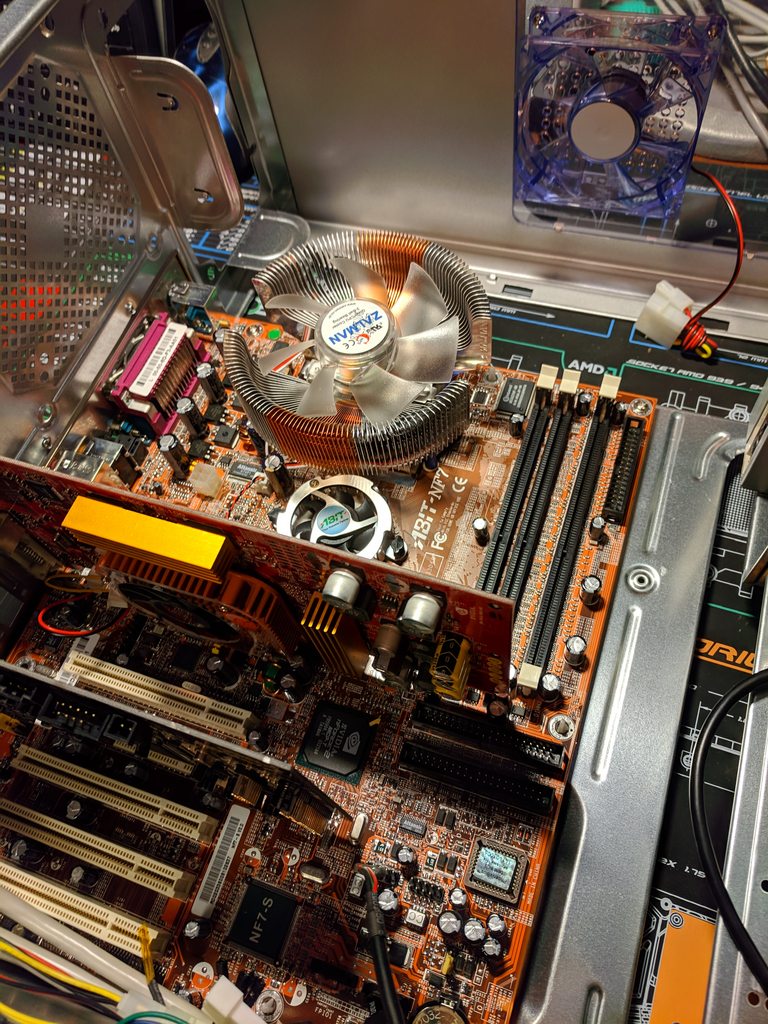

I bet nobody has seen this in a while. I had to cut the end off my Zalman cooler mount to fit on the Abit NF7-S V2.0 CPU socket because the capacitors are in the way. :ROFLMAO:

Specs so far..
Gaudy 2001 silver case with vertical bubble lights on the front and blue UV tinted lexan windows (Kingwin maybe?)
Athlon XP 3000+
Abit NF7-S V2.0
MSI GeForce 4 Ti 4600 (AGP 8X Ti 4800 dual DVI model)
Sound Blaster Audigy 2 ZS Platinum w/ front bay
8x DVD-ROM drive
1.44MB floppy drive
Crystalfontz 3.5" bay LCD
..just have to add my Corsair XMS Pro DDR-400 RAM, a Maxtor 80GB hard drive, and power supply.





Spoom

n00b
Joined
Mar 1, 2016
Messages
49
I bet nobody has seen this in a while. I had to cut the end off my Zalman cooler mount to fit on the Abit NF7-S V2.0 CPU socket because the capacitors are in the way. :ROFLMAO:

Specs so far..
Gaudy 2001 silver case with vertical bubble lights on the front and blue UV tinted lexan windows (Kingwin maybe?)
Athlon XP 3000+
Abit NF7-S V2.0
MSI GeForce 4 Ti 4600 (AGP 8X Ti 4800 dual DVI model)
Sound Blaster Audigy 2 ZS Platinum w/ front bay
8x DVD-ROM drive
1.44MB floppy drive
Crystalfontz 3.5" bay LCD
..just have to add my Corsair XMS Pro DDR-400 RAM, a Maxtor 80GB hard drive, and power supply.

View attachment 146807

View attachment 146808
That isn't really that ghetto... Just old


viivo

[H]ard|Gawd
Joined
Sep 7, 2005
Messages
1,698

I'm a grown-ass man and I will bear no shame for decorating my case with stickers.


Contains more ironic "fucks" than all your local independent coffee shops combined.


If you're going to have shit, it may as well be coordinated:


Last edited:

M76

[H]F Junkie
Joined
Jun 12, 2012
Messages
11,285
My most Ghetto Cooling solution to date.


Glacialtech Igloo 2450 on an I7-3820

Note: The noise you hear is not from the cooler, those are actually electrical noises made by the brilliant Chinese MB.


M76

[H]F Junkie
Joined
Jun 12, 2012
Messages
11,285
I have improved the design.


It's barely even ghetto now. There are no zip-ties.

Shorter screws, a beefier fan, that can actually keep the CPU from thermal throttling. I just ran cinebench 20 on it, with the fan not even spinning up to max RPM. Guess the extra pressure on the heatsink also helps with temps. It is on par if not better than Intel's bundled cooling solutions.

  • Like
Reactions: viivo
like this
Joined
Feb 17, 2016
Messages
10
Needed to cram ATX X470 and Aorus RTX 2080 into an ITX case to save on some space soo....









240mm/20mm rad to go in with 14mm thick fans and then modders mesh to cover the side gaps, and maybe lego blocks to cover the top and bottom gaps :)


viivo

[H]ard|Gawd
Joined
Sep 7, 2005
Messages
1,698
Ghetto-izing a backplate that doesn't fit flush with a cooler's mounting hardware.








*Use of the word "ghetto" by this poster is not intended to be derogatory but a euphemism for ingenuity and using materials at hand.

Last edited:

viivo

[H]ard|Gawd
Joined
Sep 7, 2005
Messages
1,698
Bonus! Ghetto Support Arm™ ® ©.





*Use of the word "ghetto" by this poster is not intended to be derogatory but a euphemism for ingenuity and using materials at hand.

Last edited:

wra18th

Supreme [H]ardness
Joined
Nov 11, 2009
Messages
7,878
No electrical tape, check.
No Scotch tape, check.
No exposed wire strands, check.
No cardboard box, check.
Neat and professional looking, check.

No Food Stamps, check!! Too neat.

This should be on its own thread as a how-to. :ROFLMAO:


OFaceSIG

2[H]4U
Joined
Aug 31, 2009
Messages
2,444
I have been known to use bread ties to keep fan cables in place on a budget build or two.

D

Deleted member 96510

Guest
Well, it's obvious you spent some money. If the support arm was made from a coat hook or an old Blow-Pop from last Halloween, you would score many Food Stamps


viivo

[H]ard|Gawd
Joined
Sep 7, 2005
Messages
1,698
Well, it's obvious you spent some money. If the support arm was made from a coat hook or an old Blow-Pop from last Halloween, you would score many Food Stamps

The rod was part of a french press which broke, like all french presses. That's connected to a door handle plate on top of a piece from an old case. Nothing spent on that.

Hm, I do have a few old AMD CPUs I'd like to incorporate. Maybe I can make a better arm by gluing them together to contact more of the video card.

Last edited:
