LG 48CX

Surly

Limp Gawd
Joined
Apr 26, 2003
Messages
277
The article above mentions the production cost of the 42" OLED being lower by 33% than that of the 55" model. I assumed the street price.
was mostly referring to the refresh rate. Price is whatever for me. It all about the size and refresh rate.


kasakka

2[H]4U
Joined
Aug 25, 2008
Messages
2,241
The article above mentions the production cost of the 42" OLED being lower by 33% than that of the 55" model. I assumed the street price.
That rarely translates to price for the end user.

My hopes are that the 42" model would be an actual monitor, meaning HDMI 2.1, DP and USB-C ports, PbP mode while keeping the G-Sync, 120 Hz and other gaming features from the TVs.


Mizzer

Limp Gawd
Joined
Jan 21, 2021
Messages
135
Regarding the loss of signal issues with the 48" OLED and an RTX 3070...

In the Nvidia Control Panel > Manage 3D Settings > Global Settings > Power Management Mode

I set it to "Prefer maximum performance".

I haven't had a problem since.

Last edited:

kasakka

2[H]4U
Joined
Aug 25, 2008
Messages
2,241

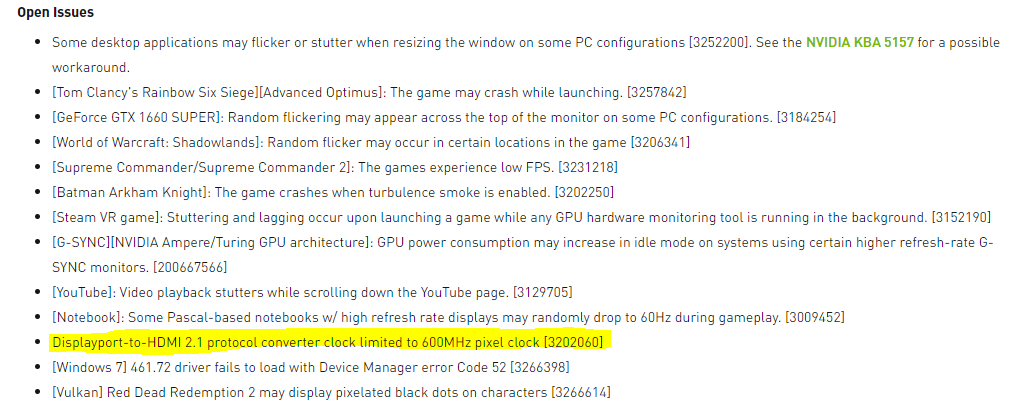

Seems Nvidia has finally acknowledged the issue with the Club3D adapter on any driver newer than 456.71. "Displayport-to-HDMI 2.1 protocol converter clock limited to 600MHz pixel clock [3202060]". Too bad it did not get fixed in the driver that dropped just today.


Lateralus

More [H]uman than Human
Joined
Aug 7, 2004
Messages
16,315
I would actually be interested in the 31" 1080p model, not for a monitor, but to replace our current bedroom TV. It's on a dresser in the corner of the room, angled toward the bed, and I can only go so big without completely changing the furniture configuration. I'm using a Sharp AQUOS right now that's been humming along for years, but if they actually bring out a 31" I'd be all over it! I hate watching dark/night scenes on that TV...can't see jack squat nor make out any details.

The 42" model would definitely be interesting for people who prefer that size for a monitor. Several people in this thread have wished for that size already.


kasakka

2[H]4U
Joined
Aug 25, 2008
Messages
2,241
Well, Nvidia fucks yet another thing up. It seems my CX 48" is no longer detected as G-Sync capable on the latest driver when using HDMI 2.0 despite that being one of the things supposedly fixed by the driver.

EDIT: Had to use DDU to reinstall from scratch to get G-Sync back even on an older driver.

Last edited:

Baenwort

Limp Gawd
Joined
Oct 10, 2003
Messages
182
I would actually be interested in the 31" 1080p model, not for a monitor, but to replace our current bedroom TV. It's on a dresser in the corner of the room, angled toward the bed, and I can only go so big without completely changing the furniture configuration. I'm using a Sharp AQUOS right now that's been humming along for years, but if they actually bring out a 31" I'd be all over it! I hate watching dark/night scenes on that TV...can't see jack squat nor make out any details.

The 42" model would definitely be interesting for people who prefer that size for a monitor. Several people in this thread have wished for that size already.

Same here. We have a TV that is in a built into the wall cabinet and it maxes out at a 34" diagonal for 16:9 ratio. This means a 32" class TV if we want space for the sound to come out.

Couch distance at that size means 1080p is fine and I would love the benefits of HDR in that room.


nutop

n00b
Joined
Jan 19, 2004
Messages
45
for those who run this at 3840x1620... are you able to set the color depth to 10 bpc? it shows the option for me but as soon as i set it, it reverts back


nutop

n00b
Joined
Jan 19, 2004
Messages
45
for those who run this at 3840x1620... are you able to set the color depth to 10 bpc? it shows the option for me but as soon as i set it, it reverts back
so after farting around this some more, i think it's something specific to doing it via resize desktop. i manually added the resolution via registry and it works fine


phinix

Gawd
Joined
Dec 13, 2005
Messages
881
My OLED started doing something weird - after going up from sleep mode, it puts all windows in a left top corner.
Did you guys notice anything similar?


Porter_

[H]F Junkie
Joined
Sep 10, 2007
Messages
8,270
My OLED started doing something weird - after going up from sleep mode, it puts all windows in a left top corner.
Did you guys notice anything similar?

Mine does it too but it does not concern me. I believe it has something to do with the display handshake Windows does when waking from sleep, similar to what a laptop does when connected to an external display.


Perscitus

n00b
Joined
Jul 17, 2020
Messages
40
Nope. Depends on how many active displays you have though and how they initialize after waking from sleep, etc.


Ziran

Limp Gawd
Joined
Mar 26, 2015
Messages
165

nighty2k20

n00b
Joined
Dec 2, 2020
Messages
21
Well, Nvidia fucks yet another thing up. It seems my CX 48" is no longer detected as G-Sync capable on the latest driver when using HDMI 2.0 despite that being one of the things supposedly fixed by the driver.

EDIT: Had to use DDU to reinstall from scratch to get G-Sync back even on an older driver.

With the driver from december my LG CX was recognized as Gsync compatible.

After installing the current driver I had to go to Nvidia Control panel, Gsync, where it shows "not compatible" and set the checkbox for "use it anyway". Works just as before now for me


kalston

[H]ard|Gawd
Joined
Mar 10, 2011
Messages
1,282
With the driver from december my LG CX was recognized as Gsync compatible.

After installing the current driver I had to go to Nvidia Control panel, Gsync, where it shows "not compatible" and set the checkbox for "use it anyway". Works just as before now for me

Yea I've had the same expeirence. No impact on g-sync performance/functionality.


kasakka

2[H]4U
Joined
Aug 25, 2008
Messages
2,241
With the driver from december my LG CX was recognized as Gsync compatible.

After installing the current driver I had to go to Nvidia Control panel, Gsync, where it shows "not compatible" and set the checkbox for "use it anyway". Works just as before now for me

For me the whole G-Sync tab went missing, even downgrading back to an older driver. Had to run DDU to get it back and then it seemed to work on the newer driver as well.

I also figured out how to use the 456.71 driver that works with the Club3D adapter but have the latest DLSS 2.x support. It wasn't working in Nioh 2 so what I did was use NvCleanInstall to extract the 456.71 and 467.72 drivers, then I installed 467.72 and copied the C:\ProgramData\Nvidia\NGX folder from this driver elsewhere. Then I copied the nvngx.dl_ files from the 467.72 package to 456.71 installation and installed the older driver. Finally I replaced the C:\ProgramData\Nvidia\NGX contents with the ones from the latest driver.

Now Nioh 2 can run DLSS 2.x on my older driver! Neat trick if you want latest DLSS support but need to run an older driver due to some issue.


Murzilka

Gawd
Joined
Dec 11, 2011
Messages
935
Always use the DDU for driver reinstall. I use it every driver update and never have any driver related issues. Geek Uninstaller for everything else. Never use the built in windows uninstaller - it is no good, no bueno.


mirkendargen

Limp Gawd
Joined
Dec 29, 2006
Messages
362
For me the whole G-Sync tab went missing, even downgrading back to an older driver. Had to run DDU to get it back and then it seemed to work on the newer driver as well.

I also figured out how to use the 456.71 driver that works with the Club3D adapter but have the latest DLSS 2.x support. It wasn't working in Nioh 2 so what I did was use NvCleanInstall to extract the 456.71 and 467.72 drivers, then I installed 467.72 and copied the C:\ProgramData\Nvidia\NGX folder from this driver elsewhere. Then I copied the nvngx.dl_ files from the 467.72 package to 456.71 installation and installed the older driver. Finally I replaced the C:\ProgramData\Nvidia\NGX contents with the ones from the latest driver.

Now Nioh 2 can run DLSS 2.x on my older driver! Neat trick if you want latest DLSS support but need to run an older driver due to some issue.
Nioh 2 seemed to work fine with DLSS before the new driver came out, they patched the game a few days before it and I ran it fine, saw the same performance increase.


Diablix

n00b
Joined
Feb 28, 2021
Messages
4
Hello guys, I have been stalking on this thread for a while, and now that I have LG 48CX and Club 3D CAC-1085 adapter, I thought you could help me with some of my questions. I tried to find answers to those questions on my own, but there are just too many comments :D.BTW, I have RTX 2080 Ti SLI & 456.71 driver installed.

  1. What should I see in HDMI Diagnostics in HDR Type? I have played Youtube HDR video on Edge and played Redout: Enhanced Edition with HDR support, but I have only seen HDR Type: SDR. I have seen pictures of HDR Type: HDR10, is it only relevant for consoles?
  2. What is maximum supported Chroma Subsampling mode for 4K@120 HDR 10 bpc with proper colour space with adapter (RGB Full or Limited, 444, 422, 420)? I have only managed to get 420, 10bpc and R.2020.
  3. I managed to get 4K@120 RGB Full 10bpc, but NO_DATA in HDMI Diagnostics therefore no R.2020 colour space badge on TV. Is it enough to change it to R.2020 in HDMI Signalling Override to get proper HDR? Is HDR content already adjusted for R.2020 so that GPU doesn't has to send info about proper colour space?
  4. I have read I should be able to have working 422 10bpc with proper colour space, is it right(60hz without adapter, 120hz with adapter)? As said before, I have only managed to get 420, 10bpc and R.2020.
  5. What has better PQ, RGB Full 8bpc with dithering & forced bt.2020 for HDR Gaming? Or is RGB Full 10bpc & forced bt.2020 better? Is there any perfomance/lag difference?
  6. I have read on few places that everything below RGB Full has banding issue on LG OLED?
  7. I have read that LG process everything internally in RGB Low (16-235), so isn't it better to send signal by RGB Low?
  8. Is PC icon & Game mode best for HDR gaming? I read about shuttering on consoles with 4K@120Hz with PC Icon, but I'm not sure if it was just byproduct of Gamma Issue with VRR.
  9. Can I send surround sound (5.1 uncompressed, I'm not sure if it is different from PCM or what most games output) from TV by ARC/eARC to AVR? I think I have read something for solving this issue about hacking, was it maybe EDID hacking? I have Denon AVR-X2600H.
  10. Do you change something else in HDMI Signalling Override to get proper HDR beside first setting Colorimetry?
Thank you in advance.

Last edited:

kasakka

2[H]4U
Joined
Aug 25, 2008
Messages
2,241
Nioh 2 seemed to work fine with DLSS before the new driver came out, they patched the game a few days before it and I ran it fine, saw the same performance increase.
Yes it did but it did not work on 456.71, which is the newest driver I can use unless I want to lose the benefits of the Club3D adapter with my 2080 Ti. It's a bug Nvidia hopefully fixes in their next release.


kasakka

2[H]4U
Joined
Aug 25, 2008
Messages
2,241
Hello guys, I have been stalking on this thread for a while, and now that I have LG 48CX and Club 3D CAC-1085 adapter, I thought you could help me with some of my questions. I tried to answers to those questions on my own, but there are just too many comments :D.BTW, I have RTX 2080 Ti SLI & 456.71 driver installed.

  1. What should I see in HDMI Diagnostics in HDR Type? I have played Youtube HDR video on Edge and played Redout: Enhanced Edition with HDR support, but I have only seen HDR Type: SDR. I have seen pictures of HDR Type: HDR10, is it only relevant for consoles?
  2. What is maximum supported Chroma Subsampling mode for 4K@120 HDR 10 bpc with proper colour space with adapter (RGB Full or Limited, 444, 422, 420)? I have only managed to get 420, 10bpc and R.2020.
  3. I managed to get 4K@120 RGB Full 10bpc, but NO_DATA in HDMI Diagnostics therefore no R.2020 colour space badge on TV. Is it enough to change it to R.2020 in HDMI Signalling Override to get proper HDR? Is HDR content already adjusted for R.2020 so that GPU doesn't has to send info about proper colour space?
  4. I have read I should be able to have working 422 10bpc with proper colour space, is it right(60hz without adapter, 120hz with adapter)? As said before, I have only managed to get 420, 10bpc and R.2020.
  5. What has better PQ, RGB Full 8bpc with dithering & forced bt.2020 for HDR Gaming? Or is RGB Full 10bpc & forced bt.2020 better? Is there any perfomance/lag difference?
  6. I have read on few places that everything below RGB Full has banding issue on LG OLED?
  7. I have read that LG process everything internally in RGB Low (16-235), so isn't it better to send signal by RGB Low?
  8. Is PC icon & Game mode best for HDR gaming? I read about shuttering on consoles with 4K@120Hz with PC Icon, but I'm not sure if it was just byproduct of Gamma Issue with VRR.
  9. Can I send surround sound (5.1 uncompressed, I'm not sure if it is different from PCM or what most games output) from TV by ARC/eARC to AVR? I think I have read something for solving this issue about hacking, was it maybe EDID hacking? I have Denon AVR-X2600H.
  10. Do you change something else in HDMI Signalling Override to get proper HDR beside first setting Colorimetry?
Thank you in advance.

1. HDMI diagnostics always shows SDR there. It's a bug and can be ignored.
2. 3840x2160 120 Hz 10-bit 4:4:4, aka RGB full. Make sure you are using nothing newer than 456.71 driver or else this breaks.
3. Don't worry about HDMI diagnostics, they tend to go haywire with the adapter and can be just ignored.
4. Without the adapter I think you should be able to get 4K 60 Hz 4:2:2 10-bit.
5. There is no need to force BT2020. Sometimes things will get fucked up and the wrong color space is output to the display but you can fix this by going to 4K 60 Hz and back to 4K 120 Hz. You can tell the issue when you see red colors as too dull in HDR mode. Use https://github.com/Maassoft/ColorControl to change between them easily.
6. Can't say anything about that. Haven't bothered testing. There is no point in using anything but RGB Full.
7. It can do both as per its black level setting. Auto will handle both just fine.
8. For PC yes. For console use the Game Console setting because at least my PS5 does not seem to work with 4:4:4 color and drops to 4:2:2. It's not visible in games anyway.
9. Afaik yes. I don't have an AV receiver with eARC so I just use the optical and it's fine. Just can't be bothered to buy a new receiver until HDMI 2.1 issues are solved on the new ones.
10. There is no need to change anything in that menu. Leave it at default.

In short, stop messing around and just use your display.


Diablix

n00b
Joined
Feb 28, 2021
Messages
4
1. HDMI diagnostics always shows SDR there. It's a bug and can be ignored.
2. 3840x2160 120 Hz 10-bit 4:4:4, aka RGB full. Make sure you are using nothing newer than 456.71 driver or else this breaks.
3. Don't worry about HDMI diagnostics, they tend to go haywire with the adapter and can be just ignored.
4. Without the adapter I think you should be able to get 4K 60 Hz 4:2:2 10-bit.
5. There is no need to force BT2020. Sometimes things will get fucked up and the wrong color space is output to the display but you can fix this by going to 4K 60 Hz and back to 4K 120 Hz. You can tell the issue when you see red colors as too dull in HDR mode. Use https://github.com/Maassoft/ColorControl to change between them easily.
6. Can't say anything about that. Haven't bothered testing. There is no point in using anything but RGB Full.
7. It can do both as per its black level setting. Auto will handle both just fine.
8. For PC yes. For console use the Game Console setting because at least my PS5 does not seem to work with 4:4:4 color and drops to 4:2:2. It's not visible in games anyway.
9. Afaik yes. I don't have an AV receiver with eARC so I just use the optical and it's fine. Just can't be bothered to buy a new receiver until HDMI 2.1 issues are solved on the new ones.
10. There is no need to change anything in that menu. Leave it at default.

In short, stop messing around and just use your display.
Thanks for replying.

I know you mean it well when you said I should stop messing around, but when I got my adapter, first I tried it with my stock driver I use, and it didn't work. Then, as for recommendation of Club 3D, I installed the newest one, and it still didn't work. After that it took me quite a while until I found out all relevant information, and your comment for working driver. BTW, on Club 3D forums they say even 456.98 works with adapter, but I didn't try it myself.

I think this configuration (4K@120Hz TV with Turing and this adapter) needs a little fidling, because otherwise I wouldn't find out that even when some configuration's are in driver, they don't change the input that TV receives, if I believe what both FreeSync Information and HDMI Diagnostic says.
And in my case, in 4K@120Hz 10bpc, only 4:2:0 gives proper colours/colour space. With RGB Full even switching to 60Hz and back to 120Hz doesn't seem to solve it, therefore I get dull colours/wrong colour space. Thus, I must force BT.2020

Last edited:

kasakka

2[H]4U
Joined
Aug 25, 2008
Messages
2,241
Thanks for replying.

I know you mean it well when you said I should stop messing around, but when I got my adapter, first I tried it with my stock driver I use, and it didn't work. Then, as for recommendation of Club 3D, I installed the newest one, and it still didn't work. After that it took me quite a while until I found out all relevant information, and your comment for working driver. BTW, on Club 3D forums they say even 456.98 works with adapter, but I didn't try it myself.

I think this configuration (4K@120Hz TV with Turing and this adapter) needs a little fidling, because otherwise I wouldn't find out that even when some configuration's are in driver, they don't change the input that TV receives, if I believe what both FreeSync Information and HDMI Diagnostic says.
And in my case, in 4K@120Hz 10bpc, only 4:2:0 gives proper colours/colour space. With RGB Full even switching to 60Hz and back to 120Hz doesn't seem to solve it, therefore I get dull colours/wrong colour space. Thus, I must force BT.2020
It should work fine as long as you have the latest adapter firmware (the latest I have got from Club3D is 1.04) and use Nvidia drivers <457 major version.

Toggling HDR on/off can sometimes cause color space issues but forcing it means you will have the wrong color space handling in SDR mode. For me it corrects itself if I toggle between 4K 60 Hz and 120 Hz a few times usually and then works just fine until HDR is toggled again.


ZeqOBpf6

Gawd
Joined
Aug 24, 2014
Messages
721
Sorry for my ignorance but is there no easy way to get DTS audio to play on my LG TV? It seems like maybe if I go through the work of setting up a Plex server? We've always just copy pasted files to a USB stick and plugged them in to the TV and it's worked great. The files have no 2nd audio source, I checked. I have a soundbar and it's connected via eArc. I don't care if it converts down to 2 channel, I just wanna watch my stuff without reripping it or installing Plex :(


nutop

n00b
Joined
Jan 19, 2004
Messages
45
Sorry for my ignorance but is there no easy way to get DTS audio to play on my LG TV? It seems like maybe if I go through the work of setting up a Plex server? We've always just copy pasted files to a USB stick and plugged them in to the TV and it's worked great. The files have no 2nd audio source, I checked. I have a soundbar and it's connected via eArc. I don't care if it converts down to 2 channel, I just wanna watch my stuff without reripping it or installing Plex :(
CX doesn't support the DTS codec. the only way to get it is to play it from a different device that does support it (i.e. nvidia shield, bluray player, etc) and play it through an AVR


elvn

Supreme [H]ardness
Joined
May 5, 2006
Messages
4,121
You can turn off DTS in the LG WebOS's Plex app (or any plex client for that matter). Then plex will transcode DTS-MA 7.1/5.1 to PCM or multichannel AAC. The problem I've read is that it might also transcode the video a bit when that happens so it might not be 1:1 anymore compared to pass-through.

I had enough hiccups with the webOS player in plex and emby that I went out and bought a nvidia shield. When I want to use the shield I click it's input the old way:

shield --> AVR hdmi input ---> AVR_HDMI_output ----> LG CX HDMI input

I have to switch my AVR to the input the shield is on using the AVR's remote, then I tell the LG CX tv remote to switch to a different HDMI input that the AVR out is connected to and standard mode (which I customized) or tell it to switch to whatever other mode.

Since I am switching off of the AVR input I have my sharc on , the earc line to the receiver is broken while the shield input is switched to. Since I'm not passing audio through the TV at all when I use the shield input on the AVR, I get full DTS and every other format support. The newer shields also have very good AI upscaling of 1080p. Buying nvidia shield is not the cheapest option of course but you could always see how the plex client with dts disabled works out for you otherwise.

------------------------------------------------------------------

When I switch back to PC I change to the sharc's HDMI-in port on the receiver using the AVR remote (which is not an arc or e-arc port, the sharc "is the eARc" part of any AVR hdmi input it is plugged into) and I tell the LG remote to switch to the PC hdmi input again.

It requires switching using both the avr remote's buttons and the mic command switching on the LG CX remote but it takes the CX out of the loop for the plex/emby client on the shield's sound output. I changed a few of my LG CX hdmi inputs from HDMI # to "PC" and "Shield" now.

Press DVR button on surround receiver --> Tell LG to "Switch to Shield" (switches to my HDMI 4)
---> Tell LG to "switch to stand mode" (which I edited) or to whatever viewing mode you want if it's not already on the one you want at that time or for that material.

Press GAME button on the surround receiver (game is the AVR hdmi input I have the sharc is connected to) ---> Tell LG to "switch to PC" (my HDMI 3)
----> Tell LG to "switch to game mode" or whatever viewing mode if necessary

The CX will remember which mode you have each input on so you don't need the 2nd step normally unless you want to change modes for different content for some reason. So typically it's just:

press appropriate DVR remote button (DVR or GAME) ---> tell LG remote to "Switch to" Shield or PC

Last edited:

ZeqOBpf6

Gawd
Joined
Aug 24, 2014
Messages
721
Thanks Elvn, I saw your posts when searching but it was a little out of my league :)

What a shame, thanks for the info anyways, nutop. Between that and the lol_100Mbit_ethernet that really bums me out.


nutop

n00b
Joined
Jan 19, 2004
Messages
45
just IMO but i much prefer the shield to the built in apps. however, if you don't have an AVR, that's still an issue.


lludson

n00b
Joined
Jan 19, 2011
Messages
60
Does anyone have issues running 4k 120 hz? I can't seem to get it set and have been running in 1440p 120hz.

I am running a new 3090 card, and figured it was my old XP Titans that weren't allowing me to get into 4k 120 hz, but I have the same problem.

In the ULTRA HD resolution section, 4k x 2k 3840x2160 (Native) has 60hz being the highest hz I can choose. In the PC section, I try 3840 x2160 where I can get 120hz as a selection, but I get no signal and it reverts to my 1440p 120hz or I can get 4k at 60hz...

Am I doing something wrong? Quality cables here....


EDIT:
I am running three of these in a triple monitor setup. I just realised the right side TV going into the HDMI port on the 3090 can do 4k 120hz fine. I have the other two going from HDMI through Club adapters into the display ports. They'll both only do 4k 60hz.

Any ideas?

Last edited:

Porter_

[H]F Junkie
Joined
Sep 10, 2007
Messages
8,270
Does anyone have issues running 4k 120 hz? I can't seem to get it set and have been running in 1440p 120hz.

I am running a new 3090 card, and figured it was my old XP Titans that weren't allowing me to get into 4k 120 hz, but I have the same problem.

In the ULTRA HD resolution section, 4k x 2k 3840x2160 (Native) has 60hz being the highest hz I can choose. In the PC section, I try 3840 x2160 where I can get 120hz as a selection, but I get no signal and it reverts to my 1440p 120hz or I can get 4k at 60hz...

Am I doing something wrong? Quality cables here....
Maybe try another cable?


lludson

n00b
Joined
Jan 19, 2011
Messages
60
Hi Porter, I just updated my post, but here's my edit.

EDIT:
I am running three of these in a triple monitor setup. I just realised the right side TV going into the HDMI port on the 3090 can do 4k 120hz fine. I have the other two going from HDMI through Club 3d adapters into the display ports. They'll both only do 4k 60hz.

Any ideas?

Last edited:
Joined
Jul 13, 2012
Messages
59
Sorry for my ignorance but is there no easy way to get DTS audio to play on my LG TV?
You can turn off DTS in the LG WebOS's Plex app (or any plex client for that matter). Then plex will transcode DTS-MA 7.1/5.1 to PCM or multichannel AAC.

Forgive my ignorance, but is plex unable to transcode to 7.1 multichannel in a lossless codec (PCM, FLAC, etc.)? I mean, WebOS's built-in media player for USB drives supports decoding those audio codecs.

Between that and the lol_100Mbit_ethernet that really bums me out.
Maybe you're already aware, but WebOS supports some USB ethernet adapters which is a method to get upwards of 300mbps - the following one is commonly mentioned as being compatible (you can also find multiple mentions of people using it on LG OLED TVs in the user reviews):
https://www.amazon.com/dp/B00BBD7NFU


elvn

Supreme [H]ardness
Joined
May 5, 2006
Messages
4,121
Thanks Elvn, I saw your posts when searching but it was a little out of my league :)

What a shame, thanks for the info anyways, nutop. Between that and the lol_100Mbit_ethernet that really bums me out.
...
Forgive my ignorance, but is plex unable to transcode to 7.1 multichannel in a lossless codec (PCM, FLAC, etc.)? I mean, WebOS's built-in media player for USB drives supports decoding those audio codecs.


Maybe you're already aware, but WebOS supports some USB ethernet adapters which is a method to get upwards of 300mbps - the following one is commonly mentioned as being compatible (you can also find multiple mentions of people using it on LG OLED TVs in the user reviews):
https://www.amazon.com/dp/B00BBD7NFU

You can go into the settings on the plex client app in webOS and turn off the DTS checkbox. That forces your plex server to transcode the audio from the original source (e.g. DTS-MA) to PCM or AAC. So then at least you will have surround audio and be able to hear what was the DTS audio track. The LG CX won't pass through DTS audio to external sound devices at all, it doesn't have a chip to do so.

As I understand it any time transcoding happens there is some loss from the original because it's transcoding it, not re-muxing it. However I don't think plex is heavily downsampling the audio if that's what you mean. It's trying to just convert it on the fly but it can't do that as well as "re-baking" the whole file 1:1 by remuxing it in mastering software beforehand. Plex might also be transcoding the video signal somewhat if transcoding is active at all vs just passing through too.

-------------------------------------

So the cheapest fix that at least lets you hear the DTS soundtrack is disabling DTS in the plex client app in LG webOS and relying on plex to transcode the format on the fly with some loss.

You could alternately run a media player on windows (Emby theatre app lets you auto launch an external media player from it's library when you click a thumbnail if you use that app instead of Plex). You'd then be running sound outs from the pc, bypassing the tv for sound (PC optical to receiver or soundbar for example) and would be using madVR filter's HDR tonemapping turned on at 1000nit. HDR video wouldn't be as true to source that way and optical audio doesn't have the bandwidth for uncompressed HDMI audio formats but otherwise it would work.

The most faithful to the original content (but not cheapest) option is buying a separate player like a nvidia shield and porting it through a surround receiver (or to other options, below) and then send the video signal to the TV rather than passing audio through the TV at all for that source.

--------------------------------------

Apparently a few releases ago, this was enabled for the nvidia shield:
Shield@NVIDIA
10mo
If all goes as planned, the next release will bring the ability to override the Default audio output selection and allow you to choose hdmi, usb or bt and then specific devices within usb or bt. Have a tear build of this running at my place now and it’s working well.

So you could theoretically output a shield's sound to a usb sound device with audio breakout ports or to a bluetooth speaker or Bt speaker system, headset, etc. rather than to a AVR/surround receiver.

Last edited:

Armenius

Fully [H]
Joined
Jan 28, 2014
Messages
25,360
Hi Porter, I just updated my post, but here's my edit.

EDIT:
I am running three of these in a triple monitor setup. I just realised the right side TV going into the HDMI port on the 3090 can do 4k 120hz fine. I have the other two going from HDMI through Club 3d adapters into the display ports. They'll both only do 4k 60hz.

Any ideas?
DisplayPort 1.4 doesn't have enough bandwidth to run 4K 120 Hz with 10-bit color or higher. You should be able to get 120 Hz if you set the color to 8-bit RGB, or change the color space to YCbCr 4:2:2.


lludson

n00b
Joined
Jan 19, 2011
Messages
60
Ok thanks. Disappointing. I will try that and report back later. At least I can run 4k120 for games I only single screen on...but damn...


mirkendargen

Limp Gawd
Joined
Dec 29, 2006
Messages
362
DisplayPort 1.4 doesn't have enough bandwidth to run 4K 120 Hz with 10-bit color or higher. You should be able to get 120 Hz if you set the color to 8-bit RGB, or change the color space to YCbCr 4:2:2.
The Club3d adapter uses DSC to allow 4k/120hz 10bit RGB from DP1.4 and outputs an HDMI 2.1 signal. It should support 4k/120hz 10bit RGB on the TV's, just no VRR.

Top
