Prototype 4x Titan V

Discussion in 'Case Mod Gallery' started by Venturi, Dec 13, 2017.

  1. Venturi

    Venturi [H]Lite

    Messages:
    107
    Joined:
    Nov 23, 2004

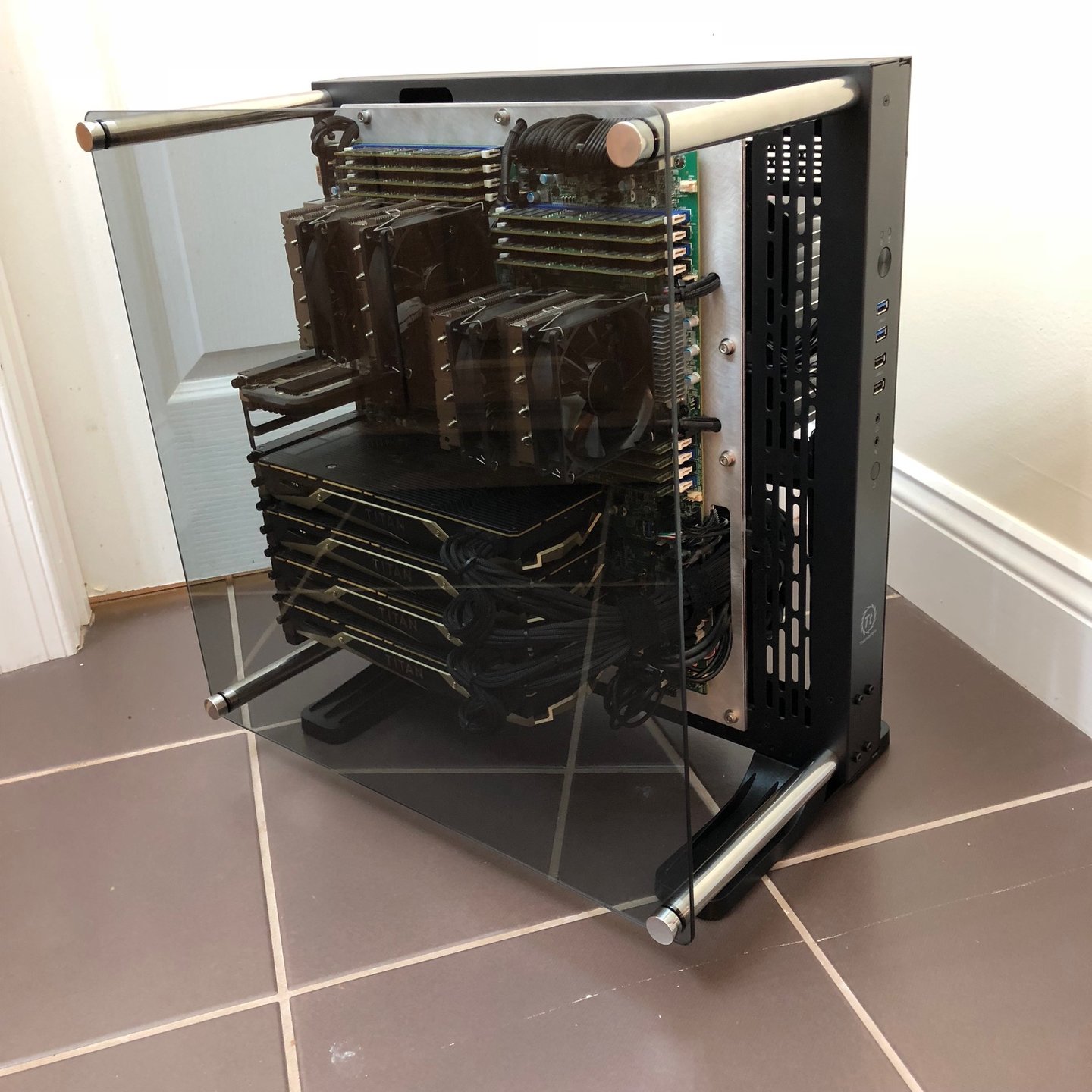

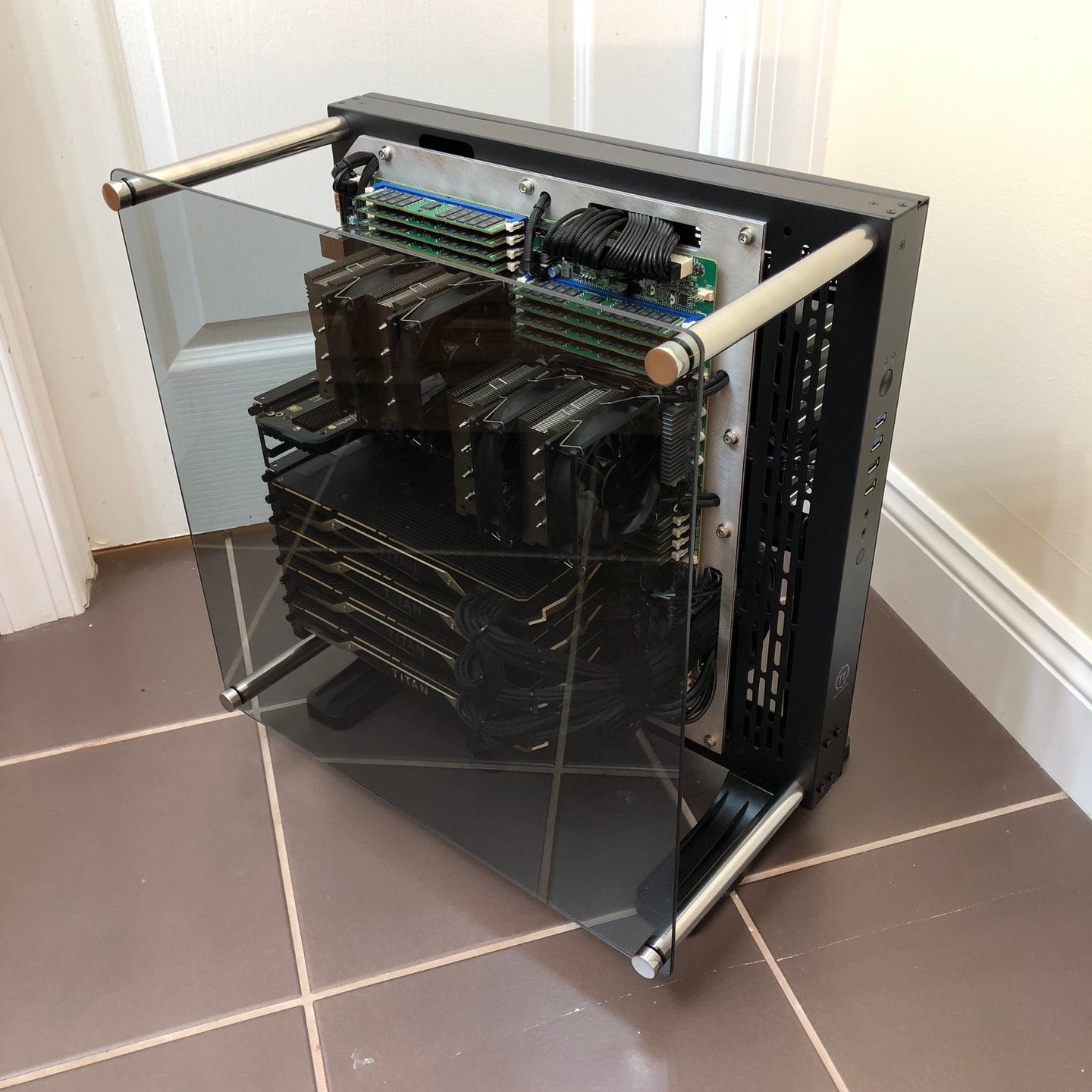

    I decided to build a compact, small but powerful pc in a desktop /mid size .

    Here’s what I built tonight


    Prototype 1 (my personal pc)

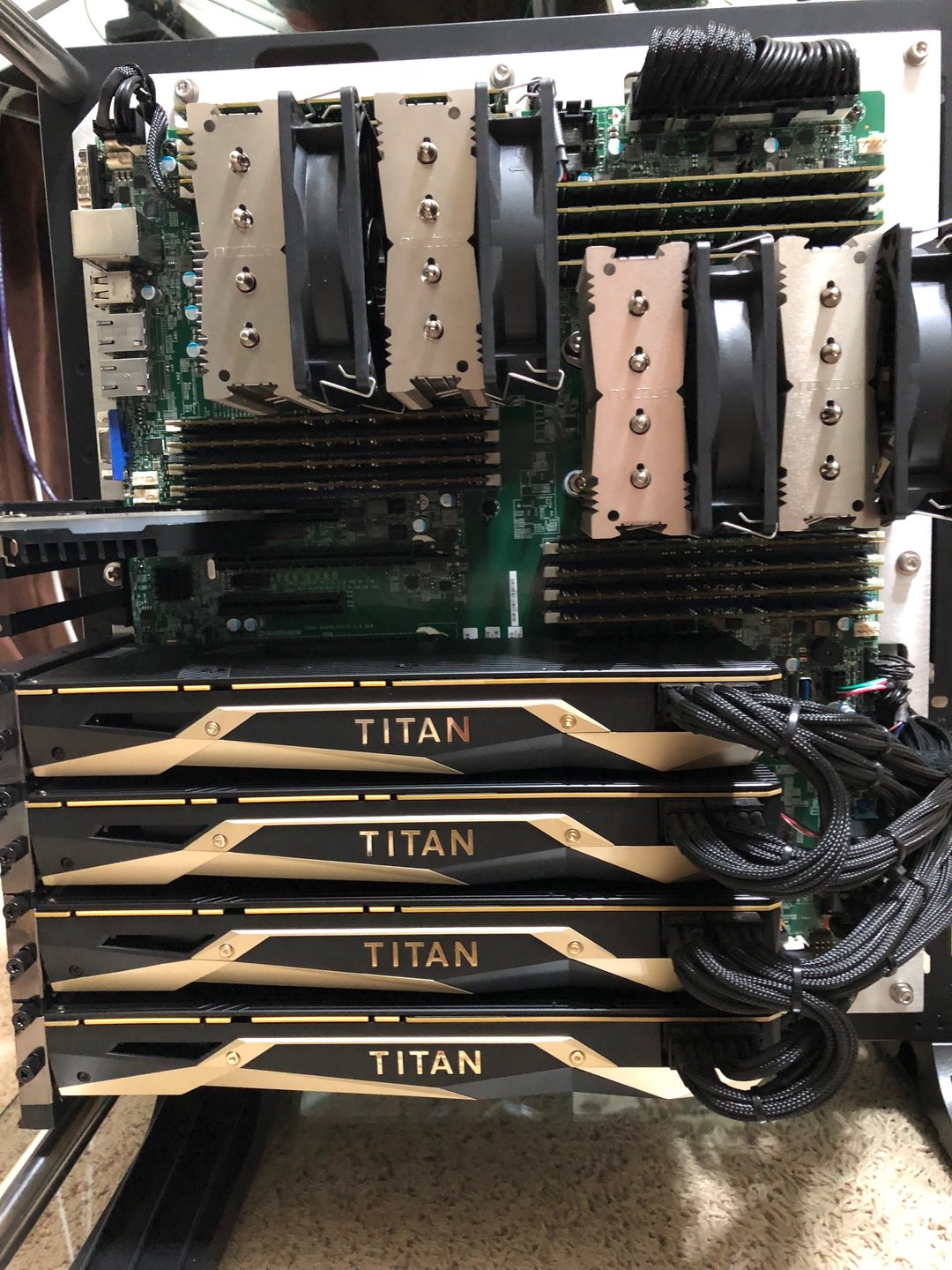

    Dual Xeon E5-2699 v4 44 cores / 88HT
    Super micro X10DRG-Q ver 1.10

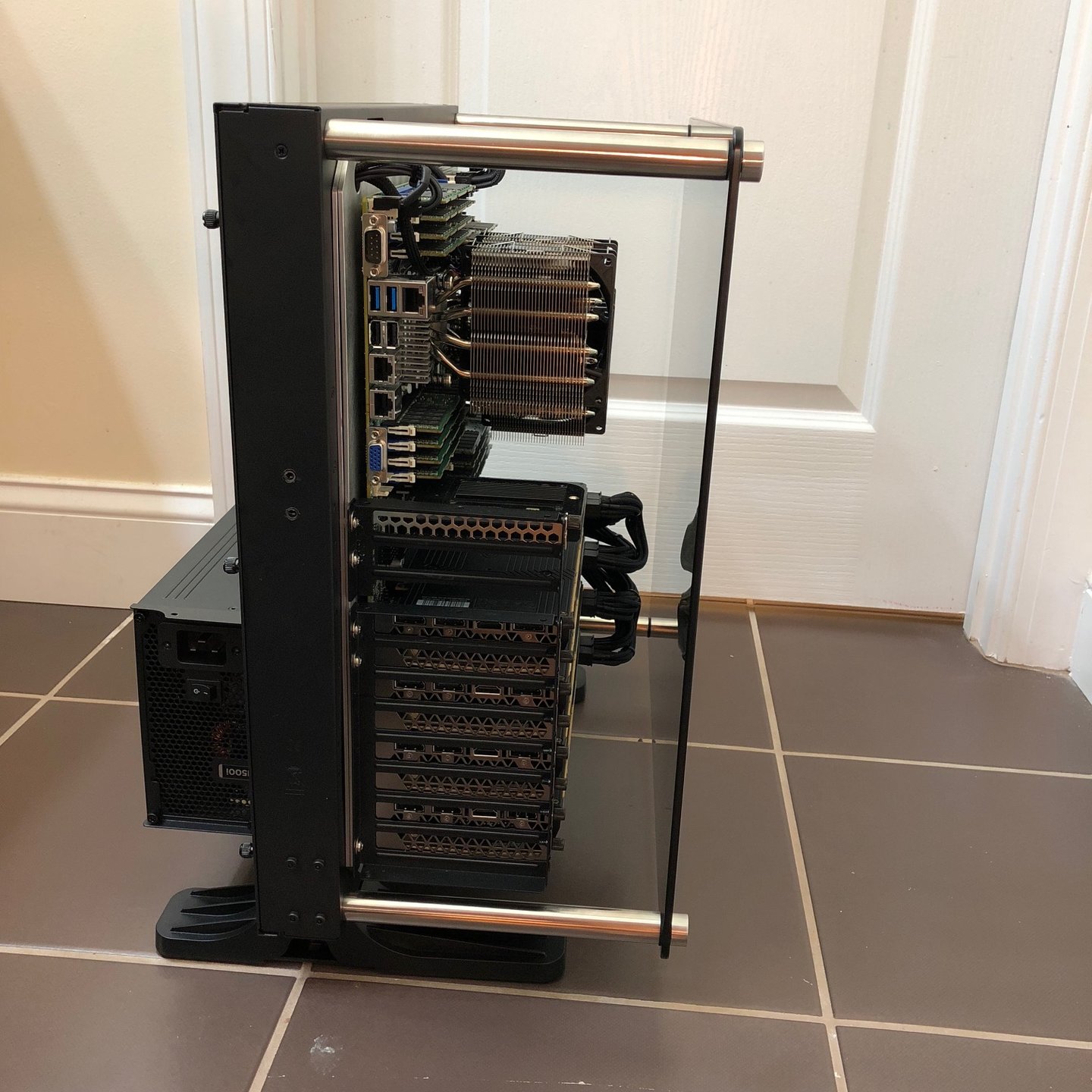

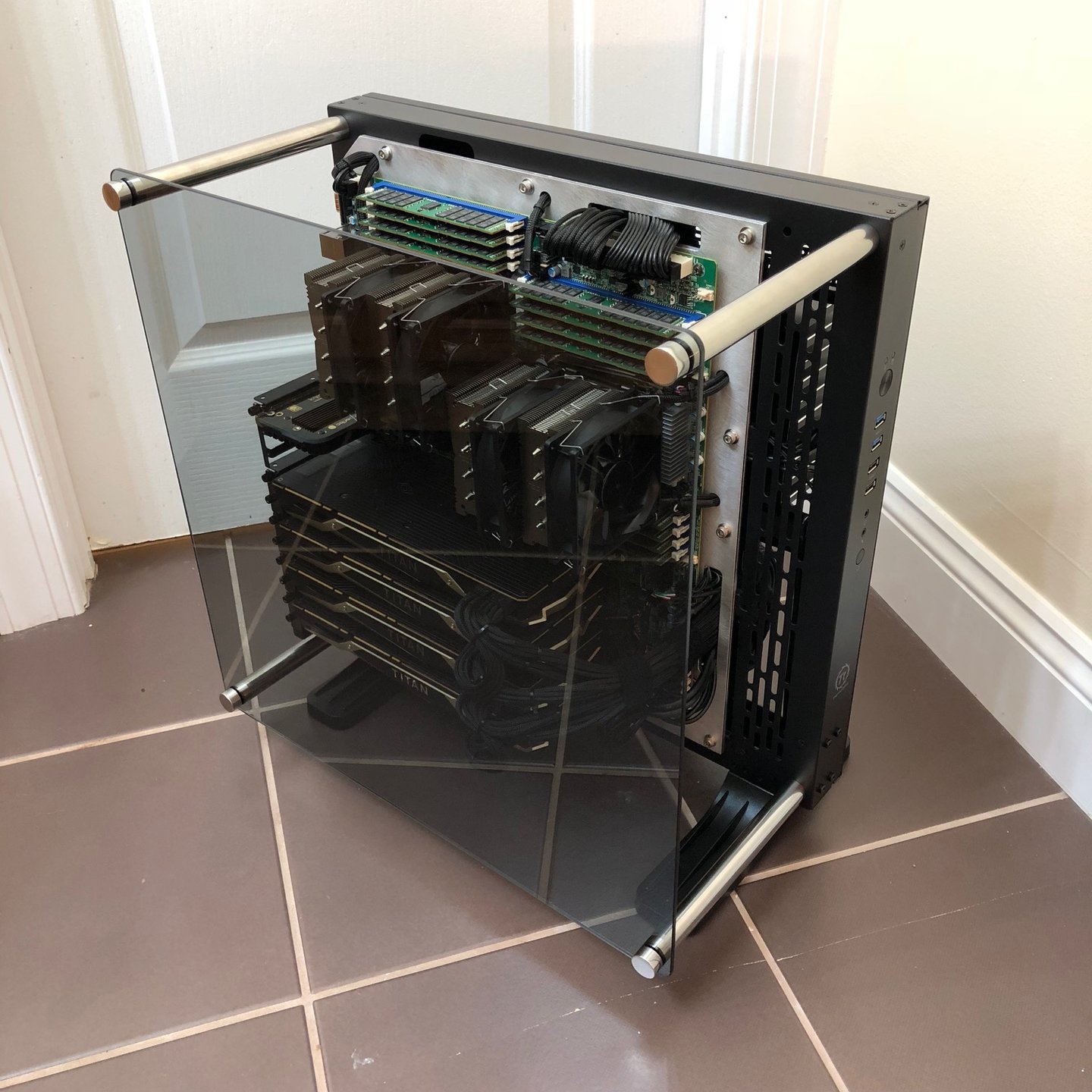

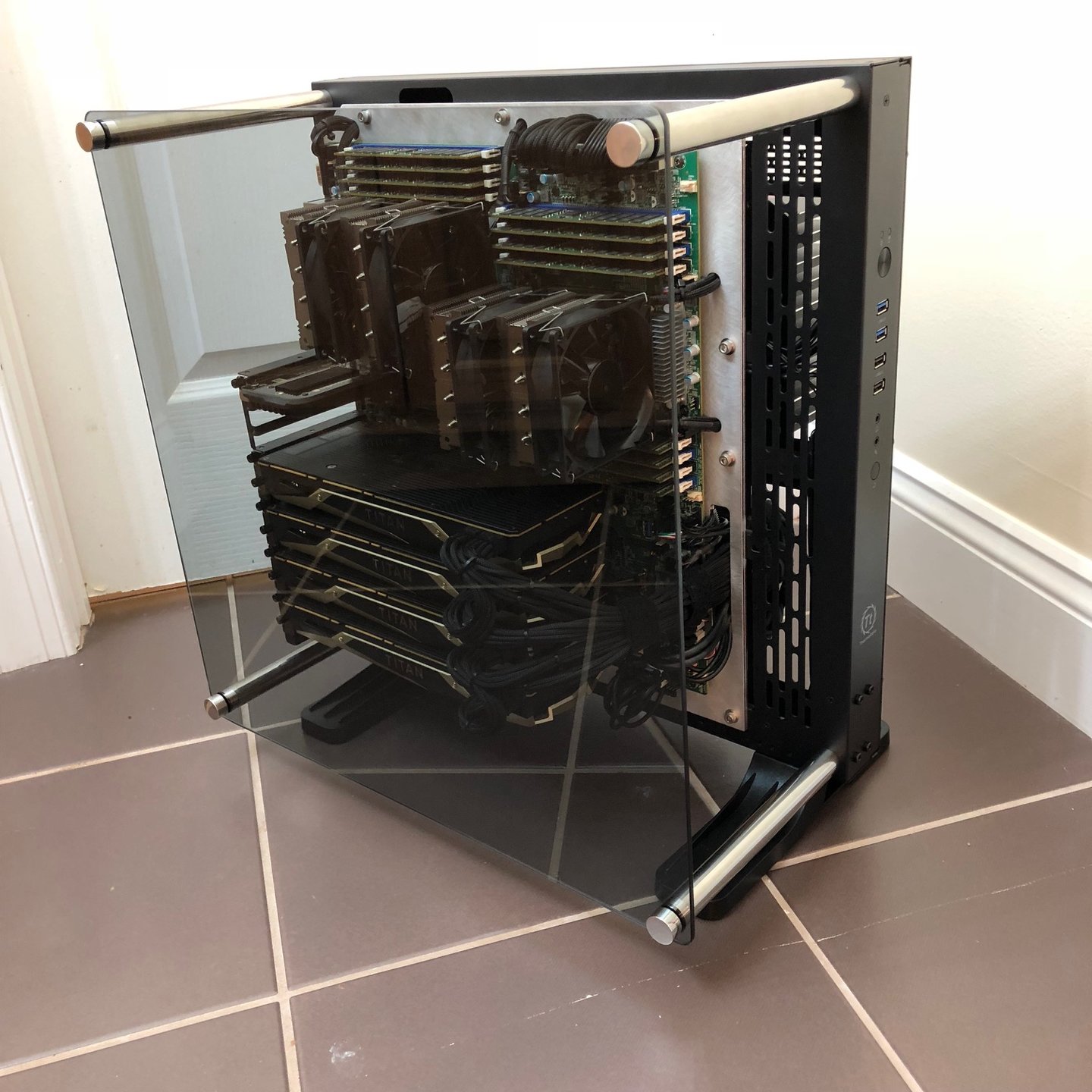

    Heavily customized Th P3 case / glass panel
    1 960 pro (2TB) (Os drive)
    10 Samsung 850 (2TB each) RAIDed (Apps Drive)
    512 GB RAM

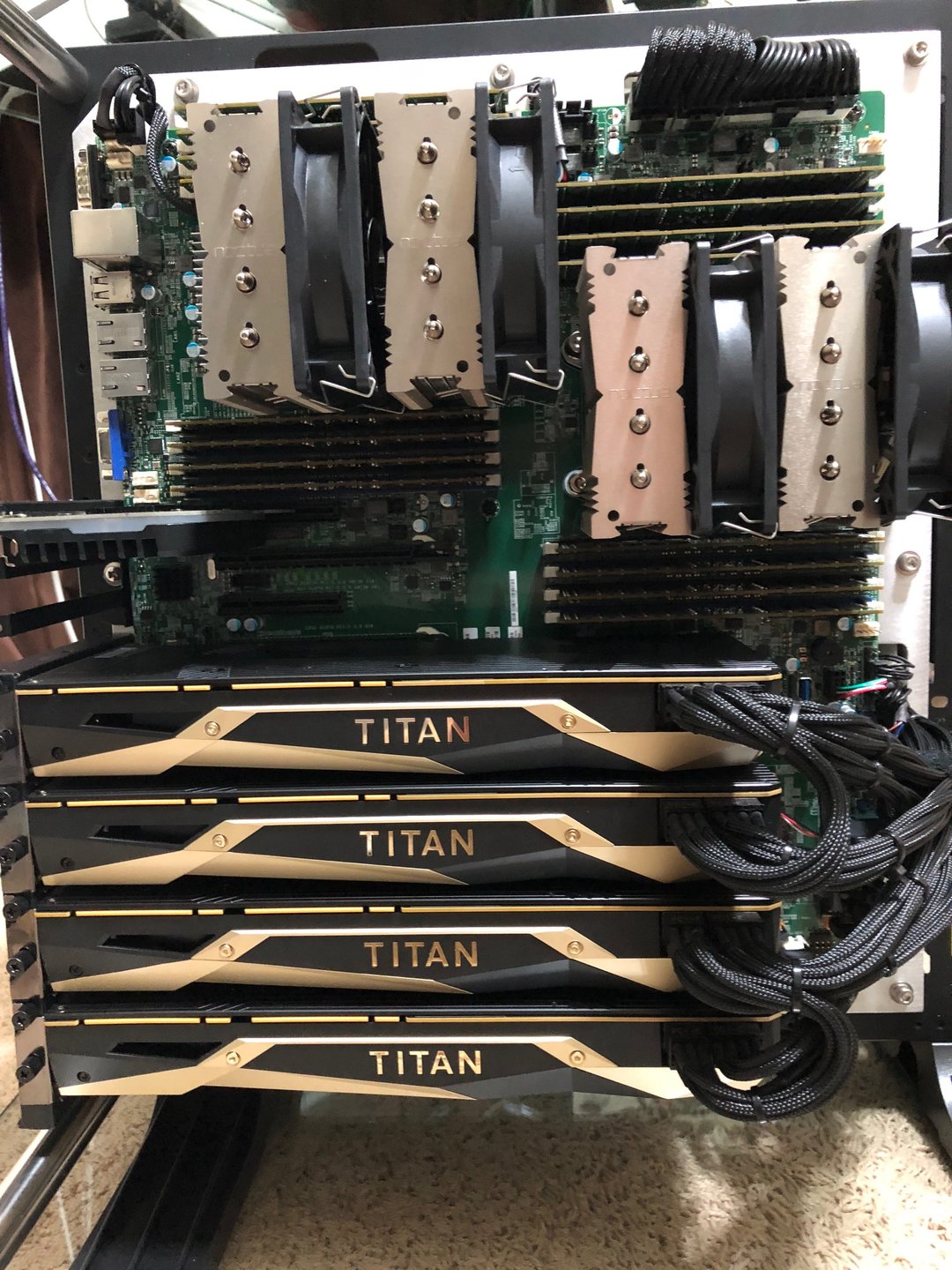

    4x TITAN V
    1500W+ digital tiatanium PSU
    Ubuntu, MS 2012 Server R2, MS 2016 Server
    4k ProArt 329q monitor

    Used for research, medical imaging, nuc med, isotopes, DB, and games










    View attachment 46240

    Last edited by a moderator: Dec 13, 2017
    the901, DraginDime, Fleat and 58 others like this.
  2. Kyle_Bennett

    Kyle_Bennett El Chingón Staff Member

    Messages:
    50,647
    Joined:
    May 18, 1997
    Wow.

    the901, DTN107, drescherjm and 30 others like this.
  3. Tsumi

    Tsumi [H]ardForum Junkie

    Messages:
    12,453
    Joined:
    Mar 18, 2010
    I think that's all that needs to be said.

  4. doubletake

    doubletake Limp Gawd

    Messages:
    449
    Joined:
    Apr 27, 2013

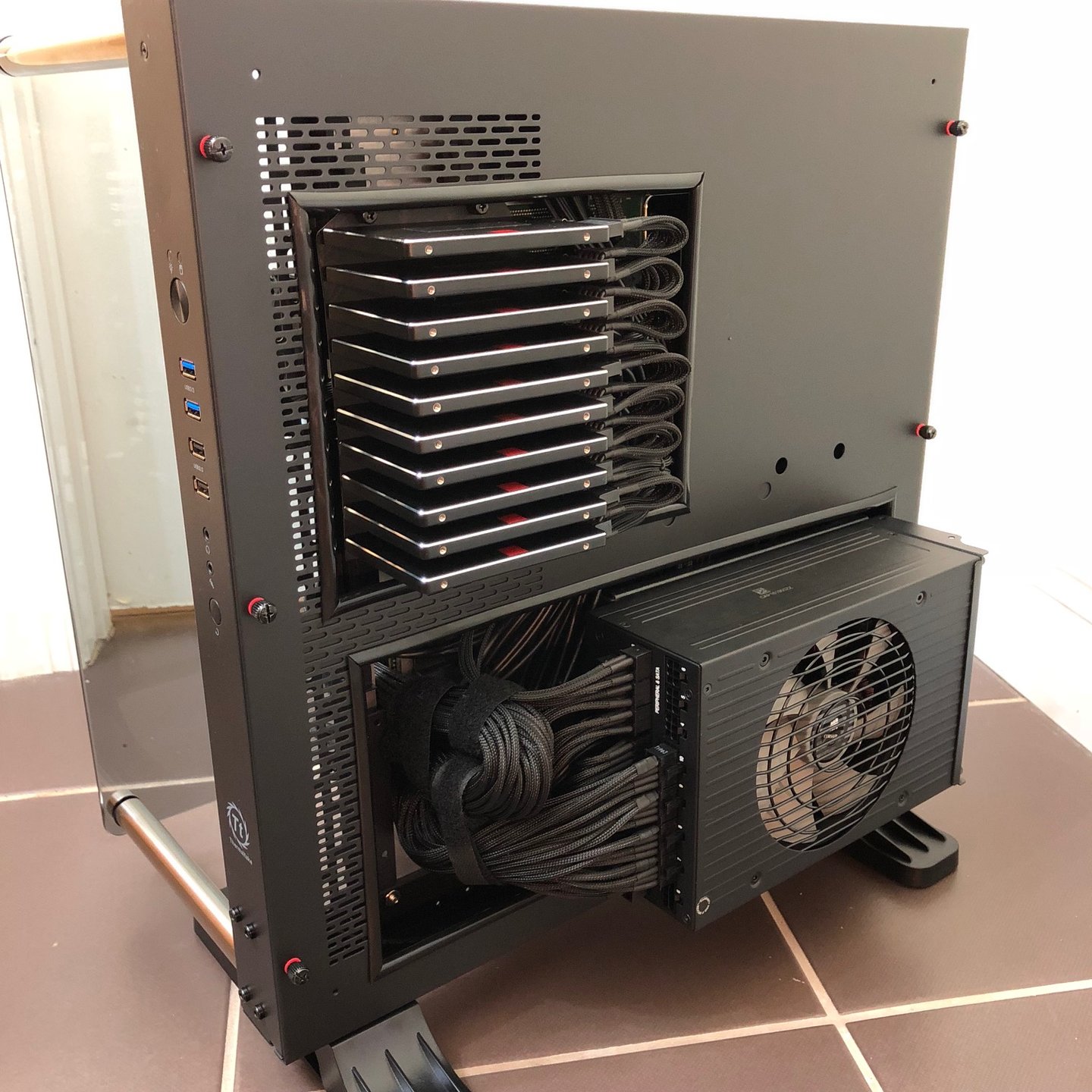

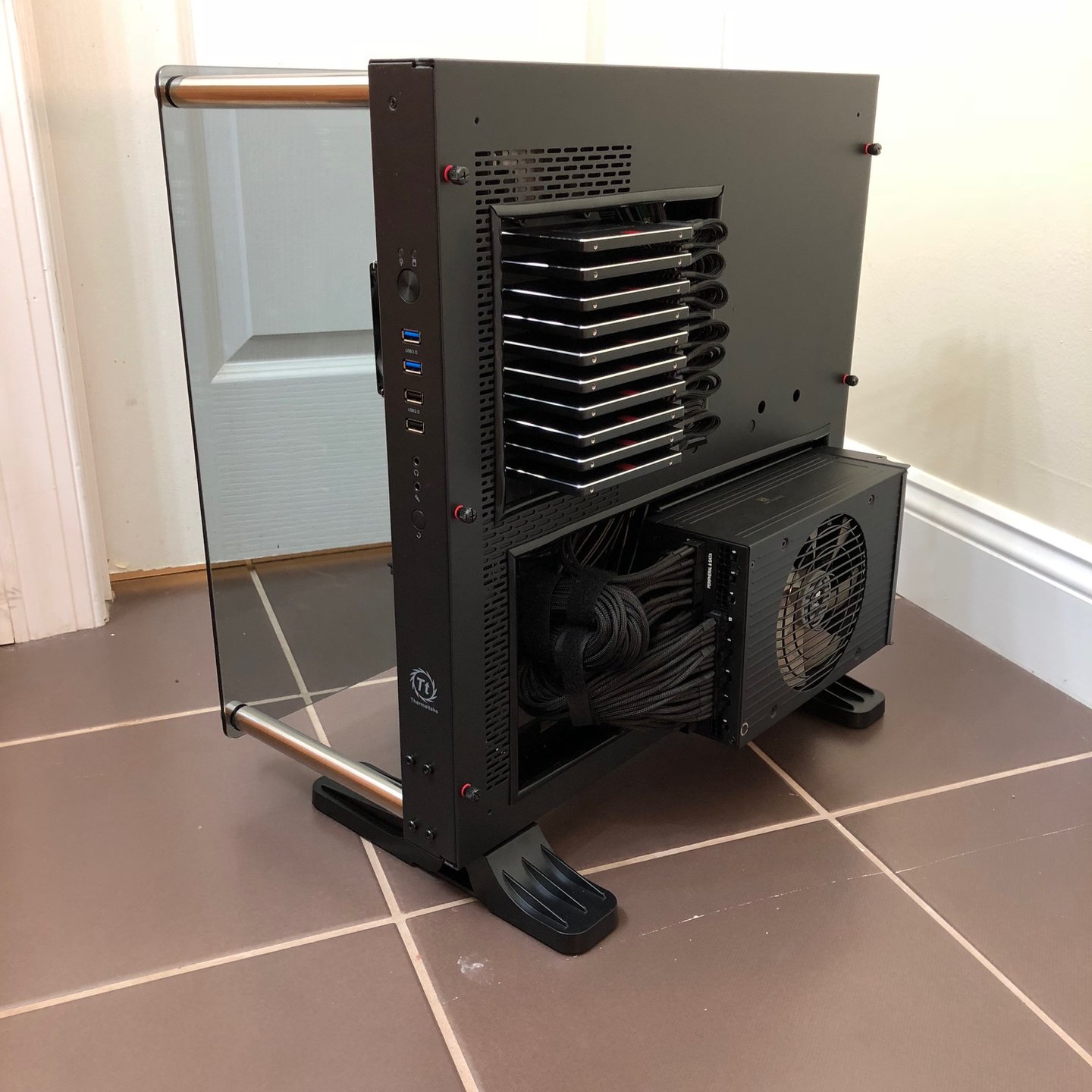

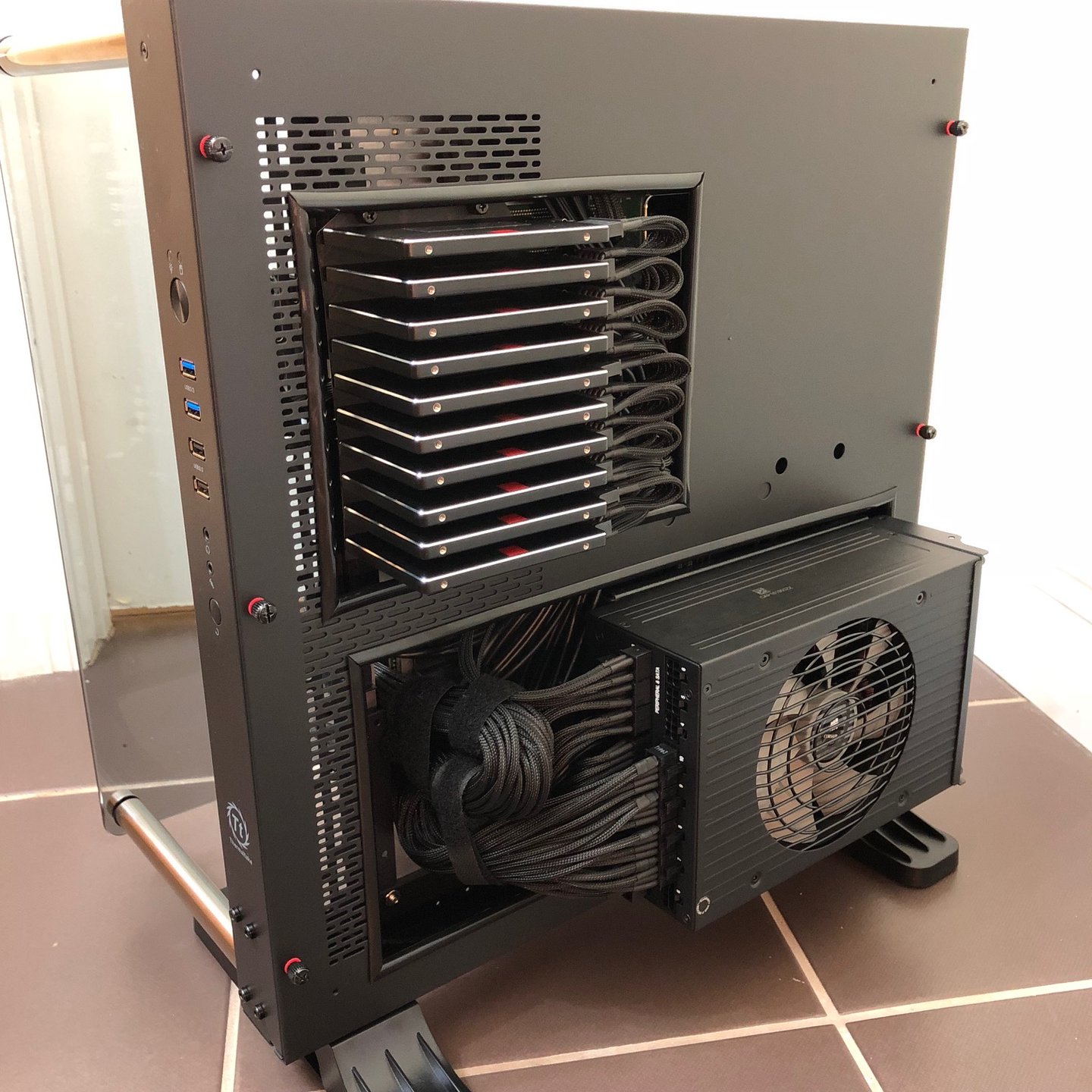

    Funny enough, out of all of that sexy hardware, the SSD layout is what gets me the most. Never would've imagine in the past that Thermaltake could have a nice looking case that was plenty functional as well.

    Ranulfo, RaxusCraxurFace and Armenius like this.
  5. JRUHg

    JRUHg Limp Gawd

    Messages:
    370
    Joined:
    Jan 5, 2016
    how to get 4 them?

  6. Zepher

    Zepher [H]ipster Replacement

    Messages:
    16,000
    Joined:
    Sep 29, 2001
    How did you get 4 cards?

  7. Zepher

    Zepher [H]ipster Replacement

    Messages:
    16,000
    Joined:
    Sep 29, 2001
    Well, I am not posting any more pics of my system, lol.

    Wish I could give his post more than 1 like, it deserves at least 4.

  8. WestSidaz

    WestSidaz Limp Gawd

    Messages:
    156
    Joined:
    Jan 13, 2011
    Holy mother of god :eek:

    otherweeb likes this.
  9. firas

    firas 2[H]4U

    Messages:
    2,410
    Joined:
    Oct 29, 2006
  10. SnowBeast

    SnowBeast [H]ard|Gawd

    Messages:
    1,075
    Joined:
    Aug 3, 2003
    Yeah, but can it play Crysis at 5K while curing cancer and bitcoin mining?

    drescherjm, rgMekanic, T4rd and 7 others like this.
  11. StormClaw

    StormClaw Gawd

    Messages:
    538
    Joined:
    Jun 10, 2009
    How loud such an open build is ?

  12. geok1ng

    geok1ng [H]ard|Gawd

    Messages:
    2,004
    Joined:
    Oct 28, 2007
    air cooling allows the system to keep a clean look. my 4p opteron resembles a monster from Lovecraft tales.

    Elios, razor1 and Armenius like this.
  13. FlawleZ

    FlawleZ Limp Gawd

    Messages:
    435
    Joined:
    Oct 20, 2010
    I knew it was a only a matter of time before someone posted quad SLI Titan V. That build is beautiful.

    DrezKill likes this.
  14. longblock454

    longblock454 [H]ard|Gawd

    Messages:
    1,569
    Joined:
    Nov 28, 2004

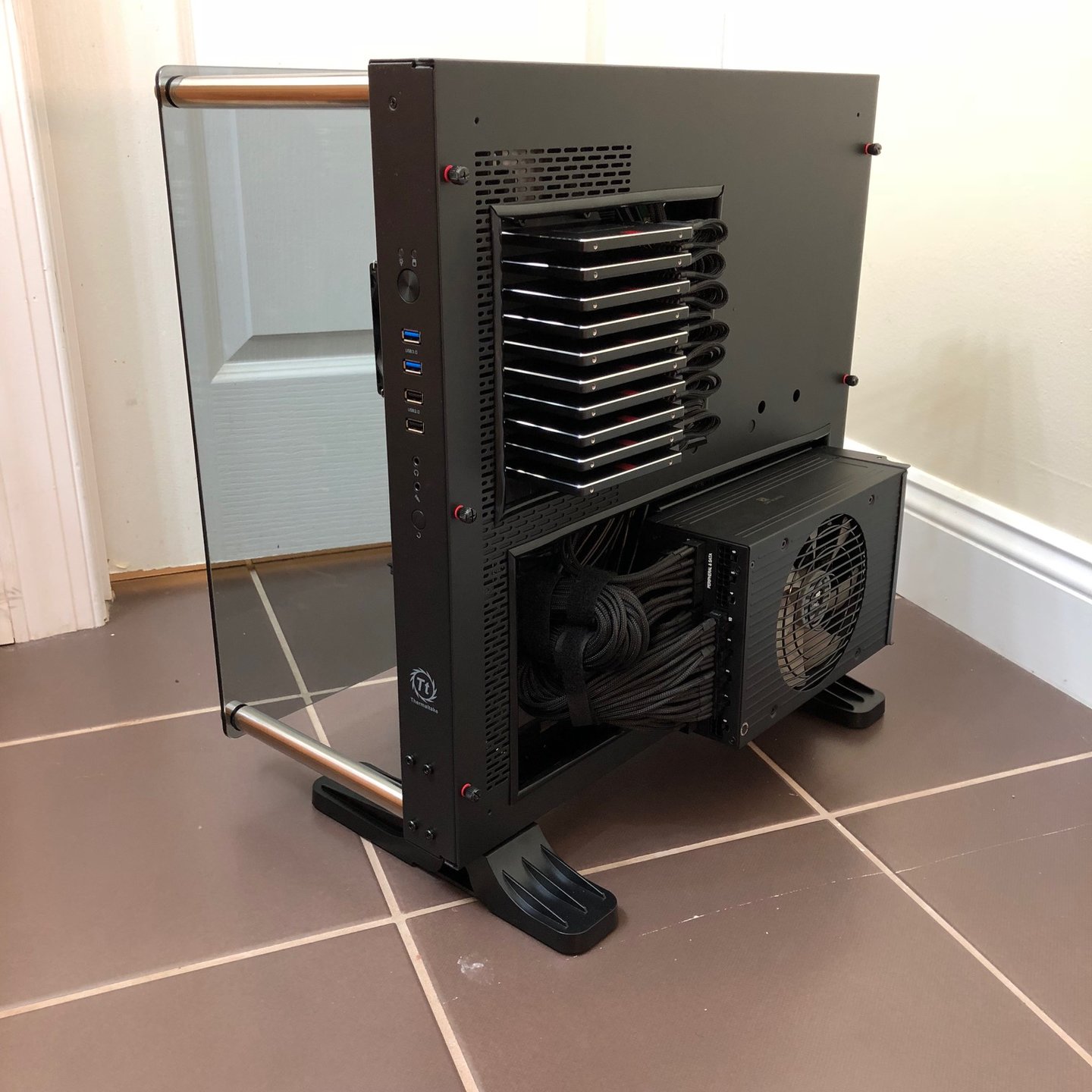

    Very nice, especially like the SSD stack.

  15. mnewxcv

    mnewxcv [H]ardness Supreme

    Messages:
    5,705
    Joined:
    Mar 4, 2007
    Bros, this fucking guy's user name is minimalist. Sweet Jesus.

  16. Venturi

    Venturi [H]Lite

    Messages:
    107
    Joined:
    Nov 23, 2004

    no, it not loud and runs quite cool:


    Its whisper quiet at idle, really.
    CPU coolers are from noiseblocker and are motherboard auto throttled to about 600rpm at idle
    Titans are quiet at idle

    under load, you can hear the titans but its not bad or intrusive

    In a 72'F room CPU temps at idle are 75'F-79'F under load they get as high as 96'F (35'C)
    In a 72'F room the Titans V's are 97'F under load the get as high as 172' F (78'C)

    I made it an open design on purpose

    Last edited by a moderator: Dec 13, 2017
  17. JRUHg

    JRUHg Limp Gawd

    Messages:
    370
    Joined:
    Jan 5, 2016
    what ram usage? 512GB :oops:

  18. mnewxcv

    mnewxcv [H]ardness Supreme

    Messages:
    5,705
    Joined:
    Mar 4, 2007
    Thats more than my ssd

    BHenry and JRUHg like this.
  19. gigatexal

    gigatexal [H]ardness Supreme

    Messages:
    7,287
    Joined:
    Jun 22, 2004
    Fail. The SSDs could have been some more enterprise grade than 850 pros especially for DB work. Otherwise that’s the most over the top computer I’ve ever seen.

    Also the Titan Vs already shipped? Weren’t they just announced?

  20. dvsman

    dvsman [H]ard|Gawd

    Messages:
    1,529
    Joined:
    Dec 2, 2009
    /pickupjawfromfloor

    AceGoober likes this.
  21. Ocellaris

    Ocellaris Ginger @le, an alcoholic's best friend.

    Messages:
    18,620
    Joined:
    Jan 1, 2008
    People have had Vs since Saturday.

    gigatexal and Armenius like this.
  22. Zepher

    Zepher [H]ipster Replacement

    Messages:
    16,000
    Joined:
    Sep 29, 2001
    They were in stock and ready to ship the day they announced the card.

    gigatexal likes this.
  23. Stoly

    Stoly [H]ardness Supreme

    Messages:
    5,560
    Joined:
    Jul 26, 2005
    F*ck research lets see it mining ETH at 350+mhs

    Armenius likes this.
  24. Armenius

    Armenius [H]ardForum Junkie

    Messages:
    12,944
    Joined:
    Jan 28, 2014
    If anyone is wondering, the price of this PC is just about $34,000 according to my calculations.

    Is that power supply enough for that system? Going by TDP, worst case scenario:
    Titan V: 250W * 4 = 1000W
    E5-2699 v4: 145W * 2 = 290W
    850 Pro (1TB?): 2.4W * 10 = 24W
    960 Pro 2TB: 1.24W * 1 = 1.24W
    32GB DDR4 DIMM: 12W * 16 = 192W

    I don't know what fans you're using on those Noctua D9L, but the ones it comes with operate at 1.2W * 2 = 2.4W.

    Add that all up and you're at slightly over 1500W. The CPU always actually uses more than its rated TDP under real world loads by as much as 15-20%, so that is another potential 60W.
    Not SLI. Would have been nice if those NVLink fingers were active, though. 2-way NVLink bridges start at $600 a piece. The bridges are custom order, though, and I can't find a quote on how much a 4-way bridge would cost.

    Last edited: Dec 13, 2017
    Archaea and AceGoober like this.
  25. mnewxcv

    mnewxcv [H]ardness Supreme

    Messages:
    5,705
    Joined:
    Mar 4, 2007
    I mean, he already paid for the system, might as well mine when the machine isnt in use.

    AceGoober and Armenius like this.
  26. Araxie

    Araxie [H]ardness Supreme

    Messages:
    5,988
    Joined:
    Feb 11, 2013
    our medical research machines are working 24/7 it's the very same reason why I can't add more machines to the [H] dtcom team.. so I guess he will be in the same status.

    about the thread, I just have to say holy mother of jeez.. that's an amazing piece of machine, probably best looking enterprise design ever seen in my life, im not used to see that kind of clean job in such kind of rigs, that's above enthusiast level.

  27. AlphaQup

    AlphaQup Limp Gawd

    Messages:
    142
    Joined:
    Oct 27, 2014
    We have some extremely high end BOXX systems here at work for Additive simulation that I get to drool over once and a while....

    And you just put those to shame. Easily.

    Dear lord....

  28. Supercharged_Z06

    Supercharged_Z06 [H]ard|Gawd

    Messages:
    1,915
    Joined:
    Nov 13, 2006
    Just add a handle up top for taking it to LAN parties and you'd be all set. :p

    Nice, clean build. Shame that those Titan V's don't SLI... for you know, properly applying them to the "and games" bit.

    That's a lot of computer in a small package. Impressive!

    Last edited: Dec 13, 2017
    AceGoober and Armenius like this.
  29. pfc_m_drake

    pfc_m_drake [H]ard|Gawd

    Messages:
    1,050
    Joined:
    Jan 7, 2004
    I will say this...it's anything BUT a Minimalist build!

    AceGoober, razor1 and Armenius like this.
  30. Stoly

    Stoly [H]ardness Supreme

    Messages:
    5,560
    Joined:
    Jul 26, 2005
    Well, they could still do multi-gpu rendering in DX12/Vulkan if any game ever supports it.

  31. ssnyder28

    ssnyder28 2[H]4U

    Messages:
    2,828
    Joined:
    May 9, 2012
    Crazy but so awesome

  32. OhioBuckeye83

    OhioBuckeye83 n00bie

    Messages:
    1
    Joined:
    Feb 25, 2016
  33. Zepher

    Zepher [H]ipster Replacement

    Messages:
    16,000
    Joined:
    Sep 29, 2001
    I posted the pics and specs on a facebook group I am in and they appear to like it, lol
    hope you don't mind.


  34. Loose Nut

    Loose Nut Limp Gawd

    Messages:
    265
    Joined:
    Oct 21, 2009
    "a member on a forum"... OUCH

    How about

    This is freaking awesome
    Minimalist over at [H]ardocp.com

  35. darrpara

    darrpara Gawd

    Messages:
    610
    Joined:
    Apr 26, 2011
    This is honestly one of the more impressive things I have seen posted on this site. Just amazing

    atp1916 likes this.
  36. Zepher

    Zepher [H]ipster Replacement

    Messages:
    16,000
    Joined:
    Sep 29, 2001
    I wanted to respect his privacy. I'll edit the post.

  37. ToyYoda03

    ToyYoda03 [H]ard|Gawd

    Messages:
    1,575
    Joined:
    Jun 1, 2004
    You could have like 10 tabs open in Chrome with that much RAM

  38. drklu

    drklu [H]ard|Gawd

    Messages:
    2,035
    Joined:
    Jul 15, 2013
    How are the temps on the gpus?

  39. Araxie

    Araxie [H]ardness Supreme

    Messages:
    5,988
    Joined:
    Feb 11, 2013
    Check post number 16... 78°C.

  40. drklu

    drklu [H]ard|Gawd

    Messages:
    2,035
    Joined:
    Jul 15, 2013
    Not bad at all considering how much gpu power is wrapped into a small area. Awesome build.
