Post Your Workstations 2017

Discussion in 'Case Mod Gallery' started by EngrChris, Jan 1, 2017.

  1. EngrChris

    EngrChris Gawd

    Messages:
    834
    Joined:
    Dec 28, 2008
    Happy New Year with 2017!

    [​IMG]

    FrEaKy likes this.
  2. Zepher

    Zepher [H]ipster Replacement

    Messages:
    16,892
    Joined:
    Sep 29, 2001
  3. thelead

    thelead 2[H]4U

    Messages:
    2,089
    Joined:
    May 28, 2005
    Last edited: Jan 2, 2017
    H1HID, gigatexal, NeoGohan and 5 others like this.
  4. Hofy

    Hofy 2[H]4U

    Messages:
    2,473
    Joined:
    Jun 3, 2004
    The plan for 2017 is to build a new desk. Then a new chair.

    [​IMG][​IMG]

    Last edited: Jan 2, 2017
    ecktt likes this.
  5. Vicinity

    Vicinity 2[H]4U

    Messages:
    3,185
    Joined:
    Jan 30, 2009
    Cleaning desks now.

  6. Sandspur

    Sandspur n00b

    Messages:
    40
    Joined:
    Apr 29, 2011
    [​IMG]

    Not Much Has Changed.

  7. ranviper

    ranviper [H]ard|Gawd

    Messages:
    1,036
    Joined:
    Oct 4, 2010
  8. Celcius

    Celcius Limp Gawd

    Messages:
    172
    Joined:
    Oct 16, 2011
    Where did you get the piece of wood for the desk?

  9. Joe_coral

    Joe_coral [H]Lite

    Messages:
    75
    Joined:
    Feb 14, 2011
    Looks like a KARLBY from IKEA to me

  10. thelead

    thelead 2[H]4U

    Messages:
    2,089
    Joined:
    May 28, 2005
    What Joe_coral said. KARLBY from IKEA. I've had it for a year or so now and it's held up very well. Looking back though, I wish I would have gone with a lighter finish but it's an awesome tabletop. I might go out and switch it up again this year.

    http://www.ikea.com/us/en/catalog/products/10301149/#/30301148

  11. sinisterDei

    sinisterDei Gawd

    Messages:
    898
    Joined:
    Dec 1, 2004
    Here's mine:

    [​IMG]

    The size of the desk is hard to gauge in the picture - the right monitor is 30". It's a big desk.

    But where's the computer, you say?

    Well, mounted under the desk is a USB hub. Connected to that hub is a really long USB cable. Connected to each of the monitors is a really long HDMI and really long dual-link DVI cable respectively. Connected to the speakers is a really long audio cable. They all run off to the right, and then up into the ceiling which leads to the attic. They come out here:

    [​IMG]

    That's in the guest bedroom closet. The top PC is the one on the right monitor, which I use for gaming and general purpose websurfing.

    Below that is the PC that is used on the left monitor:

    [​IMG]

    This PC is a virtualization host, media archive (those are 3TB drives), and PLEX server. A VM running on it is where I do all of my work (I work from home).

    Keeping everything in the far-away closet (two rooms away) means zero heat and noise in the room with me.

  12. Susquehannock

    Susquehannock 2[H]4U

    Messages:
    3,446
    Joined:
    Jul 26, 2005

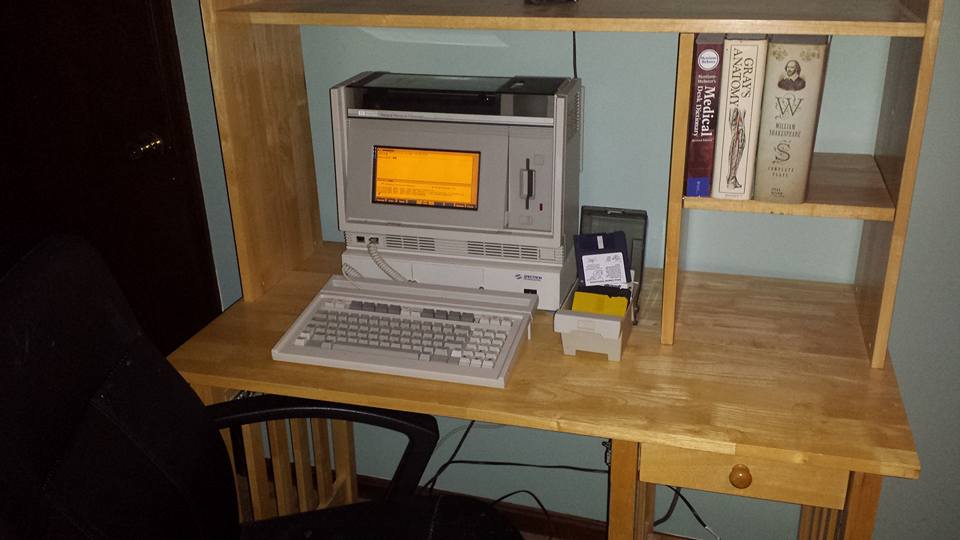

    Got my 1mb memory module installed, and box full of Floppys. Ready to get cracking!
    . hp1.jpg

  13. Snoflo

    Snoflo Limp Gawd

    Messages:
    199
    Joined:
    Feb 3, 2014
    Super! Med student?

  14. mangapc

    mangapc Limp Gawd

    Messages:
    314
    Joined:
    May 20, 2010
    Nice throwback

    Susquehannock likes this.
  15. Krenum

    Krenum [H]ardForum Junkie

    Messages:
    15,558
    Joined:
    Apr 29, 2005
  16. Zurginator

    Zurginator Gawd

    Messages:
    854
    Joined:
    Nov 16, 2009
    The time for world domination has come.

    [​IMG]

    phreak144, atp1916, Burticus and 14 others like this.
  17. spugm1r3

    spugm1r3 [H]ard|Gawd

    Messages:
    1,153
    Joined:
    Sep 28, 2012
    I've heard staring at the sun is bad for your eyes... I can only imagine sitting next to the sun is also bad for you.

    Mistral likes this.
  18. Commander Shepard

    Commander Shepard 2[H]4U

    Messages:
    3,822
    Joined:
    Apr 12, 2016
    I Am The God Of Hellfire!!

  19. kevral

    kevral n00b

    Messages:
    46
    Joined:
    Oct 6, 2004
    Very nice, and this is exactly what I am planning on doing!

    Would you mind sharing a little about the process of making it work properly? Do you have any lag due to the long cables? Are you using active cables? Are you getting full resolution on the monitors?

  20. sinisterDei

    sinisterDei Gawd

    Messages:
    898
    Joined:
    Dec 1, 2004
    No lag at all.

    I am definitely using active cables.

    Full resolution is available (1080p on the left monitor, 1600p on the right)

    For HDMI, (the left monitor) I'm using this cable: https://www.monoprice.com/product?c_id=102&cp_id=10255&cs_id=1025507&p_id=9172&seq=1&format=2
    For Dual-link DVI-D (right monitor) I'm using this cable: https://www.monoprice.com/product?c_id=102&cp_id=10209&cs_id=1020901&p_id=2185&seq=1&format=2

    Mounted under the desk is an 8-port USB 2 hub, connected via this cable: https://www.monoprice.com/product?p_id=6149
    On the right of the desk, there is a single USB 3 port, which is the end of *two* of these cables daisy-chained: https://www.amazon.com/Cable-Matters-SuperSpeed-Female-Extension/dp/B00DMFB5OK

    I used to use really long extension cables for the audio as well, but I've recently swapped to a USB soundcard connected to the 2.0 hub, because I did get some interference on the analog audio extension. This is likely caused because the cables have to run up into my attic and very close to some equipment (like my A/C furnace) up there. My mic is in the webcam.

    The only problems I've ever encountered were some weirdness with the USB 3 extension cables. They count as two hubs each, and USB defines the maximum number of hubs in a chain of 5. So with two of those cables, that's 4 hubs and if I plug a hub in on the end at my desk that makes 5. Well, if anything else gets plugged into the USB 3 ports on the PC, there is a mystery hub that appears on the PC end, making the hub on my desk #6 in the line instead of #5, and suddenly it stops working. Stupidly enough, unplugging whatever got plugged into the USB 3 on the PC does *not* undo the situation.

    In the end, I ran a longer USB 2 cable, since it was inexpensive and didn't have the same daisy-chaining requirement. Now I just keep the USB 3 cable there to plug in thumbdrives and external drives that need the USB 3 speed, and use USB 2 for everything else.

    The only other issue I ran into is my older motherboard didn't like accessing the BIOS with the keyboard and mouse plugged in through a hub, so whenever I had to use the BIOS I had to plug a monitor back into the system at the PC (drag one into the closet) and plug in a keyboard/mouse there direct to the system. My newer motherboard doesn't have that problem and works fine through the hubs.

    DisparateX and Scizyr like this.
  21. thefordmccord

    thefordmccord [H]ard|Gawd

    Messages:
    1,044
    Joined:
    Jun 20, 2001

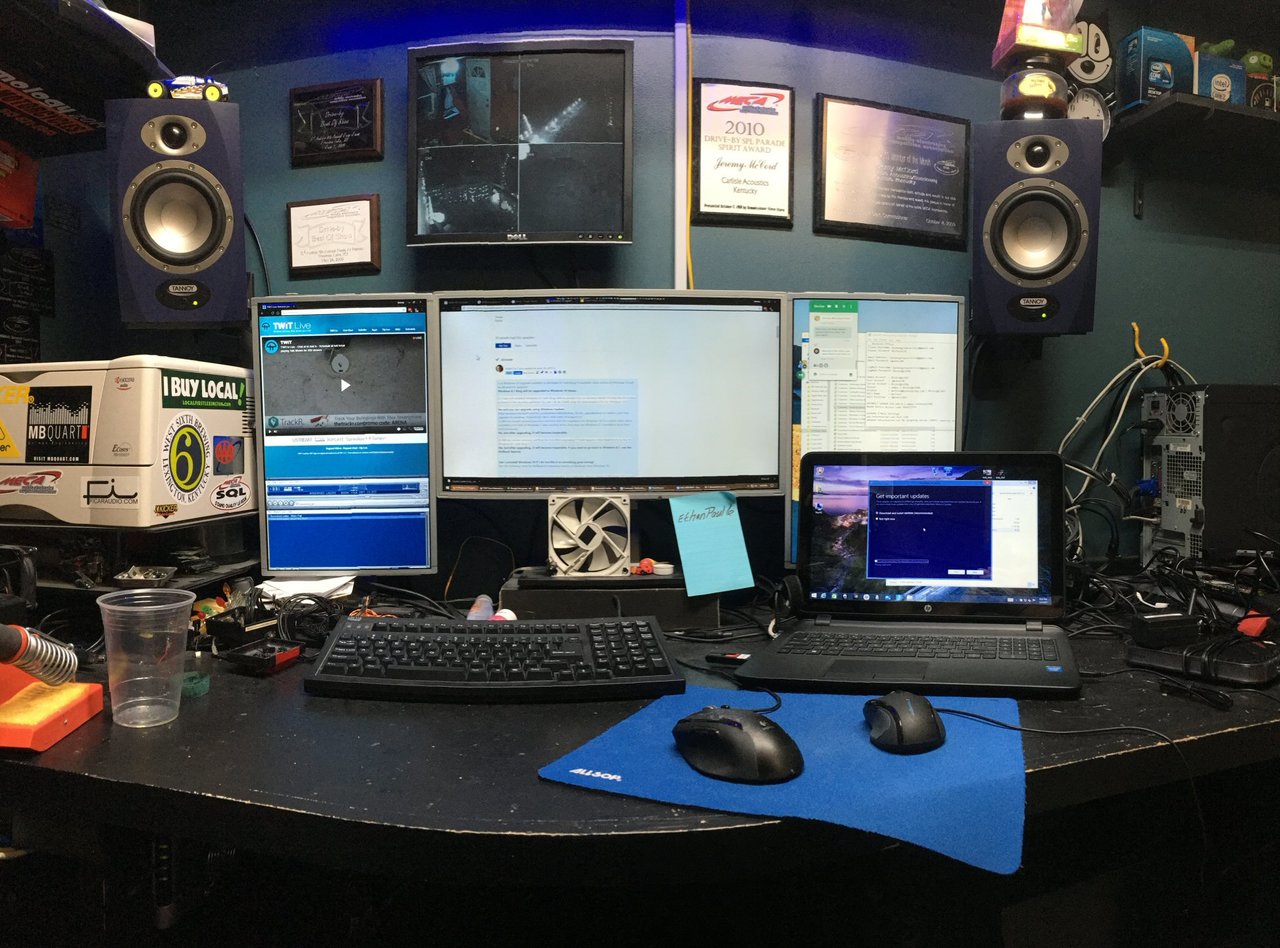

    Here is my messy corner.



    And here is my work bench.

    BitMaster and KazeoHin like this.
  22. kevral

    kevral n00b

    Messages:
    46
    Joined:
    Oct 6, 2004
    Thanks a lot!

    I've planned on placing my PC in the attic and this makes me a lot less worried. I was reading specs on USB and monitor cables, but couldn't find much info on whether using active cables would create any lag.

    Will post pics once I get my home office set up!

  23. spugm1r3

    spugm1r3 [H]ard|Gawd

    Messages:
    1,153
    Joined:
    Sep 28, 2012
    Perhaps it's my own paranoia, but I would have obscured the info on the plaques and the security cams... but I also refuse to sit with my back to the door in a conference room. So take that how you will.

  24. thefordmccord

    thefordmccord [H]ard|Gawd

    Messages:
    1,044
    Joined:
    Jun 20, 2001
    Eh, I don't really care. It's just my name.

    spugm1r3 likes this.
  25. SHiZNiLTi

    SHiZNiLTi Gawd

    Messages:
    927
    Joined:
    Jan 15, 2006
  26. SHiZNiLTi

    SHiZNiLTi Gawd

    Messages:
    927
    Joined:
    Jan 15, 2006
    I noticed the stickers on the printer...
    I run a 18" Fi BTL in 7cuft@31hz w/ 100sq.in. of port, powered by a Rockford T30001bd, it wangs hard!

  27. thefordmccord

    thefordmccord [H]ard|Gawd

    Messages:
    1,044
    Joined:
    Jun 20, 2001
    Sweet!! I used to have 3 15" Fi Qs in my wagon on a Sundown 3000D in a 12cf box tuned to 34. It got pretty nasty too. Now I have moved over to the other side and I'm currently doing a SQ install in my Scion TC.

  28. SHiZNiLTi

    SHiZNiLTi Gawd

    Messages:
    927
    Joined:
    Jan 15, 2006
    I actually have started to do the same haha. SPL was fun, but I'm older now and care more about SQ then hairtricks and flexing windows of buildings as I pass by :p

  29. SHiZNiLTi

    SHiZNiLTi Gawd

    Messages:
    927
    Joined:
    Jan 15, 2006
    Here's a few more pics of the setup at different angles and lighting effects.

    I created a frame for the acoustic foam and used a router to hide the LED strips behind it, looks much cleaner this way only having the ambient light.

    Let me know what you guys think.
    [​IMG]
    http://imgur.com/gallery/4quKM

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    ADD me if PTFO BF1 and want to win... SHiZNiLTi_OG

    Nanogrip, AlphaQup and spugm1r3 like this.
  30. Commander Shepard

    Commander Shepard 2[H]4U

    Messages:
    3,822
    Joined:
    Apr 12, 2016
  31. RogueTadhg

    RogueTadhg [H]ard|Gawd

    Messages:
    1,527
    Joined:
    Dec 14, 2011
    I felt like I was getting motion sickness from looking at the pictures. But pretty cool otherwise :)

    st4rk likes this.
  32. _bdiddy_

    _bdiddy_ n00b

    Messages:
    7
    Joined:
    Jan 24, 2011
    Finished this end of 2016.

    Monitor on the right is hooked up to a work laptop above. Monitor on the left is the gaming Dell 144Hz. PC is the Thermaltake P3, 6700K @ 4.7Ghz, Evga FE 1080. Surround sound gaming is done by the Nakamichi soundbar in the back and sub underneath the desk. The 2 pre-sonus speakers are for the Numark. I ran power behind the PC for now. I'm considering running all cables behind the PC when I can locate a right-angle DisplayPort cable.

    [​IMG]

    [​IMG]

    [​IMG]

    NeoGohan, ricson, NeloDiavolo and 8 others like this.
  33. sttubs

    sttubs Gawd

    Messages:
    626
    Joined:
    Oct 20, 2007
    What case is this?


  34. HDriscoll

    HDriscoll Limp Gawd

    Messages:
    416
    Joined:
    Jun 18, 2012
    sttubs likes this.
  35. SixFootDuo

    SixFootDuo [H]ardness Supreme

    Messages:
    5,524
    Joined:
    Oct 5, 2004

    Loving the security system / monitor. I want to do this myself I just do not want to drill into my landlords property. Waiting for a very good and cheap waterproof wireless solution. I find them occasionally but when I go and find reviews I always read horror stories. I'm guessing we need a few more years until this stuff is much better in terms of quality, ease of use and pricing.

    Last edited: Jan 24, 2017
  36. FrEaKy

    FrEaKy [H] Movie and TV Show Review Guy

    Messages:
    13,479
    Joined:
    Jan 31, 2003
  37. NoOther

    NoOther [H]ardness Supreme

    Messages:
    6,477
    Joined:
    May 14, 2008

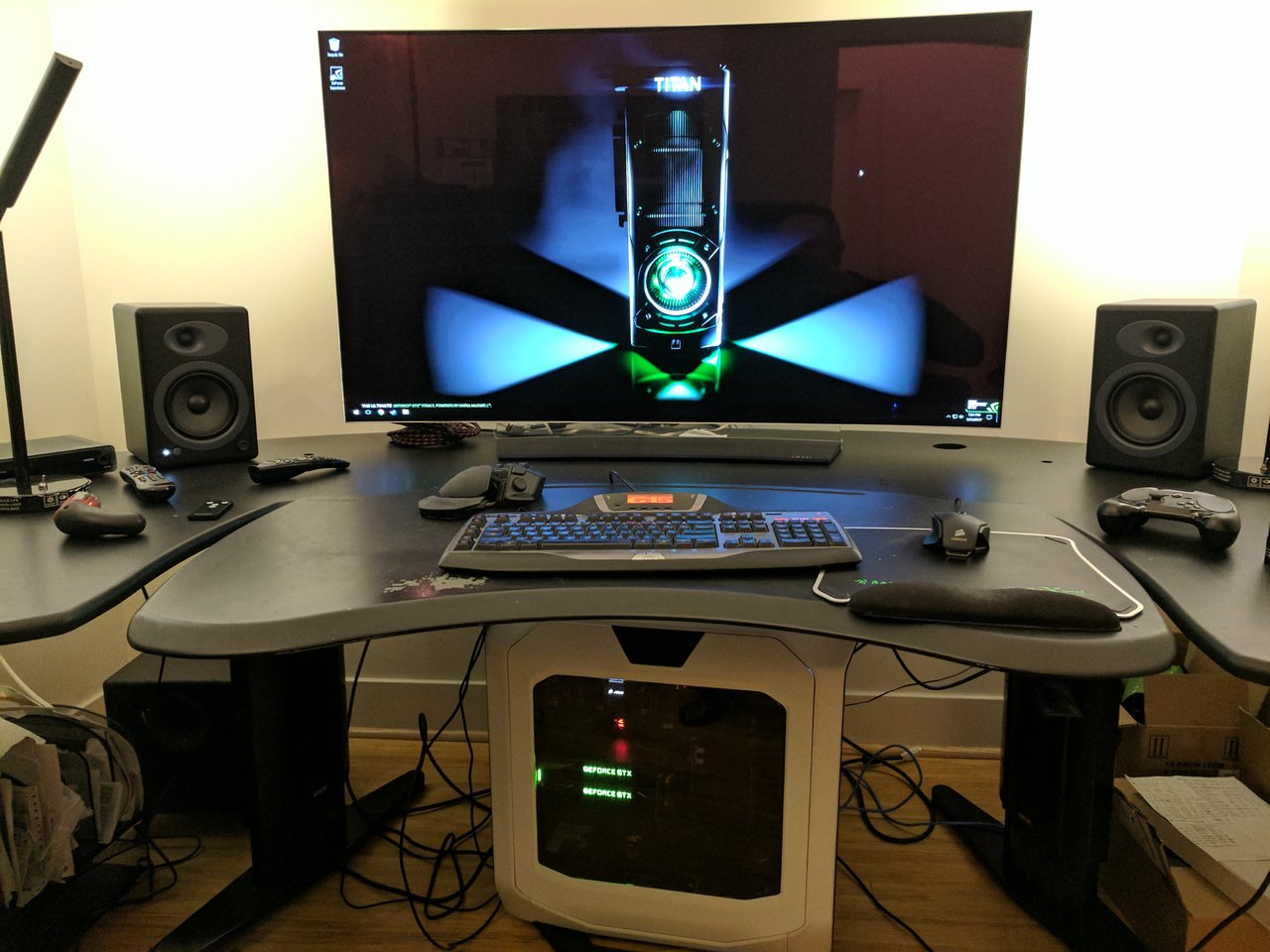

    This is my current workstation updated recently, minus a small desk to the side with my laptop. Will be some more modifications coming soon though. Just for reference, it is a motorized sit/stand desk.

    Commander Shepard likes this.
  38. spugm1r3

    spugm1r3 [H]ard|Gawd

    Messages:
    1,153
    Joined:
    Sep 28, 2012
    Which desk is it?

  39. NoOther

    NoOther [H]ardness Supreme

    Messages:
    6,477
    Joined:
    May 14, 2008
    It is a Biomorph Maxo Series desk. Quite expensive. I am not sure how much I would recommend it. I love my desk, but if I have to move, it will be a problem taking it apart and putting back together. The motors work great though, you can set the levels you want for your sitting and standing position and it will remember them and automatically adjust to them when you click their setting. It holds a lot of weight. I got adjustable monitor mounts for it too that can hold up to 55" monitors on it. It also has some options for cable management with it too. I just am not using all of them at the moment since I just redid that system before that I took the pictures.

  40. Guarana [BAWLS]

    Guarana [BAWLS] [H]ard|Gawd

    Messages:
    1,790
    Joined:
    Oct 3, 2001
    I just moved into my GFs apartment with her, so I haven't finished setting anything up yet. (Will need to be /completely/ different than my old apartment.)

    Phanteks Enthoo Evolv Tempered Glass
    6700k, Corsair H115i, SLI GTX970
    Apple Cinema Display
    Front 3 speakers from Logitech X-530 (don't have anywhere to put the rears, yet)

    The router on top is an AC1900 running DDWRT as a Wireless Bridge, since I can't get CAT6 over to the main router from here.

    I am planning to build a hutch for this later this week / next and make things a little better.

    IMG_1643[1].JPG IMG_1644[1].JPG IMG_1645[1].JPG
