Checking in with my Ender3 pro

modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
http://www.thingiverse.com/thing:308335

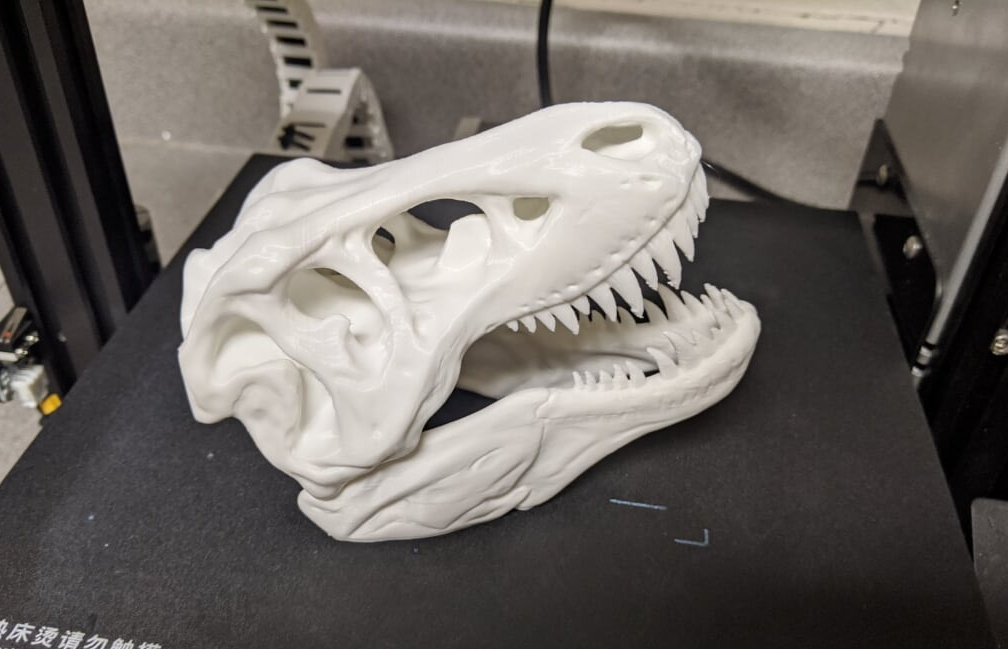

Jaw:
scale: 80%
quality: 0.16mm
infill: 20% cubic
w/ brim
3h 22m

Skull:
scale: 80%
quality: 0.16mm
infill: 20% cubic
w/ brim
7h 8m

Base
scale: 80%
quality: 0.2mm

Peg at 75% scale


Kelvarr

Supreme [H]ardness
Joined
Jul 19, 2001
Messages
4,241
So I ended up getting the Ender 3 Pro.

After using up most of my starter/sample filament, one thing I KNOW I want, is ABL.
This means I will need to upgrade my mainboard. I am having trouble deciding between the TH3D EZboard Lite v1.2, or the SKR Mini E3. I will admit, the $80-$90 price difference is a strong favor for the BigTreeTech.
And after that decision will be whether I go with BLTouch or EZABL.

Any suggestions/thoughts?


workshop35

Gawd
Joined
Nov 24, 2013
Messages
663
So I ended up getting the Ender 3 Pro.

After using up most of my starter/sample filament, one thing I KNOW I want, is ABL.
This means I will need to upgrade my mainboard. I am having trouble deciding between the TH3D EZboard Lite v1.2, or the SKR Mini E3. I will admit, the $80-$90 price difference is a strong favor for the BigTreeTech.
And after that decision will be whether I go with BLTouch or EZABL.

Any suggestions/thoughts?
I have the skr mini and it works great so far. Rediculously quiet after the swap


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
Kelvarr - I have the SKR Mini E3 v1.2 It's worked like a peach. It does have the option for sensors.

I haven't cared that much to get into auto bed leveling. I would defer to the pros on their comparison.


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
Tinkering with a few things to keep me active.

Printing out the 'astrolabicon' here as I can find the small magnets at home depot for cheap.
https://www.thingiverse.com/thing:3042146

Also created my first 'random idea to printed concept in under 30 minutes' using TinkerCad. Looking to make MOLLE compatible holder for my trekking poles. Version 1 was a surprising success. Already going to beef it up with v2 and the what not. Woohoo.


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119

3" moon from here:
https://www.thingiverse.com/thing:2955930

No support, dropped the model down -3mm to clear up oddities in the model.

0.16mm detail
No support
100% infill (it's hollow so the infill goes into the detail like a lithograph print)

Cura said 11.5hr, but it was more along the lines of 9hr.


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
Jammed a single neopixel up the hole and came out pretty decent. Visually looks better, but my phone's got weird on picking up colors when blasted in RGB.

For the differently visioned - top to bottom, left to right.

R0: red, green, blue
R1: yellow, purple, teal
R2: orange, pink, dark red




mwarps

Supreme [H]ardness
Joined
Oct 6, 2002
Messages
7,033
Just got some MGN12H rails for my Y axis. The wheels on my pro are starting to wear, and I enjoy precision.

Should be installed within the next week once I find some time. I'll post some images once it's done.


sed8em

2[H]4U
Joined
Apr 2, 2007
Messages
2,447
Just got some MGN12H rails for my Y axis. The wheels on my pro are starting to wear, and I enjoy precision.

Should be installed within the next week once I find some time. I'll post some images once it's done.

Looking forward to hearing about your results! I've been considering going to a rail system and ditching the wheels.


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
Made a slightly narrow door, but for version 1.0, not bad. Friction fit the base to the door in a good guesstimate.


  • Like
Reactions: Jelly
like this

modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
More doors. *chuckles in Uruk-hai * 28mm scale terrain's getting a little easier.




Then a set of Woot.com's BOC and Vestibules of Patience. One of the BOC is a mimic.





modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
Making a 'dumpster fire' for 2020..

I am hand designing a 'fire-looking-cap' to go over the candle, but 90% of the way done.

Material:
- primerfiller and some sanding.
https://www.homedepot.com/p/Rust-Oleum-Automotive-11-oz-Gray-Filler-Primer-Spray-249279/202097276
- Rustoleum 2x green and black.
https://www.homedepot.com/p/Rust-Ol...-General-Purpose-Spray-Paint-334039/307244868
- GE flickering LED
https://www.lowes.com/pd/GE-StayBri...n-Tall-Battery-Operated-Tea-Lights/1003313214
- Thick armature wire for the lid.



Model: https://www.thingiverse.com/thing:950602
Note - size everything up by 140% in cura to get a small LED flickering tea candle to fit.


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
Making these lil fellers from Among Us for a few christmas gifts, and ran into a plot twist.

The snag is where the model maker decided to make the visors detachable for zero reason. Printed one helmet off and one visor at stock size and no fit was found. Instead of leaving an angry comment on thingiverse I opted to go and flip it all in Blender to merge the visor to models.

Go-go-gadget knowledgebase!


Initial files:
https://www.thingiverse.com/thing:4595212
https://www.thingiverse.com/thing:4631692
https://www.thingiverse.com/thing:4608524
https://www.thingiverse.com/thing:4608518
https://www.thingiverse.com/thing:4604523


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
My first major disappointment after a year or so of printing. I figured I would get onto the trendy things to print from May 2020 after letting my printer sit for sometime.

There ended up a wonky layer shift early on and some failed supports. The bulk is baby smooth those so that's a plus.

I think I may have left my printer alone too long and should have loosened the x gantry belt. Bleh.


Hatchbox white PLA.
~16 hours.
https://www.thingiverse.com/thing:4661499


mwarps

Supreme [H]ardness
Joined
Oct 6, 2002
Messages
7,033
Finally had some time to dial in PETG on my ender3. Got the stringing way down, and running some tests now. Benchie to come :-p


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
Painting mostly done.. a bit of touch up, some grimey wash, and that's about it. Just waiting for a day that's not -40 degree windchill to clear coat.



obviouslytom

[H]F Junkie
Joined
Feb 24, 2005
Messages
14,608
I just purchased this today and put it all together. I went thru a few things on how to level the bed but I am running into another issue with it.

I did a test print of a ring and set the quality to low so it wouldn't take that long. When it starts printing though, it goes to the middle and starts "printing" a few MM above the table so it's just putting the material all over the place. For the test print, I ended up pushing down on the bar so that it would come in contact with the table in order to print on the table. I started another test and same thing.

How can I fix this? I want to use this for home, but also for work as well.


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
obviouslytom - A few things.

What material?
Which STL?
What settings were you using?
Do you have a picture of what it was looking like?
Did you use the paper test method on all four corners - and center - for bed leveling?


obviouslytom

[H]F Junkie
Joined
Feb 24, 2005
Messages
14,608
obviouslytom - A few things.

What material?
Which STL?
What settings were you using?
Do you have a picture of what it was looking like?
Did you use the paper test method on all four corners - and center - for bed leveling?
I am new to all this so I will answer the best I can.

The material is the standard PLA.
I don't know what you mean by STL
I was using the default settings in the software and ok the system.
I will get a picture tomorrow for you.
I did see a video on the paper test and did that on the conners and center and got it to where there was some mild resistance when I pulled the paper.

I also saw another video about the assembly process so I will loosen some things up, realign and see if they helps.


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
I don't know what you mean by STL
The 3d model file being opened in your slicer program to create the GCODE file for the printer.
I was using the default settings in the software and ok the system.
Which software?
I will get a picture tomorrow for you.
I did see a video on the paper test and did that on the conners and center and got it to where there was some mild resistance when I pulled the paper.
Nope, you most likely need more resistance.
I also saw another video about the assembly process so I will loosen some things up, realign and see if they helps.
You may want to run a few calibration checking prints.

ex: https://www.thingiverse.com/thing:4714033
https://www.thingiverse.com/thing:2599785
https://www.thespaghettidetective.com/blog/2019/05/03/ender-3-bed-leveling-3d-printer/


obviouslytom

[H]F Junkie
Joined
Feb 24, 2005
Messages
14,608
The 3d model file being opened in your slicer program to create the GCODE file for the printer.

Which software?

Nope, you most likely need more resistance.

You may want to run a few calibration checking prints.

ex: https://www.thingiverse.com/thing:4714033
https://www.thingiverse.com/thing:2599785
https://www.thespaghettidetective.com/blog/2019/05/03/ender-3-bed-leveling-3d-printer/
The slicer program I am using is the one that came with the printer, the Creality Slicer.

How much resistance would I want using the paper method? I raised up the table again since it was too low again and ran another print. When it started, it wouldn't stick to the surface. I have no idea what I am doing wrong.
There was one test print I ran that just does a series of large squares. The head moves on the X axis 235mm and when it goes that far, instead of being on the edge of the bed, its well past it.


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
I use Cura, set the printer my Ender 3 so it had the dimensions down, and went about plugging info in for the filament.

As for the paper test like it should be quite a bit on a heated bed (don't do it on a cold bed as metal changes when heated and what not). As in you can pull the paper out from underneath and back in with one hand but it should be giving noticeable grab.. It should really really squish that filament down.

Honestly, out of the gate, futzing with getting a feel for leveling is 90% of the battle.


obviouslytom

[H]F Junkie
Joined
Feb 24, 2005
Messages
14,608
I did another paper one and had it where the paper barely moved out. Preheated everything and then ran a test. As you can see, it's not sticking and one side is off the bed.










modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
obviouslytom - Ok.. so you need to fix your printer settings first. There should be a setting to seslect the printer type, or set the x/y/z max size. Fix that.

Next - filament.. when you say 'standard PLA' that not good.. Make and brand?

Also what temperatures are you usuing for your bed and nozzle? Those typically change with filament brands, colors, types, etc.

If you are on the hardforum discord I'm on right now for more immediate back and forth.


obviouslytom

[H]F Junkie
Joined
Feb 24, 2005
Messages
14,608
the filament type is Inland PLA 1.75mm 3d printing filament, White. I just checked the side label and it said that printing temp needs to be 215-230. I had the nozzle at 200, which was the default, so I bumped it to 222. I will see if that makes a difference. The bed temp is 60. I am running another test and it seems to be working better, although it appears the material is thin and stringy. I am basing that off of some chart I saw about print quality.

As for the bed size, I have it set in the software since it asked for the specific printer.

I need to get on the H discord. I will install it tomorrow night and jump on


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
it said that printing temp needs to be 215-230. I had the nozzle at 200, which was the default, so I bumped it to 222.
With not-previously-used filament I typically print a temperature tower or fiddle with test squares from the minimum and incrementing by 5 degrees until I find something that works well.

Having the nozzle in the ballpark - it's not an exact science - is key to bed adhesion.

If your printer is trying to print outside the bounds then something ain't right with the sizing. Cura, which I use, typically tries to keep a 10mm buffer as a warning zone.


obviouslytom

[H]F Junkie
Joined
Feb 24, 2005
Messages
14,608
I may have to exchange the printer because I turned it on when I got home and it gave me an error that said "homing failed" and to reset it. I have gone thru all the connections and nothing works


modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
obviouslytom - That's an odd issue I haven't hit. Cursory search has a few ways to test the end stops (manually triggering them with your finger), or even swapping the x and y wires.


obviouslytom

[H]F Junkie
Joined
Feb 24, 2005
Messages
14,608
obviouslytom - That's an odd issue I haven't hit. Cursory search has a few ways to test the end stops (manually triggering them with your finger), or even swapping the x and y wires.
Tried all that with no luck. I took it to microcenter earlier tonight and they exchanged it with no questions. I will set it up again tomorrow and I will also go thru this video to double check everything I am doing.



modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
obviouslytom - that's a good video, I dig that youtuber, and it was a good reference. Though I primarily used this one when building mine:


Darunion

2[H]4U
Joined
Oct 6, 2010
Messages
4,091
If you don't have one already, get yourself a multi-meter. You will need it along the way and it will help you fix your own problems when future ones show up. As an fyi, a homing failed comes from either endstop is triggered when it tries to move, or it doesnt see an endstop trigger after a set period of time (something like 10-15 seconds).

These are low end printers and will come with problems, as linked above it is good to familiarize yourself because you will need to fix them on your own at some point.

That said, welcome to the hobby!

Last edited:

modi123

Supreme [H]ardness
Joined
Sep 6, 2006
Messages
6,119
get yourself a multi-meter. You will need it along the way
So far hadn't had a need for one of those yet, or know when to use them if I need to.

Ugh.. time to go watch some of the youtubez.
