  1. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    13,930
    Joined:
    Oct 7, 2000
    I dont know the p/n on the oem ones but there are lots of fans that should be very close and then just transplant the oem jst jack. its doable.

    erek likes this.
  2. erek

    erek 2[H]4U

    Messages:
    2,687
    Joined:
    Dec 19, 2005
    now i just need a FSP300 or 400 and also a PATA IDE HDD to continue

  3. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    13,930
    Joined:
    Oct 7, 2000
  4. Chris_B

    Chris_B [H]ardness Supreme

    Messages:
    4,995
    Joined:
    May 29, 2001
    I still have my rma replacement 5500 from 3dfx in a shipping box with the companies info printed onto the shipping label.

    DrezKill, eclypse and pendragon1 like this.
  5. eclypse

    eclypse 2[H]4U

    Messages:
    3,053
    Joined:
    Dec 7, 2003
    Pics or it didnt happen! Hehe

    JokerCPoC likes this.
  6. eclypse

    eclypse 2[H]4U

    Messages:
    3,053
    Joined:
    Dec 7, 2003
    Should of asked ya if you needed anything else. :/

    pendragon1 likes this.
  7. eclypse

    eclypse 2[H]4U

    Messages:
    3,053
    Joined:
    Dec 7, 2003
    If the fans do use barings. Place the card on it's back on a flat price of cardboard and press in on the fans 5-6 times letting them spring back out. That should realine the barrings.

  8. erek

    erek 2[H]4U

    Messages:
    2,687
    Joined:
    Dec 19, 2005

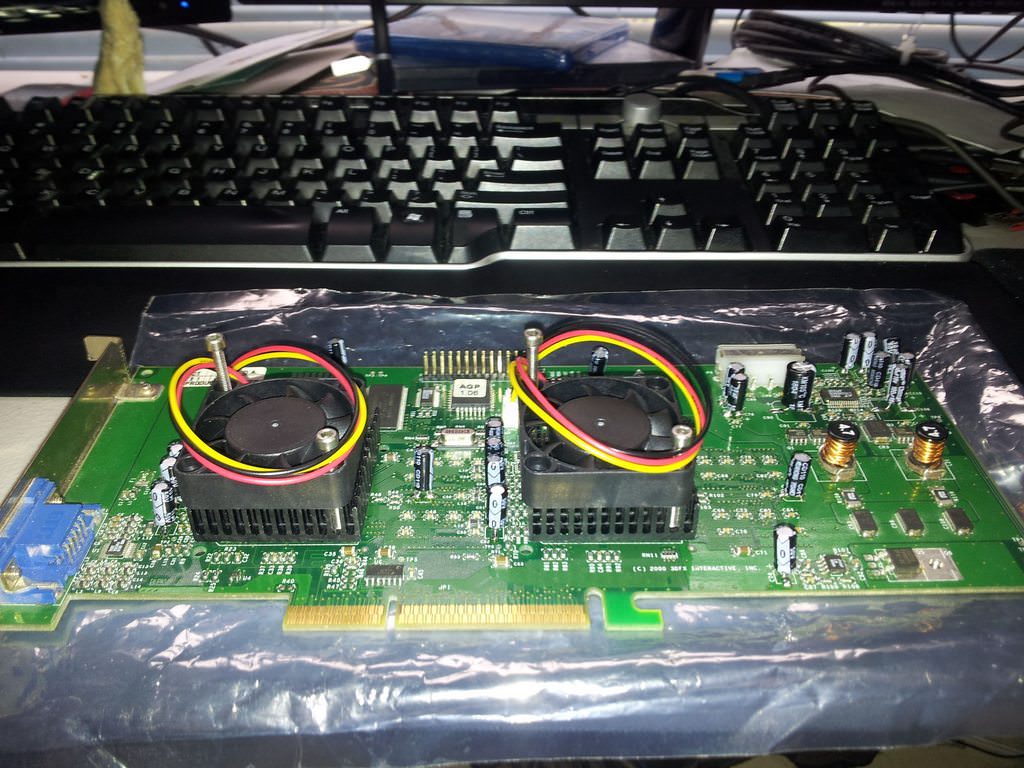

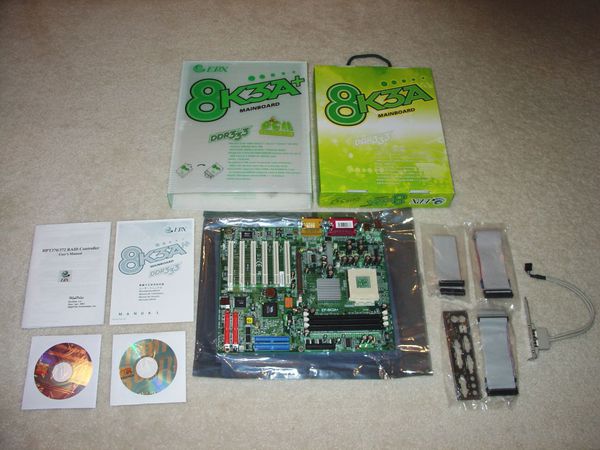

    started the build ...

    GLrFT9WE_Gl_IUqQwyYWGu2VqwcZn5CNSLBzyjp_SmfKMde-IMuRgEvYPEl5pJunzGvvucnw&_nc_ht=scontent.fagc1-1.jpg

  9. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    13,930
    Joined:
    Oct 7, 2000
    nice.
    check those caps, look buldgey

    JokerCPoC likes this.
  10. eclypse

    eclypse 2[H]4U

    Messages:
    3,053
    Joined:
    Dec 7, 2003
    Naw.. I checked it.

    pendragon1 likes this.
  11. erek

    erek 2[H]4U

    Messages:
    2,687
    Joined:
    Dec 19, 2005
    Took a gamble with a weak +5V Rail at only 20 Amps! She works!


  12. GiGaBiTe

    GiGaBiTe Gawd

    Messages:
    765
    Joined:
    Apr 26, 2013
    Slim 40mm fans are hard to find, that being said, I finally found one for sale on Newegg:

    https://www.newegg.com/Product/Product.aspx?Item=N82E16835119048

    Fans have sealed bearings in a bore, they're not split race types that have the balls crunched between them. You can move the fan spindle back and forth all you want, it won't do anything. The resistance you feel is the magnetic field holding the hub in place. When the bearings start making noise, they're trashed and need to be replaced.

    pendragon1 likes this.
  13. Susquehannock

    Susquehannock 2[H]4U

    Messages:
    3,445
    Joined:
    Jul 26, 2005
    Running some Q3 on that bad boy. Cool deal. Now you need a real game - UT.

    Switching between nforce2 and Voodoo4 in exact same system. I could swear the colors pop more in Glide.

  14. erek

    erek 2[H]4U

    Messages:
    2,687
    Joined:
    Dec 19, 2005

    Did you see the UT99 Online gameplay? it's in the video

    DrezKill likes this.
  15. Susquehannock

    Susquehannock 2[H]4U

    Messages:
    3,445
    Joined:
    Jul 26, 2005
    Think I know which parts you mean.. Must be a weapon mod I am not familiar with.

  16. Chris_B

    Chris_B [H]ardness Supreme

    Messages:
    4,995
    Joined:
    May 29, 2001
  17. Susquehannock

    Susquehannock 2[H]4U

    Messages:
    3,445
    Joined:
    Jul 26, 2005
    ^^ that would sell well if you ever decided to go that route. Values are still rising. This one missing fans and heat sinks is up to $185 so far.

    Last edited: Nov 4, 2018
  18. Chris_B

    Chris_B [H]ardness Supreme

    Messages:
    4,995
    Joined:
    May 29, 2001

    Surprising they're still selling decently well, after 3dfx went bust they were fetching good money but that was 18 years ago now.

  19. Susquehannock

    Susquehannock 2[H]4U

    Messages:
    3,445
    Joined:
    Jul 26, 2005
    High demand for retro hardware now. Seems everyone wants to build an AGP era gaming system to relive their youth. 3dfx is at top of the heap. Interestingly, selling price of Voodoo4 have really skyrocketed in the last few months. By well over 100%. Probably because supply and price of Voodoo5 are getting out of reach.

  20. eclypse

    eclypse 2[H]4U

    Messages:
    3,053
    Joined:
    Dec 7, 2003
    Last edited: Nov 4, 2018
    stefan231 and erek like this.
  21. Chris_B

    Chris_B [H]ardness Supreme

    Messages:
    4,995
    Joined:
    May 29, 2001

    Not to mention the voodoo 5 range really didn't get a proper launch, only 2 of the 4 cards made it to market, the voodoo 5 5000 had 32mb of ram (16mb effective) and was scrapped before launch, the 6000 just seemed to be a pipe dream halo product that only had a few hundred built at the most. Also all the issues they had with the intel bridge chip before finally changing to a hint chip.

    Thanks to the higher ups at 3dfx the company got sunk, basically every product after voodoo 2 was a stopgap filler product as they kept diverting resources away from rampage which fell further and further behind. I think at one point it was so far behind it eventually got redesigned to incorporate the t&l sage chip. :(

    Would have been nice to have 3 players these days and with intel coming into the game to make a fourth it would have made for some interesting times.

    JokerCPoC likes this.
  22. erek

    erek 2[H]4U

    Messages:
    2,687
    Joined:
    Dec 19, 2005
    eclypse likes this.
  23. Geno750

    Geno750 Gawd

    Messages:
    674
    Joined:
    Apr 28, 2006
    This makes me want to dig out my old Barton 2500 rig, pretty sure its still running my BFG card from a while ago.

    tunatime, eclypse and erek like this.
  24. 70 Polara

    70 Polara Limp Gawd

    Messages:
    137
    Joined:
    Jul 31, 2004
    This is an awesome thread, really enjoying watching your progress! I spend far more time gaming on my 3dfx retro system then I do playing modern games (hence the pathetic GPU in my daily driver lol). Been enjoying a nice replay of System Shock 2. :smuggrin:


    Last edited: Nov 4, 2018
    AlphaQup, eclypse and erek like this.
  25. GiGaBiTe

    GiGaBiTe Gawd

    Messages:
    765
    Joined:
    Apr 26, 2013
    Yes, it would be nice to have a 3rd player in the market, but it will never happen. The first hurdle is getting the investment to form a company and hire the engineers with experience designing video chips, which is a tall order in and of itself. The next would be getting a clean room design drafted that's tested and proven to work. By this time, it'll likely be a few years down the road and you're likely going to have Nvidia, AMD and probably Intel getting up in your business trying to figure out what you're doing. Assuming you can keep them confused long enough to get a chip taped out, they'll probably figure it out and start crushing you with patent lawsuits, since they basically hold all of the GPU related patents worldwide.

    To be in the GPU game, you would have had to start 20-25 years ago when the 3D acceleration market was getting started. The only way I could see a 3rd player now is if you could rework a mobile chip like PowerVR into a discrete product, or buy an existing shelved design like the VIA Chrome series and drastically improve it to compete with modern hardware on some level.

    Mine is equally ridiculous:


    Oversized heatsinks, wrong fans, wrong screws, radial caps in place of old dead SMD caps.

    Last edited: Nov 5, 2018
    AlphaQup, stefan231, erek and 5 others like this.
  26. eclypse

    eclypse 2[H]4U

    Messages:
    3,053
    Joined:
    Dec 7, 2003
    But she works right ;)

    Edit: had no idea one could put regular caps on it.. can I get the cap values just encase?

    Should post a pic of mine with different copper heat sinks and copper heat sinks on all memory. Sexied it up as well I think.. should be worth more ;)

    erek likes this.
  27. GiGaBiTe

    GiGaBiTe Gawd

    Messages:
    765
    Joined:
    Apr 26, 2013
    It's not terribly difficult. Just take a radial cap and measure the legs about 1/4" from the body and bend the legs 90 degrees outwards. Then snip all but about 1/8" of the legs off to leave the leads looking like small Ls back to back, this will make them easier to solder to the SMD pads. Remove the old SMD caps (I prefer the twist off method) and tin the pads with enough solder to leave a small half blob. Then take the prepped capacitor and hold it over the two blobbed pads and heat them up with the soldering iron to sink the leads down into the blobs. Once you get the leads in, you can go back and alternate pads with new solder to make sure they're submerged in solder.

    Here are the cap values I used:


    I used 50v caps because that's what I had lying around. The original caps were 16v, here's a high res shot of another card which shows the values:

    http://tdfx.de/pic/voodoo5_agp_01b.JPG

    erek, pendragon1 and eclypse like this.
  28. eclypse

    eclypse 2[H]4U

    Messages:
    3,053
    Joined:
    Dec 7, 2003
    Awesome job! Thanks for sharing.

    erek likes this.
  29. bigdogchris

    bigdogchris [H]ard as it Gets

    Messages:
    17,891
    Joined:
    Feb 19, 2008
  30. {NG}Fidel

    {NG}Fidel [H]ardness Supreme

    Messages:
    6,287
    Joined:
    Jan 17, 2005
    Erek you never cease to amaze me. Really glad to have another retro enthusiast here. kudos to making the front page.

    erek and Rizen like this.
  31. Bigbacon

    Bigbacon [H]ardForum Junkie

    Messages:
    15,832
    Joined:
    Jul 12, 2007
    but where is the Crysis benchmark?

    erek likes this.
  32. Dead Parrot

    Dead Parrot 2[H]4U

    Messages:
    2,515
    Joined:
    Mar 4, 2013
    Time to fire up Diablo II. I know some games from that era had special 3dfx settings. Don't remember if D2 was one of them.

    erek likes this.
  33. Chebsy

    Chebsy Gawd

    Messages:
    523
    Joined:
    Jan 24, 2013
    Takes me back seeing that boot screen, and good to see such old tech still working.

    erek likes this.
  34. toast0

    toast0 Gawd

    Messages:
    914
    Joined:
    Jan 26, 2010
    I don't know how well they work, but there are converters so you can use a SATA drive on an IDE port; and compact flash to IDE is just pin mapping. Either option seems like a better idea than hoping 10+ year old drives keep going. Depends on how historically accurate you want though, I guess.

    I'm pretty sure Diablo II had a 3dfx mode, although it was later available with most cards, and IIRC I liked the standard mode better (but that might just be me).

    erek likes this.
  35. SamuelL421

    SamuelL421 Limp Gawd

    Messages:
    164
    Joined:
    Jun 3, 2016
    Congrats on the grail, very sweet retro system you've got there

    erek likes this.
  36. DrBorg

    DrBorg Gawd

    Messages:
    555
    Joined:
    Jan 22, 2005
    This is awesome, guys!

    I have a friend with a 5500 I need to talk him out of; It's buried in a shed somewhere...

    eclypse, erek and pendragon1 like this.
  37. -=SOF=-WID99

    -=SOF=-WID99 Limp Gawd

    Messages:
    219
    Joined:
    Nov 30, 2015
    still have my 3dfx voodoo 5 5500 sitting in a working win 98SE system in my storage room
    forget what motherboard its on ..but its an intel chip in it and chipset may be 440 BX ? (CPU = p3 933 slot 1 may be my p 3 600 slot 1 CPU right now ..i think i got that as a pull and wanted to try to test the CPU..and never put the p 3 933 back in ..still have the P3 933 chip in a static bag )
    512 meg of SD ram
    creative labs SB AWE 32 ISA card (yea the big long one with 2 meg upgrade both slots installed )
    woppoin whole 400 watt antec true power PSU with a billion wires :LOL
    with 2 western digital 8 gig hard drives (not in raid ) and a iomega zip drive and a 24 X cd rom

    wonder what its worth these days :lol

    Last edited: Nov 5, 2018
    eclypse and erek like this.
  38. DrBorg

    DrBorg Gawd

    Messages:
    555
    Joined:
    Jan 22, 2005
    Not to advertise for anyone, but Capacitors for these cards and for motherboards can be found in almost any form factor on DigiKey.com.

    Look for 105°C rated, high frequency caps, NOT general purpose.

    You can search by package size.

    BTW, Aluminum Electrolytic capacitors Don't swap for SMT caps, typically; the inductance values are too high, so check the numbers.

    I typically look for ones rated for 10,000 or 20,000 hours, so I don't have to do it again.

    EDIT: I found out recently repairing my monitors that Aluminum Electrolytic capacitors DONT Work for 2.5V or 1.8V rails; there's not enough voltage to keep them 'formed'.

    geok1ng and erek like this.
  39. oldmanbal

    oldmanbal [H]ard|Gawd

    Messages:
    2,042
    Joined:
    Aug 27, 2010
    holy long

    erek likes this.
  40. erek

    erek 2[H]4U

    Messages:
    2,687
    Joined:
    Dec 19, 2005
    Thank you, and to everyone in this thread for supporting making this happen!

    My hands were shaking during the first power on!

    Mainly due to this: "the HiNT bridge which is the biggest death cause for the Voodoo 5 6000 cards in the world. On some motherboards this chip can be destroyed by a short-circuit during the boot process and this kills the whole card."



    http://www.x86-secret.com/articles/divers/v5-6000/v56kgb-6.htm
