Vertical Video Card Mounts

Discussion in 'Video Cards' started by dvsman, May 1, 2019.

  1. dvsman

    dvsman 2[H]4U

    Messages:
    2,585
    Joined:
    Dec 2, 2009
    So I was watching some youtube videos and saw the channel creators PCs that had their video cards mounted fan side "up." I had never seen this type of vertical mount before and now that I have, me wants!

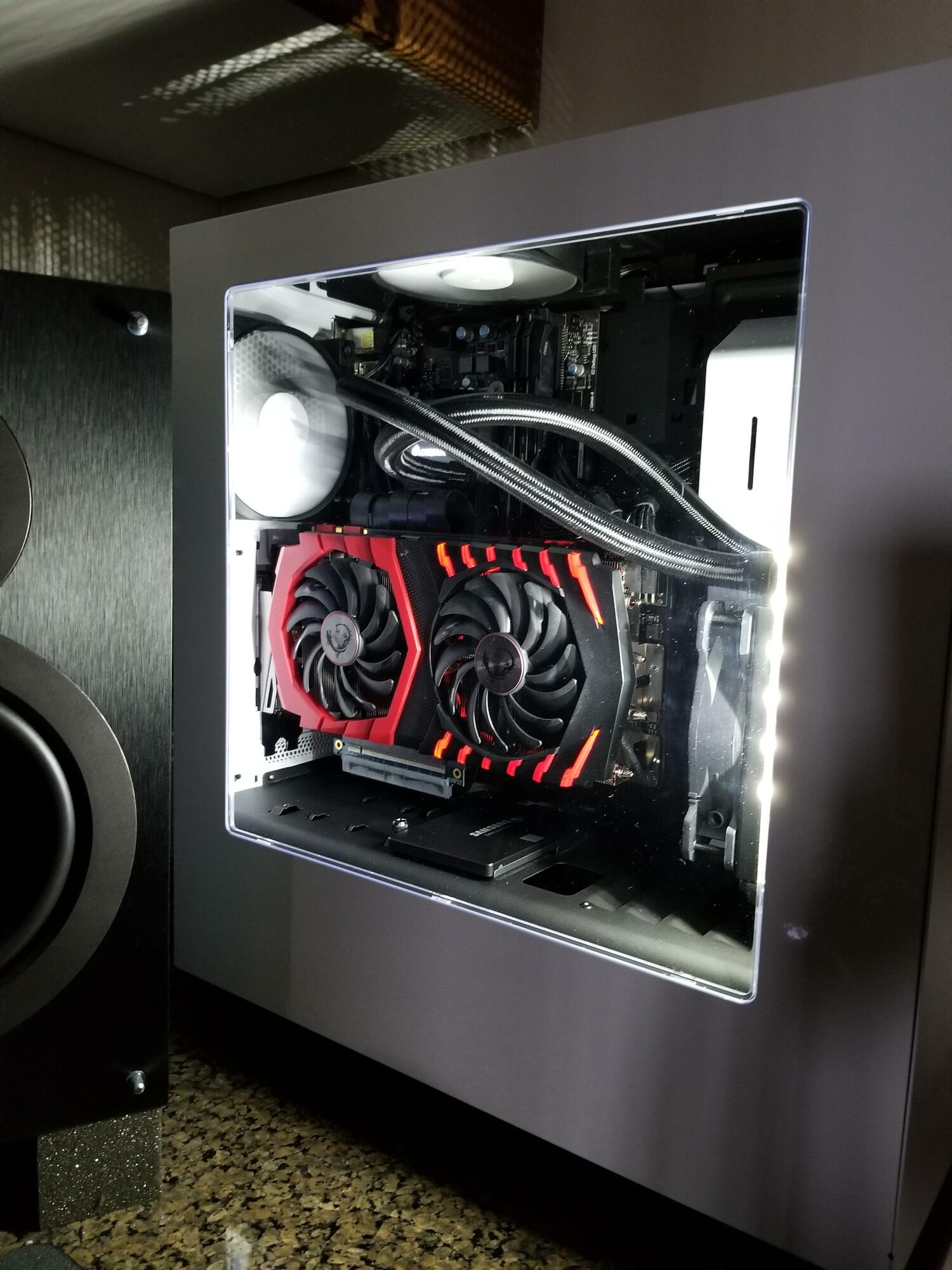

    For those that don't know either it looks like this pic (sample from google)


    Does anyone have experience with these? I know there are different makes / companies making these. I'd be interested to hear.

  2. trivial

    trivial [H]ard|Gawd

    Messages:
    1,419
    Joined:
    Jul 14, 2001
    My EVGA ATX case shipped with one of these brackets. I think they are a poor tradeoff for visual appeal, given that they reduce airflow to the GPU sink. I wouldn't recommend trying it with an exclusively PCIe-slot-powered vidcard. There are routing issues to the first PCIe slot even if your card has auxiliary power socket(s).

  3. Dan_D

    Dan_D [H]ard as it Gets

    Messages:
    53,558
    Joined:
    Feb 9, 2002
    I've seen several cases that have provisions for this, but it looks like it would reduce airflow in most cases that I've seen.

  4. Instigator

    Instigator [H]ard|Gawd

    Messages:
    1,237
    Joined:
    Nov 5, 2002
    I was looking into this but the only way I'd consider the vertical mount would be change it to water cooled.

  5. German Muscle

    German Muscle [H]ardness Supreme

    Messages:
    5,818
    Joined:
    Aug 2, 2005
    They are great as long as there is 2-3 expansion slot lengths away from anything so it doesnt impede airflow. If you have a fan blowing fresh air towards the cards intake fans you might be able to get away with a tighter clearance but i wouldnt do it unless it at least is 1 dual slot GPU of space away from obstruction.

  6. kdh

    kdh Gawd

    Messages:
    708
    Joined:
    Mar 16, 2005
  7. dvsman

    dvsman 2[H]4U

    Messages:
    2,585
    Joined:
    Dec 2, 2009
  8. Instigator

    Instigator [H]ard|Gawd

    Messages:
    1,237
    Joined:
    Nov 5, 2002
    The other problem IMO is that most cases that have this option have the bracket so the card sits "upright" and therefore the cable needs to be longer which is usually more difficult to find.

  9. RazorWind

    RazorWind 2[H]4U

    Messages:
    3,230
    Joined:
    Feb 11, 2001
    That's a feature of some mid-high end cases. It's not without its problems.

    First, in many cases, it requires the card to be mounted very close to the case's side panel, which restricts the amount of air the fan can ingest. This is experienced by the user as a hot-running graphics card, which can limit performance on newer cards that throttle back if they get too hot.

    Second, it requires the use of a PCI-E riser cable, which is often not included with the case, and also fairly expensive. A cheap one costs about $30, and it's not out of the question for a really good one to cost over $100. The cheap cables don't always work very well. Thermaltake had some problems initially with the one they included in the Core P5 where it would fail to run at PCI-E 3.0 speed. They eventually came up with a revised version that does work.

    Third, you basically commit to not using the rest of your PCI-E slots when you install the graphics card this way. I guess maybe some cases don't require this, but Thermaltake's do, unless you use multiple riser cables.

    Water cooling is the obvious killer app for this, since it allows you to show off your fancy graphics card AND your fancy water jacket.

    jmilcher likes this.
  10. dvsman

    dvsman 2[H]4U

    Messages:
    2,585
    Joined:
    Dec 2, 2009
    Thanks for all the feedback, guys. Most of my rig builds now are just one (or 2) m.2 NVME drives. No more cards, slots or other drives being used / installed except of course for the GPU, so flipping the GPU sideways shouldn't be a problem.

    The issue of being too close to the side panel / window is somewhat concerning, but given that the Corsair Air 540 is a short wide blocky square (not standing rectangle like most generic cases), I'm hoping i'm good with width clearances.

  11. jmilcher

    jmilcher [H]ardness Supreme

    Messages:
    4,153
    Joined:
    Feb 3, 2008
    My Thermaltake p5 came with one. While it looks cool, it blocks me from using some of the pcie slots which I normally populate. So you essentially give up the slots just to have the video card mounted like this. I removed mine and it’s back to the normal orientation now.

  12. RazorWind

    RazorWind 2[H]4U

    Messages:
    3,230
    Joined:
    Feb 11, 2001
    On the plus side, the P5 has two or three different spots you can mount the card in, so you don't generally experience the heat problem with it, unless you use the one that's furthest out.

    I'm not using this feature on mine either, but mainly because I didn't like the way I had to route my coolant hoses, and I wanted to use the cable for my graphics card necromancy bench.

  13. Dan_D

    Dan_D [H]ard as it Gets

    Messages:
    53,558
    Joined:
    Feb 9, 2002
    I've got too many expansion cards to bother with something like this. I like it for simple configurations well enough, but I'm not sure I'd do it myself even if I didn't need the rest of my expansion slots.

  14. kirbyrj

    kirbyrj [H]ard as it Gets

    Messages:
    24,117
    Joined:
    Feb 1, 2005
    What's the point of buying an ATX motherboard if you cover up all the expansion slots with a riser cable? I can see a mITX or something if you're into that.

  15. Dan_D

    Dan_D [H]ard as it Gets

    Messages:
    53,558
    Joined:
    Feb 9, 2002
    Arguably, there is a far better selection of ATX and E-ATX motherboards out there. Plus, those motherboards can handle more NVMe drives.

  16. German Muscle

    German Muscle [H]ardness Supreme

    Messages:
    5,818
    Joined:
    Aug 2, 2005

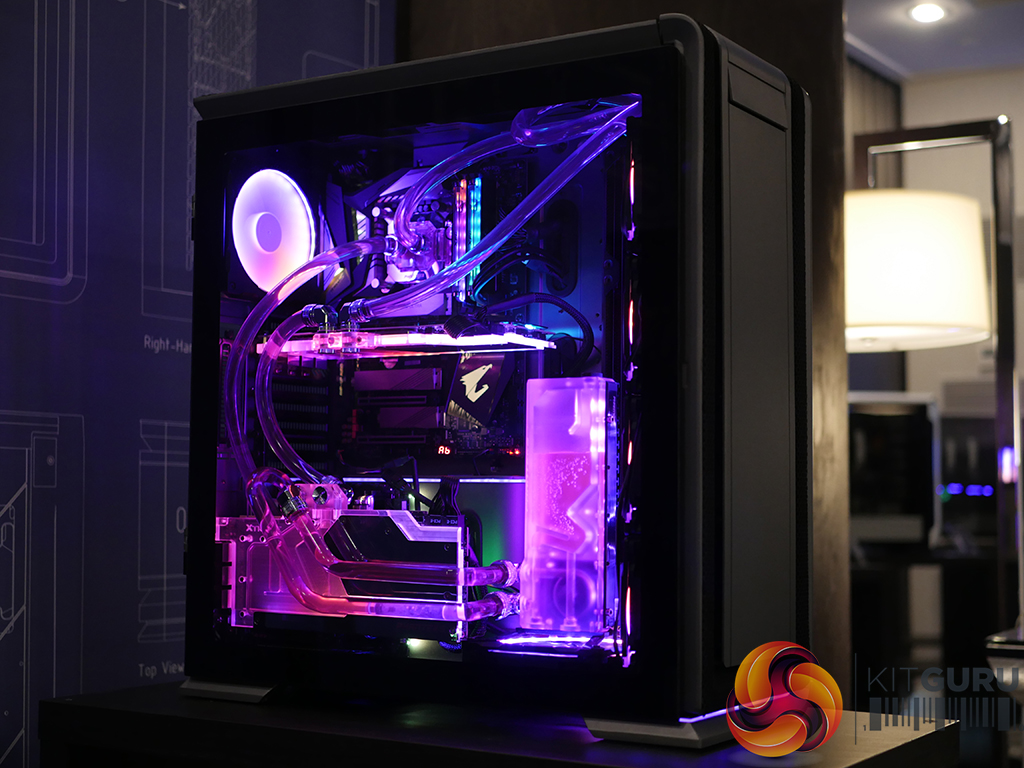

    These are all reasons i havent done it yet. however thre is a case coming to market that does verital GPU without those drawbacks.


  17. Furious_Styles

    Furious_Styles [H]ard|Gawd

    Messages:
    1,243
    Joined:
    Jan 16, 2013
    Not enough RGB. Also not really seeing the point of putting the GPU in those other locations if you're doing a custom loop.

    jmilcher likes this.
  18. jmilcher

    jmilcher [H]ardness Supreme

    Messages:
    4,153
    Joined:
    Feb 3, 2008
    It looks out of place to me. And really all I would need is a longer cable, I could fab up a bracket.

    I thought it would look awesome. But I ended up undoing it all.

  19. German Muscle

    German Muscle [H]ardness Supreme

    Messages:
    5,818
    Joined:
    Aug 2, 2005
    well technically that is a mini ITX build in the bottom. But i will be using it to move my GPU down there to mount vertical and still have full use of the other expansion slots.
