Ryzen 5900X overclocking help

K

KickAssCop

Supreme [H]ardness
Joined
Mar 19, 2003
Messages
6,887
Slightly better results. Now testing -10 on first core and -25 on all other cores.

Also passed 10K in CPU Z MC. https://valid.x86.fr/h792y4

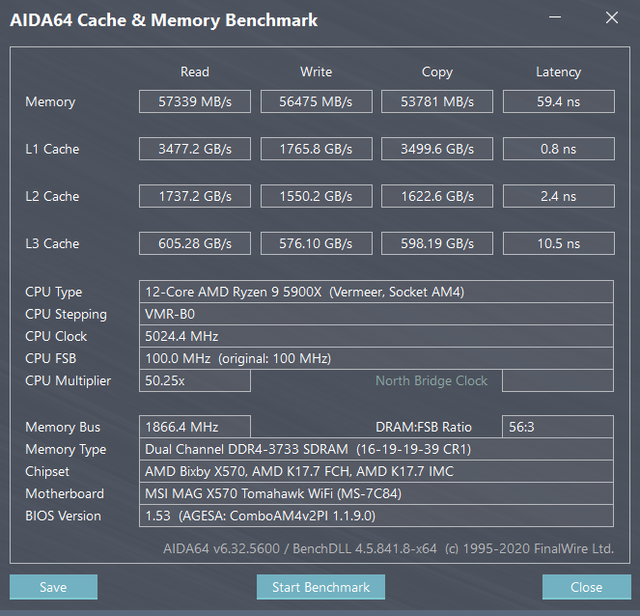

And slightly higher Geekbench score. Don't have AIDA since trial expired. https://browser.geekbench.com/v5/cpu/6318357


Attachments

  • CBR20-5-Feb.jpg
    146.1 KB · Views: 0
T

the_real_7

[H]ard|Gawd
Joined
Sep 10, 2007
Messages
1,279
so got me system put together last , got all the new installed bugs out , biggest one was i never realized that the Crossfire Dark Hero viii doesn't have a pcie 1 slot above the gpu slot for sounds cards so i had to make a my sound car fit with a gpu riser cable ugh. but anyways it is hell tweaking this thing compared to my 9900ks @ 5.1 . so far got to 4.7 @1.34volts and tweaking kept memory at stock so far 3600mhz cl 16 32gb. like that pbo was boosting often hated that it is slower reacting than all core overclock. going to test another week so if i can make some gaming gains on my old 9900KS

Things I like
1.Water cool loop sits at 31c now benching gaming etc , 9900ks would hit up to 33c gaming 35c benching
2.multicore performance is beast mode
3.Memory is easier than Ryzen 2
4.Higher 3dmark benches 6 percent to be exact
5.Pci 4.0 makes my ssd scream ,
6.Love the 24 cores for when you just all over the place

Things I hate
1. Hard to hit 166mhz at 2560x1440 9900KS does it consistently and easily
2. Heaven Benchmark 3 percent slower
3. Valley Benchmark 10 percent lower
4. Tuning is a bitch pbo , pbo 2 , all core overclock or stock there no correct answer to get performance out of these things , and to prove it go look for guides there none complete not even rog itself has done one.
5. No new x570 boards have the pcie x1 slot on top of board , most people using riser cards these days that make pci slots unusable. being board makers they should keep up with trends, and onboard supreme 1220a sound still sucks if your using high end speakers " yes i have a dac


K

KickAssCop

Supreme [H]ardness
Joined
Mar 19, 2003
Messages
6,887
PBO will give you better overall results in the real world. For synthetics all core might yield higher MC results.

S

schizo

[H]ard|Gawd
Joined
Nov 6, 2004
Messages
1,654
Digital Viper-X- said:
What does the curve optimizer actually do?
Click to expand...
It changes voltage by between 3 and 5 millivolts per step, depending on load. For example, if you set a core to be negative 10 in curve optimizer, it will reduce the voltage by 50mV at idle and 30mV under load.

This reduces heat generated if power consumption is capped in PBO and leads to a bit higher clocks. If power usage isn't capped the cores clock much higher until the PB (not PBO) algorithm tells it to stop based on temperatures, silicon quality, and power usage.

So generally, lower heat, less power used, and higher clocks. All good stuff. It's just a bit of a pain in the butt as if you go too low you'll see WHEA errors and reboots, and you want to set your best/second-best and remaining cores to different values.

T

the_real_7

[H]ard|Gawd
Joined
Sep 10, 2007
Messages
1,279
schizo said:
It changes voltage by between 3 and 5 millivolts per step, depending on load. For example, if you set a core to be negative 10 in curve optimizer, it will reduce the voltage by 50mV at idle and 30mV under load.

This reduces heat generated if power consumption is capped in PBO and leads to a bit higher clocks. If power usage isn't capped the cores clock much higher until the PB (not PBO) algorithm tells it to stop based on temperatures, silicon quality, and power usage.

So generally, lower heat, less power used, and higher clocks. All good stuff. It's just a bit of a pain in the butt as if you go too low you'll see WHEA errors and reboots, and you want to set your best/second-best and remaining cores to different values.
Click to expand...
I started on - 5 and the computer crashes first minute what am i doing wrong ?

D

Digital Viper-X-

[H]F Junkie
Joined
Dec 9, 2000
Messages
14,260
schizo said:
It changes voltage by between 3 and 5 millivolts per step, depending on load. For example, if you set a core to be negative 10 in curve optimizer, it will reduce the voltage by 50mV at idle and 30mV under load.

This reduces heat generated if power consumption is capped in PBO and leads to a bit higher clocks. If power usage isn't capped the cores clock much higher until the PB (not PBO) algorithm tells it to stop based on temperatures, silicon quality, and power usage.

So generally, lower heat, less power used, and higher clocks. All good stuff. It's just a bit of a pain in the butt as if you go too low you'll see WHEA errors and reboots, and you want to set your best/second-best and remaining cores to different values.
Click to expand...

Thank you, so set voltage to Auto, then use curve optimizer ?

S

schizo

[H]ard|Gawd
Joined
Nov 6, 2004
Messages
1,654
Yes, set voltage to auto then use CO to individually undervolt each core.

If your CPU crashes at -5 then you might just have poor silicon. It's a gamble. But make sure you're using AGESA 1.2.0.0, it's much more stable.

Generally you want to use the PBO menu under "AMD Overclocking".

K

KickAssCop

Supreme [H]ardness
Joined
Mar 19, 2003
Messages
6,887
schizo said:
Yes, set voltage to auto then use CO to individually undervolt each core.

If your CPU crashes at -5 then you might just have poor silicon. It's a gamble. But make sure you're using AGESA 1.2.0.0, it's much more stable.

Generally you want to use the PBO menu under "AMD Overclocking".
Click to expand...
At least on MSI you want to NOT use the PBO menu under AMD Overclocking.

A

amd7674

[H]ard|Gawd
Joined
Jan 1, 2007
Messages
1,780
KickAssCop said:
Did they release the tomahawk 1.2 bios? Been waiting for it.
Click to expand...
1.2 is out. I swear I was checking for it everyday. The site shows release date as of January 26, 2021. LOL.... Give it a go (if you haven't already), I might upgrade my kids PCs on the weekend.

T

the_real_7

[H]ard|Gawd
Joined
Sep 10, 2007
Messages
1,279
schizo said:
Yes, set voltage to auto then use CO to individually undervolt each core.

If your CPU crashes at -5 then you might just have poor silicon. It's a gamble. But make sure you're using AGESA 1.2.0.0, it's much more stable.

Generally you want to use the PBO menu under "AMD Overclocking".
Click to expand...
thanks man im try when I get home , I updated to AMD AM4 AGESA V2 PI 1.2.0.0 this morning but never tried the curve optimizer this morning , i was on a older bios when i tried. is -5 the lowest setting ? should i try individual cores , I did all core

K

KickAssCop

Supreme [H]ardness
Joined
Mar 19, 2003
Messages
6,887
amd7674 said:
1.2 is out. I swear I was checking for it everyday. The site shows release date as of January 26, 2021. LOL.... Give it a go (if you haven't already), I might upgrade my kids PCs on the weekend.
Click to expand...
After spending so much time optimizing the living crap out of my PC I am extremely weary of trying out the new bios lol.

K

KickAssCop

Supreme [H]ardness
Joined
Mar 19, 2003
Messages
6,887
the_real_7 said:
thanks man im try when I get home , I updated to AMD AM4 AGESA V2 PI 1.2.0.0 this morning but never tried the curve optimizer this morning , i was on a older bios when i tried. is -5 the lowest setting ? should i try individual cores , I did all core
Click to expand...
Individual cores are better since you can avoid WHEA errors through it. My second best core doesn’t run w/ anything below -10 whereas all other cores are right now functional at -25. Fingers crossed since I still need to wait 3-4 days for that idle WHEA error. Does someone know best way to test for idle WHEA errors other than waiting days lol.

A

amd7674

[H]ard|Gawd
Joined
Jan 1, 2007
Messages
1,780
KickAssCop said:
After spending so much time optimizing the living crap out of my PC I am extremely weary of trying out the new bios lol.
Click to expand...
ahhaha.... I don't blame you :)

BTW.... I'm still on AGESA 1.1.0.0 BIOS. So I'm 2 releases behind. My kids will kill me if I break their setups... LOL

Last edited:
S

soulesschild

Supreme [H]ardness
Joined
Feb 18, 2007
Messages
6,136
the_real_7 said:
thanks man im try when I get home , I updated to AMD AM4 AGESA V2 PI 1.2.0.0 this morning but never tried the curve optimizer this morning , i was on a older bios when i tried. is -5 the lowest setting ? should i try individual cores , I did all core
Click to expand...
All core is good to start out with to find where to start. If you say do -5 and it's stable, but -10 isnt then start with all cores at -5 and then tweak individually. It's a laborious process and hopefully CTR 2.1 with auto core optimizer will help with that.

E

Endgame

Gawd
Joined
Jan 10, 2007
Messages
593
KickAssCop said:
After spending so much time optimizing the living crap out of my PC I am extremely weary of trying out the new bios lol.
Click to expand...
I updated mine to 1.2.0 and my previously stable ram configuration now hangs windows shortly after boot. Need to start over from scratch it seems...:’ and I haven’t gotten to it yet.

K

KickAssCop

Supreme [H]ardness
Joined
Mar 19, 2003
Messages
6,887
I have only heard problems with 1.2.0.0 bios on most motherboards. Glad I didn’t indulge thus far. Will wait for the next one. No need to break what’s working.

S

soulesschild

Supreme [H]ardness
Joined
Feb 18, 2007
Messages
6,136
Realized I had undervolted the wrong core -_-. Now I'm -5 on best, -10 on second best, -20 on others, +200 boost, auto scalar. Can't seem to push any of the "worse" cores past 20 and I'm too lazy to figure out which core can't handle it. Pretty happy so far, seeing boosts up to 5025 on 8 cores and the other 8 are boosting to 4.8-4.9.

CBR20 Results:
11039620

CPUZ Results:
12941 and 672

S

schizo

[H]ard|Gawd
Joined
Nov 6, 2004
Messages
1,654
Best and second-best should be set exactly the same; the Windows scheduler will switch single-thread tasks between the best and second-best cores on CCD0 to even out heat distribution. So if you're stable with -10 on second-best, it should work on best too.

D

Digital Viper-X-

[H]F Junkie
Joined
Dec 9, 2000
Messages
14,260
KickAssCop said:
I have only heard problems with 1.2.0.0 bios on most motherboards. Glad I didn’t indulge thus far. Will wait for the next one. No need to break what’s working.
Click to expand...

I tried the beta bios weeks ago, CPU would not boost over 3.3ghz (all core), regardless of my settings, went back to the last non-beta bios which is 1.1.8 I believe, and it's back to normal, Asus just released a non Beta 1.2.0.0, so I may try that one.

D

Digital Viper-X-

[H]F Junkie
Joined
Dec 9, 2000
Messages
14,260

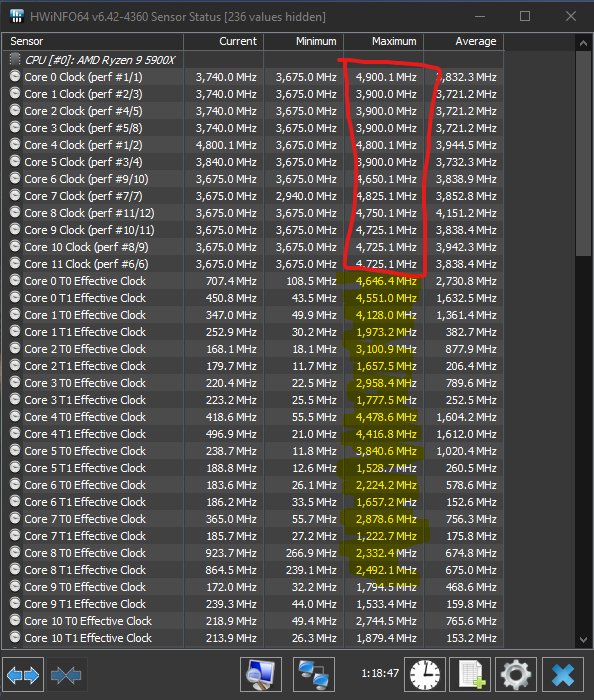

OK, question, in HWinfo, it shows Effective clock and (perf), which one shows actual clock speed?

Effective clock for me I think has never broken 5ghz, usually 4.8-4.9 is the highest It will go, where as PERF has hit 5.15 on my "best cores"

When running a 1-2 core workload, the effective clocks match what Ryzen master shows, and perf shows a higher number. I am confused :)

(red = perf)
(yellow = effective)


K

KickAssCop

Supreme [H]ardness
Joined
Mar 19, 2003
Messages
6,887
I don’t think effective clocks are correct representation of actually what the processor clocks are at a point in time. I just use the top one to monitor my processor clocks.

T

the_real_7

[H]ard|Gawd
Joined
Sep 10, 2007
Messages
1,279
Digital Viper-X- said:
OK, question, in HWinfo, it shows Effective clock and (perf), which one shows actual clock speed?

Effective clock for me I think has never broken 5ghz, usually 4.8-4.9 is the highest It will go, where as PERF has hit 5.15 on my "best cores"

When running a 1-2 core workload, the effective clocks match what Ryzen master shows, and perf shows a higher number. I am confused :)

(red = perf)
(yellow = effective)

View attachment 326923
Click to expand...
Ive heard that you have to look at effective , perf is only when you proc hits for a sec , but i think it doesn't work correctly

S

soulesschild

Supreme [H]ardness
Joined
Feb 18, 2007
Messages
6,136
the_real_7 said:
What do you guys think about this program ClockTuner 2.0 for Ryzen (CTR) Guide , The writer of the program seems really knowledgeable , seems like its a program to make gains without taking you out of Amd specifications , " you can change perimeters to overclock if want to

https://www.guru3d.com/articles-pages/clocktuner-2-for-ryzen-(ctr)-guide,1.html
Click to expand...
I think the internet has mixed feelings about it. Some people swear by it but others think it's easier to just use PBO. Maybe when 2.1 comes out and it can do auto core tuning.

https://www.reddit.com/r/Amd/comments/ld2qec/chips_and_cheese_ctr_a_review_and_a_warning/

I tried it but I wasn't too confident in it and I felt like I had tweaked my PBO2 settings pretty heavily that I wanted to stay with it.

D

Digital Viper-X-

[H]F Junkie
Joined
Dec 9, 2000
Messages
14,260
When I leave my computer mining and have hwinfo64 up, it crashes after some time(hours), with it closed it will mine for days :/ heads up

E

Endgame

Gawd
Joined
Jan 10, 2007
Messages
593
Endgame said:
I updated mine to 1.2.0 and my previously stable ram configuration now hangs windows shortly after boot. Need to start over from scratch it seems...:’ and I haven’t gotten to it yet.
Click to expand...
The updated bios (asus hero WiFi 3204) seems to have added another menu for memory settings and voltage. Some of the settings in the main extreme tweaker section don’t seem to work anymore.

after playing with it a bit, it seems Agesa 1.2.0 is more stable that 1.1.X - I can run at IF 2000 for about 9 minutes of cinebench before it crashes (it used to crash just launching). Still trying to find out where its actually stable though

T

the_real_7

[H]ard|Gawd
Joined
Sep 10, 2007
Messages
1,279
L

Light1984

Limp Gawd
Joined
Dec 31, 2004
Messages
498
For anyone with the dark hero where is pbo2 vs pbo in the bios? I've been using the pbo tab in amd overclocking section and not the one in extreme tweaker. Is that correct? Pbo2 has the curve optimizer right?

Also, I'm curious why people are putting a higher negative value on their bad cores vs the good cores. Wouldn't you want more voltage to the bad cores to keep them stable (ie a smaller negative value)? So instead of negative 10 on good core and negative 20 on bad, vice versa.

I'm currently running an all core -10 with CO and would like to dial it in more if possible.

K

KickAssCop

Supreme [H]ardness
Joined
Mar 19, 2003
Messages
6,887
My experience has been the opposite. Pushing a higher negative gets cores to higher frequency. My only second best core was the first one (core 0) that used to throw a WHEA error after 3-4 days.

Since I set it to -10 and all remaining cores to -25 I see my all core boost routinely to 4750 in games. Sometimes even 4800 (but usually only a few seconds). System has been running stable since.

I personally think the good and bad core is all bullshit. You need to see the core that is throwing a WHEA error and give it more voltage to stabilize (which intuitively also makes sense).

I am waiting for a more stable version of bios so I can try a higher IF than 1867.

L

Light1984

Limp Gawd
Joined
Dec 31, 2004
Messages
498
KickAssCop said:
I personally think the good and bad core is all bullshit. You need to see the core that is throwing a WHEA error and give it more voltage to stabilize (which intuitively also makes sense).
Click to expand...

That is what I was thinking, so the core that throws a WHEA error you would give it less negative offset right hence the -10 versus -25 on the rest. How did you identify which core was causing the WHEA error?

K

KickAssCop

Supreme [H]ardness
Joined
Mar 19, 2003
Messages
6,887
Light1984 said:
That is what I was thinking, so the core that throws a WHEA error you would give it less negative offset right hence the -10 versus -25 on the rest. How did you identify which core was causing the WHEA error?
Click to expand...
It’s in this thread. And yes if core is not stable you give it more voltage (a lower negative offset). Someone posted about the core ASIC ID in the event viewer. For me it was easy as core ASIC ID was 0.

Core 0 will have ASIC ID 0 and 1, core 2 would have 2 and 3 and so on. However, some ASIC ID are missed so you may see ASIC 25 or 26 even though it should’ve gone to only 22 and 23 for last core. That might be trial and error to identify.

The other extremely cumbersome method is to use OCCT single thread test and set core affinity to the one you think has the problem and look for errors. It didn’t work for me since my core had no problem running load. It had problem running idle and with low voltage it would boost higher than it should and crash.
