Intel Larrabee

Discussion in 'Video Cards' started by erek, Sep 28, 2018.

  1. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
  2. shockwa

    shockwa n00b

    Messages:
    6
    Joined:
    Sep 20, 2018
    Interested to hear if you get it running. Nice unboxing video...

    erek likes this.
  3. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    might need a beefy power supply, i heard it pulls at least 300 Watts itself. Don't know if i need very specific motherboard platform / cpu or not at this point, but even if that is met it still might need a custom BIOS and even possibly additional hardware hooked up to the card itself via one of the board interconnectors. Still also no software

    shockwa likes this.
  4. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    i did get the Larrabee to POST, like my system actually boots, but the card itself beeps, 1 long and 2 short



    no video output

  5. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    1 long, and 3 short beeps, sorry --- even with using Above 4G Decoding option, but my motherboard does POST with only the Larrabee in as a VGA adapter

  6. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    the actual Larrabee card itself has a PC Speaker

  7. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    Mine (Revision 1)


    Slaventus' Revision 2


    HockeyJon, Red Falcon and pendragon1 like this.
  8. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    i put in a second video card, and the beeps no longer are present on the Larrabee



    but the Larrabee isn't appearing in the device manager, and it's not appearing in the BIOS as linked in



    the larrabee seems to be alive though... maybe just needs an old motherboard



    if i remove the 2nd video card the larrabee gives 1 long and 3 short beeps again

  9. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    14,314
    Joined:
    Oct 7, 2000
    werent there some tools posted in the other thread to talk to it via a dos box? have you tried that or am I mistaken?

    erek likes this.
  10. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    can't recall about that, only the Intel MPSS software

  11. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    14,314
    Joined:
    Oct 7, 2000
    think I was confusing the Phi/Linux stuff from the "prototype" thread.

    erek likes this.
  12. power666

    power666 [H]Lite

    Messages:
    71
    Joined:
    Jun 23, 2018
    Huh, a couple of differences off hand.

    Video out ports seems to have been rearranged. DP, DVI and HDMI on your and then DVI, DP and HDMI on Slaventus' board. The Silicon Image (?) chips move accordingly. I have a feeling if you were to look up the Silicon Image part numbers on those chips you'd find that they were just DP -> HDMI active converter chips.

    There are a couple of SMD chips near the connector on the upper left. Actually... what it is that connector? Some JTAG or other debugging port or perhaps connector for a genlock board?

    There is a spot for a simple two pin connector near the six pin power connector on your board. I can't tell if that is also in Slavantus's board or not due to the blur in the corner. Also both boards have a jump near the 6 pin connector. Any labels near it to identify what it does?

    erek likes this.
  13. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    There's also a blue bodge wire on mine near the DVI connetor (also a PIN Header there too not present on his) His is missing the PC Speaker too. There's an entire chip missing from Slaventus' board compared to mine near the FAN header to the bottom right

  14. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    those chips are both the same "Parade" DP530 ES (unreleased engineering sample DisplayPort controllers)

  15. d8lock

    d8lock Gawd

    Messages:
    684
    Joined:
    Feb 12, 2012
    Was that card made around the 8800 gt era? Curious what it would compare to if you got it up and running. Good luck!

    erek likes this.
  16. Stoly

    Stoly [H]ardness Supreme

    Messages:
    6,390
    Joined:
    Jul 26, 2005
    Does it support DXR (raytracing)? :D:D

    erek likes this.
  17. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    No two larrabee prototypes are the same from what i can tell:


    Linus: Revision 1 (notice the BLUE PCB)




    Mine Also Revision 1 but BLACK PCB




    SLAVENTUS Revision 2 (Video Ports differently arragned)




    Random Sample missing DisplayPort Controllers and also Video Outputs

    "Collector: ZZC Collection Ownership: Chengdu, Sichuan Collection Age: 2009 Category: Display Card Core Code: Larrabee DX: 10 Bus Interface: PCI-E 2X16 Memory Capacity: 2GB Price Code: FC"




    UNKNOWN Owner? A Revision 1 with unique differences from the other Revision 1s?









    Last edited: Sep 30, 2018
    455olds, Red Falcon and AlphaAtlas like this.
  18. Rizen

    Rizen [H]ardForum Junkie

    Messages:
    9,224
    Joined:
    Jul 16, 2000
    Does anyone have the drivers for this board yet?

    erek likes this.
  19. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005
    not yet

  20. GiGaBiTe

    GiGaBiTe Gawd

    Messages:
    867
    Joined:
    Apr 26, 2013
    A diagnostic piezo buzzer isn't an uncommon feature among video cards, I have many with them.

    erek likes this.
  21. erek

    erek 2[H]4U

    Messages:
    2,912
    Joined:
    Dec 19, 2005

  22. Stoly

    Stoly [H]ardness Supreme

    Messages:
    6,390
    Joined:
    Jul 26, 2005
  23. GiGaBiTe

    GiGaBiTe Gawd

    Messages:
    867
    Joined:
    Apr 26, 2013

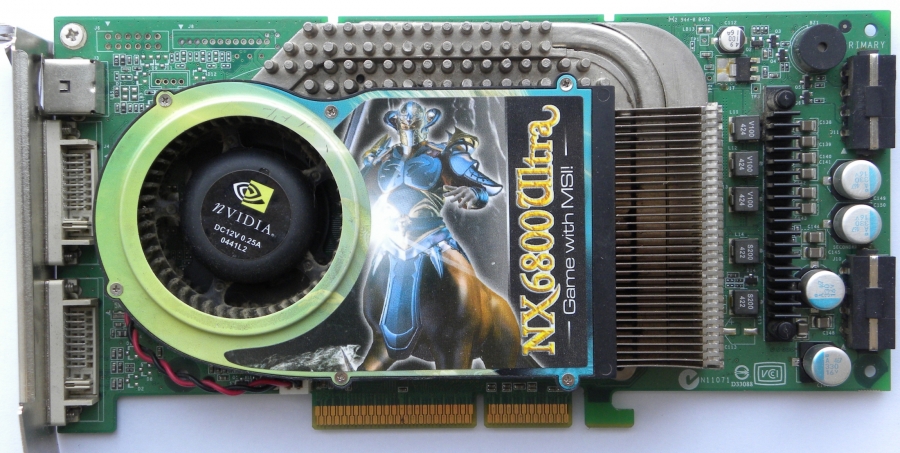

    I have an AGP 7800GS OC from BFG, it was a really good card when AGP was on its way out.

    [​IMG]
