Good Flow Rates?

Discussion in 'Water Cooling' started by RogueTadhg, Mar 26, 2019.

  1. RogueTadhg

    RogueTadhg [H]ard|Gawd

    Messages:
    1,525
    Joined:
    Dec 14, 2011
    So I just built my first water cooling loop. My flow rate is 122 - 136 L/H as per flow rate indicator.

  2. Zarathustra[H]

    Zarathustra[H] Official Forum Curmudgeon

    Messages:
    27,711
    Joined:
    Oct 29, 2000
    What's your setup? What kind of flow meter is it? Is it supposed to be accurate, or just one of those for general flow confirmation purposes?

    I don't personally use a flow meter (but I have one on order for my Aquaero which will be installed when all the parts arrive) and I have read temperature performance increases until about 1 GPM, at which point it levels off, so this should ideally be everyone's target. Convert 1 GPM into L/H and you wind up with ~227 L/H, so yours seems a little low. It converts to ~0.54 - 0.60 GPH.

    I haven't done much testing myself though, so I don't know how much would be gained by upping it.

    Do you have a very restrictive loop? Many radiators/blocks? Many tight bends? What pump are you using? What setting is it running at, full speed? Are there any kinks in your tubing?

  3. VanGoghComplex

    VanGoghComplex [H]ard|Gawd

    Messages:
    1,675
    Joined:
    Apr 5, 2016
    My loop is about 145l/h according to my AquaComputer "high flow" meter with my D5 at 3000rpm.

    It's close to 200l/h with my pump at 4500rpm, but I can see no discernable cooling performance chance between the two settings.

    Zarathustra[H] likes this.
  4. RogueTadhg

    RogueTadhg [H]ard|Gawd

    Messages:
    1,525
    Joined:
    Dec 14, 2011

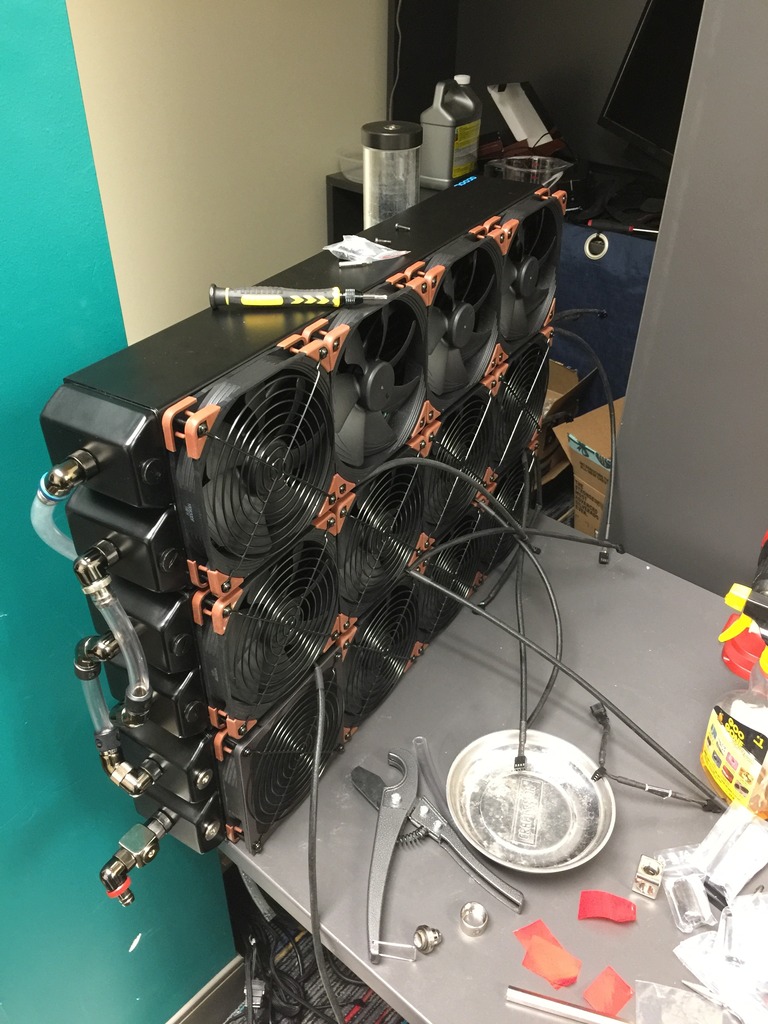

    I was getting 227 just with the pump and radiators on the loop themselves. It's an external setup.

    I probably have more fittings than most people. No Kinks.

    SticKx911 likes this.
  5. SticKx911

    SticKx911 2[H]4U

    Messages:
    2,103
    Joined:
    Mar 14, 2004
    You probably don’t even need fans with that...

  6. VanGoghComplex

    VanGoghComplex [H]ard|Gawd

    Messages:
    1,675
    Joined:
    Apr 5, 2016
    I think you're probably in good shape. I'm not sure where the 1g/m figure came from, though I've seen it elsewhere, but my limited testing doesn't really agree with it.

    IIRC, the context of the figure was that beyond 1 gallon per minute you don't really see any additional cooling capacity. I can believe that, but it seems a strange benchmark to me. My loop is simple, typical, one CPU, one GPU, two radiators and a D5 - and I can't even hit one gallon per minute.

  7. Zarathustra[H]

    Zarathustra[H] Official Forum Curmudgeon

    Messages:
    27,711
    Joined:
    Oct 29, 2000
    Interesting. I have heard that 1 GPH number as being the magic number for some time, looks like it may be a little off.

    As I have mentined in another thread, I have 4x Calitetemp inline temperature sensors and one of those "high flow" meters on order. Once I get them I plan to measure the temperature before and after my GPU and CPU. I'm going to do a benchmark with the pump at full blast and each component at full load and see if there is a measurable temperature difference across the blocks, then I am going to set pump speed automatically based on the max of the delta T across each block. This way at idle the pump will probably run at its minimum 20% speed, and then at load it may come close to maxing out.

  8. FrgMstr

    FrgMstr Just Plain Mean Staff Member

    Messages:
    48,093
    Joined:
    May 18, 1997
    Mine runs over 200 l/h.

  9. Zarathustra[H]

    Zarathustra[H] Official Forum Curmudgeon

    Messages:
    27,711
    Joined:
    Oct 29, 2000

    I think I've said it before, but I am going to say it again. I love that setup.

    Are those 120mm or 140mm fans?

  10. Tsumi

    Tsumi [H]ardForum Junkie

    Messages:
    12,982
    Joined:
    Mar 18, 2010
    I think 1 GPM came mostly because it's an easy number to remember. I think Martin's Liquid Lab did some testing on it back in the day as well.

  11. RogueTadhg

    RogueTadhg [H]ard|Gawd

    Messages:
    1,525
    Joined:
    Dec 14, 2011
    140s!

    Zarathustra[H] likes this.
