Crashes during gaming with solid color on screen

blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
got my card back from RMA and I still have the crashing during gaming with a solid color on the monitor. A lot of googling led me to believe it was a problem with the card

2700x
Prime X470-PRO (latest BIOS)
Ripjaws V DDR4 3200 C16 16-18-18-36-58
Strix Vega 64 (fresh from RMA)
Corsair RM750 (was EVGA 850 B3)

Tried loosening timings, thinking about turning off PBO to see if that helps.

I've got regular peripherals and a wireless controller receiver with 5 HDD and 1 nvme drive. Could I be teetering on the edge of what I would need for power ?

Any ideas?


THUMPer

2[H]4U
Joined
May 6, 2008
Messages
3,126
got my card back from RMA and I still have the crashing during gaming with a solid color on the monitor. A lot of googling led me to believe it was a problem with the card

2700x
Prime X470-PRO (latest BIOS)
Ripjaws V DDR4 3200 C16 16-18-18-36-58
Strix Vega 64 (fresh from RMA)
Corsair RM750 (was EVGA 850 B3)

Tried loosening timings, thinking about turning off PBO to see if that helps.

I've got regular peripherals and a wireless controller receiver with 5 HDD and 1 nvme drive. Could I be teetering on the edge of what I would need for power ?

Any ideas?
What driver version? Is the vega overclocked?


THUMPer

2[H]4U
Joined
May 6, 2008
Messages
3,126
whew. ok. what if you just go down to 1 monitor?
Does the whole pc crash or just the driver? What if you unplug them and plug them back in once it goes green. Does the picture come back?


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
whew. ok. what if you just go down to 1 monitor?
Does the whole pc crash or just the driver? What if you unplug them and plug them back in once it goes green. Does the picture come back?
Picture never comes back. Either it reboots or the video never comes back. I haven't tried unplugging so I'll try that next time. Whats annoying is that I've found no way to reproduce the issue consistently.

Also, what games?
I've had it happen during Hitman 2016, PoE, Heroes of the Storm, Mafia 2....


mvmiller12

Gawd
Joined
Aug 7, 2011
Messages
929
Picture never comes back. Either it reboots or the video never comes back. I haven't tried unplugging so I'll try that next time. Whats annoying is that I've found no way to reproduce the issue consistently.



I've had it happen during Hitman 2016, PoE, Heroes of the Storm, Mafia 2....
So, nothing super-demanding then. zDo you have a spare power supply? If you do, try connecting just the PCI-E Auxilliary power plugs from that to the video card, and jump the power supply so that it runs. This will pull pretty much all of the strain off your regular power supply for running the card. If the problem goes away, there lies your answer :).

The truth is this: You've already RMA'd the card and tried different slots. Unless they sent you back the exact same card you sent in, the card should be presumed OK. The mainboard * could * be the culprit, but generally that is not the kind of failure you see with those, and testing an alternate slot further reduces that likelihood. That realistically leaves the monitor itself, the connecting video cable, and the power supply as possible culprits. Video cables rarely fail, and if the issue is the monitor itself, I would expect the issue to be more consistent than "only when playing games." This leaves the power supply as the more likely suspect.

Edit, I HAVE had the green screen issue with my Vega 64, but it only ever happens when installing/updating drivers, and a simple reboot squares it.


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
So, nothing super-demanding then. zDo you have a spare power supply? If you do, try connecting just the PCI-E Auxilliary power plugs from that to the video card, and jump the power supply so that it runs. This will pull pretty much all of the strain off your regular power supply for running the card. If the problem goes away, there lies your answer :).

The truth is this: You've already RMA'd the card and tried different slots. Unless they sent you back the exact same card you sent in, the card should be presumed OK. The mainboard * could * be the culprit, but generally that is not the kind of failure you see with those, and testing an alternate slot further reduces that likelihood. That realistically leaves the monitor itself, the connecting video cable, and the power supply as possible culprits. Video cables rarely fail, and if the issue is the monitor itself, I would expect the issue to be more consistent than "only when playing games." This leaves the power supply as the more likely suspect.

Edit, I HAVE had the green screen issue with my Vega 64, but it only ever happens when installing/updating drivers, and a simple reboot squares it.
Thanks bub

Didn't think of using a dedicated ps. If only I didn't rush to sell the 850 B3 i had hehe

I honestly don't think I have any others that would work, all I've got are some old P4 PSUs

I will also try to consolidate drives because 5 seems like a lot for nothing. Should help reduce the draw

Thanks again


DooKey

[H]ardForum Junkie
Joined
Apr 25, 2001
Messages
8,299
got my card back from RMA and I still have the crashing during gaming with a solid color on the monitor. A lot of googling led me to believe it was a problem with the card

2700x
Prime X470-PRO (latest BIOS)
Ripjaws V DDR4 3200 C16 16-18-18-36-58
Strix Vega 64 (fresh from RMA)
Corsair RM750 (was EVGA 850 B3)

Tried loosening timings, thinking about turning off PBO to see if that helps.

I've got regular peripherals and a wireless controller receiver with 5 HDD and 1 nvme drive. Could I be teetering on the edge of what I would need for power ?

Any ideas?
I had that problem with my RX570 and my 3900X system. I also use the same RAM that you have and my problem went away when I ran the RAM at 2933.


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
I had that problem with my RX570 and my 3900X system. I also use the same RAM that you have and my problem went away when I ran the RAM at 2933.
Thanks for the feedback. I'm still pursuing the "not enough power" route for the moment because I used a Rx480 Nitro while waiting for vega to be RMAed and never had a single issue.

I got myself a killawatt and saw that at full load (prime small fft and furmark 4k stress test) everything together pulls 750w almost exactly.

So IMO the RM750 is borderline enough while the B3 should've been enough.. not sure why it wasn't. I ended up selling it and the guy hasn't complained

I remembered that I had a 850 G3 in a second machine. I put it in last night and let furmark run all night. So far so good. played 2 games of hots this morning and no crash

I'm gonna keep furmark and prime running all day to see if I can provoke the problem still


mvmiller12

Gawd
Joined
Aug 7, 2011
Messages
929
Thanks for the feedback. I'm still pursuing the "not enough power" route for the moment because I used a Rx480 Nitro while waiting for vega to be RMAed and never had a single issue.

I got myself a killawatt and saw that at full load (prime small fft and furmark 4k stress test) everything together pulls 750w almost exactly.

So IMO the RM750 is borderline enough while the B3 should've been enough.. not sure why it wasn't. I ended up selling it and the guy hasn't complained

I remembered that I had a 850 G3 in a second machine. I put it in last night and let furmark run all night. So far so good. played 2 games of hots this morning and no crash

I'm gonna keep furmark and prime running all day to see if I can provoke the problem still
Are you testing on the Vega or on the RX480?


mvmiller12

Gawd
Joined
Aug 7, 2011
Messages
929
Temp looks normal for the stock 2700x cooler running Prime95 on "FRY ME!!!!!!" mode :). It's not going to hurt the chip, but you might get some thermal throttling at that temperature. What cooling solution are you using for the CPU?


auntjemima

[H]ardness Supreme
Joined
Mar 1, 2014
Messages
5,640
Thanks bub

Didn't think of using a dedicated ps. If only I didn't rush to sell the 850 B3 i had hehe

I honestly don't think I have any others that would work, all I've got are some old P4 PSUs

I will also try to consolidate drives because 5 seems like a lot for nothing. Should help reduce the draw

Thanks again
5 drives require nearly no power. I wouldn't worry about consolidating for the possible 100w you might save (and that's a very generous number).


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
Temp looks normal for the stock 2700x cooler running Prime95 on "FRY ME!!!!!!" mode :). It's not going to hurt the chip, but you might get some thermal throttling at that temperature. What cooling solution are you using for the CPU?
Nothing special This fucker https://noctua.at/en/nh-u12s-se-am4

5 drives require nearly no power. I wouldn't worry about consolidating for the possible 100w you might save (and that's a very generous number).
Thanks a lot


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
So after like 18 hours running the machine at full load as described above, still didn't yield any negative results.

Within a half hour of playing Hots, the machine crashed (I know hots sucks)

I am now testing in the second x16 slot. I dont want to have to RMA my board so part of me hopes the machine crashes again but obviously I wanna find the root cause

Anyway, I should've tried the second slot straight off the bat but I'm older now and it's been years since I needed to troubleshoot so forgive me

I only keep updating this thread because despite the problem being well documented, the solutions seem to vary quite a bit. So I'm documenting mine in hopes some poor soul is aided by my pain


mvmiller12

Gawd
Joined
Aug 7, 2011
Messages
929
So after like 18 hours running the machine at full load as described above, still didn't yield any negative results.

Within a half hour of playing Hots, the machine crashed (I know hots sucks)

I am now testing in the second x16 slot. I dont want to have to RMA my board so part of me hopes the machine crashes again but obviously I wanna find the root cause

Anyway, I should've tried the second slot straight off the bat but I'm older now and it's been years since I needed to troubleshoot so forgive me

I only keep updating this thread because despite the problem being well documented, the solutions seem to vary quite a bit. So I'm documenting mine in hopes some poor soul is aided by my pain
The bigger question is this:

Did you reboot the computer in between completing your testing and trying to game? Hell, MY computer is wonky as shit after an extended Prime95 run and I have to reboot it to restore stability although all of my stress testing has passed. I also have to reboot after completing large batches of x264 encodes or the computer behaves... strangely. This has been true for every PC I have ever owned. I believe this problem is located more firmly in the Windows wheelhouse than in the hardware one, though. I've not heard of LInux users having this kind of problem, but it is very common in Windows.


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
The bigger question is this:

Did you reboot the computer in between completing your testing and trying to game? Hell, MY computer is wonky as shit after an extended Prime95 run and I have to reboot it to restore stability although all of my stress testing has passed. I also have to reboot after completing large batches of x264 encodes or the computer behaves... strangely. This has been true for every PC I have ever owned. I believe this problem is located more firmly in the Windows wheelhouse than in the hardware one, though. I've not heard of LInux users having this kind of problem, but it is very common in Windows.
I see what you're saying. I however prefer that my machine remain stable at all times, more so when running stock settings. I also find that W10 and even 8.1 don't need to be restarted as often as their predecessors did

I used to run folding@home on a 1055t in 2009-2010. At the time I was doing -bigadv work units which were normally only assigned to 8 core chips. Under linux we used to fake an extra two cores because a heavily overclocked 1055t could actually complete the work unit right before the deadline and thus be awarded points. If my machine became unstable while crunching, the downtime would cause me to miss the deadline, lose the points and time spent. My team would've kicked me out. So I spent a lot of time stress testing, typically during a 3 day period (roughly the time it took to complete a -bigadv wu). I still use this chip today in a machine that runs part of a kubernetes cluster. Stability in my workstations is incredibly important to me.

While using the second pcie slot, I played a whole bunch of games over the last 10 days or so; kcd, warframe, division 1, poe and hots. Machine crashed 3 times, did not reboot on it's own. Crashed once at the desktop without anything really running except my browser and Im watching plex. That sucked

I don't have many hardware utilities installed; afterburner, icue, got the steelseries driver and utility. I've got some other services running but nothing I would think that could conflict with the display. I've done the DDU dance a couple times already but I'm willing to try again. I'm hesitant to wipe and reinstall the bare essentials but I guess it's my next step. In the meantime I'm reaching out to asus for feedback and to see if I can get yet another RMA.


pendragon1

[H]ardForum Junkie
Joined
Oct 7, 2000
Messages
15,954
try a different psu yet? try running with all the background stuff disabled.


Furious_Styles

[H]ard|Gawd
Joined
Jan 16, 2013
Messages
1,570
After reading the thread it does seem like a mobo problem. You have pretty much ruled out the PSU, CPU, and GPU (rare to get a bad one from RMA) only thing left really is board or mem. Have you tried removing everything but the barest of necessities just to see?


filip

2[H]4U
Joined
Aug 15, 2012
Messages
2,081
My personal experience, mem problems can cause bsod and crashes in game (you can have a good and bad stick or just shit memory from the factory, when it is loaded it will fail), a gpu going bad can cause problems, mb was only ever a total failure.

Check that memory sounds like the problem.


crazycrave

Gawd
Joined
Mar 31, 2016
Messages
647
It worked for me with RX 5700 acting like I had Witch in my drivers , I have CX 650 M and 8 pin connection is on it's on rail alone , 6 pin connection is on the other rail alone and now 100 % stable and no more anything ,


ThreeDee

[H]ardForum Junkie
Joined
Sep 5, 2001
Messages
10,727
I rma'd a GTX 1070 to EVGA ... they sent back what appeared to be the same card with the same exact problem .. I rma'd that back to them ..again .. after talking to one of their techs and asking if they even test these things before they send them out .. the next card I got back worked .. so RMA screw ups happen .. just throwing that out there. :)

..maybe try the card in a different box and see what happens


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
My personal experience, mem problems can cause bsod and crashes in game (you can have a good and bad stick or just shit memory from the factory, when it is loaded it will fail), a gpu going bad can cause problems, mb was only ever a total failure.

Check that memory sounds like the problem.
After reading the thread it does seem like a mobo problem. You have pretty much ruled out the PSU, CPU, and GPU (rare to get a bad one from RMA) only thing left really is board or mem. Have you tried removing everything but the barest of necessities just to see?
I haven't no. Haven't had time. I ran memtest for a few hours and it came back clean. My sticks are not on the QVL though. I clocked them down to the 2133MHz with auto timings and had the same issue. I used the Ryzen DRAM calculator for timings ever since I started with Ryzen on my 1700 (same RAM) and that build worked well.

My friends son's machine was having a similar issue crashing during gaming. His would hard lock and screen would just show the last frame of the game when it crashed.
I swapped out the PSU, 1080ti, Ram, CPU, went from SSD to NVME and finally swapped out the motherboard and all was good.
https://hardforum.com/threads/threadripper-x399-system-keeps-randomly-locking-up.1987047/#post-1044359148
Thanks, not exactly my scenario but I'll keep it in mind

It worked for me with RX 5700 acting like I had Witch in my drivers , I have CX 650 M and 8 pin connection is on it's on rail alone , 6 pin connection is on the other rail alone and now 100 % stable and no more anything ,
Have had this since the start

I rma'd a GTX 1070 to EVGA ... they sent back what appeared to be the same card with the same exact problem .. I rma'd that back to them ..again .. after talking to one of their techs and asking if they even test these things before they send them out .. the next card I got back worked .. so RMA screw ups happen .. just throwing that out there. :)

..maybe try the card in a different box and see what happens
Thanks. I've tried to chat with Asus a couple of times. Wait times are wild.

I don't really have another machine that can take this card at the moment. I have a mATX biuld that this card won't fit in and the other build is running headless with Ubuntu.

The worst part, the absolute worst part is not being able to reproduce the problem. I can run stress tests and benchmarks all day long and the machine stays stable. Only after a couple of hours of fucking hots does it crash.. oh and randomly at the desktop.

I wanted to see if it was my card boosting too high or something like that so I turned on AB logging. This is what things were like right before a crash:



I think I'm going to get a board just to throw something new into the mix.


Furious_Styles

[H]ard|Gawd
Joined
Jan 16, 2013
Messages
1,570
I haven't no. Haven't had time. I ran memtest for a few hours and it came back clean. My sticks are not on the QVL though. I clocked them down to the 2133MHz with auto timings and had the same issue. I used the Ryzen DRAM calculator for timings ever since I started with Ryzen on my 1700 (same RAM) and that build worked well.



Thanks, not exactly my scenario but I'll keep it in mind



Have had this since the start



Thanks. I've tried to chat with Asus a couple of times. Wait times are wild.

I don't really have another machine that can take this card at the moment. I have a mATX biuld that this card won't fit in and the other build is running headless with Ubuntu.

The worst part, the absolute worst part is not being able to reproduce the problem. I can run stress tests and benchmarks all day long and the machine stays stable. Only after a couple of hours of fucking hots does it crash.. oh and randomly at the desktop.

I wanted to see if it was my card boosting too high or something like that so I turned on AB logging. This is what things were like right before a crash:

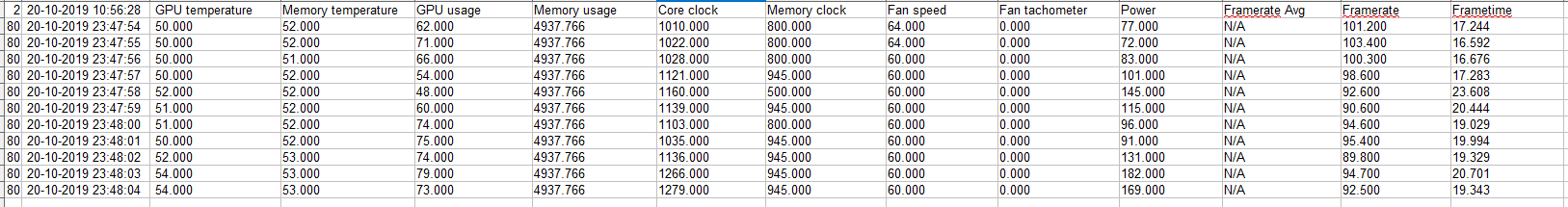

View attachment 194335

I think I'm going to get a board just to throw something new into the mix.
I see nothing wrong really in that chart. GL with the board that is certainly my best guess at this point. Asus also generally is terrible for support but hopefully you get lucky.

These problems can definitely be a real PITA to isolate sometimes, especially if you don't have a bunch of spares lying around. I had one recently where my monitor USB hub was causing random crashes (sometimes days, sometimes weeks of uptime) and I was thinking it was my OC. I finally realized what it was when I turned windows sounds back on and kept hearing the disconnect/reconnect sound. No problems since completely disconnected the USB from the monitor.


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
I see nothing wrong really in that chart. GL with the board that is certainly my best guess at this point. Asus also generally is terrible for support but hopefully you get lucky.

These problems can definitely be a real PITA to isolate sometimes, especially if you don't have a bunch of spares lying around. I had one recently where my monitor USB hub was causing random crashes (sometimes days, sometimes weeks of uptime) and I was thinking it was my OC. I finally realized what it was when I turned windows sounds back on and kept hearing the disconnect/reconnect sound. No problems since completely disconnected the USB from the monitor.
You know what... Speaking of USB.. I remembered that I've been having some trouble with my mouse where I need to unplug and plug it back it for it to work, I think it even happened once after one of these crashes. Using a SteelSeries Rival 710. Might be something pointing towards the board too

Thanks!


ThreeDee

[H]ardForum Junkie
Joined
Sep 5, 2001
Messages
10,727
random crashes can be a bear .. my daughters mini-ITX setup had been running fine for almost a year and then random lock ups/BSOD .. tracking down a bunch of errors in the Event Log finally pointed to the Intel WiFi card .. drivers from ASRock were crashing and went to Intel and got their updated drivers and all has been good .. sift through your Event Log and see if it says anything if you haven't already


pendragon1

[H]ardForum Junkie
Joined
Oct 7, 2000
Messages
15,954
so i just updated my system(board, chip, ram) on the weekend and was having all sorts of random crashing. turns out i needed to RTFM to find which RAM slots should be used, put the sticks in the correct slots and it now seems rock solid. maybe check on that.


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
Swapped the Prime x470-Pro for a x470 Gaming plus and after a few days had the issue again. Gonna swap RAM next, then nvme drive. After that there will be nothing left to replace

A positive that came of this is that this little MSI board boosts the 2700x much higher than the prime did. I see a max of 4.35GHz now whereas before it wouldn't break 4.2GHz. happy with that


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
IMO RAM is fine so I'm not gonna bother. Can't pass this many rounds of mem test and still crash randomly so I'm not gonna waste my time there

I already sold my prime board

I went back to Asus and chatted with a rep yesterday who confirmed that my card wasn't replaced but merely repaired. They are offering to repair AGAIN because apparently they don't have any inventory ATM. I'm asking that they replace the card but they don't want to. So I escalated and I'm waiting for someone to reach out. I don't know how they can justify another "repair' when they tried one already and seemingly sent me back the same problem

Any advice ?


pendragon1

[H]ardForum Junkie
Joined
Oct 7, 2000
Messages
15,954
nope. i dont think we have an asus rep on the forum, i could be wrong and someone will correct if so. just stand your ground and demand a replacement.


ThreeDee

[H]ardForum Junkie
Joined
Sep 5, 2001
Messages
10,727
IMO RAM is fine so I'm not gonna bother. Can't pass this many rounds of mem test and still crash randomly so I'm not gonna waste my time there

I already sold my prime board

I went back to Asus and chatted with a rep yesterday who confirmed that my card wasn't replaced but merely repaired. They are offering to repair AGAIN because apparently they don't have any inventory ATM. I'm asking that they replace the card but they don't want to. So I escalated and I'm waiting for someone to reach out. I don't know how they can justify another "repair' when they tried one already and seemingly sent me back the same problem

Any advice ?
the already didn't fix it once .. keep asking for the next person up the food chain until they replace your card .. not "fix" it ..


mvmiller12

Gawd
Joined
Aug 7, 2011
Messages
929
My concern is that Asus is almost certainly asking you to pay for shipping it back to them. If nothing else, that should be a point of contention because you already had to do this the first time and it's THEIR screwup, not yours.


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
So I should be getting my card back from it's second repair today or tomorrow. They offered to pay for shipping so I went ahead. I've been on a Sapphire 7870 for a week without any problems (except for a desperate lack of VRAM.)

I've dealt with Gigabyte and Sapphire RMA in the past and I'm sure they're all kind of similar, but I have to say overall I'm pretty unimpressed with ASUS customer service. They lack the basics. Crazy wait times, very little communication, if you ask a question that you couldn't answer yourself using self serve tools, it's always a 1-2 business day delay before you get an response. I was told someone would follow up, didn't happen. Zero transparency, so robotic. At my preferred price point, there are usually better products available anyway so I'll probably go with another AIB partner next time around


blackmomba

Limp Gawd
Joined
Dec 5, 2018
Messages
149
Got a card back a couple weeks ago. Card was replaced. Different card, same issue.

I got some value ram Aegis 2400mhz and after a few days had the issue at the desktop.

So I'm down to
a) CPU
b) boot drive (intel 760p)

So I picked up a 2200G. 75$ USD is a great price for a quad core with graphics. I'm going to install it later. If it turns out to be my 2700x, it'd be the first chip that I've ever had that became faulty on its own.
