AIO question

Discussion in 'Overclocking & Cooling' started by fightingfi, Apr 22, 2018.

  1. fightingfi

    fightingfi Look at Me! I need the attention.

    Messages:
    2,218
    Joined:
    Oct 9, 2008
    what if any is the proper way for the install do you want the tubes on top ( where the back of the case is , its a 120mm push pull config) or the bottom so the tube is laying over ur gpu? does it really matter ? thanks in advance

  2. Araxie

    Araxie [H]ardness Supreme

    Messages:
    6,111
    Joined:
    Feb 11, 2013

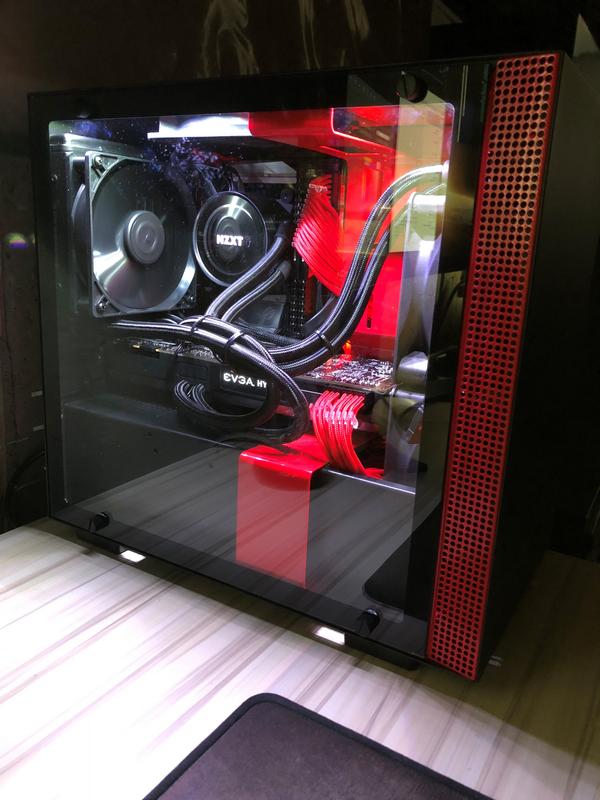

    what.... you have to explain yourself better. but if I understand correctly, you are referring to the mounting position of the AIO radiator on the back of the case..? you will want to install it with the tubes down, so any possible bubble is kept in the reservoir and not obstructing the liquid path and flow, as shown in the image below, that's the correct position.


    pendragon1 likes this.
  3. fightingfi

    fightingfi Look at Me! I need the attention.

    Messages:
    2,218
    Joined:
    Oct 9, 2008
  4. Putz

    Putz I have a custom title

    Messages:
    5,381
    Joined:
    Jul 8, 2002
    according to manufactures it doesn't make any difference tubes up or down, i have one 120mm down and 240mm up and both work fine no pump noise or air issues

    only time id be concerned with that is if the rad is on the bottom and the hoses are running vertical to the pump myself


  5. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    10,703
    Joined:
    Oct 7, 2000
    aios always have a bit of air in them. with the tubes at the top, any air in the unit will collect in the end of the rad and can get sucked down and into the rad pump* causing gurgling. its exactly what is happening with my h110i right now and happened with my h60 too.

    *edit

    Last edited: May 4, 2018
  6. VanGoghComplex

    VanGoghComplex [H]ard|Gawd

    Messages:
    1,193
    Joined:
    Apr 5, 2016
    Exactly. Even if the AIO didn't come from the factory with any air in it, the coolant does evaporate through the tubing over time, albeit very very slowly. Gurgly noises aside, it doesn't take much air to seriously hamper those little AIO pumps, so mounting the radiators so air can be trapped in their endtanks is best practice.

  7. doubletake

    doubletake Limp Gawd

    Messages:
    490
    Joined:
    Apr 27, 2013
    Rather than the direction of the tubing, the more important thing with AIOs is to keep the pump below the radiator so that gravity can help in pulling liquid back to the impeller. These pumps are universally weak and need every bit of help they can get to reduce stress and maximize their lifespans.

  8. doyll

    doyll Kyle's Thermocouple is HOT

    Messages:
    960
    Joined:
    Feb 4, 2012
    What doubletake said.

    One end of radiator needs to be higher than the pump. This will hopefully keep any air in system at top of radiator. But air still might collect in other high point is loop, like if pump is higher than hoses between pump and radiator.
