Z170 USB Issues

Discussion in 'Intel MoBos' started by doubleJ, Jul 20, 2016.

  1. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    I just purchased a Gigabyte Z170x-Ultra Gaming motherboard.
    For some reason, every now and then, the USB connections disconnect/reconnect.
    I have a USB 3 SSD, a USB 2/1 keyboard, and a USB 2/1 mouse.
    I do a fair amount of work, from that hard drive, so I notice when it disappears.
    My keyboard/mouse lights flash, as well.

    Specs:
    Gigabyte Ga-Z170x-Ultra Gaming Motherboard
    Intel i7-6700 (non-K) CPU
    2x8GB GSkill Ripjaws V DDR 2400 RAM
    Samsung SM951 Nvme 256GB SSD
    EVGA W1-500 PSU
    Zalman MS800 Case
    Windows 10 Pro 64-bit

    Drivers seem to be all up-to-date.
    I was thinking about installing the USB 3 drivers (Intel), but it looks like they support up to Windows 8.
    Other Intel drivers do say Windows 10, so I wasn't sure if they were needed or if Windows Update drivers were better.

    Does this seem like a software issue or a bum board?
    JJ

  2. JohnC0817

    JohnC0817 [H]Lite

    Messages:
    121
    Joined:
    Jul 7, 2005
    Does that occur on all the USB ports or just the USB3 ports?

  3. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    Hard drive is rear usb3.
    Keyboard/mouse at rear usb2/1.
    I guess I could try the front ports from the headers.
    JJ

  4. c3k

    c3k 2[H]4U

    Messages:
    2,100
    Joined:
    Sep 8, 2007
    JJ,

    I've got the same board with an i7-6700k in it and I'm noticing USB issues, as well. Different symptoms than yours, unfortunately. In Safe Mode, I cannot get any USB mouse to work. I'm curious: do you have Safe Mode issues?

    FWIW, I've loaded the Intel USB 3.0 drivers.

    Ken

  5. pchealth 2

    pchealth 2 Limp Gawd

    Messages:
    276
    Joined:
    Feb 10, 2011
    Hello... Are you using USB 3.1 devices? on your mail you mentioned you used Samsung SM951 NVME 256GB SSD?
    Then you are using USB 3 SSD?
    I suggest you use the latest Gigabyte website driver. If you are using USB 3.1 you need to install Thunderbolt driver for USB 3.1 driver.
    GIGABYTE - Motherboard - Socket 1151 - GA-Z170X-Ultra Gaming (rev. 1.0)


    Attached Files:

  6. c3k

    c3k 2[H]4U

    Messages:
    2,100
    Joined:
    Sep 8, 2007
    JJ,

    Go to Computer Management, and expand the USB controllers/hub section and take a screenshot.

  7. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    Just for clarification are you, referring to windows safe mode (f8)?
    JJ

  8. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    My external hard drive is connected to the USB 3 port not 3.1.
    My understanding is the 3.1 port is fed from a different controller.
    The Samsung is an M.2 card.
    I did install the Thunderbolt Firmware buy I did not install the thunderbolt drivers.
    I don't have any thunderbolt devices and I didn't have any unknown things in device manager.
    JJ

  9. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    Here you go.
    JJ

    Edit...

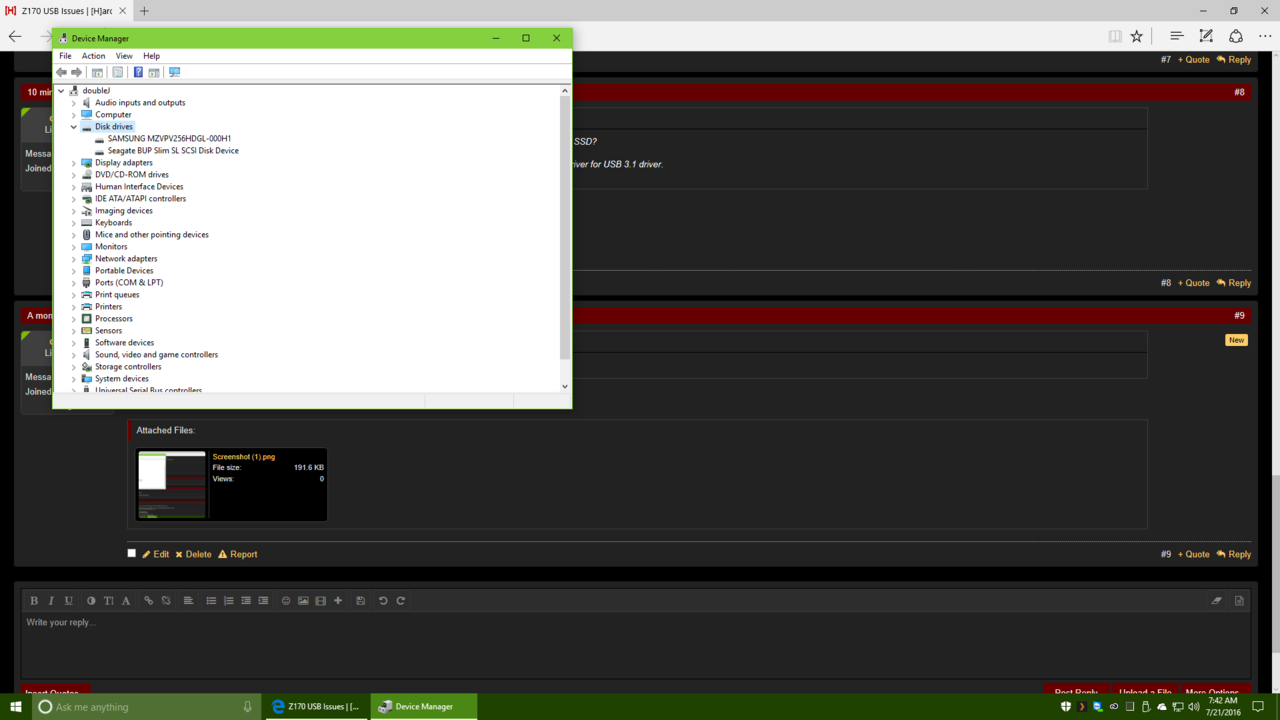

    And for good measure, my drives section.
    JJ


    Attached Files:

  10. c3k

    c3k 2[H]4U

    Messages:
    2,100
    Joined:
    Sep 8, 2007
    JJ,

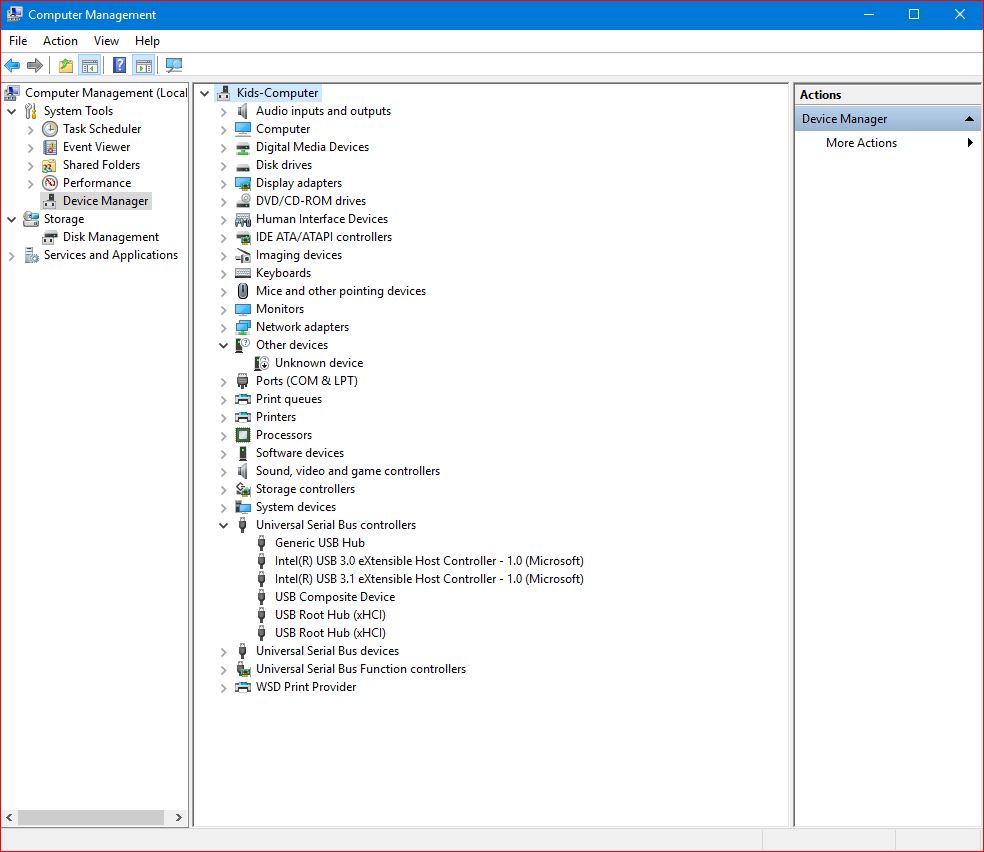

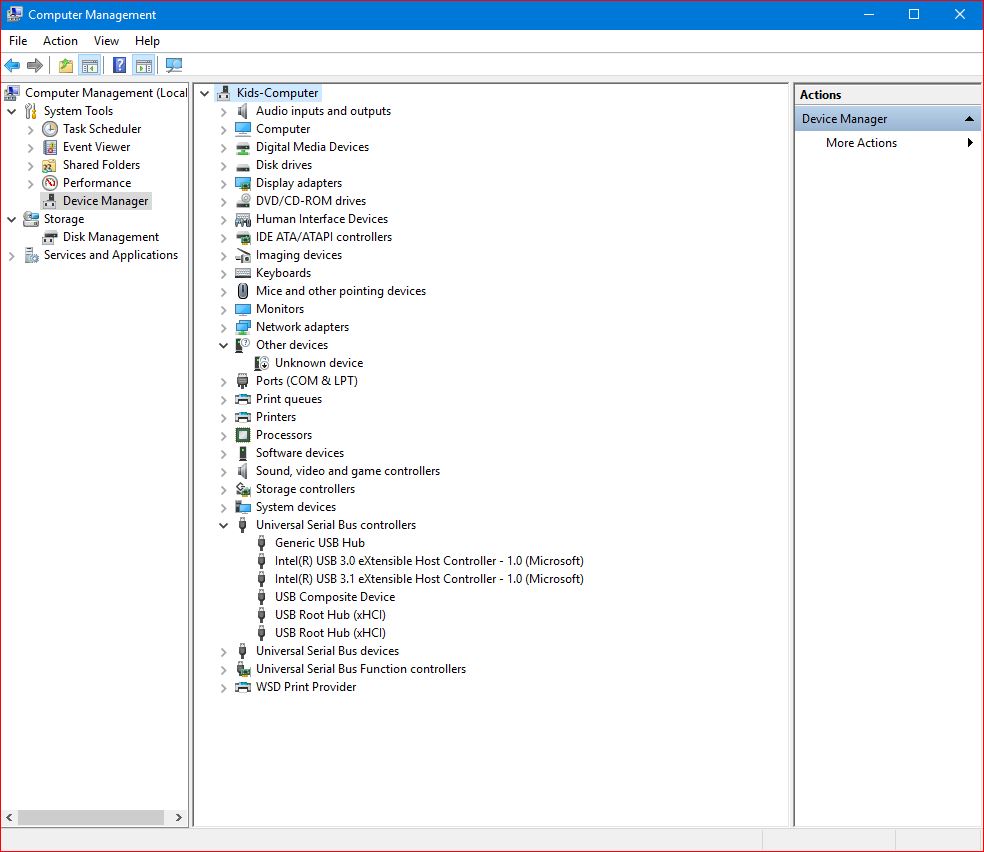

    Well, I'm at a loss. Here's my USB image...they are pretty close. I don't see anything obviously wrong.

    Ken USB image.JPG

  11. rastaban

    rastaban Gawd

    Messages:
    818
    Joined:
    Jul 30, 2011
    Is there any pattern to when the drive dropouts occur? Maybe it has to do with high bandwidth loads hitting the M.2 SSD, causing the chipset to drop the external devices.

  12. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    I've had the external ssd connected to the front USB 3 port, for a couple days.
    I haven't noticed the drive disappearing or my keyboard/mouse turning off.
    I'll try connecting the drive to some other ports.
    Maybe it's just one bad port?
    JJ

  13. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    I moved the drive to a different rear USB 3 port and it disappeared twice.
    I'm moving it to the rear USB 3.1 port, now.
    JJ

  14. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    After 6 hours in the usb 3.1 port, the external drive seems fine.
    I think the problem may be with the rear 3.0 ports.
    JJ

  15. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    I used a different rear USB 3 port and it failed, as well.
    The issue seems to only be with the rear USB 3 ports (front USB 3 and rear USB 3.1 seem fine).
    I'll try installing the USB 3 drivers, just to see if that makes a difference.
    JJ

  16. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    Hmmm...
    There are two USB 3 drivers...

    USB 3.0 Driver: Intel® USB 3.0 eXtensible Host Controller Driver for Intel® 8/9/100 Series and C220/C610 Chipset Family
    Intel® USB 3.0 Host Controller Adaptation Driver for Windows 8.1*

    The first one seems to be for Windows 7 and lower.
    The second one seems to only be for Windows 8.1 and it says Adaptation Driver (not sure what the difference is).
    Recommendations?
    JJ

  17. SolidBladez

    SolidBladez [H]ardness Supreme

    Messages:
    6,274
    Joined:
    Jan 4, 2008
  18. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    F5b (latest beta version)
    JJ

  19. c3k

    c3k 2[H]4U

    Messages:
    2,100
    Joined:
    Sep 8, 2007
    wrong info. nm.

  20. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    Interestingly enough, both driver install files errored and said that it wasn't a supported operating system.
    When I tried installing the drivers, through Device Manager, it said that the newest driver was already installed.
    So, no advancement there.
    JJ

  21. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    Well, the front USB 3 ports had a failure, as well.
    Maybe all the USB 3 ports are iffy, but the USB 3.1 port has performed flawlessly.
    Of course, it uses a different controller.
    I don't really want to go back to USB 2 speed, but I could try the drive on those ports to see.
    JJ

  22. DrLobotomy

    DrLobotomy [H]ardness Supreme

    Messages:
    5,885
    Joined:
    May 19, 2016
    I see unknown device in that photo. That is your issue. You have missing drivers.

  23. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    I think you're looking at c3k's screenshot.
    I don't have any unknown devices.
    JJ

  24. DrLobotomy

    DrLobotomy [H]ardness Supreme

    Messages:
    5,885
    Joined:
    May 19, 2016
    my bad.

  25. pchealth 2

    pchealth 2 Limp Gawd

    Messages:
    276
    Joined:
    Feb 10, 2011
  26. pchealth 2

    pchealth 2 Limp Gawd

    Messages:
    276
    Joined:
    Feb 10, 2011

    Attached Files:

    • FW.jpg
      File size:
      102.3 KB
      Views:
      233
  27. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
  28. bonehead123

    bonehead123 Gawd

    Messages:
    1,016
    Joined:
    Nov 27, 2011
    I had similar usb issues when I first built the Skylake rig in my sig, but subsequent firmware and driver updates fixed them right away and everything has worked perfectly since

  29. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    Hmmm...
    What kind of firmware?
    I haven't really seen any firmware.
    Drivers, yes, but not firmware.
    JJ

  30. pchealth 2

    pchealth 2 Limp Gawd

    Messages:
    276
    Joined:
    Feb 10, 2011
    Hello Double J,
    I see your attachment of device manager, I can see that your USB 3.1 revision is still at 1.0.
    I have checked my system device menager my USB 3.1 is revision 1.1 version. (Please check attached picture).
    I suggest that you should update your Intel USB 3.1 version.
    Eventhough your USB 3.1 is not the controller for USB 3.0, but I think there is an relation to your problem.
    Please do also install your thunder driver as well.


    Attached Files:

  31. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    I think you are, also, looking at c3k's screenshot.
    Hehehe...
    My 3.1 hub is 1.10.

    I did install the thunderbolt drivers, though.
    JJ

  32. pchealth 2

    pchealth 2 Limp Gawd

    Messages:
    276
    Joined:
    Feb 10, 2011
    Hello Double J,
    What is the uSB 3.0 SSD Adaptor your are using? and the m.2 SSD attached on the adaptor?
    I will try to see if I have this devices?
    Thankls.

  33. pchealth 2

    pchealth 2 Limp Gawd

    Messages:
    276
    Joined:
    Feb 10, 2011
    Hello c3k,

    Here are the photo of the test as attached.
    Sorry the test is done on my H170- board.

    Thanks.


    Attached Files:

  34. c3k

    c3k 2[H]4U

    Messages:
    2,100
    Joined:
    Sep 8, 2007
    Thanks. Oddly, the firmware update runs (version numbers are correct, B16.0315.1, but it never gives me a restart requirement. It shows a blue progress bar flashing across a few times and then says it's done.

    Ken

    (Sorry for the hijack. :( )

  35. pchealth 2

    pchealth 2 Limp Gawd

    Messages:
    276
    Joined:
    Feb 10, 2011
    Maybe try to connect to internet while updating firmware to check.
    Maybe you should submit a ticket to Gigabyte or send your board for repair. Thanks.

  36. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    I'm not using an SSD adapter.
    It's an external Seagate drive (see above screenshots for drive information).
    I'm also not using an M.2 adapter.
    The M.2 slot is on the motherboard and it's a Samsung SM951.
    I don't think the drives are the issue.
    The issue seems to be on the motherboard side.
    The USB 3.1 port (not driven from the PCH) has ran flawlessly.
    Every rear USB 3.0 port, that I've tried, has failed at one point or the other.
    At this point, I don't recall if the front USB 3.0 ports have failed (I've moved the drive around many times, by now).

    Here's a question that may be worth asking...
    Let's say, theoretically, that one of the front USB 3.0 header pins broke when someone (again, theoretically) installed the front USB 3.0 cable.
    Maybe, because of said theoretical situation, one of the front USB 3.0 ports doesn't work but the other does.
    I wouldn't think that would cause any issue, with the rear ports.
    Would it?
    JJ

  37. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    My installs didn't match your flashtbt 4 and run flashfw screenshots, either.
    Of course, maybe the difference is that I don't have any thunderbolt devices.
    Also, I don't have a Firmware section on my Device Manager.
    JJ

  38. pchealth 2

    pchealth 2 Limp Gawd

    Messages:
    276
    Joined:
    Feb 10, 2011
    Hello C3K try to update your bios.
    I got one latest beta bios F6g from Gigabyte.
    Or you can check with Gigabyte for the bios.


    Attached Files:

  39. pchealth 2

    pchealth 2 Limp Gawd

    Messages:
    276
    Joined:
    Feb 10, 2011
    Hello JJ,
    What is your bios version? Maybe you want to try the latest beta bios F5b from Gigabyte website to check.
    GIGABYTE - Motherboard - Socket 1151 - GA-Z170X-Ultra Gaming (rev. 1.0)
    Or I suggest you should give Gigabyte a ticket on this.

  40. doubleJ

    doubleJ Limp Gawd

    Messages:
    221
    Joined:
    Aug 10, 2004
    I can say that the front USB 3.0 ports have issues, as well.
    So far, the USB 3.1 port is the only one that seems 100%.
    Well, the USB 2.0 ports are fine, but who wants to put an external SSD on those?
    JJ
