TEC cooled laptop

Discussion in 'Extreme Cooling Solutions' started by TheLAWNoob, Jun 11, 2016.

  1. TheLAWNoob

    TheLAWNoob Limp Gawd

    Messages:
    275
    Joined:
    Jan 10, 2016

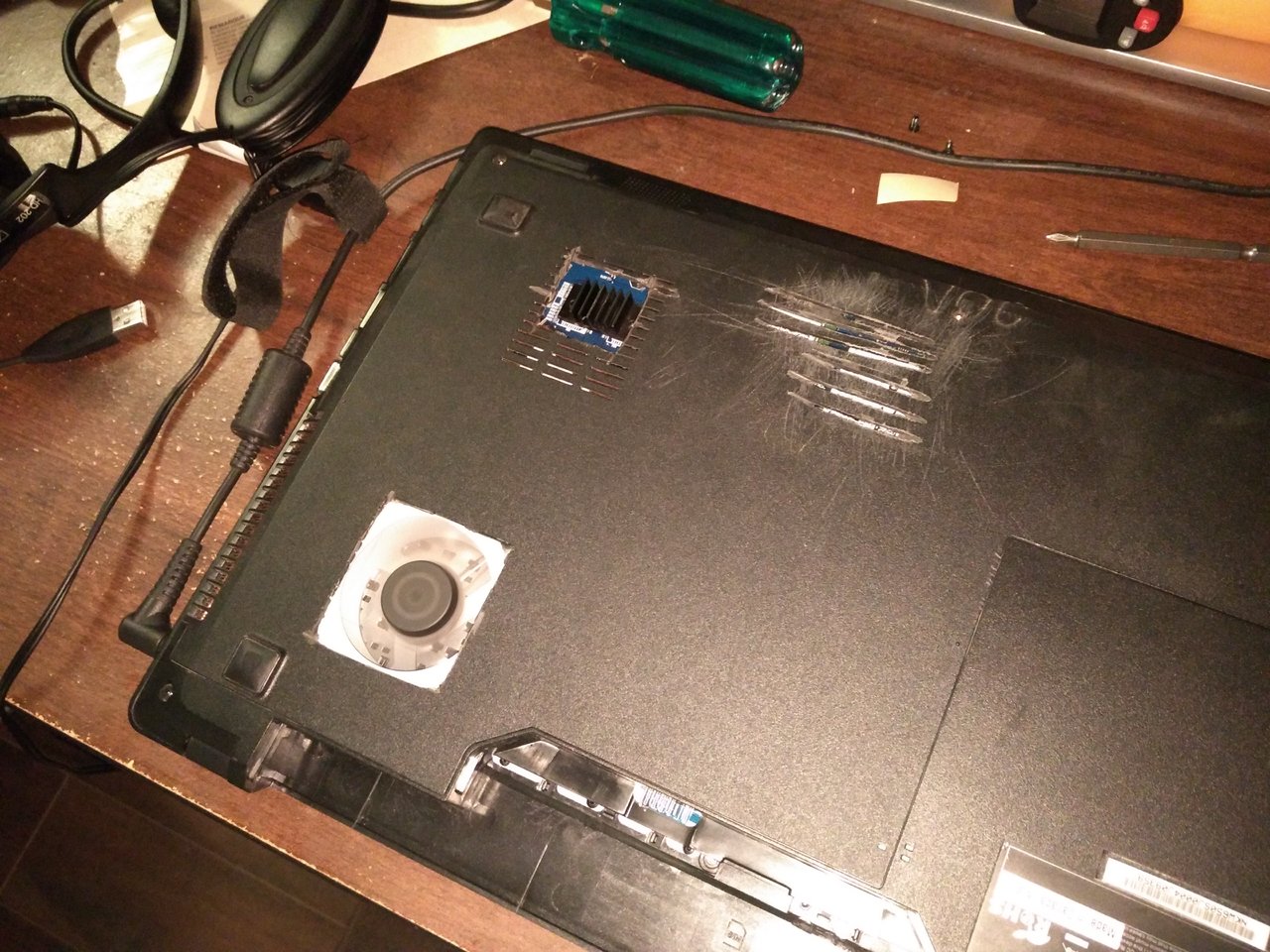

    Have a Eurocom Electra 2, aka Clevo W650SJ. Runs loud, so I cut up the back cover and put on a TEC chiller to give it sub ambient intake air.

    CPU: i5 4210M locked to 3.1Ghz
    GPU: GTX 850M at 1375Mhz 1.2V

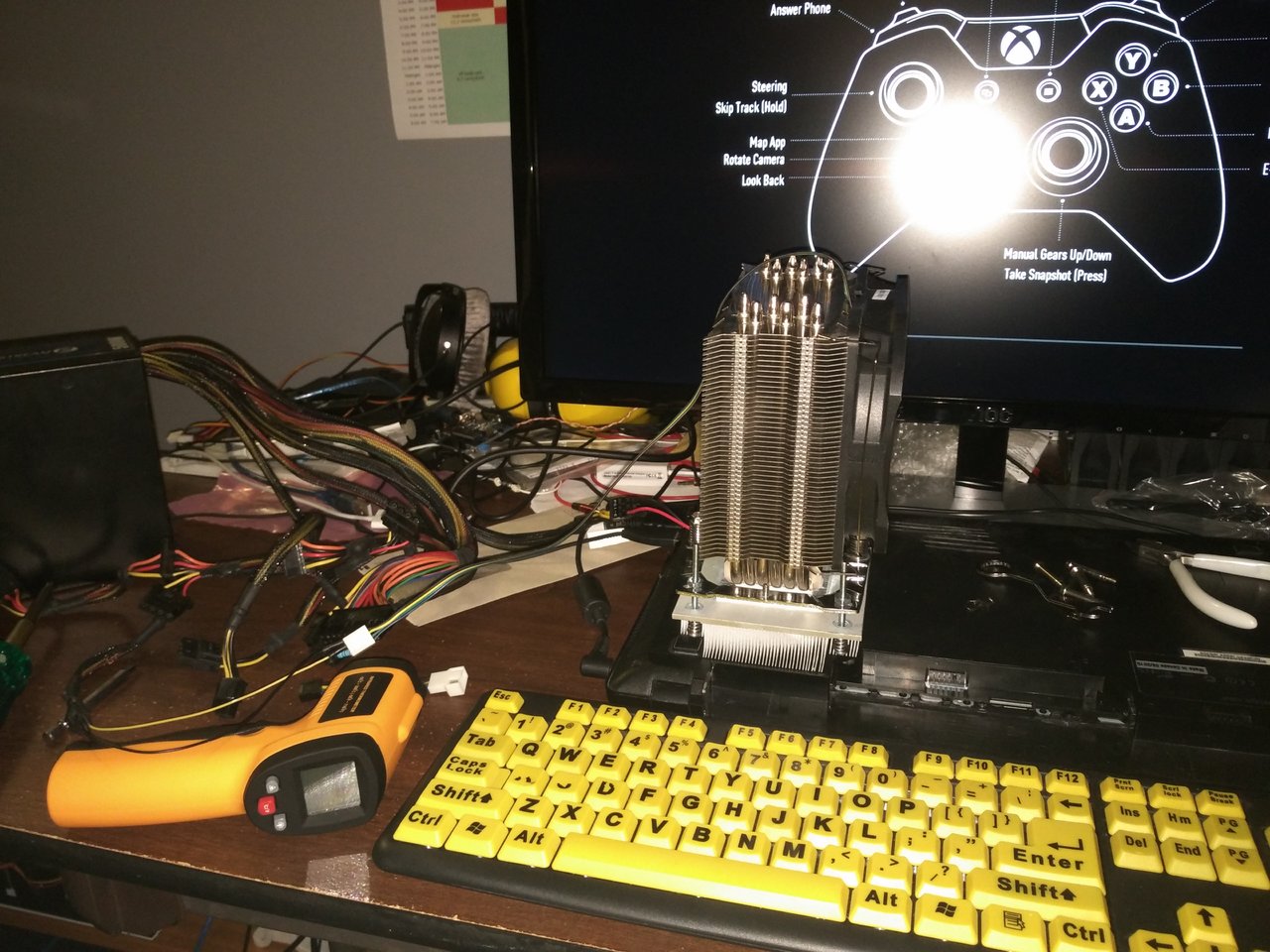

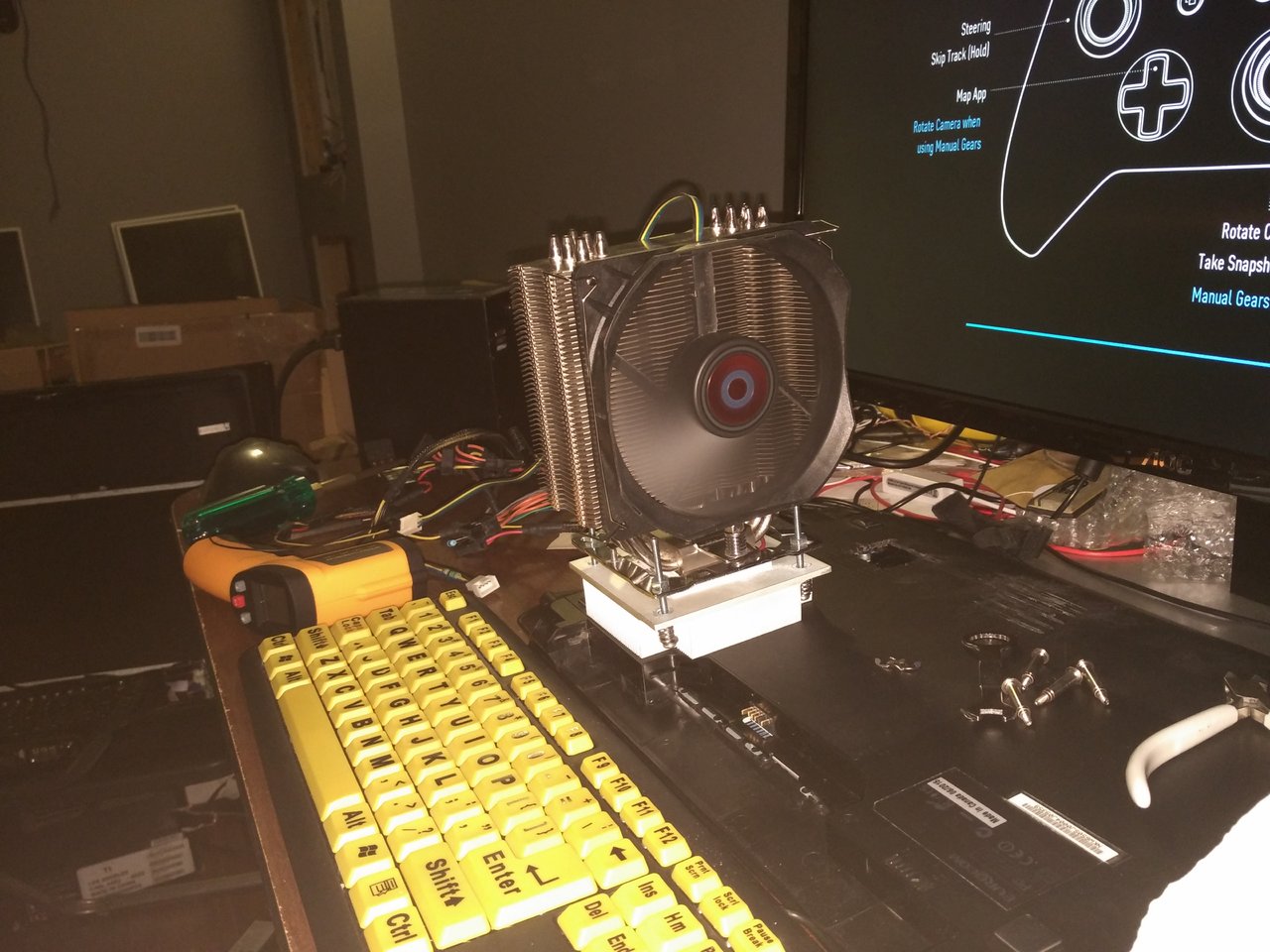

    IMG_20160611_133542.jpg IMG_20160611_221041.jpg IMG_20160611_221120.jpg

    Dropped GPU temp by 5C (after 1 hour of NFS 2016). Fan is much quieter. Used to run at full speed and now bout 60%.

    No miracles but good enough. I might order a bunch of supplies, make my own GPU heatsink and stuff it in the DVD drive space. Still on the fence though.

    SomeGuy133 likes this.
  2. N4CR

    N4CR [H]ard|Gawd

    Messages:
    1,526
    Joined:
    Oct 17, 2011
    Lmfao! Epic rangi mods. Churr bro!

    Love it though. See if you can get some appropriately shaped/dimension thin ended heatpipes and remotely mount it..

  3. MongGrel

    MongGrel 2[H]4U

    Messages:
    2,202
    Joined:
    Mar 14, 2014
    :)

    Stick a few more on there maybe you could turn it into a drone !

    J/K

  4. Ocellaris

    Ocellaris Ginger Ale, an alcoholic's best friend.

    Messages:
    17,331
    Joined:
    Jan 1, 2008
    Can we talk about the real issue here... What is up with that keyboard?!?

    sirgallium and buzzbomb like this.
  5. Tsumi

    Tsumi [H]ardForum Junkie

    Messages:
    12,140
    Joined:
    Mar 18, 2010
    Nice ghetto mod.

  6. N4CR

    N4CR [H]ard|Gawd

    Messages:
    1,526
    Joined:
    Oct 17, 2011
    PCMR Themed of course... caught me out too though.

  7. Dayaks

    Dayaks [H]ardness Supreme

    Messages:
    4,446
    Joined:
    Feb 22, 2012
    lol, maybe just epoxy a low profile right onto the CPU?

    I'd be concerned you're going to dump condensate into the laptop.

  8. michalrz

    michalrz 2[H]4U

    Messages:
    2,238
    Joined:
    Jun 4, 2012
    I am not disappoint
    Much pride

    sirgallium likes this.
  9. buzzbomb

    buzzbomb Gawd

    Messages:
    710
    Joined:
    Sep 29, 2009
    It's for old people! I bought one as a joke for a coworker but I'm starting to think I should be using it...


    Attached Files:

    drescherjm likes this.
  10. Dan

    Dan [H]ardness Supreme

    Messages:
    6,157
    Joined:
    May 23, 2012
    Deserves 4 food stamps!

  11. sirgallium

    sirgallium Limp Gawd

    Messages:
    304
    Joined:
    May 30, 2006
    I was thinking about TEC coolers the other day. I was thinking is there any reason not to put one on every CPU you want to cool and overclock better besides the cost of buying one? Just put it between the CPU and heatsink, or mount it right to the heatsink. Is that a thing people do? Is it just generally not worth the time and effort?

  12. TheLAWNoob

    TheLAWNoob Limp Gawd

    Messages:
    275
    Joined:
    Jan 10, 2016
    TECs are not powerful enough to directly cool modern CPUs.

    Modern CPU has very high heat density. The 40mm TECs that can sit on top of the CPUs, usually have max rating of 225W. You can use 50% of max rating, or else the temperature difference will be less than 20C.

  13. sirgallium

    sirgallium Limp Gawd

    Messages:
    304
    Joined:
    May 30, 2006
    I see I meant I guess in addition to normal air cooling. Don't remove the fan or anything. Put the cold side on your existing heatsink fan combo. Gives you a few more degrees I guess?

    I was also thinking sandwhiching it so on top of your CPU put a peltier, then on top of the peltier put whatever normal cooling setup you had in the first place. The peltier should just help a little bit more right?

    Last edited by a moderator: Jan 14, 2017
  14. TheLAWNoob

    TheLAWNoob Limp Gawd

    Messages:
    275
    Joined:
    Jan 10, 2016
    That was popular back in Pentium 4 era.

    The problem with that is you need mod you cooler mount because the additional thickness the TEC adds.

    Also, you can't overclock too much. If your CPU draw more than 150W, the TEC will not give you a temperature difference. If you go over 200W, you CPU will run hotter with the TEC.

    Furthurmore, TECs are very inefficient. The TEC uses around 200W to cool about 140W. Thus your CPU cooler needs to dissipate 340W in total.
