Project Snowballed .

Discussion in 'Worklogs' started by BrainEater, Dec 18, 2017.

  1. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    [H]o ho ho !

    I've been working on this for 8 months.It started out with buying a reaaaaaaaaly nice case.
    I'd like to say thanks to the people here that helped me along the way !

    Cheers !

    -----------
    Caselabs Magnum SMH10 ( custom white )
    Supermicro X11DPi-NT
    2x Intel Xeon Gold 6144 Scalable processors
    96 Gb Crucial ECC 2666 ddr4
    Onboard M.2 1Tb Samsung 960 pro
    2x ASUS 4 layer blu-ray (m-disk) burners
    2x Icydock raid backplanes
    2x OCuLink PCIe M.2 drives

    It's a work in progress , need video cards and SSD's but , the bones are there.
    Hehe

    :D

  2. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    gp17a.JPG gp17b.JPG gp17c.JPG gp17d.JPG I'm doing better pics soon.

    :D

    Master_shake_ and talk2troy like this.
  3. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    Well ,at least talk2troy liked it......That what I get for following after Venturi.

    haha !
    ----

    I've got the OS loaded , just updating drivers.
    I'm going to do some cpu benchmarks next.....no video cards....I've got 2 1070's to go in after that .

    pics Saturday mebbie .

    :D

  4. talk2troy

    talk2troy [H]ardForum Junkie

    Messages:
    8,751
    Joined:
    Jun 10, 2004
    Gotta' like a build that uses a beer bottle for scale.

    That case is huge. What's in the bottom?

    Also, can you explain your storage plan? Are those 8 x 2.5" SSD drives?

    What are you going to do with this box? Do you even game bro? ;)

  5. mls1995

    mls1995 2[H]4U

    Messages:
    3,272
    Joined:
    Jan 20, 2007
    Holy crap that case is huge. Like the poster above me said, I hope you have some big plans for it.

  6. talk2troy

    talk2troy [H]ardForum Junkie

    Messages:
    8,751
    Joined:
    Jun 10, 2004
    I think the bottom section must be a firearms safe because thieves would never look in there.

    AND the PC / case is so big they won't try to run away carrying it, so win / win.

    Perilous likes this.
  7. Dan_D

    Dan_D [H]ardOCP Motherboard Editor

    Messages:
    53,770
    Joined:
    Feb 9, 2002
    I've got the Thermaltake WP100 and it's very similar to the OP's case. I've thought about using that compartment for that very purpose.

    talk2troy likes this.
  8. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    Hehe....gun safe is a good idea.

    In a perfect world, I'd like to watercool this sucker (hence the empty bottom part)....the socket p Xeons are a problem tho, the cpu/hsf mounting procedure is unique, and the waterblocks would have to be custom milled.
    We'll see what happens.
    -----
    I'm not so much of a gamer these days (I still do occasionally tho). I put it together for video editing/rendering essentially.
    The storage will be :
    the 2 oculink M.2 ssd's in raid 0
    4 of the drive bays in raid 10 (ssd's)
    4 bays for random 2.5" drives....

  9. Dan_D

    Dan_D [H]ardOCP Motherboard Editor

    Messages:
    53,770
    Joined:
    Feb 9, 2002
    I bought the WP100 for more radiator space. I've not gotten around to going back to a full custom loop. At this point, I will probably wait until I do a major upgrade of the system and then do that.

  10. defaultluser

    defaultluser I B Dum

    Messages:
    11,726
    Joined:
    Jan 14, 2006
    And we're back to the boring beige boxes of the 90s? :D

    Good effort, but I think that case looks a lot better in Black.

  11. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    Haha !
    Actually there is nothing beige about it,that's just my shitty pics.stupid color temp...*grumble*

    In person, it's brilliant white.
    I'm working on better pics.

    (y)

  12. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004

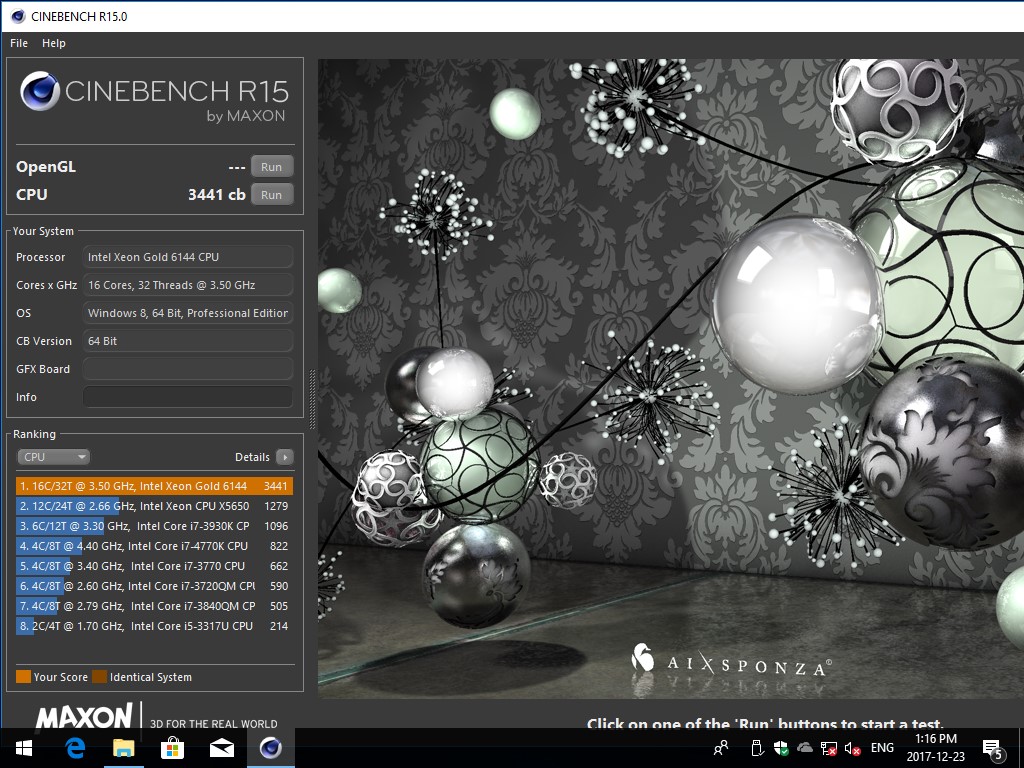

    cpu-z.jpg cb1.jpg


    -----


    Untweaked , no cards installed .
    Issat good ?

    hahahahah.

    :p

  13. WhoBeDaPlaya

    WhoBeDaPlaya 2[H]4U

    Messages:
    2,587
    Joined:
    Dec 16, 2002
    Well, certainly puts my HP Z800s (dual X5690) to shame :p

  14. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    I actually looked that score up today......#24 (guess I will have to validate it now)
    hehe....that's cool......It smashed the shit outta my 3930k , that's all I really care about.
    ----
    I'm not having much luck getting my video cards in though...
    BIOS catches the new monitor (and comes up), but it goes blank screen when it hits "load windows" .....I get nothing.

    First adopter tax for the win, Alex.

    The bios manual is 150 pages , that ain't helping.

    /me gets back to work.

    :D

  15. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    Interesting.
    Got Video card 1 (asus strix 1070 ) installed.Pebcak haha
    Lost 15 points offa Cinebench on the one card, installing # 2 now.

    I did a trial Premier video render comparison....looks like 300% improvement over my current rig..I'm super happy.

    I have to say , the BIOS on server boards leaves a lot to be desired.I can think of quite a few options that would be really good in addendum to the 150 that are there !!

    Hah !
    ------------

    Now that it's alive , I'm leaving and going to the rocks.
    I have to film stuff to process with this rig.
    :ROFLMAO:

  16. auntjemima

    auntjemima Hand Jobs Legend

    Messages:
    4,066
    Joined:
    Mar 1, 2014
    Jesus! That case is a monster.

    BrainEater and talk2troy like this.
  17. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    Last edited: Jan 2, 2018
  18. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    Borrowed a Macro lens+some lights.....for my good camera.
    Hopefully it's a better white.

    :D


    Attached Files:

  19. TrailRunner

    TrailRunner Limp Gawd

    Messages:
    340
    Joined:
    Feb 15, 2012
    Serious horsepower! What're you doing with all that?

    talk2troy likes this.
  20. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    It's a video editing rig mostly.Gearing up for 4k60/5k etc..
    (y)

    talk2troy likes this.
  21. Dan_D

    Dan_D [H]ardOCP Motherboard Editor

    Messages:
    53,770
    Joined:
    Feb 9, 2002
    From the first time I saw your post, something was bothering me but I couldn't put my finger on it until now. The cable routing could probably be done better to hide them more than you have. If you can do that, I think it will look a lot better.

  22. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    I totally agree !
    At this point I've basically only 'wrapped' all the data lines(In an effort to make them all look the same at least.).It's my intention to attach 'combs' to them to clean em up a bit, but hiding them more is really hard , they just don't make server cables with many options like length etc....I'm using the longest SAS/SATA breakouts I could find quickly.
    The OCuLink cables are the only ones made.
    -----
    The power supply cables are a different story.Right now they are just the ones outta the box.It's my intention to get white* paracord sleeved psu cables from mod-one.
    These ones will be as hidden as possible.

    -----

    I've also got all my white backlighting, but it needs to be installed.

    I'm basically just enjoying the fact that it's alive.
    I can't spend any more money on this right now , it's ski season !
    I leave for B.C. in 10 days , with any luck it will be March before I work on this again !!!!

    :D

    *Maybe......Black might look good too , I've got some time.

  23. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004


    Shitty phone pic , but it shows what is required.

    I have 75% of a dual socket P Xeon watercooling rig from the help of friends! (thanks guys !)
    With friends like this ,I cant spend my money fast enough !!!

    Hahaha !!

    spugm1r3 likes this.
  24. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004

    Thanks for the like despite the garbage pic.Here's a better pic.(with some stuff added)

    All the watercooling stuff was donated to me.Cheers again guys !!!
    I've had the heatsinks and pelts in my workshop for a while...What you see there is the start of a 1kW pump/2.2 kW thermal, watercooling loop.

    :ROFLMAO:

    talk2troy likes this.
  25. talk2troy

    talk2troy [H]ardForum Junkie

    Messages:
    8,751
    Joined:
    Jun 10, 2004
    Is this your current / active / production / money maker box & you just keep jacking with it?
    ~ professional box vs hobby box?

    In either case, is "old faithful" still in production for daily use vs when you go full Frankenstein?

    What exactly is the use case here & when will it be considered "done"?

  26. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    All boxes are hobby boxes !
    I have my last 3 builds still used and running.Hell, my thinktank rig (now a pfsense router) has more than 120,000 hours uptime.
    Yes , I am typing on 'old faithful' now......I'm only using the xeon rig for ski video editing at the moment.
    While the ski video thing is totally a hobby, If I can find the skill,I'd love to be a Warren Miller type.

    None of my projects are really ever done.I'm a professional fabricator, so I fuck with everything allatime.My projects are finished when I die.

    :D

    P.S.thx for moving this Crosshairs !

    Last edited: Aug 9, 2018
  27. Master_shake_

    Master_shake_ Little Bitch

    Messages:
    6,796
    Joined:
    Apr 9, 2012
    you could use some individually braided white power supply extensions.

    looks great though!

  28. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    Thx !!
    I'm just waiting for some ski trip prepayments to go thru,then I'm ordering paracord sleeved PSU cables from Mod-One (caselabs guys).

    (y)

  29. talk2troy

    talk2troy [H]ardForum Junkie

    Messages:
    8,751
    Joined:
    Jun 10, 2004
    pics or BS :)

    PS: j/k but I would love to know what you fab / see some of that work too...

  30. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    That's fair.

    I am an owner/employee of Wild Rose Brewery ltd , in Calgary Alberta Canada

    www.wildrosebrewery.com

    I have helped build the company.So my first pic is this :




    That's the 60 Hl brewhouse I helped build.It was a big team effort ; my job was ancillary stainless welding , and I did all the process/automation wiring.

    I could give you pages of boring welding/electrical stuff...
    ------

    Here's some fun ones ;



    55 Gallon drum made into a standalone draught unit....
    -----


    This is the 'tailmachine'.....2 of our kegs I made into a bbq/draught unit....it goes into a trailer hitch.

    -----

    While not work related ;


    I made this too.
    ------

    For this snowball watercooling loop , I'll be trying my hand at TIG welding 1/4" copper plate.....

    :D

    pendragon1 likes this.
  31. talk2troy

    talk2troy [H]ardForum Junkie

    Messages:
    8,751
    Joined:
    Jun 10, 2004
  32. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    10,605
    Joined:
    Oct 7, 2000
    cool! ive drank your beers, alta crude and barracks brown, theyre good! just north of ya btw :)

  33. BrainEater

    BrainEater Gawd

    Messages:
    781
    Joined:
    Jul 21, 2004
    Awesome !
    Thank you for enjoying our product !!!!

    Shoot me a PM if you are in town, I'll give you a tour.

    ---------

    So it looks like I'm totally on my own with the copper TIG welding.
    I've been to several of the local high end welders in town, not one has any copper plate experience,or the welder to do it.
    Just to clarify , I'm a 30 year welder, I can weld standing on my head, from 2 stainless razor blades to, 2 inch structural...
    ------
    My current TIG machine does 200 amps.....I did a test weld on some 1/4" plate copper, basically 2x 2" squares.....butt weld.It took 10 mins of preheat, that 200 amps gave me a skin weld.
    The weld was clean but 3/16ths short.

    I need a watercooled 350 amp TIG setup......I have a couple contacts to hear from , but I might hafta just do a unique log of the welding.Apparently I'm the only one doing it.

    (y)

    pendragon1 and talk2troy like this.
  34. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    10,605
    Joined:
    Oct 7, 2000
    cool thnx! next time im going near there ill pm ya.
    re the copper, ill ask the guys I know if they know anyone but I think they are all oil field so prob dont have that equip.
