Post Your Workstations 2020

obviouslytom

[H]F Junkie
Joined
Feb 24, 2005
Messages
13,404

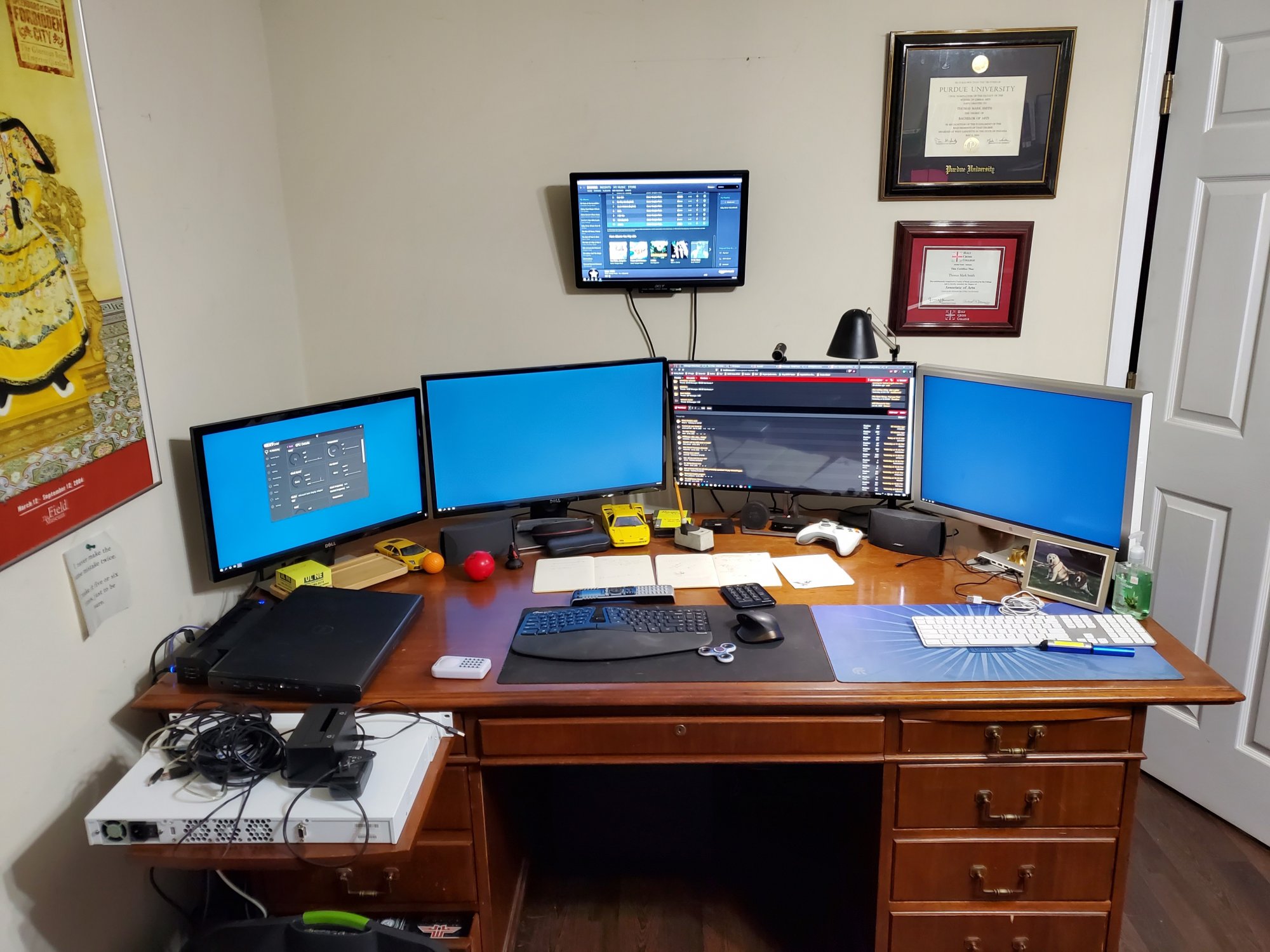

Finally got around to cleaning the desk since I start an MBA on Monday.



Old 1940's bankers' desk that I purchased years ago at a Goodwill for about $80. I have another one for the wife that we also got at Goodwill for about $40!. I have 5 monitors hooked up ranging from a 17" (hanging) to a 24" Dell, 2 27" Dells, and a 23" Apple Cinema display. Behind the desk is the Dell Poweredge T430 with dual Xeon E5-2630 8 core, 16 threads each. 32gb ram, AMD Radeon RX 5600XT 6gb, Nvidia Quadro K1200 4gb, 2tb main drive, 18tb raid setup for Plex to run off of. Hopefully, soon the 17" monitor will go away and I will be replacing it with a 42" LCD 1080p TV I have not being used.

The laptop is an old Dell M6600 (2013) that still has life in it if I can get the ATI video card that I want for it to support more than 2 monitors. The white box is a Sophos SB310 running Ubuntu that I want to make into a firewall for the house, just need a good firewall program to install in Ubuntu.

Yes, that is the Return to Castle Wolfenstein game in the bottom drawer.


Denpepe

[H]ard|Gawd
Joined
Oct 26, 2015
Messages
1,759
So it looks cool but is not fast? :D

Yup, it's an old core 2 duo e6500 that I found lying around, for now I put win 7 on it but was thinking about trying linux on it but did not see an obvious way to boot from USB on this antiquity.


atarione

[H]ard|Gawd
Joined
Mar 17, 2011
Messages
2,036
For various reasons there is way too much stuff on my desk right now.. but here we are.. the old shuttle box on the corner of the desk is going to be tucked away (headless) shortly.. but chillin' with my Sony TA-N77ES / TA-E77ESD ..etc sony es stack and Yamaha NS-344 speakers (optical out to FiiO D03K from pc to Sony for now)

Joined
Feb 22, 2016
Messages
528
This was my first ever full custom build. I painted the case. This is my first custom loop. The tubing is truly copper. It took me about 3 weeks total time to finish. While waiting on parts I just used my x62 from last build. I will build a gallery of the build when I get up. Just got off from work.


The Junkyard Build​

Case: Thermaltake P3
MB: MSI MPG Z490 GAMING EDGE WIFI
CPU: Intel Core i7-10700K 8-Core 3.8 GHz. XSPC RayStorm Pro
GPU: EVGA GeForce RTX 2070 SUPER XC 8G, EK-Vector RTX RE - Copper + Plexi
Ram: Corsair Vengeance 32gb 16x2 3200mhz
Tubing: 3/8 ID copper
Fittings: Monsoon V2 Compression Fittings
PSU: EVGA 850 G2



Nimisys

Fully [H]
Joined
Jun 20, 2000
Messages
19,034
Hurray! Another copper hardline build, and it looks like you did a nice job sweating the 90degree adapters.
Do you have a link to those fittings?
Also how tight do they hold the lines?

Joined
Jun 30, 2012
Messages
43


Acer Nitro 5 AN515-51 + 16GB + 256 M2 Nvme Samsaumg 970 evoplus

HT Philips HTS 6500 Ambisound

Razer Blackwidow Chroma Ultimate v2

Razer Deathadder Chroma

UPS YupE

AOC ``22 model 2236v

Dell ``22 model E2211hc

FlexForm Led Black HD Chair

Samsung wireless fast charger

Powerdewise Lapel Microphone

Galaxy Tab 2

S10+



=]

Last edited:

Niner21

Limp Gawd
Joined
Aug 26, 2018
Messages
296

Got a new Lian Li 011 Dynamic XL case which I have been wanting to try, and decided to go back to air cooling with my ATC 800 cooler. Still need to do some tidying up on some cables, but pretty happy how it turned out.


KnishofDeath

[H]ard|Gawd
Joined
Aug 27, 2004
Messages
1,089
Still very much a work in progress and Lian Li system is waiting for a Ryzen 9 59xx and 6800/XT.

Need to clean up the cables underneath a bit but overall very happy with setup progress going into 2021.



clayton006

[H]ard|Gawd
Joined
Jan 4, 2005
Messages
1,025
View attachment 235539

*I accidentally posted this in the 2019 post. Oops! I went ahead and deleted my original one.

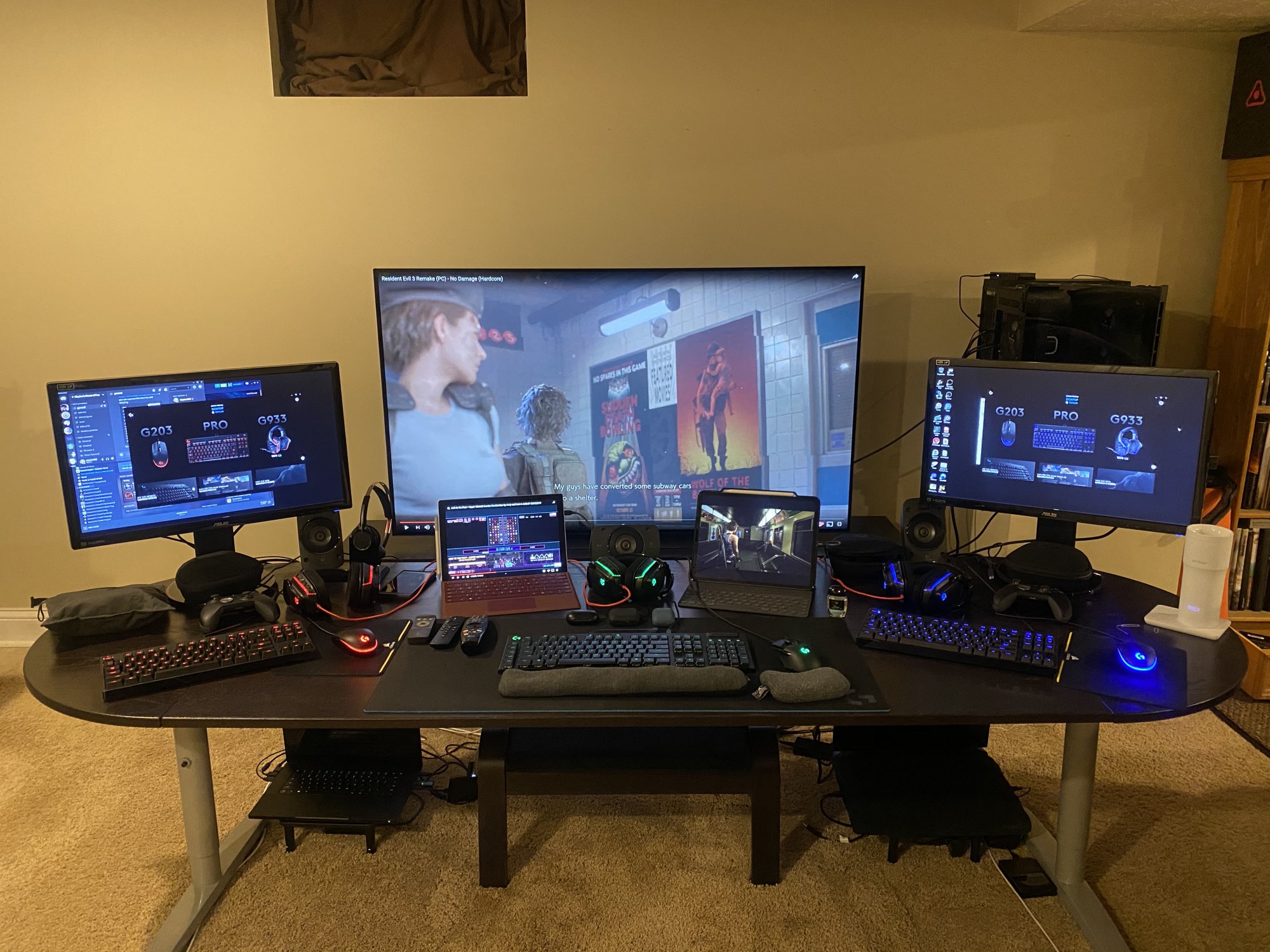

The centerpiece is the LG C9 65" in the center.
A list of Hardware:
Desktop (See signature)
Left Station (Razer Blade - See signature)
Right Station (Alienware A51m - See signature)
Monitors - Asus VG248QE
Surface Pro 7
iPad Pro 1TB LTE
Razer Phone 2

Peripherals:
2x G933 Headset
2x G203 Mouse
2x GPro Keyboard
G915 Keboard
2x Xbox Elite Controllers
Xbox Elite Series 2 Controller
Logitech z906 surround sound
Airpods Pro , Airpods 1 w/wireless charging, Galaxy Buds
Plantronics 8200uc , Plantronics Voyager Focus UC-B825

Other:
Ember Smart Travel Mug
So I've done some upgrading since this post. This is what I've been busy working on over the past few months.....

After working on it most of this year (during my covid and other ailments) my 2021 work desk is now complete. Some Christmas gifts were involved and some "shrewd negotiation" was utilized.
For the hardware list:
Chair:
-Herman Miller Logitech Embody
Cameras:
-3x Logitech Brio 4k
Desktops:
-3x Dell Alienware Aurora R11
--32GB ram
--10700k
--2TB nvme
--2TB sata ssd
--2x RTX 3080
--1x RTX 3090
Laptops:
-Surface Pro 7 / 16gb ram / 1TB ssd
-Razer Blade Pro 17 / 4k 120hz / 2080 Super / 64GB ram / 2x 1TB nvme
-2020 MacBook Air M1 / 16GB ram / 1TB ssd
Tablet:
-2019 iPad Pro 11 / wifi + cell / 1TB
Monitors:
-Center: LG 65" C9 OLED
-Left and Right: LG 48" CX OLED
Phones:
-Galaxy zFold2 black
-Galaxy Note 20 Ultra
-iPhone 12 Pro Max
MISC:
-Yeti X usb mic
-Logitech G915 Keyboard
-Logitech G903 Mouse
-Logitech G900 Mouse
-Logitech Pro X Wireless Headset
-2x Logitech Pro G Keyboard
-HomePod mini
-Airpods and Galaxy Buds
-A Few 4k BD Drives
I have a custom built server that isn't listed.


beyonddc

Limp Gawd
Joined
Sep 25, 2002
Messages
410
Almost 2021, here's my setup for 2020.

Not a whole lot to talk about my primary PC and work laptop. Mostly just for development and occasional gaming.

The servers on the bottom picture consists of two ESXI servers and an Unraid server. The PC sitting on the carpet is just a dead weight. It's an ancient Q6600 quad core PC that I haven't find a purpose for it at this moment.
A 10Gbps Mikrotik 8 ports switch and a 1Gbps DLink 16ports switch.

The 16ports switch were originally purchased just to play with LAGs but still haven't get to it.

10Gbps switch is currently used for couple computers show in the picture as a backplane network. I am just assigning static IPs on the couple computers that are connected to it.

And a 3D printer shown behind my servers... It's a Ender 3 v2 3D printer.



Last edited:

Niner21

Limp Gawd
Joined
Aug 26, 2018
Messages
296
Decided to go back to my GT-501 case as I was not impressed by the 011 XL for the most part. Better air flow in this case.


Attachments

  • Pic 12-20.jpg
    Pic 12-20.jpg
    444.7 KB · Views: 0
