New GPU's that are 'inverted layout' compatible

F

Folly

Limp Gawd
Joined
Jun 20, 2020
Messages
131
FT02 owner here and I'm looking to replace my PC's guts but really want to keep using this case. For those that don't know the motherboard orientation has been rotated so that the 'back' of PC (I/O shield/cables etc) is at the top, this means the GPU is standing upright which some heat pipe designs are not compatible with, I know the 3080's for example are incompatible, or at least the FE edition cards.

Would much appreciate any help with identifying which newer cards would work well in this case. Thanks in advance.

Who said it's incompatible? Heat pipes are not gravity based, so orientation shouldn't matter much. I think GN did a test on this.

Folly said:
FT02 owner here and I'm looking to replace my PC's guts but really want to keep using this case. For those that don't know the motherboard orientation has been rotated so that the 'back' of PC (I/O shield/cables etc) is at the top, this means the GPU is standing upright which some heat pipe designs are not compatible with, I know the 3080's for example are incompatible, or at least the FE edition cards.

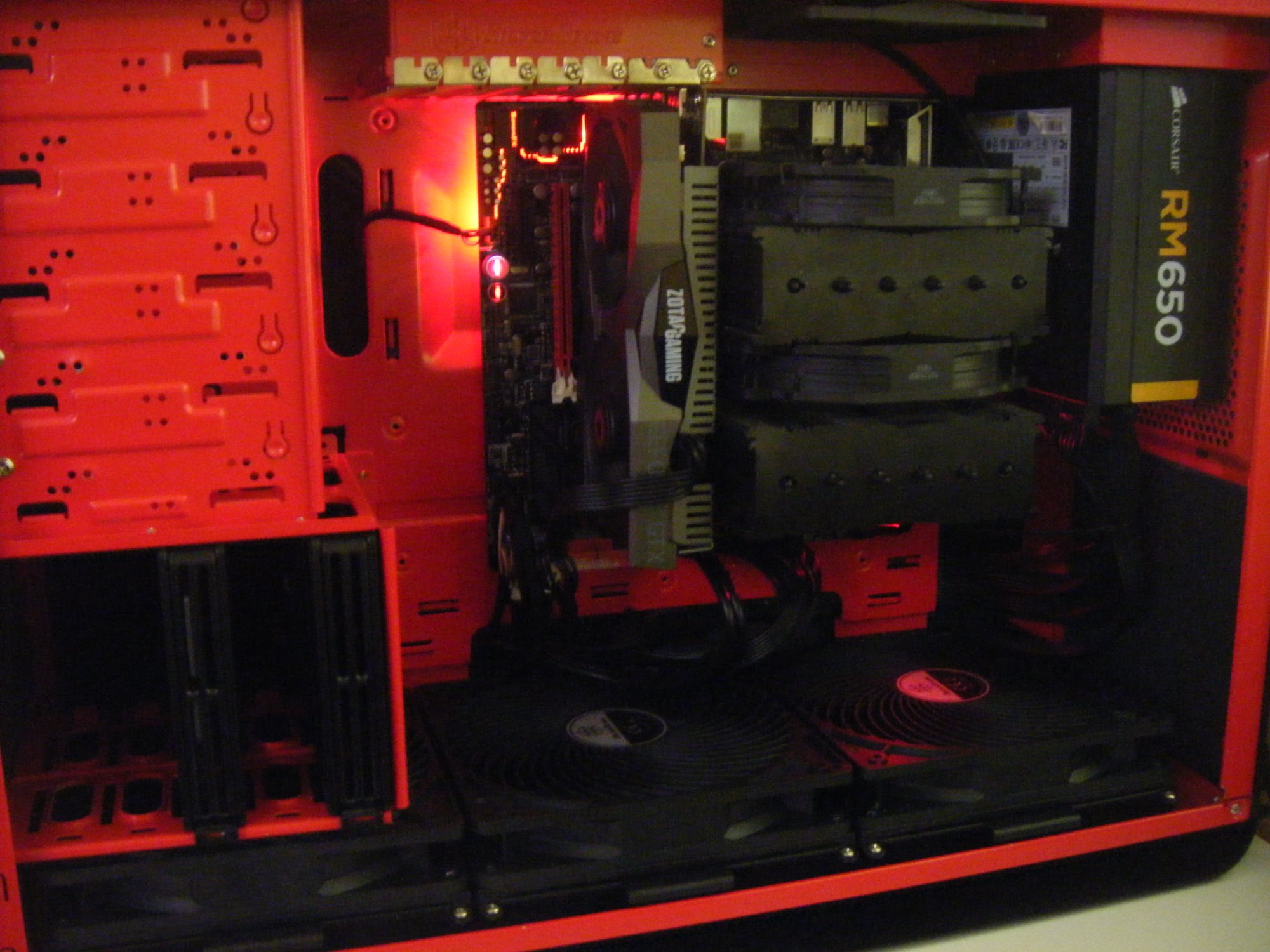

View attachment 298023
Would much appreciate any help with identifying which newer cards would work well in this case. Thanks in advance.
Click to expand...
To my knowledge, there is no PC heatpipe cooler, which is limited by orientation.

The only recent cards that seem to be affected by this have the new Strix cooler, due to many of the heatpipes bending above the heatsource. I don't believe the 3080 FE is affected by this.
I made two post about it a few days ago (links below) and someone above my posts has confirmed the above regarding the new Strix cooler.

https://hardforum.com/threads/new-silverstone-ft02.1429251/post-1044798811
https://hardforum.com/threads/new-silverstone-ft02.1429251/post-1044799735

The issue is also mentioned on the FT02 page under Q&A - https://www.silverstonetek.com/product.php?pid=242

New Strix cooler per TPU - https://www.techpowerup.com/review/asus-geforce-rtx-3090-strix-oc/images/cooler2.jpg


Attachments

  • 1605108738032.png
    1.8 MB · Views: 0
Last edited:
  • Like
Reactions: Folly
like this
Fwiw, I had a socket 939 motherboard that had a heatpipe from the chipset that only worked in a certain orientation.

Im no expert on heatpipes, but the 'wicking' needed depends on the surface area and finish of the heatpipe interior. Its possible that the cooler manufacturer had some test escapes, or has some sort of special design.
