Make Intel great again? Intel Rocket lake i7-11700 review


Hello everyone. After delays, delays and delays I finally got my package from DHL. And with the package, I got a motherboard, which I’m not allowed to show you right now, and two processors, you can take a guess what they are. And, two more processors, which I will test in this review. So it’s a 11th generation Rocket lake i7 11700 and i9 11900T. I will post two separate reviews for these two as they are intended for different audiences. In this review, we will take a close look at the i7 11700.



I have reviewed a ES i7 11700 before with the Dell system, but that ES is only 1.8GHz in frequency and is one stepping before retail. Today however, we will be looking at the actual 11700 CPU. It is technically a sample, but it’s a Qualification sample or QS, which is usually sent out to media for review or to manufacturers for demo systems. 99% of times they are the same as the retail chip, I think the only exception I can think of is Sandy bridge. It was 10 years ago and I couldn’t remember what exactly was different. But the difference is very minor. So it’s safe to say what we are looking at today is what you will get if you buy an i7 11700 from your favorite retailer.



Enough said, let’s take a look it at the processor itself. Of course this review is before the media embargo for Rocket lake, so Intel will not share any detail information with me on this. Even if I do know some, I cannot share it right now. But I will use public information and leaks online, and that pretty much tells all you need to know about Rocket lake.



First of all, this is a slide Intel showed at CES2021, and here are the key differences.

Unlike Comet lake, the core count for flagship model has reduced from 10 cores 20 threads to 8 cores 16 threads. This is due to the addition of AVX512 and the change in architecture. But it brings higher IPC and better cache performance compares to Comet lake.

It supports DDR4 3200 memory, which is not a big deal for computer enthusiasts since you will be overclocking your memories anyways. But it matters for some prebuilds like Dell and HP systems which does not give you the option for XMP and memory overclocking.

It employs the new Intel XE graphics architecture, and supports AV1 decoding and HDMI2.0b output. It has 32 EU and performs much better than UHD630.

It adds support for PCI-E4.0 (finally!) and provides 20 lanes. Which means you can connect both your GPU and SSD directly to CPU.

The new Z590 chipset it pairs with supports USB3.2Gen2x2 20Gbps and x8 DMI bus. Which doubles the speed of Z490, giving more bandwidth to high speed IOs and PCH attached M.2 SSDs.



Things looks pretty good on paper here. But would Intel actual deliver what they promised? Let’s find out!



First of all, for this generation, i7 and i9 will have identical core and thread count, as well as cache speed and size. The only difference is that i9 supports TVB, or Turbo Velocity Boost. The i9 11900K actually has 100MHz lower base clock than i7 11700K, which is quite strange in terms of product positioning.




For the CPU we are looking at today, it’s a non K version of the i7 11700. It has 2.5GHz base and 4.9GHz boost clock. Which is much higher than the sample I reviewed last time. Let’s get started.


CPU Performance



For the review today we are using the Asus Maximus XIII Hero we reviewed last time. For the memories I am using a pair of G Skill Trident 3200MHz CL14 memories with XMP1 profile. For storage I am using a Western Digital SN850 1TB PCI-E4.0 M.2 SSD. For video card I am using a MSI Gaming X Trio RTX 3080 with default BIOS. I have included Ryzen 7 5800X for comparison. It is using the Asus X570 TUF motherboard with the same memories and SSD under the same settings. PBO is set to auto in BIOS.



First is the CPU-Z benchmark.





In this test, thanks to the increase in frequency, the 11700 is achieving a much higher single thread score compares to our 1.8Ghz sample, and it’s about 14% increase higher than the i7 10700. It also managed to achieve about 3.5% higher score than Ryzen 5800X. In multi core testing, it scales quite well compares to single core test. It is about 8% faster than 10700 and it also beats the 5800X by a tiny bit. Please note that this is a non-K i7, it will be priced in the upper $300 range, which is about $80 cheaper than the 5800X. So the result looks pretty promising to me.

Next is the Cinebench R15 and R20.

cinebench r15.png






For Cinebench R15, we tested the single core, multi core, as well as OpenGL with the integrated iGPU. The 11700 performs 17% higher single core score, which is very close to what Intel claims. It still lags behind the 5800X in both single and multi core scores.



However the iGPU bring a very decent increase. It has a 30% increase in average FPS in OpenGL test compares to it’s predecessor.

cinebench r20.png





In Cinebench R20, it is still about 10% slower than 5800X in multi core performance, and only about 2% slower than 5800X in single core performance. It also brings 2 digit IPC increase over the 10700, which again matches what Intel claims.



Next is the Aida64 memory and cache benchmark. As I mentioned couple times in the previous reviews, Rocket lake brings a decent increase in cache performance, and the test result confirms that. I didn’t include the 5800X as they have different architecture and the numbers should not be compared directly. We will just take a look at how much performance increase it brings compares to 10700.

aida64 L1.png



For L1 cache, we are seeing more than double the performance in all copy, write and read benchmarks on our 11700 compares to 10700. This contributes a lot to the IPC increase.​


aida64 L2.png



The bump in L2 cache is not as dramatic as the L1 cache, but it is still quite impressive. We are seeing a 50% increase in speed on read and copy, and the write speed remains similar.

aida64 l3.png




The 11700 loses some points here in L3 cache read performance, but remains relatively the same in write and copy.

aida64 memory.png


The memory part is a little interesting. It achieves higher copy and write, but lags behind in read. I was informed by the product manager of Z590 boards at Supermicro that Intel has released a microcode patch to fix the problem. We will have to wait till the motherboard manufacturers release new BIOS updates to see if it will fix the problem. Here is a screenshot of the email.



Next will be 7 zip.




To my surprise, 5800X performs really well here and out performs the 11700 by a significant margin. However compares to 10700, the 11700 is also able to achieve about 10% increase in performance, which is decent for a ‘tock’ product.






The Y-cruncher results are pretty confusing. 11700 is able to finish calculating 1 billion digits of PI in just 177 seconds, which is almost half the time of the 10700 and about 50% faster than 5800X. However it lags behind the 5800X in the single core benchmark, actually it even lags behind 10700 on single core. Y-cruncher actually supports AVX512 which would give Rocket lake a significant boost in performance. So the high multi core score is easy to explain. However for single core, I guess AVX512 wasn’t properly utilized, which results to the significant hit in performance. I am still looking into this and will update the review once I find out.





In Blender, we rendered both BMW and classroom. The 11700 is again much faster than our 1.8Ghz sample, and catches close to 5800X.




In V-ray, I recorded the average frequency during the benchmark. The i7 11700 averages 200Mhz lower than the 10700, while still out performs by 12%. It is still 10% slower than the 5800X.




In handbrake, we are transcoding a 1:31 4K video into H.264 1080P 30FPS. It’s a tie between 5800X and 11700. They are both 30% faster than the 10700. Good job Intel.

geekbench cpu.png


Lastly for the CPU part, is Geekbench. It outperforms the 5800X in single threaded testings by a tiny margin, while being 30% faster than the 10700. It lags behind 5800X in multi core testing by 5%, which being 10% faster than 10700.



iGPU part- Intel UHD750 Aka XE32



Next will be the GPU part. Let’s first start by the iGPU. Intel has finally push it’s XE graphics to the desktop market. This GPU is called UHD750 and has 32 XE architecture EUs. I happened to have it’s great great ancestor in my collection, this is a early GPU prototype right before Larabee. You are getting old if you know what I’m talking about lol. So this GPU is benchmarked again with the latest driver from Intel and let’s see how it performs.





View attachment intel.webp

geekbench compute.png



In Geekbench 5 Compute test, it delivers very promising results. It is 15% faster in Vulkan and 20% faster in OpenCL. This is GTX650Ti level of performance. I know it may not sounds very fast but considering it’s tiny size, and ultra low TDP, it is still a big step in iGPU. Not to say you get it for free anyways. :) Not very impressed? Let’s move on.

3dmark nightraid.png




Impressive? The 3Dmark score shows a 47% performance increase over the UHD630 in 10700! Again, Intel actually delivers what they promised this time.



Gaming part- With MSI X Trio RTX 3080

Next let’s see how it performs with the a discrete GPU. The GPU we are using is a MSI Gaming X Trio RTX 3080. I’m using the default BIOS for all benchmarks.

3dmark timespy.png


Firstly is 3Dmark Time Spy.

I used smaller scales in the chart just to show the difference. But if you actually do the math, it is only about 8% slower than the 5800X, and 4% faster than it’s predecessor.

hitman 2.png


In hitman2, the result is similar to Time spy, only 5800X is about 25% faster this time, instead of 10%.

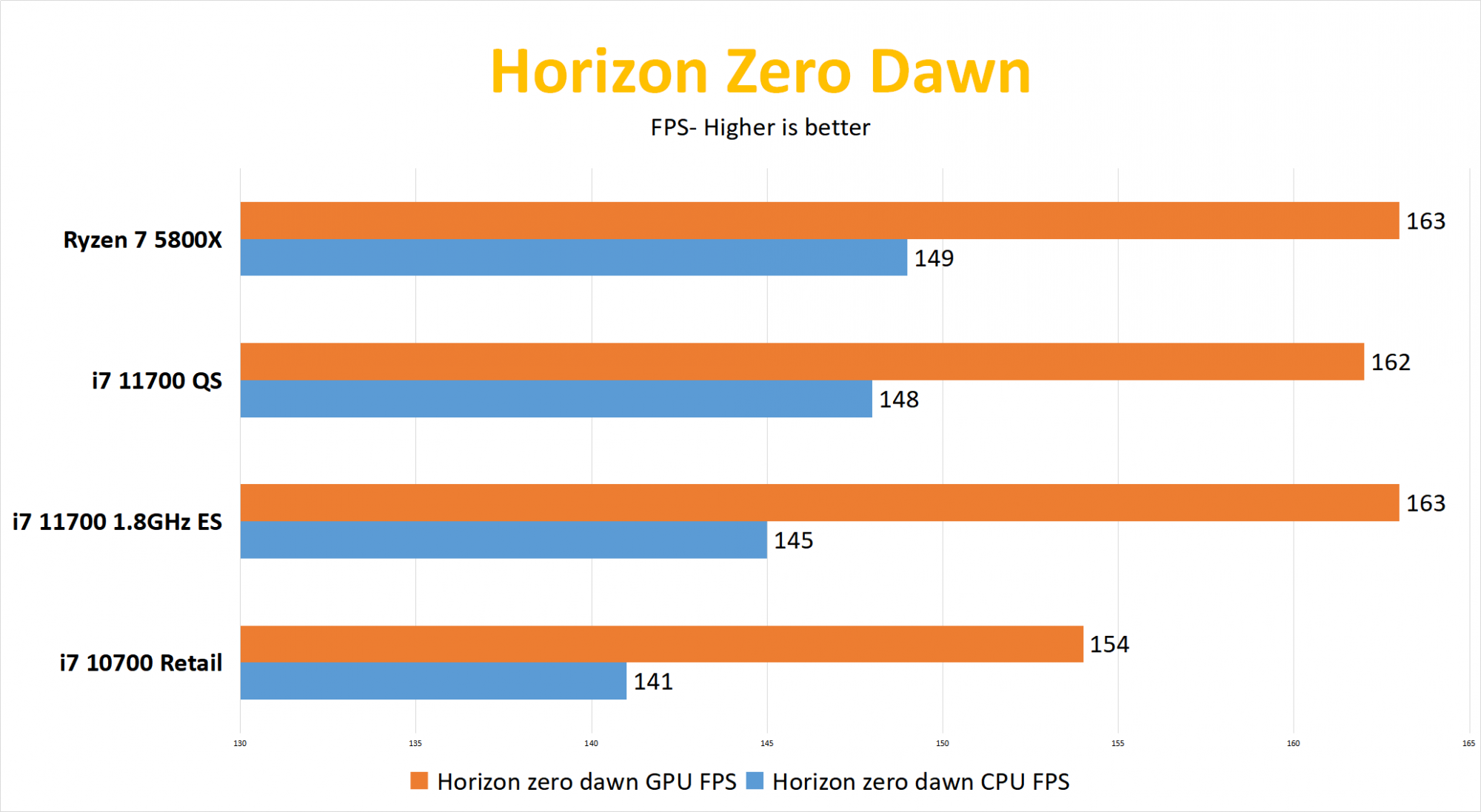

In Horizon it’s a different story. It performs on par with the 5800X, while being about 8% faster in GPU FPS. The only reason I can think of is the benefit of PCI-E4.0.


In dirt 5, again I changed the scale to show the difference. Because I think it would be boring if they all look the same on the chart. The actual difference is less than 5% between the 5800X and 11700, but it’s still a win.




In shadow of the Tomb Raider, 5800X also pulls ahead in FPS, but 11700 is about 10% faster in GPU FPS. However that did not translate to actual FPS, the FPS is determined by the lowest of the three. It is about 22FPS less than 5800X and 13FPS faster than 10700.


Next let’s take a look at Unigine tests.



In superposition, all three processor performs very similar. It is more sensitive to frequency rather than architecture.

unigine heaven.png




For Unigine heaven, the trend continues. This is a rather old benchmark, so it’s not very processor intensive. All processors performs similar and the difference is within 5%.



For Unigine Valley there is a less than 10% increase compares to 10700. It beats the 5800X, but less than 1%.



So conclusion. Did Intel deliver what they promised? The answer is a clear yes. But does this mean you should spend your hard earned dollars and upgrade to a Rocket lake right now? Well it depends. If you are upgrading from a Z490 it’s probably not worth it in my opinion. But if you are upgrading from something like Skylake and you just want a good gaming PC, then I would say it’s definitely worth the upgrade. Yes I know Alder lake is coming in a couple months, but the cost of the platform would be much higher because of DDR5 and new power delivery requirements for the CPU.


Not to say, if it’s really good like the Ryzen 5000 series, most likely you won’t be able to get one at MSRP. We will have another review of the 35W i9 10900T soon. So please stay tuned.​

You can watch a video version of the review here:



Thanks!



Last edited:

chithanh

Gawd
Joined
Oct 18, 2010
Messages
869
Nice review, thanks! Does FreeSync/Adaptive Sync work with the iGPU? Does Linux (e.g. Ubuntu) boot and work normally?


cagoblex

n00b
Joined
Aug 28, 2020
Messages
43
Nice review, thanks! Does FreeSync/Adaptive Sync work with the iGPU? Does Linux (e.g. Ubuntu) boot and work normally?
I actually don't have a monitor with freesync support to test it with. But I will check on Ubuntu support tomorrow. It mostly down to driver support and I believe it will work. Will verify on that.


OrangeKhrush

[H]ard|Gawd
Joined
Dec 15, 2016
Messages
1,640
rocket lake benches

why are all these performance results taken against a not optimised AMD baseline?

the 11900k has nearly 11% higher frequency and is < 10% faster than the 5800X in multi threaded performance the 11700k scores less than a 5800k with about 6% higher frequency.

I wish they will stop taking AND baseline against tweaked intrl to make terrible CPUs look better


Attachments

  • 11549e9eae510078843e3765d186f093ac0fd5cbd86d8ec48bc60f8c726905aa.jpg
    12.6 KB · Views: 0
Last edited:

vick1000

2[H]4U
Joined
Sep 15, 2007
Messages
2,163
rocket lake benches

why are all these performance results taken against a not optimised AMD baseline?

the 11900k has nearly 11% higher frequency and is < 10% faster than the 5800X in multi threaded performance the 11700k scores less than a 5800k with about 6% higher frequency.

I wish they will stop taking AND baseline against tweaked intrl to make terrible CPUs look better
Factory defaults? It's what the consumer will get with a stock clocked system. A seperate test for matching clock to clock IPC is not easy to perform.


OrangeKhrush

[H]ard|Gawd
Joined
Dec 15, 2016
Messages
1,640
Factory defaults? It's what the consumer will get with a stock clocked system. A seperate test for matching clock to clock IPC is not easy to perform.
it is very easy to perform, lock the CPU to 4ghz on both AND and Intel is simple. At 4ghz true PIC should be visible.

nobody will run a Z motherboard on a 11700 either, should have been tested on a H board with lower spec RAM. if GN review on the 10400 is an indicator the Z board with high spec RAM chases the price for 3-5% gains not really worth the money.

seeing the geekbench 5 scores along with CHI scores it looks like AMD scores are absolute lowest. GB5 on a 5800X should get just shy of 1800 ST and 11700-11800 MY, which as above makes the 5800x very good even a year later. the 11700k and 11900k are only competing against the upper mid tier parts the 5900 family is way out of the ballpark.


NightReaver

Limp Gawd
Joined
Apr 20, 2017
Messages
289
it is very easy to perform, lock the CPU to 4ghz on both AND and Intel is simple. At 4ghz true PIC should be visible.

nobody will run a Z motherboard on a 11700 either, should have been tested on a H board with lower spec RAM. if GN review on the 10400 is an indicator the Z board with high spec RAM chases the price for 3-5% gains not really worth the money.

seeing the geekbench 5 scores along with CHI scores it looks like AMD scores are absolute lowest. GB5 on a 5800X should get just shy of 1800 ST and 11700-11800 MY, which as above makes the 5800x very good even a year later. the 11700k and 11900k are only competing against the upper mid tier parts the 5900 family is way out of the ballpark.
I wouldn't really put any faith in a single synthetic benchmark.


Nasgul

Weaksauce
Joined
Jun 11, 2005
Messages
77
All this tells me is that AMD rocks! Great review!

Think I'll grab a 5900x instead
Despite the fact that RTX cards run cooler and have rock-solid drivers and are better cards?
And the USB issues on the motherboard when using that CPU and having to revert to PCIe 3.0?
And there's a higher CPU failure rate..........indeed! Rocks.

Joined
Apr 22, 2011
Messages
677
Despite the fact that RTX cards run cooler and have rock-solid drivers and are better cards?
And the USB issues on the motherboard when using that CPU and having to revert to PCIe 3.0?
And there's a higher CPU failure rate..........indeed! Rocks.

Cool story bro. Intel and nvidia are perfect :ROFLMAO:


Nightfire

2[H]4U
Joined
Sep 7, 2017
Messages
3,065
AMD will need to get a cheaper 8 core part out soon. The 10700F looks to be 5800x performance at 5600x price.

I would think that they could finally divert some production away from their SOCs that were taking priority.


Kardonxt

2[H]4U
Joined
Apr 13, 2009
Messages
3,369
AMD will need to get a cheaper 8 core part out soon. The 10700F looks to be 5800x performance at 5600x price.

I would think that they could finally divert some production away from their SOCs that were taking priority.

They will probably give us a 5700x now that they have a reason too. The 3700x really cannibalized 3800x sales, AMD made sure not to make the same mistake with the 5000 series lol.


Choopyplz

Limp Gawd
Joined
Dec 19, 2013
Messages
155
AMD will need to get a cheaper 8 core part out soon. The 10700F looks to be 5800x performance at 5600x price.

I would think that they could finally divert some production away from their SOCs that were taking priority.

That or just discount the 5800X since it's a bit overpriced for an 8 core IMO, even if it's a pretty great one. It's weird that the jump in price from 6 to 8 cores is much larger than 8 to 12...was that to make the 5900X a more attractive option? Did they know that people would default to the 5800X just due to availability? It seems like it only worked under the circumstances that we find ourselves in right now with the low supply/high demand. I guess that would probably be a bad business practice so early. Really the 5800X was always the worst value of the lot, not knocking its actual performance.


bigddybn

Supreme [H]ardness
Joined
Nov 21, 2006
Messages
7,345
That or just discount the 5800X since it's a bit overpriced for an 8 core IMO, even if it's a pretty great one. It's weird that the jump in price from 6 to 8 cores is much larger than 8 to 12...was that to make the 5900X a more attractive option? Did they know that people would default to the 5800X just due to availability? It seems like it only worked under the circumstances that we find ourselves in right now with the low supply/high demand. I guess that would probably be a bad business practice so early. Really the 5800X was always the worst value of the lot, not knocking its actual performance.
The 5800x requires a perfect 8 core ccd. The 5600x and 5900x can both use lower binned 6 core versions, just 1 and 2 of them respectively.


kirbyrj

Fully [H]
Joined
Feb 1, 2005
Messages
27,636
The 5800x requires a perfect 8 core ccd. The 5600x and 5900x can both use lower binned 6 core versions, just 1 and 2 of them respectively.

WHY it is priced the way it is doesn't change the fact that it's a poorer value than either of the 6 core CCX based CPUs.


chithanh

Gawd
Joined
Oct 18, 2010
Messages
869
DIY market agrees that the 5800X isn't good value, it is the only Ryzen 5000 CPU which you can already buy below MSRP here in Europe.
The 5600X price seems to be chosen based on the 3700X price, which is the only "real" competition to that CPU. Let's see if the Rocket Lake pricing leaks turn out to be true, if so then AMD will probably have to readjust.


kirbyrj

Fully [H]
Joined
Feb 1, 2005
Messages
27,636
DIY market agrees that the 5800X isn't good value, it is the only Ryzen 5000 CPU which you can already buy below MSRP here in Europe.
The 5600X price seems to be chosen based on the 3700X price, which is the only "real" competition to that CPU. Let's see if the Rocket Lake pricing leaks turn out to be true, if so then AMD will probably have to readjust.

A $50 price cut across the board would be welcome. I'd probably buy a $350 5700X if it were offered.


KazeoHin

[H]F Junkie
Joined
Sep 7, 2011
Messages
8,333
I think AMD will keep prices exactly where they are, until the market shows that those prices are not worth the product.

In other words, AMD is selling these things faster than they can manufacture them. They have no reason to lower prices. Lowering prices is what you do when your product DOESN'T sell.


bigddybn

Supreme [H]ardness
Joined
Nov 21, 2006
Messages
7,345
WHY it is priced the way it is doesn't change the fact that it's a poorer value than either of the 6 core CCX based CPUs.
I don't disagree but the post I was responding to was asking exactly that. The 5800x is definitely the black sheep hence the reason its availability is much better than it's more desirable cousins.


jamesv

Weaksauce
Joined
Mar 12, 2016
Messages
111
Intel and AMD fighting it out is nice, but Intel is too damn hot, and AMD too many Watts and no APU 5000 yet.
Good news is the W480/W 1250P combo is cheap now and has everything I need so maybe I’ll get a 5000 APU sometime in 2022.
Wish these guys would just give us a fast bad ass quad @ 65-95 watts instead of 8/12/16.
Which is why a 6 core Xeon for 279 USD will easily hold me over until AMD and Intel make themselves great again.


noko

Supreme [H]ardness
Joined
Apr 14, 2010
Messages
6,015
Was able to pick up a 5800 XT at AMD tonight, the 11700 - NonK actually looks pretty good to me. Would anyone really be able to tell the difference in gaming? I doubt it for the most part. So there is going to be a 11700K and 11900K, will be interesting how the pricing and performance falls for the Intel skews, do like the simpler AMD line but expect they also put out some variations, 3700x, 3600XT, 3800XT, 3900XT, 3950XT with the XT versions over 5ghz boost clocks for the higher skews.
