m.2 905p optane

Discussion in 'SSDs & Data Storage' started by oleNBR, Jun 24, 2018.

  1. JargonGR

    JargonGR Limp Gawd

    Messages:
    492
    Joined:
    Dec 16, 2006
    I need more snappiness in the desktop when opening & closing apps. I open/close multiple Office / Adobe Creative Suite / Browser etch apps daily. I guess I will find out sometime in 2019 when the 905p crawls at the top of my hardware purchases list. I still have some more important items to buy such as a NAS but it's turn will come.....

  2. oleNBR

    oleNBR Limp Gawd

    Messages:
    371
    Joined:
    Dec 9, 2016
    im using it in a laptop btw so it can only go through chipset and not direct CPU lanes, but even so the performance is noticeably better than a 960/970 pro. actually best to take advantage of it is if your OS is loaded with files to load at start up, virus scan etc etc.

  3. likeman

    likeman Gawd

    Messages:
    613
    Joined:
    Aug 17, 2011
    Find it interesting you can tell the difference

    Ssd sata vs nvme vs optane

    The only mostly noticeable thing should be very large files or accessing large databases or say over 10-20k small files often (or high write 50GB loads)

    Opening word and browser, booting os is nothing to an ssd usually (unless it's a Slow ssd at doing 1QD)

  4. Brahmzy

    Brahmzy [H]ardness Supreme

    Messages:
    4,955
    Joined:
    Sep 9, 2004
    This is why you can tell the difference

    oleNBR likes this.
  5. likeman

    likeman Gawd

    Messages:
    613
    Joined:
    Aug 17, 2011
    Guess that makes sense as the latency of the optane is super super low even compared to normal ssd or even a 970 evo/pro

  6. oleNBR

    oleNBR Limp Gawd

    Messages:
    371
    Joined:
    Dec 9, 2016
    970 pro aside, 970 evo latency isnt that low. because it got dram for caching a lot of speed issues can be masked up. unless you directly test the TLC flash chip theres probably no way to know, which none of the benchmark software will be able to do that for you.

    imo the next thing they can further improve in terms of speed would be small block sized files, sequential performance. lots of small files written and mostly are put into ram due to OS (windows especially). somehow sandisk is extremely good in these area and why some USB flash stick has high sequential but when writing ton of small files they SUCK big time. optane SSD in these area is just above average so nothing special.

  7. JargonGR

    JargonGR Limp Gawd

    Messages:
    492
    Joined:
    Dec 16, 2006
    Yet, the 480GB keeps a steady price up there......I wonder when will it drop since it's been a year that I am watching it and no price movements...

  8. Abula

    Abula Gawd

    Messages:
    957
    Joined:
    Oct 29, 2004
    oleNBR, the 905p m2 is not the standard m.2 in terms of lenght right?, i have yet to see laptops that supports this kinda drives no?

  9. oleNBR

    oleNBR Limp Gawd

    Messages:
    371
    Joined:
    Dec 9, 2016
    i dont think theres a laptop that supports it in terms of the right length. i had to get an adaptor to make it fit else where.

  10. Wolfman_Jack

    Wolfman_Jack n00b

    Messages:
    1
    Joined:
    Oct 11, 2011
    Hi oleNBR, my laptop doesn't physically support a 110mm drive either but I think I can hacksaw around that.

    My concern is that the motherboard connection was not designed to pull as much power as this drive can require. Did you have any concerns/thoughts in this area?

    Thank you

  11. oleNBR

    oleNBR Limp Gawd

    Messages:
    371
    Joined:
    Dec 9, 2016
    I am using m.2 in my laptop with an extension adapter. 905p M.2 version is just the same as other M.2 drives so it'll be within power spec.

  12. Kaos_Drem

    Kaos_Drem Gawd

    Messages:
    957
    Joined:
    Oct 16, 2004
    The 905P is specced to consume 11.5W at load and 7W at idle. It absolutely is not the same as other M.2 drives. The m.2 spec is 2.5A maximum, while the 905P is 3.5A.

  13. oleNBR

    oleNBR Limp Gawd

    Messages:
    371
    Joined:
    Dec 9, 2016
    yep it is spec'ed to that and it'll work. i know because i have it in my laptop with an adapter.

  14. Kaos_Drem

    Kaos_Drem Gawd

    Messages:
    957
    Joined:
    Oct 16, 2004
    Not trying to start a fight here. I think its important to point out that it may be working in your laptop, but not every laptop is going to have the ability to do so as some cut corners on routing the 3.3V power plane. The drive does not have any power saving features in the firmware which is part of the reason it is so responsive for windows level workloads.

  15. oleNBR

    oleNBR Limp Gawd

    Messages:
    371
    Joined:
    Dec 9, 2016
    ofcourse some laptop only has enough space for single sided m.2 ssd. 905p is double sided and it comes with heatsink thats how hot it runs. my laptop fits double sided SSD but its only for 2280 form not 22110 nor 30110 form factor. I had to get an extension and relocate it else where to get heatsink and the ssd to fit and have somewhat air flow to keep it cooler.

    also the earlier samsung m.2 pcie ssd run extremely hot btw. pm961 and 950 series would use almost as much power as the 905p, they draw ridiculous amount of current.

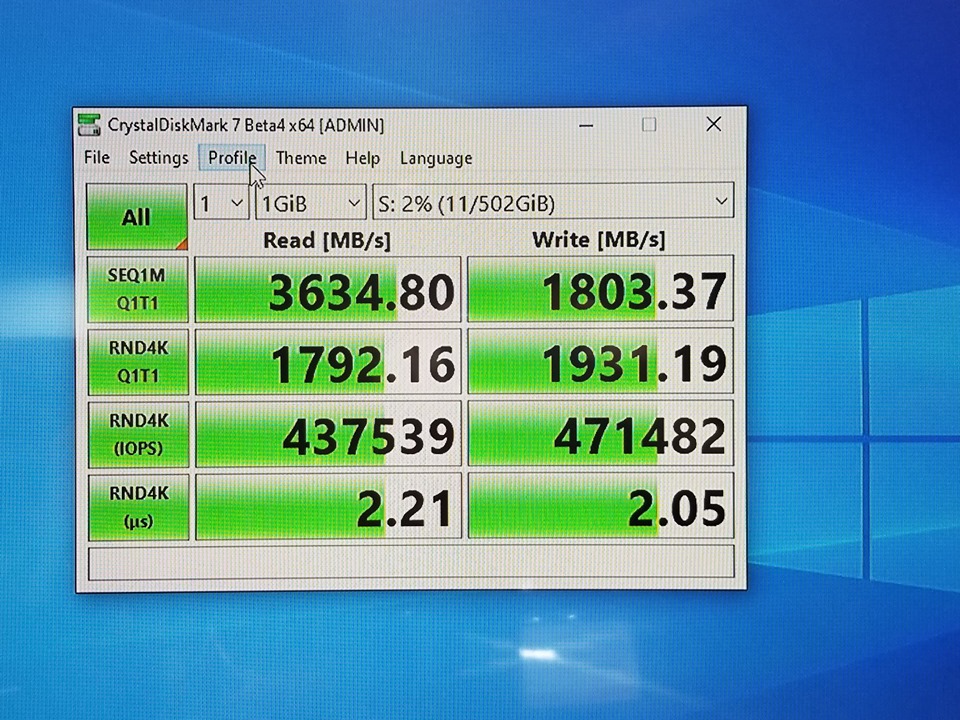

    but those dont matter to me that much anymore, next will be a desktop/workstation with optanedim as boot drive is what im after. this is when its being used as a boot device so it can store files.. single stick of dimm (single channel) the random write is faster than sequential write. special thanks to Jon.


    optane dimm.jpg

    Last edited: Oct 17, 2019
  16. Kaos_Drem

    Kaos_Drem Gawd

    Messages:
    957
    Joined:
    Oct 16, 2004
    Yeah optane dims are going to be crazy when/if they get added to the client platforms.
