In December 2012 Justin from Parvum systems asked me if I wanted to do a small build in their new acrylic m-ATX case.
Since I was kinda busy with 2 other projects I helped him with 2 other casemodders (Kier & K.enny) who wanted to do a new build.
Justin still sent me a case for the help also on some adjustments to the design.... and in my favourite color scheme :)




At the same time I won an awesome prize in the CooledPC contest.
So made a deal with EKWB I could trade the prize package for products that fit the Parvum case.
Another small build was born.



So decided to make some buildlogs, I just loved the case!
Won't be a huge casemod, more a watercooled build with lots small mods and lots of pics :)


Hardware

Intel Core i5 2550K
ASUS Maximus V GENE
ASUS GTX690
Corsair Dominator Platinum 32GB 2133Mhz
Corsair Neutron 240GB 2X
Cooler Master Silent Pro Hybrid 1300W








l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
Parvum had some cool teasers before we got them :)
(Top one is for K.3nny)




In the meantime ordered some fans.








And the mainboard.








Was able to buy nice gpu second hand. (partly trade/buy)




In my opinion the best looking reference cooler ever.










Also probably going to use a Pci-e extender in this build.




Ordered UV and blue ledstrips.



And some extension cables.



Jesse B

[H]ard|Gawd
Joined
May 30, 2010
Messages
1,631
I always love following your buildlogs. Looking forward to seeing this one progress.


ivoryg37

Limp Gawd
Joined
Dec 27, 2012
Messages
455
Can't wait to see this! first time I've heard of parvum systems but the case looks pretty cool


l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
I always love following your buildlogs. Looking forward to seeing this one progress.

Can't wait to see this! first time I've heard of parvum systems but the case looks pretty cool

Thanks guys! Hope you'll all appreciate all that green :D


Unpacking!
Always fun :)

Here a huge post with the first impression about the Parvum case.














Justin also sent some extra's, something he wanted to try :)














Something that really made me crazy :p
The case was protected with styrofoam, the case and I were super static loaded....












The inlayed logo


























Just had to see those fans running :)


















Nice way to find your led board to make some UV shots.




So soldered it the next day.




























Personally I like this case a lot cause of the placement for the parts.










Can't wait :)



l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
Here the CooledPC unpacking.
Was able to arrange with Eddy to change the original prizes for products I was able to use in this Parvum build.
Better for both of us :)




The cpu that will be used for this build was also in the package.




And some extra aluminum CSQ logo's.




And the watercooling products.












































Thanks Eddy & Niko!


l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
Another update with lots of pics.

First fitting the hardware.




The idea to have the GPU in sight.




By using a PCI-e extender.




Lovely evening of 'blocking' by candlelight.








Glad I had such a small mini torx.






Chip nice and clean.










Total view.
(To bad the mosfet block isn't available in acrylic)






And a nice package from Cooler Master Benelux.











Bedankt Marco!





First thing to do ... I thought ..
Ordered the wrong size fan. :)




Still want to see the effect.








Comes in handy with cases like these.




Fans mounted.




And found out the standard EK rad isn't going to fit in the top, had to use a thinner one, even that was close.




Top fans and radiator mounted too.






And front.




Next day the 140mm fan for PSU also arrived.










Re-drilled the holes cause the standard fan is 135mm.






White Lamptron replaced with a green Bulgin.
Heatshrink and sleeve to hide it inside.




Test with UV/blue leds.






And hardware inside to see how it looks.




Also started with a first setup for the loop.




All still temporary.






Black instead of blue tape around the extender. (Will be out of sight)




Next update more sawing and sanding.



Jesse B

[H]ard|Gawd
Joined
May 30, 2010
Messages
1,631
Looking incredible as usual. Keep up the great work!

Also, those acrylic waterblocks are beautiful!


l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
Thanks man!

Already spotted some pics online from people polishing their waterblocks.
Seemed like a great plan for this build too :)




All I used for the polishing:
P1500 P2000 P3000 and wax




About 3-5 minutes with each for this result.




So lets do the rest too :)




Cpu block also done.




But was missing something.




So..












That's better.




Wanted to do it the easy way so kept the block and plexi in their place, just used a few pieces of tape to protect.












Took a little longer cause of the size.




Also replaced the old bolts for stainless steel ones, also polished those.






And the switch.




Result ..










I'm satisfied.




And in the spotlight 'spotlight'.









CMadki4

Supreme [H]ardness
Joined
Feb 3, 2011
Messages
4,438
Very cool build. How do those acrylic cases feel rigidity-wise? I've never owned a DD or any other acrylic case, but I've always wondered how structurally sound they are?

Great modding, keep up the fine work. All the little laser cut details really take it up a level.


l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
Crazy. Looks great.

Thanks!

Very cool build. How do those acrylic cases feel rigidity-wise? I've never owned a DD or any other acrylic case, but I've always wondered how structurally sound they are?

Great modding, keep up the fine work. All the little laser cut details really take it up a level.

Well I can tell this one feels like a brick :p
Thanks a lot man!

wow, awesome as always

Thanks mate!


l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
Small mod this time :)

Because I'm using an EK MEM block for this build and since I'm going to use a Dominator Platinum kit tried to make something to keep the Platinum look.




At the start I wanted a small hole and keep the text.




But it disappeared after 5 seconds with P1000 .. it wasn't punched in that deep.






Time for an other approach.






Just a few hours of filings and sanding :)










And done.






Glued it on a few points.




I know it's a totally useless mod, specially since watercooling Ram isn't needed..
Still I like the looks and doing it :)















AceGoober

Live! Laug[H]! Overclock!
Joined
Jun 25, 2003
Messages
23,940
Beautiful. Absolutely beautiful. The personal touches go very well with the overall theme. Subbed. :)


l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
Thanks mate! :)

Received a most awesome package from Corsair!
These products will also be used in a next project.








For example the lightbars will be for a next project.
Still wanted to see them assembled for myself :)
























You're awesome Gareth, thanks! :)




After I helped Acid_Rain with his project he insisted to use his extensions.








Fine to me .. they look great! :)



Thanks Birkir!



l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
Small update!





Material softer then POM, lovely to work with, Polywood.







3M Velco, super strong.













On request a small howto polish EK CSQ blocks.










Can't wait to fill it up!









l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
And another update.

Had a day off at work ...... so back to work :)




Finally an opportunity to work with E22 tubing








After one day of measuring, sawing and filing.




And ... something I wanted to do a long time .. filling the loop :)



First with clear cause of the leak testing.




After that adding the Mayhems UV laser green.
(Thought this was cool :p )

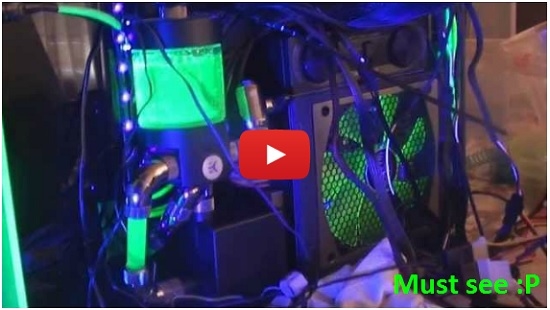

And a little video of the filling + adding UV laser green to the loop with the pump running.
Must See! :p




Also ordered some extra ledstrips.




On to the next, maybe last update :)



l3p

Limp Gawd
Joined
Oct 30, 2010
Messages
386
And here the last update before I upload the final shoot :)

Did some last updates/add-ons on the ledstrips.




Also completely tested and had the system running for a few days.














Also made some photos without all the UV :)





















When I brought it upstairs something came in mind for the final shoot.
Why not use the reflecting glass panel from the previous/future project :)







MrWrong

[H]ard|Gawd
Joined
May 3, 2013
Messages
1,460
Those polished blocks look amazing, EK should think about selling them that way.


daro2096

Limp Gawd
Joined
Sep 12, 2010
Messages
133
They are great cases. I just got a black and orange case. They come flat packed. Mine didn't come with case feet though.
