First Watercooling setup

Discussion in 'Water Cooling' started by AthlonXP, Dec 20, 2018.

Thread Status:
Not open for further replies.
  1. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    Solhokuten and cyberguyz like this.
  2. hititnquitit

    hititnquitit Limp Gawd

    Messages:
    330
    Joined:
    Apr 16, 2018
    it looks good but a shot of the side including the rest of the loop would be sweet.

  3. iwhocorrupts

    iwhocorrupts Limp Gawd

    Messages:
    155
    Joined:
    Dec 30, 2012
    Woah woah woah. Is that front panel water bulkhead sold separately for the PC-011? Lol

    Also, did you have fun bending hard tubing for the first time?

  4. cyberguyz

    cyberguyz Gawd

    Messages:
    713
    Joined:
    Aug 28, 2014

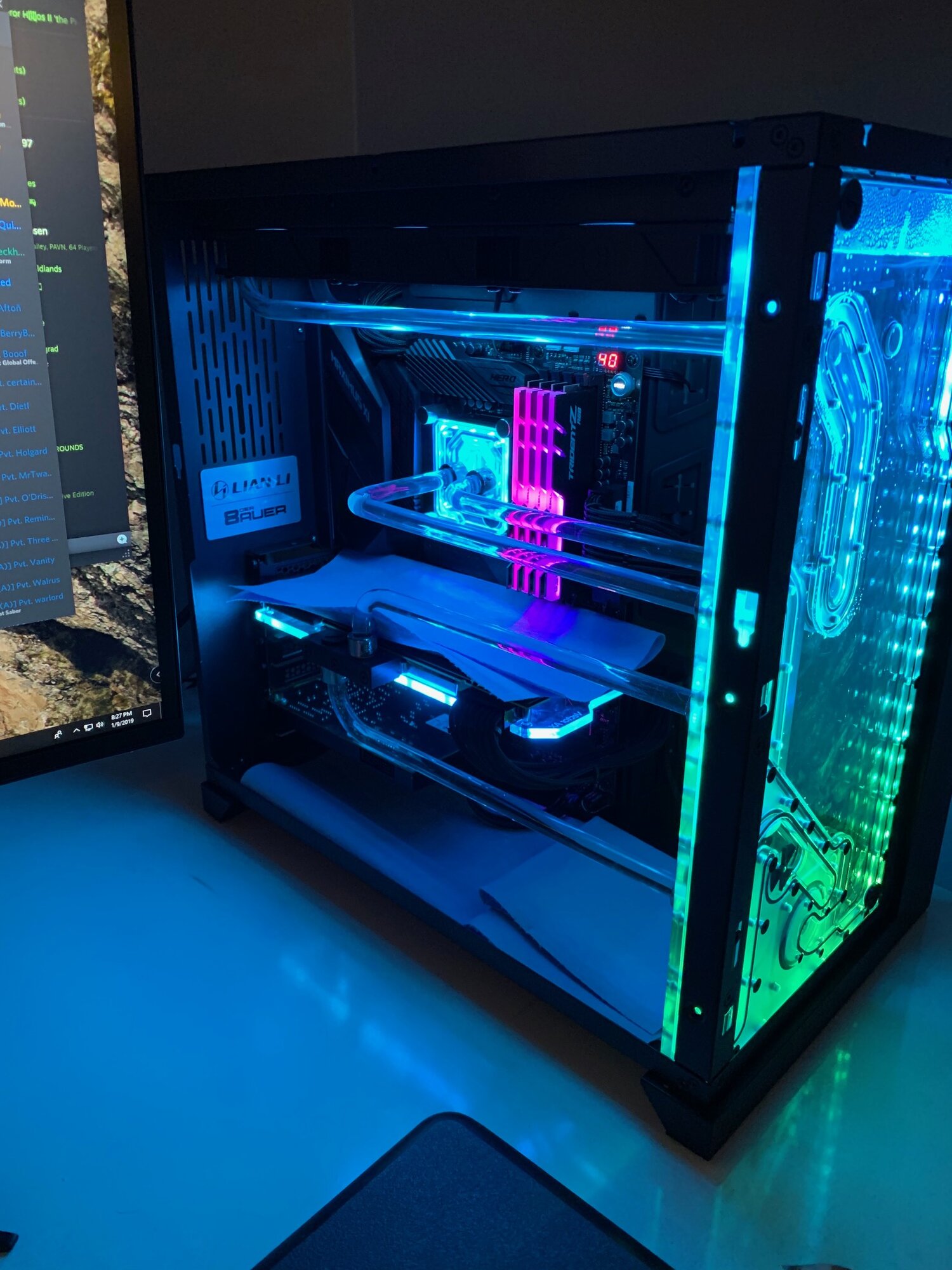

    It is a case + cooling kit. The hard tube comes pre-bent and fitted to the case. There might be a bit of cutting but no bending as I understand it. It all comes ready to add in your electronics & assemble.


    It is a really nice kit for sure.

  5. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    Solhokuten and hititnquitit like this.
  6. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    Quick question on temps. I noticed now as I started to game that my gpu stays at 35C idle but jumps up to 82-83C when gaming.


    Could it be that:

    • I put too much thermal paste on (did a link down the middle of the gpu),
    • GPU Block not seated all the way
    • The thermal pads I used where the ones that came with the EVGA cooler, could they be too thick in which causes the gpu block to be off?
    • Could it be that the EVGA backplate had thermal pads but the EK backplate does not?

    Just trying to make sure what to check. The CPU temps are perfect and I will go ahead and drain and inspect the GPU later today. Also I only used distilled water in the loop, should I add anything else to it?

  7. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    Also I noticed some bubble, but would that cause any issues?

    gpu underblock.jpg gpu backplate.jpg

  8. VanGoghComplex

    VanGoghComplex [H]ard|Gawd

    Messages:
    1,618
    Joined:
    Apr 5, 2016
    1.) Not really such a thing as "too much" thermal paste on a GPU, unless it's gooping out over the sides and onto the board. There's definitely such a thing as too little, though: on a GPU (unlike a CPU) you're mating the block to the actual die, which means every square millimeter needs coverage.

    2.) If your block came with thermal pads, you should have used those. Thermal pad thickness is based on the geometry of the cooler relative to the PCB components, and the stock thermal pads were made to interface properly with the stock cooler. Your waterblock likely needs thermal pads that are thicker in some places and thinner in others, hence why they were supplied with the block.

    3.) If EK decided you don't need thermal pads on the backplate, you probably don't. In any case, lacking them certainly wouldn't cause such high core temps.

    4.) Bubbles in your block aren't a big deal in and of themselves, and probably won't cause high temps, BUT, they should probably have been cleared by now. Are you running your pump at 100%? It's a good idea to run it full tilt for the first couple of weeks after a fill, so the loop can fully bleed.

    pendragon1 likes this.
  9. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    Thanks for the reply. So basically it was the wrong screws used for the 4 main mount on the gpu block. I drained the system and inspected the block and saw it was only barley touching the cooler. Once used another set of screw I had full contact and my temps now idle around 30C and when gaming do not go higher then 45C.

    pendragon1 likes this.
  10. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    Round 2 testing now. So far so good!


    Brian_B, mangapc, Solhokuten and 4 others like this.
  11. JosiahBradley

    JosiahBradley [H]ard|Gawd

    Messages:
    1,722
    Joined:
    Mar 19, 2006
    Nice work! Much sexier than my PC-O11. How are the temps? Noise?

  12. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    Noise is fantastic, super quiet. Only time it revs up is when I run Prime 95, even when gaming the temps are pretty solid. CPU tops out at 55C (4.6GHZ w/1.2 volts) and the GPU tops out when gaming at 45C.

    Solhokuten, Brian_B and JosiahBradley like this.
  13. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    I think I have a good chip. I was able to get it up to 5GHz (w/AVX) at only 1.25 volts. Ran it through Prime 95 for 8 hours and then OCCT for another 8 Hours. The cores Idle at 35C and when stress testing they top out at 67C. Now that is with the fan profiles set to quiet, if I moved them up it drops about 5C.

  14. Solhokuten

    Solhokuten [H]ard|Gawd

    Messages:
    1,192
    Joined:
    Dec 9, 2009
    Pretty good temps on both the GPU and CPU, but which models?

  15. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    CPU is a 9900K
    GPU is an EVGA RTX 2080ti Black edition.

    Solhokuten likes this.
  16. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    I am thinking of swapping out my current EVGA 850 G2 psu with a EVGA 1200 P2 psu. Worth it for my usage?

  17. VanGoghComplex

    VanGoghComplex [H]ard|Gawd

    Messages:
    1,618
    Joined:
    Apr 5, 2016
    Nope. 850 is plenty enough watts for that machine.

  18. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001

    Thanks, is the P2 any better then the G2? Just wondering.

  19. VanGoghComplex

    VanGoghComplex [H]ard|Gawd

    Messages:
    1,618
    Joined:
    Apr 5, 2016
    I'm not very familiar with EVGA's product line, but I don't think you have any compelling need to make a sidegrade from one series to another. On cursory glance the G2 looks like a decent quality PSU that will likely outlast the other components in your system.

  20. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    So more updates!

    So I swapped out all the aluminum materials (Radiator, CPU Block, and GPU Block) and replaced them with the Nickel/Plex GPU + CPU blocks and Coolstream SE Radiator. I was now thinking if it would be possible to add a second SE Radiator and re-do the loop layout.

    Right now there are 3 entry and 3 exit points for the tubing each for the radiator/cpu/gpu. I was wondering if adding a second radiator would help and if so then what would be the ideal loop order. I can close out some of the entry/exit points to the pump/reservoir combo but was not sure which would work.

    I am going to include some more pics for suggestions.

    IMG_4526.jpg IMG_4527.jpg IMG_4528.jpg

  21. Deimos

    Deimos Gawd

    Messages:
    947
    Joined:
    Aug 10, 2004
    What temps are you getting on your GPU? I see you posted that it hits 45C while gaming, is that after the loop has had time to warm up? If so, you will see pretty much no improvement in temps with an extra radiator.

  22. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    I think with intensive gaming it was topping out near 50C. I will do some more work later today on testing as I need to replace one of the fans.

  23. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    UPDATE:

    So my buddy ended up buying that rig off me and I snagged a clearance Powerspec X600 for a sick price. The only issue I have noticed is that the 4pin (PWM) pump has a high pitched whinning noise. It seems that it might not be a PWM fan. I wanted to see if maybe the pump is bad or if this is normal.

    Here is a quick picture of my current work on the machine. Swapping out the Power supply with a better unit once I sort out the pump stuff:

    IMG_4536.jpg IMG_4537.jpg

  24. Deimos

    Deimos Gawd

    Messages:
    947
    Joined:
    Aug 10, 2004
    Yeah that seems a bit odd but it really depends on your loop. In my dual pump loop, which is a good meter of vertical water pumping, the pumps make a racket at full tilt whereas my horizontal build with a single pump and almost zero vertical pumping is near silent at full speed.

  25. AthlonXP

    AthlonXP [H]ard as it Gets

    Messages:
    20,259
    Joined:
    Oct 14, 2001
    UPDATE 2.0:

    The pump was bad so I ended up returning the computer and building a new setup. Wanted to see how I should route my loops in my case. I will be using 2x Radiators with a 280mm radiator on top and a 360mm radiator in front (Will attach the Res/Pump to the front rad). I am using a Corsair 500D SE Case. Right now until I get all my parts I am using an H150i as a holdover. Now the question I have is with how I should route my tubes and if anyone in the DC/Baltimore area able to help me out?

    I will cool the RTX 2080TI and the cpu with the setup.

    Here is what I currently have right now:
