De-lidding without a De-Lidder

yergg

Weaksauce
Joined
Sep 15, 2007
Messages
121

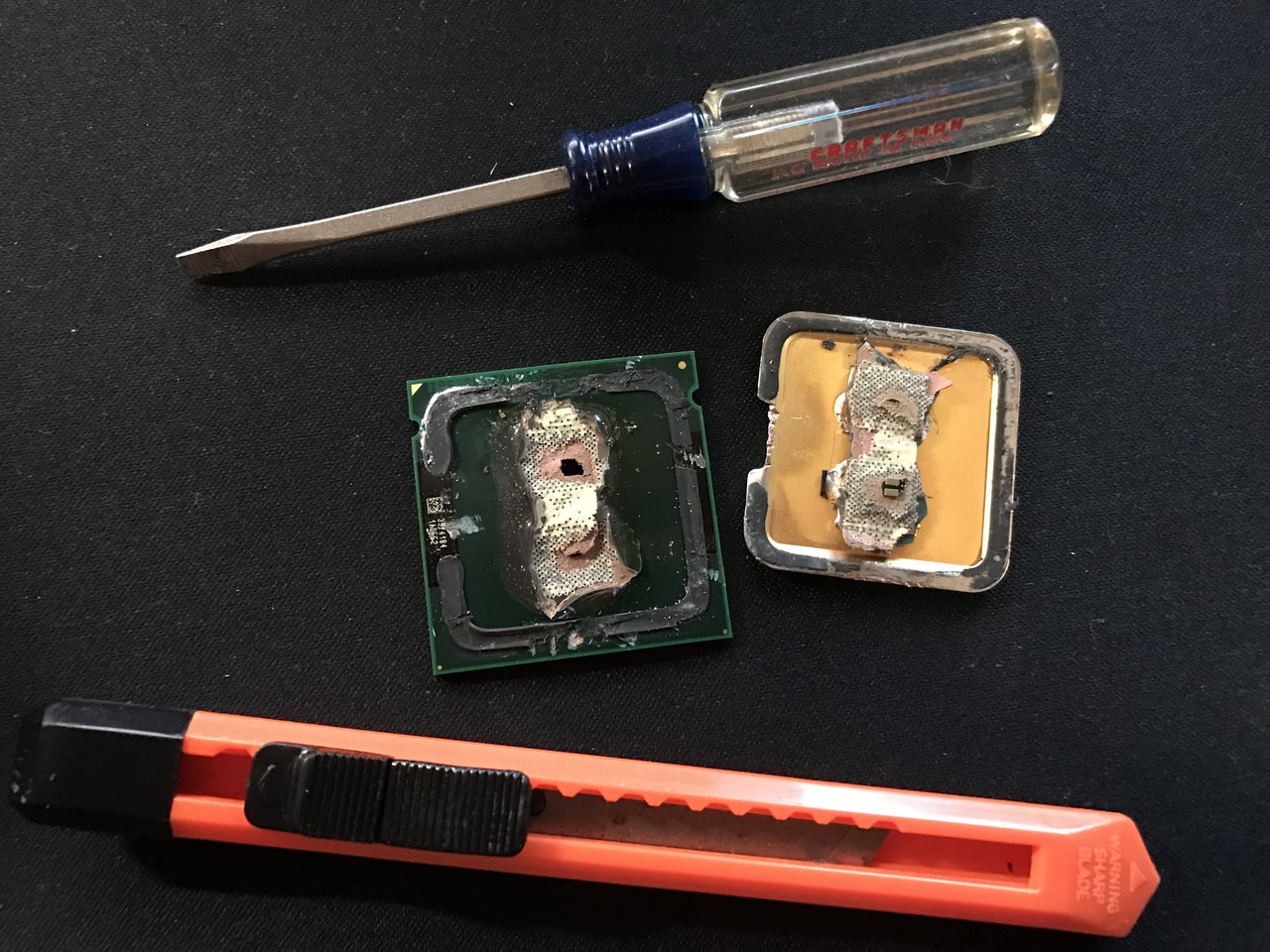

Didn't want to spend the money on a de-lidder so I just used a razor blade and a flat head screwdriver.

Nailed it!



capt_cope

Gawd
Joined
Apr 12, 2009
Messages
947
Don't forgot to remove the excess silicone from the PCB, it'll mess with your Z-height when you re-lid. ;)


Shotglass01

[H]ard|Gawd
Joined
Aug 26, 2005
Messages
1,967
Don't sweat it. Intel and AMD are known for taking up too much space on their dies. I'm sure it'll be just fine when you slap it back together. I've been using crayon for my TIM and Elmer's for the spreader.


VRT

Limp Gawd
Joined
Jul 15, 2016
Messages
460
How much performance improvement are you seeing with De-lidding?


Nenu

[H]ardened
Joined
Apr 28, 2007
Messages
20,098
How much performance improvement are you seeing with De-lidding?
With that chip in the op, -100%

With my "working" delid I got another 100MHz from my 4600MHz 6700K and lower temps.


yergg

Weaksauce
Joined
Sep 15, 2007
Messages
121
How much performance improvement are you seeing with De-lidding?

The CPU was dead before I De-lidded. After De-lidding, I am getting about a 1,000,000% performance boost!


yergg

Weaksauce
Joined
Sep 15, 2007
Messages
121
Don't sweat it. Intel and AMD are known for taking up too much space on their dies. I'm sure it'll be just fine when you slap it back together. I've been using crayon for my TIM and Elmer's for the spreader.

Elmer's classic white School glue or the Glue Sticks? I was using the Glue Sticks.


capt_cope

Gawd
Joined
Apr 12, 2009
Messages
947
And yes, Q6600 is soldered... I successfully delided mine years ago, the way to do it is cut the gasket with a double edged razor, balance the processor on two coffee mugs (by the PCB, IHS facing down) and use a torch style lighter to heat the IHS until the solder melts and the IHS drops free.


yergg

Weaksauce
Joined
Sep 15, 2007
Messages
121
And yes, Q6600 is soldered... I successfully delided mine years ago, the way to do it is cut the gasket with a double edged razor, balance the processor on two coffee mugs (by the PCB, IHS facing down) and use a torch style lighter to heat the IHS until the solder melts and the IHS drops free.

Two coffee mugs? You didn't have anything else lying around?


capt_cope

Gawd
Joined
Apr 12, 2009
Messages
947
Two coffee mugs? You didn't have anything else lying around?
Not as unlikely to be damaged by a butane torch as ceramic... Granted, nothing went wrong and I could have used chunks of 2x4, but I had two identical coffee mugs and their heights were the same with 0 effort. Not to mention ceramic is a pretty safe choice when dealing with fire, so it was one less thing for Mr. Murphy to fuck with.
