2600k Delid Process [Success!]

Discussion in 'Intel Processors' started by Spartacus09, May 16, 2018.

  1. Spartacus09

    Spartacus09 Limp Gawd

    Messages:
    364
    Joined:
    Apr 21, 2018
    So I have several 1155 ivy bridge chips I'm wanting to delid (two 3770k and three 3770s) so for that many I picked up a rockitcool88 delidding kit.

    To get a feel for it I decided to throw !@#$ on the wall and see if it sticks on my old 2600k as a test even thought it's soldered on, here's the process:

    Popped the lid off with the tool and luckily the solder separated instead of ripping the cores off, scraped the black glue clean with a bamboo kabob skewer.


    Used a windshield razor blade scraper to slowly and lightly shave the solder off the die (it took barely the weight of the tool to bump the pieces off).
    The IHS needed break apart blade as it was too small of a space for the larger scraper.
    Here's a vid of the removal (in 60fps for you snobs):


    Still a bit left thats why its a bit cloudy, but didn't want to risk damage to the chip (assuming I didn't kill it already).

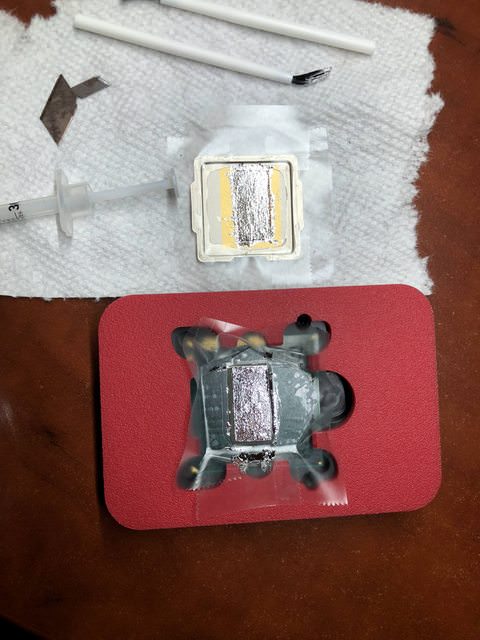

    Taped down the chip and IHS square for liquid metal and then applied.


    Removed tape, and added permatex gasket maker along the edge of the IHS.


    Aligned and clamped, now we wait 24 hrs for the silicone to cure, I'll update once I fire it up and see if it works.


  2. janas19

    janas19 [H]ard|Gawd

    Messages:
    1,657
    Joined:
    Jan 20, 2012
    Lawl that's a $100 processor. I'd have experimented on a $10 Celeron but thats just me.

    Glad it worked out (y)

  3. N4CR

    N4CR 2[H]4U

    Messages:
    2,798
    Joined:
    Oct 17, 2011
    You know they leave gaps in the gasket for outgassing eh?

  4. {NG}Fidel

    {NG}Fidel Fear Monger

    Messages:
    6,467
    Joined:
    Jan 17, 2005
    Subbed, I cant wait to see this. And how did you even manage to get it removed from a soldered die? I cant wait to do that to my 5930k once they hit bargin bin prices lol.

    N4CR likes this.
  5. Fuzzy_3D

    Fuzzy_3D Limp Gawd

    Messages:
    142
    Joined:
    May 27, 2007
    Heart sank there for a bit. I've seen what happens to folks who try to delid sandy bridge chips without heat. Glad yours seems to have survived the ordeal.

    Did you know it was soldered beforehand?

    I used the vice method on my 3770k, worked perfectly. Don't have the nerves to delid my faithful 2600k tho.

  6. FlawleZ

    FlawleZ Gawd

    Messages:
    591
    Joined:
    Oct 20, 2010
    I've been considering deliding my 3970X but havent for this very reason. Excited to see how this turns out.

    Last edited: May 17, 2018
  7. Guarana [BAWLS]

    Guarana [BAWLS] I am THAT Stupid

    Messages:
    1,695
    Joined:
    Oct 3, 2001
    I popped the lid off a dead sandy CPU just for giggles. The insides of the CPU were really pretty, at least?

    Shiny and colorful, et all.

    {NG}Fidel likes this.
  8. DTN107

    DTN107 [H]ardness Supreme

    Messages:
    4,632
    Joined:
    Jun 30, 2008
    Is that some custom color rockit 88 kit?!

  9. Fuzzy_3D

    Fuzzy_3D Limp Gawd

    Messages:
    142
    Joined:
    May 27, 2007
    That would make a cool high-res photo and print. :D

  10. Spartacus09

    Spartacus09 Limp Gawd

    Messages:
    364
    Joined:
    Apr 21, 2018
    Wow didn't think this would get that much attention, I should have gotten some pre-temps if there was that much interest.
    I remember the base temps were around 35c and 70c full load on a h110i cooler.
    Alrighty, first in first out:
    Eh, its been replaced with a 3770k I got on the cheap so no harm no foul for the fun of it.
    Yes, I only went around the 3 sides, the last area I left without gasket for breathing per oem specs.
    Yes I did, I knew it was pretty old though too and had alot of heat cycles, I'd like to think that probably played a part in it.
    Per my initial notes I have two 3770k's and three 3770's that displaced this chip so wasn't worried about destroying it. To your note, seems I got lucky.

    Wanted to have fun with it and get some learnin' at the same time :), the rockit cool 88 kit made it substantially easier and less worrisome. I was alot more comfortable paying 40$ for it when I'm popping 6 lids vs using a cheap vice or 3d printed tool, especially with the soldered sandy chip.

    Nope, the main part is black metal though its hard to see with my picture angles, the re-lid part of the kit is red and blue though, just the generic colors they sent me that came back in stock for the 1155 last week.


    I will have an update tomorrow evening, had to work late adding a service module to our switch stack at work, and spectre/meltdown VMware host patching.
    Want to give it a little extra time to make sure its fully cured anyway.

    Last edited: May 18, 2018
    N4CR likes this.
  11. Spartacus09

    Spartacus09 Limp Gawd

    Messages:
    364
    Joined:
    Apr 21, 2018
    Alrighty, first things, when I applied the gasket in liquid form I cut a straw end about 80% off and left a small tip for applying.

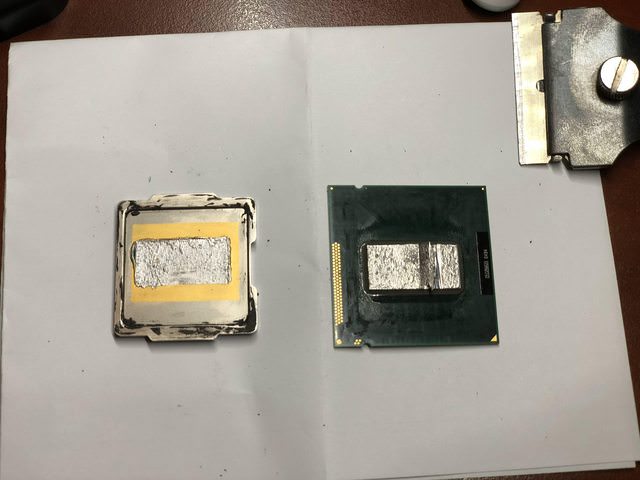

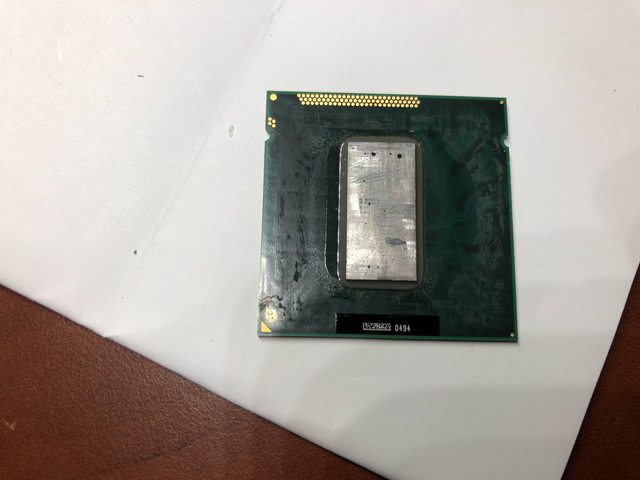

    I globbed the corners a little more than the sides to ensure solid hold on at least the 4 corners and that seems to have worked well with only minimal run out, but it removed easily here's the final result after curing and using the bamboo again to peel the minimal overlap off:

    eiFRXEZl.jpg USzXIs6l.jpg

    z0LfqXul.jpg tPzRe7al.jpg

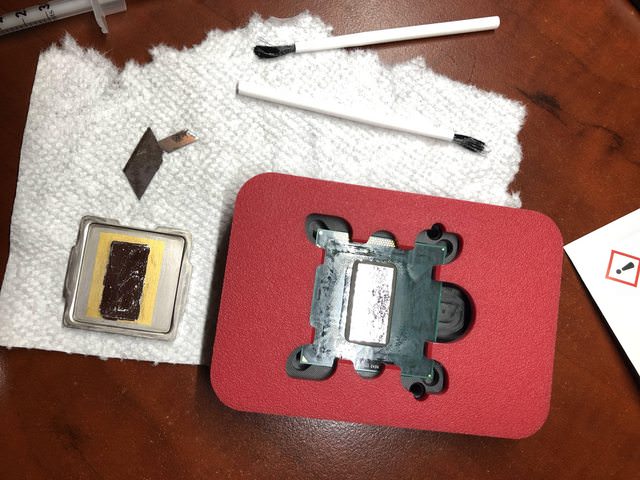

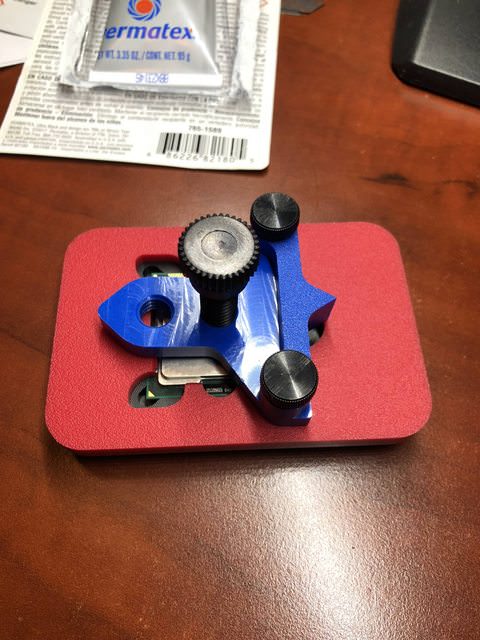

    DTN107 here's the rockitcool88 kit pictures in full as well:
    zaTSr8Vl.jpg 2JebqmRl.jpg

    HWkHQGAl.jpg nHlnNhdl.jpg



    I tossed it into the mobo with the stock cooler and some dynex generic white paste I picked up (don't even know where it came from it was in my mystery parts box). anddd.....:


    SUCCESS!~
    Mobo bios shows 39c idle

    I'll do some before/after testing with the three 3770's I'm going to be doing in the same fashion to get a baseline for the effectiveness. I'll be a few days if not a week before I have a chance to do that though, stay tuned~

    DTN107 likes this.
