Weird Overclocking Issue

[qtqc1]

Hello everyone

I am having a weird OC issue. The system runs fun at normal speeds. I have the specs in the image. No issues whatsoever. I have the system watercooled and sits around 27c idle and high 30s-mid 40s in load. Soon as I try to OC it even a little in Bios, during the reboot the system fans/Leds flash and it dies. I have to reset the CMOS to default for the system to start. I checked all the power cables and Ram and everything looks tight. Bios has been updated to recent version. Any help on this is appreciated.



[pendragon1]

bump up both the cpu and ram voltage, see if that helps.



[qtqc1]

What would you recommend for voltage on both?



[pendragon1]

bump both to 1.4v get it stable then id try dropping cpu a bit, leave ram higher.



[qtqc1]

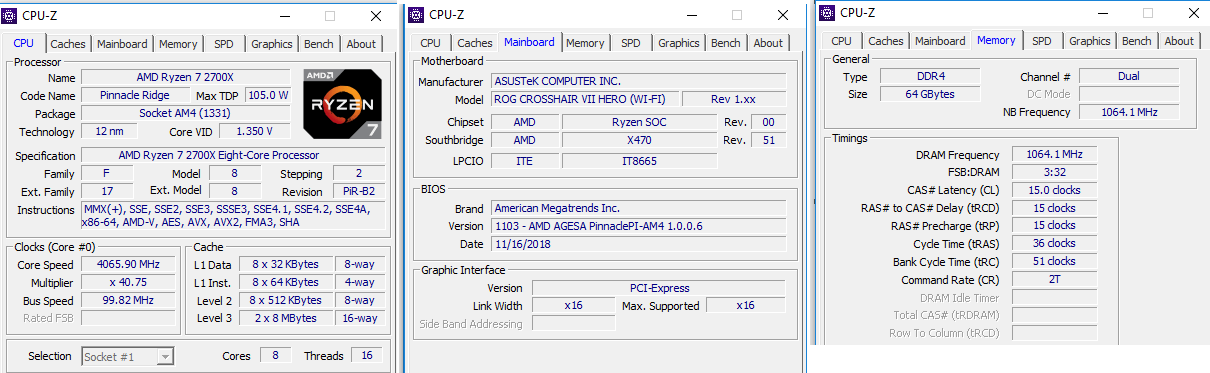

Please see pics. The CPU voltage is already 1.42v to 1.45v on stock



[pendragon1]

ok so leave that alone and bump the ram voltage, it should be at 1.35v minimum.



[qtqc1]

I bumped the ram to 1.35v. It booted up. Soon as i try to OC at all. Same issue. Video below of what Im talking about. Have to clear the Cmos to get it to boot again
https://photos.app.goo.gl/aKGpGHWsaVw3YUV7A



[pendragon1]

dont go so high with the oc and try to work your way up. you could try using ryzen master too.



[qtqc1]

I had some success with the Ryzenmaster. I am having difficulty with any OC on the memory. What would be a good memory clock for it?



[qtqc1]

Forgot this



[pendragon1]

I had some success with the Ryzenmaster. I am having difficulty with any OC on the memory. What would be a good memory clock for it?
View attachment 126266

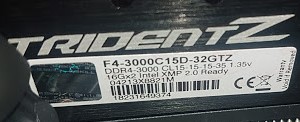

go to tridents site, look up the next speed up and use its timings with more voltage, 1.45v is safe.
