Slim fan <15 mm thick compilation

Discussion in 'Small Form Factor Systems' started by MrJerico, Oct 23, 2016.

  1. MrJerico

    MrJerico n00b

    Messages:
    27
    Joined:
    Aug 23, 2014
    Hey all, its been a while. It's getting close to rebuilding time, and I have been looking into slim fans to fit in our beloved sff systems. I am mostly interested in the highest static pressure, but I compiled a list of all of the slim fans I know of with the company listed specs and thought you lovely bunch of people would like to see it.

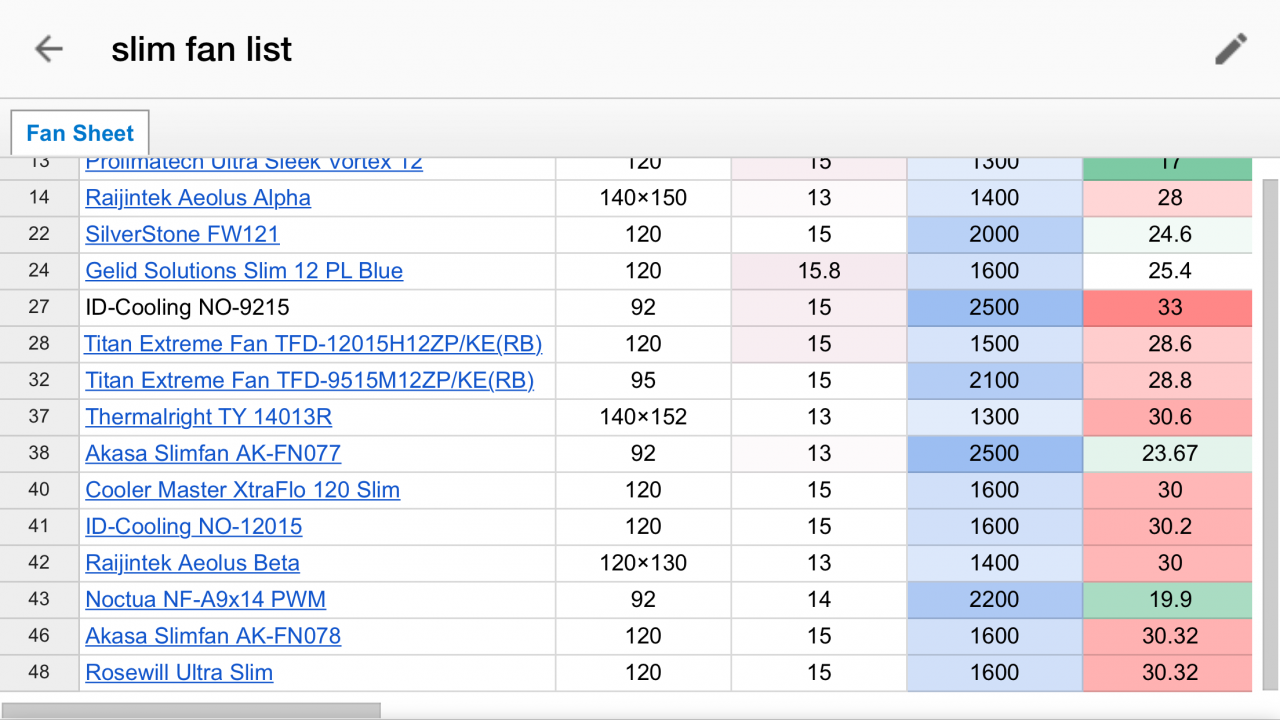

    Slim Fan List


    Let me know if I missed anything or if you feel any of the specs are wrong. Also if any of you have any personal experience with any of them let me know.

    I can tell you I have experience with the Sythe slip stream M series mounted on a Alpha Cool ST30 and they are LAME!!!



    Out.

    Vlad502, Nanook, EdZ and 1 other person like this.
  2. Ca11idus

    Ca11idus Limp Gawd

    Messages:
    470
    Joined:
    Jan 9, 2012
    The 92mm mvp NF-A9x14 isn't on the list.

    Soul_Est likes this.
  3. yoyo55

    yoyo55 Limp Gawd

    Messages:
    402
    Joined:
    Feb 6, 2015
    Is 20mm considered slim as well or 15 and under?

  4. MrJerico

    MrJerico n00b

    Messages:
    27
    Joined:
    Aug 23, 2014
    Added. I was originally only going to include 120mm fans, but lets make this thing complete!



    I don't have clearance for 20mm thick fan. I know Yate Loon and Deepcool make a 20 mm. You are more than welcome to add them if you want. I was hoping to make this a collaboration!

  5. cowsgomoo2

    cowsgomoo2 Limp Gawd

    Messages:
    144
    Joined:
    Jan 8, 2016
    Soul_Est likes this.
  6. MrJerico

    MrJerico n00b

    Messages:
    27
    Joined:
    Aug 23, 2014
    Added, thanks! They didn't list the static pressure if you can find it somewhere please go ahead and add it to the list.

  7. Chapeau

    Chapeau Gawd

    Messages:
    750
    Joined:
    Jul 17, 2016
    Thanks for doing this... There's a heap of people on the Ncase M1 thread who would love this info.
    I didn't know the cooler master fan had such high performance rating - I haven't seen a build with these yet.

    Experience: Silverstone FW121 - seem to move air well but fairly noisy fans at all speeds. At full speed they are unacceptably noisy but offer decent performance for a slim fan.
    (Used with EK 240SE - Unacceptable noise/flow/performance. Used with Hardware Lab Black Ice Nemesis 240 GTS - Passable noise/passable flow/good performance)

  8. Chapeau

    Chapeau Gawd

    Messages:
    750
    Joined:
    Jul 17, 2016
    I'd also add that it might be helpful to graph the results at commonly used rpm for noise and flow instead of at max speed.

    For example: The silverstone fans beat basically everything else at full speed but no one is likely to want to run at 2000rpm due to noise.

    Rpm steps of 800, 1000, 1200, 1400, 1600 would be helpful using data from cooling technique.

  9. MrJerico

    MrJerico n00b

    Messages:
    27
    Joined:
    Aug 23, 2014
    Yea, that's a good idea. Once I have a better sampling from others suggestions I will look into my top favorites with some higher resolution. It's unfortunate you were unhappy with the noise from the FW121 it is my top choice from the options I've seen so far.

  10. MrJerico

    MrJerico n00b

    Messages:
    27
    Joined:
    Aug 23, 2014
    Also, just to remind every one who is interested at Computex 2016 Noctua said they are now in pre-production of their 120x15mm fan which are "scheduled for launch in late 2016": Noctua on Computex 2016

  11. Morgon

    Morgon n00b

    Messages:
    44
    Joined:
    Nov 1, 2016
    About a week ago, I asked Noctua about this (attached to a question about NH-C14 availability, since running dual fans on the C14S is incompatible with the NCase M1), and they stated that they don't expect to have these for sale for another 6 months, give or take. :(

  12. Chapeau

    Chapeau Gawd

    Messages:
    750
    Joined:
    Jul 17, 2016
    Yeah - not holding my breath for these...

    I know they had the acrylic prototypes on display, but I would love for the production fans to also be clear!

  13. SaperPL

    SaperPL [H]ard|Gawd

    Messages:
    1,811
    Joined:
    Aug 31, 2014
    I've recently ordered something called Raijintek Aeolus Beta - It's kind of oversized 120mm with its frame being 130mm wide in one direction, 13mm thick with PWM - it might be interesting addition to Your list.

    RosaJ and Soul_Est like this.
  14. MrJerico

    MrJerico n00b

    Messages:
    27
    Joined:
    Aug 23, 2014

    Done! Cool fan. It has normal 120mm mounting points right?

  15. SaperPL

    SaperPL [H]ard|Gawd

    Messages:
    1,811
    Joined:
    Aug 31, 2014
    I assume it has, I'll see how it looks and get back to You when I'll get that delivered.

  16. chx

    chx Gawd

    Messages:
    697
    Joined:
    Jun 21, 2011
    There's an entire menu of 120mm mountable 140x150x13 fans:

    Thermalright TY-14013R http://www.thermalright.de/en/fans/28/ty-14013r problem is, I can't find the static pressure

    Raijintek Aeolus α http://www.raijintek.com/en/products_detail.php?ProductID=5

    Silverstone FW141 http://www.silverstonetek.com/product.php?pid=530

    120mm:

    Raijintek Aeolus β http://www.raijintek.com/en/products_detail.php?ProductID=14
    CoolerMaster XtraFlo 120 Slim http://www.coolermaster.com/cooling/case-fan/xtraflo-120-slim/


    In the tiny section, we also have

    Akasa AK-FN077 http://www.akasa.com.tw/update.php?...no=181&type=Fans&type_sub=Slim&model=AK-FN077

    Last edited: Dec 3, 2016
    bigbodypizza, Soul_Est and RosaJ like this.
  17. RosaJ

    RosaJ Limp Gawd

    Messages:
    281
    Joined:
    Mar 22, 2016
    Looking to replace my Cryorig C7 fan. I have a different cooler, the Dynatron R15 which is a 90mm x 90mm CPU cooler. I probably should stick with a 92mm fan as a replacement but the Prolimatech Ultra Sleek Vortex 14 is so quite and has a rediculous CFM. Any suggestions?

    Soul_Est likes this.
  18. Chapeau

    Chapeau Gawd

    Messages:
    750
    Joined:
    Jul 17, 2016
    That's a nice cooler!

    I'd stick with a 92mm fan - for best efficiently you want to force turbulent air through the heatsink fins and away somewhere...
    A bigger fan could potentially create a deadspot centered right over your heatsink which would perform poorly.

    If you need a super slim fan then I'd recommend: Scythe Kaze Jyu slim - it mounts on a 92mm fan footprint, 12mm thick.
    If you can do with a slightly thicker then the Noctua NF-A9 14mm kills it. Actually the NF-A9 comes in a regular thickness option too!!

    Last edited: Jan 9, 2017
    Soul_Est likes this.
  19. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    14,613
    Joined:
    Oct 7, 2000
    combine these two items to make a 92 to 140mm adapter but noise would go up!
    http://www.frozencpu.com/products/7...FG01-0100-AKS.html?tl=g47c121s262&id=oHX5zT9w
    http://www.frozencpu.com/products/1...apter_-_Black.html?tl=g47c121s262&id=oHX5zT9w

  20. SaperPL

    SaperPL [H]ard|Gawd

    Messages:
    1,811
    Joined:
    Aug 31, 2014
    I forgot to make an update on Aeolus Beta:

    I'm running EVGA GTX 1060 SC 6GB with fan and shroud detached + Aeolus Beta underneath controlled by the 1060 AND 120mm AIO in the same GPU chamber of my Sentry.
    So far runs quite okay until I run some synthetic full load on gpu, but that's predictable...

  21. thehack

    thehack Limp Gawd

    Messages:
    155
    Joined:
    Jan 16, 2016
    Is there a noticable improvement in sound? Trying to figure out how I should rig my 1060 in my own build.

  22. diableri

    diableri Gawd

    Messages:
    703
    Joined:
    Dec 13, 2006
    Thanks for this. I've been trying to pick a case and really haven't found what I want. This will help. I'm hopefully going to build a prototype to hand off to a local machine shop this weekend.

  23. SaperPL

    SaperPL [H]ard|Gawd

    Messages:
    1,811
    Joined:
    Aug 31, 2014
    I've literally stripped the fresh out of the box card that wasn't launched before just for the sake of this build. I haven't tested this GPU before with its default cooling.

    The only thing I can say for sure is that in comparison to similar units with such fans it's incredibly quiet when not pushed to the limits, just playing normal 1080p in 60fps

  24. gsilver

    gsilver Gawd

    Messages:
    583
    Joined:
    Oct 12, 2010
    Thanks!
    Very useful in research on 140mm slim fans (in my Fractal Design Core 500 build)


    Using a pair of Prolimatech Ultra Sleek Vortex 14 for now, but I'm looking forward to what Noctua is able to do in that form factor.

  25. Alexreffand

    Alexreffand [H]Lite

    Messages:
    93
    Joined:
    Mar 30, 2013
    Fan list looks messed up on mobile, only two fans listed for some reason. I'm not at my desktop to see if it's a problem exclusive to mobile.

    klatox likes this.
  26. klatox

    klatox [H]Lite

    Messages:
    125
    Joined:
    Feb 13, 2013
    I'm having the same problem and on mobile. Does anyone know if there are any slim 92mm fans aside from the Noctua? I'm considering the NH-L9i for my Sentry and while I know the fan is great as I've owned it in the past, I'm not sure I'm willing to give up my aesthetic for it. They also make a 25mm redux fan but not sure if that would fly in the Sentry.

  27. diableri

    diableri Gawd

    Messages:
    703
    Joined:
    Dec 13, 2006
    Looks good on iOS here. Scrollls appropriately and links appear intact.

  28. klatox

    klatox [H]Lite

    Messages:
    125
    Joined:
    Feb 13, 2013
    Yep looks like it got fixed

  29. thehack

    thehack Limp Gawd

    Messages:
    155
    Joined:
    Jan 16, 2016
    ID cooling makes one. If you don't like that color you can call up Silverstone and they can sell you the one that comes with their AR06. It works okay. Not as nice as the Noctua.

    klatox likes this.
  30. MrJerico

    MrJerico n00b

    Messages:
    27
    Joined:
    Aug 23, 2014
    Yea, people keep leaving the filters on so the list doesn't fully populate. I turn them off every once in a while. Make sure you check those if you're having issues.

    Glad everyone's finding this useful. There has been a lot of help from the community adding to this, thanks every one.

  31. Hermit2001

    Hermit2001 [H]Lite

    Messages:
    114
    Joined:
    Aug 25, 2015
    Anyone know what the quietest fan here is? From the spreadsheet it's the Scythe Kaze Jyu low speed, but it's probably got a sleeve bearing. Do any of the slim 120s have ball bearings, or other?

  32. absolut_zero

    absolut_zero [H]Lite

    Messages:
    77
    Joined:
    Sep 2, 2014
    The Prolimatech Ultra Sleek Vortex 12 and 14 both have double ball bearings.

    Hermit2001 likes this.
  33. Chapeau

    Chapeau Gawd

    Messages:
    750
    Joined:
    Jul 17, 2016
    My experience is that production factors aside - good bearings, no faulty moldings for the blades etc... most fans (especially at low speed) will be very similar.
    The noise will basically scale with rpm.

    I find actually that fans with strange blade shapes ( notches, fences, strange profiles) are generally noisier...

    Hermit2001 likes this.
  34. okwchin

    okwchin Limp Gawd

    Messages:
    357
    Joined:
    Aug 29, 2013
    Another thing to remember is bearing noise. - At lower RPMs in a super silent build, bearing noise is relevant, and a sleeve bearing is the way to go.

    At the higher end of the RPM scale, Aerodynamic noise is your most significant factor, but at lower RPMs, when aerodynamic noise drops, the noise that comes from the motor and the bearings become more important, especially if your after the super silent build.

    Ball bearings have the longer rated life and technically lower friction, but are definitely the noisier type. Noise comes from the fact that the balls are designed to roll on a metal surface (race). The smaller the contact area, the lower the friction, however if the race or ball not absolutely smooth so you will get minute vibrations and thus noise from the rotation of the bearing. The small contact area also makes ball bearings less resistance to handling, as any forces applied to the bearing are transmitted onto a very small point. Despite using hardened steels, the race/ball can still be minutely damaged, causing more noise or rough running.

    Sleeve type bearings are definitely the quieter type, for as long as the bearing has sufficient oil for the shaft to glide within the bearing. Once the oil is lost, its a totally different matter, but this is where the fancier types of sleeve bearings are designed to keep the oil in for as long as possible.

    A slim fan is however most likely going to spend most of its time at higher RPMs, so more often than not, bearing noise is not your biggest worry. Although not a slim fan, the Scythe Gentle typhoon fans are my favourite fan, and push the most air through a restrictive medium for a given amount of noise, but at idle speeds, the bearings are the loudest part of a super silent system, producing a hissing sound. Again, putting it in perspective, it is still quieter than a 2.5" HDD, but louder than the hiss from my PSU.

  35. phantommaggot

    phantommaggot [H]Lite

    Messages:
    104
    Joined:
    Aug 25, 2014
    Anyone having trouble with the list.
    I'm only getting 5 rows right now...

  36. darksable

    darksable Limp Gawd

    Messages:
    431
    Joined:
    Mar 9, 2015
    I've got an L9i and a white Sentry - there's absolutely zero hint of brown and tan showing through - remember the fan isn't up against the grill, it's significantly recessed.

    The only way I could see it being visible is if you had white LEDs shining directly down the front of the motherboard - which wouldn't really be a way to mount them anyways. :)

  37. Nanook

    Nanook Limp Gawd

    Messages:
    385
    Joined:
    May 21, 2016
    Most folks already know this...
    I just wanted to share that I'm using the slim 120 Noctua NF-A12x15 fans and they're definitely much nicer than the competitor slim 120s. Comparing specs on paper (or spreadsheet) didn't really do these fan justice. E.g. I also have the CoolerMaster XFlo slims, and while they're powerful, they tend to vibrate more than the NF-A12x15's. At max speed, the Noctua are only slightly less loud, but the sound is more pleasant.

    Last edited: Jun 26, 2017
    kingtron likes this.
  38. KMPKT

    KMPKT n00b

    Messages:
    27
    Joined:
    Apr 16, 2017
    Sadly the Akasa FN077 92 x 13mm fan has been discontinued:(

  39. Chapeau

    Chapeau Gawd

    Messages:
    750
    Joined:
    Jul 17, 2016
    Damn! I didn't even know this option existed... and now it's gone... lol..

  40. KMPKT

    KMPKT n00b

    Messages:
    27
    Joined:
    Apr 16, 2017
    Just a heads up for anyone thinking of using the Titan 95mm extreme fan - it has to mounting holes for an 80mm fan, not a 92mm fan. I read it on the spec sheet before I bought it, but figured it had to be a typo. It wasn't.
