OC HD5770 vs. OC HD6850

SonDa5

SonDa5

Supreme [H]ardness
2FA
Joined
Aug 20, 2008
Messages
7,437
Only cards I could compare.:D I'm sure those of you with HD5770s wonder how these two cards compare in an over clocked system.

I want to eventually OC the 6850 to at least 1GHZ on the core. Limited voltage control software right now.

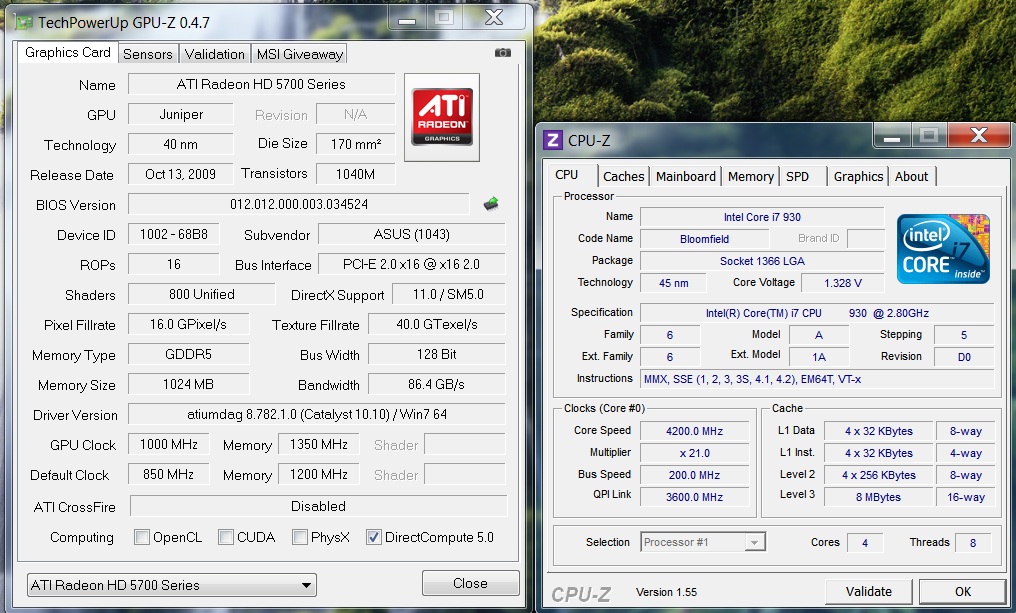

System

DFI X58 JR with I7-930@4.2 GHZ
6 GB of G. Skill DDR3 PC3 12800

Cards

Single Sapphire HD5770 flashed to ASUS TOP HD5770

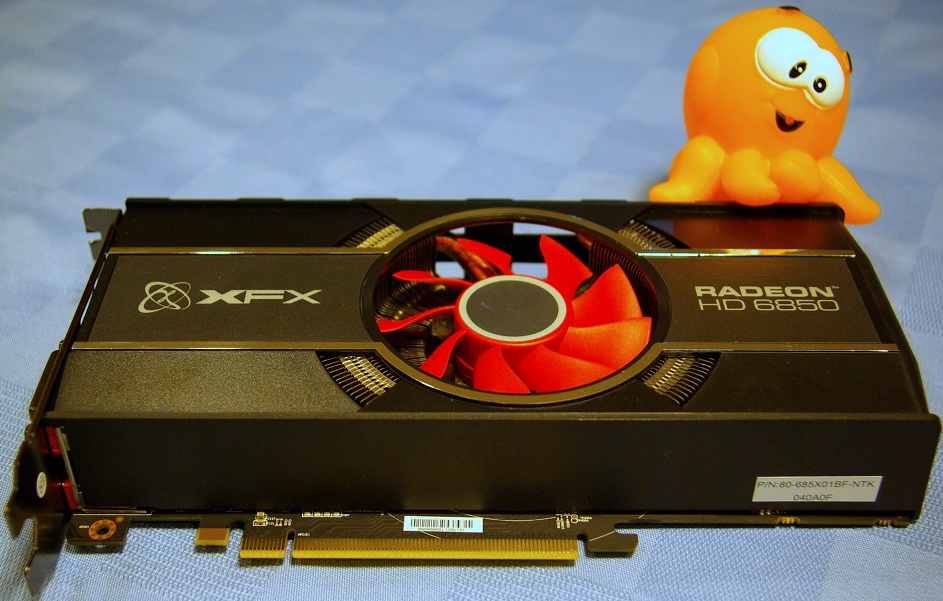

Single XFX HD6850



Flat view


Side View

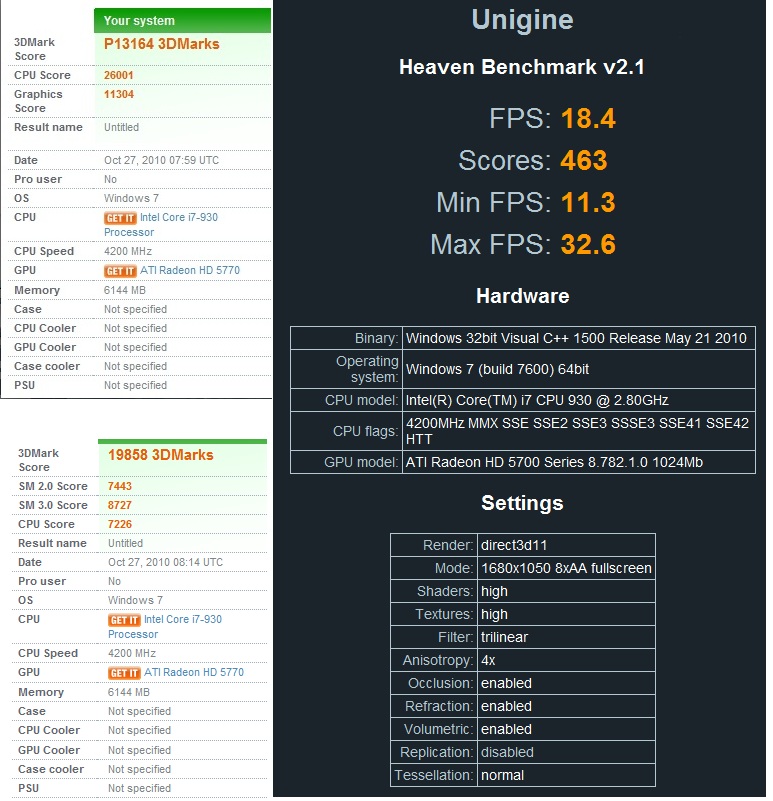

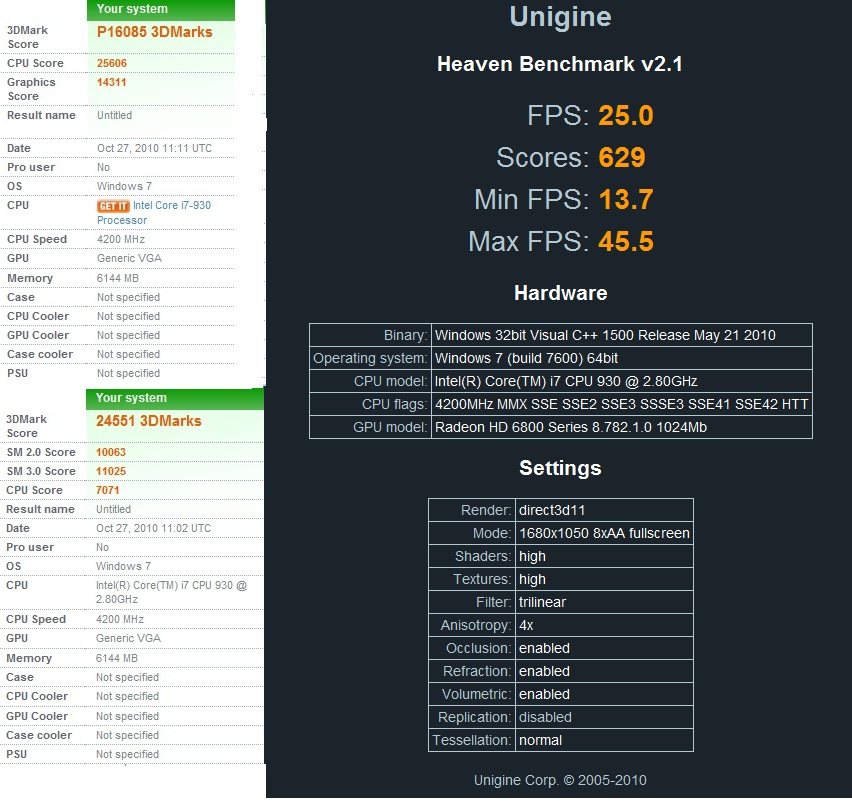

Synthetic Benchmarks

Driver 10.10c, Heaven, Vantage P, 3dMark2006


HD5770





HD6850





I'm sure I'll be able to hit 1GHZ on the core of the HD6850 as soon as some voltage control and higher clocks become possible with MSI Afterburner or SaphireTech Trix.



*****I meant to put this thread in the AMD section, would appreciate if mod would move to AMD section*****

Last edited:
holy shit, 1200 on the memory means 4.8ghz effective. was that the max the mem could go or did you just stop there? most 6850's have mem specc'd for 1250mhz. also, did you use CCC to OC? im sure you could've got at least 900 out of the core...

novadaemon said:
holy shit, 1200 on the memory means 4.8ghz effective. was that the max the mem could go or did you just stop there? most 6850's have mem specc'd for 1250mhz. also, did you use CCC to OC? im sure you could've got at least 900 out of the core...
Click to expand...

The BIOS on this XFX limits the clocks in CCC to 850mhz on the GPU core and 1200 on the memory.

For over clocking the HD6850 all I did was slide the settings as high as possible and it easily completed these benchmarks on the first try. This was an easy over clock with stock voltage.

I'm sure the HD6850 will go faster. :cool:

http://www.kitguru.net/components/g...black-edition-review-1ghz-world-exclusive/17/


Great card for the money.

SonDa5 said:
The BIOS on this XFX limits the clocks in CCC to 850mhz on the GPU core and 1200 on the memory.

For over clocking the HD6850 all I did was slide the settings as high as possible and it easily completed these benchmarks on the first try. This was an easy over clock with stock voltage.

I'm sure the HD6850 will go faster. :cool:

http://www.kitguru.net/components/g...black-edition-review-1ghz-world-exclusive/17/


Great card for the money.
Click to expand...

yeah but doesn't techpowerup's radeon bios editor have compatibility with the 6850? surely you could just keep flashing till you got the right clocks.... or does it limit you in that too?

(i only say this because if you are willing to flash one 5770 to another, then i assume you'd be willing to flash the same bios to a card with different clocks.)

novadaemon said:
yeah but doesn't techpowerup's radeon bios editor have compatibility with the 6850? surely you could just keep flashing till you got the right clocks.... or does it limit you in that too?

(i only say this because if you are willing to flash one 5770 to another, then i assume you'd be willing to flash the same bios to a card with different clocks.)
Click to expand...



I just got the card. I'd rather not flash it if I don't have to.

novadaemon said:
yeah but doesn't techpowerup's radeon bios editor have compatibility with the 6850? surely you could just keep flashing till you got the right clocks.... or does it limit you in that too?

(i only say this because if you are willing to flash one 5770 to another, then i assume you'd be willing to flash the same bios to a card with different clocks.)
Click to expand...


no reason to really flash bios right now. should be an afterburner update pretty soon. kinda surprised they didnt already have one prepped.

Whoa I read the 6850 had good overclocking headroom in reviews, but seeing it in a random retail sample is good news for consumers. Crossfire a pair of these overclocked and you should have 5970 performance for far less money. Thanks

Lorien said:
Whoa I read the 6850 had good overclocking headroom in reviews, but seeing it in a random retail sample is good news for consumers. Crossfire a pair of these overclocked and you should have 5970 performance for far less money. Thanks
Click to expand...



The big challenge for Xfired HD6850s is 1GB GTX 460s in SLI.

Extremely impressed witnessing the HD6850 stable at 1GHZ/50000mhz on stock voltage.

:cool:


NICE, ups should be delivering mine any minute. Hopefully that ~$20 premium i paid for the XFX 6850 will pay off for me too. I'm also upgrading from a 5770 @1ghz so this really put me at ease. How is the difference in games?

SonDa5 question for you. I am in the process of figuring out what I want to go for. 5770 crossfire or if I should go for one of the 6800 cards. What would you recommend? I am playing @ 1680x1050.

xBanzai89 said:
SonDa5 question for you. I am in the process of figuring out what I want to go for. 5770 crossfire or if I should go for one of the 6800 cards. What would you recommend? I am playing @ 1680x1050.
Click to expand...

dumb question but what can't you play at that res with the 5770? esp if you OC the crap out of it

Valset said:
dumb question but what can't you play at that res with the 5770? esp if you OC the crap out of it
Click to expand...

I play at a lower resolution (1280x1024) with my 5770. Everything is playable, but it's not like you can max everything out and maintain 60 FPS.

Mozex said:
I play at a lower resolution (1280x1024) with my 5770. Everything is playable, but it's not like you can max everything out and maintain 60 FPS.
Click to expand...

like what? you play at 1280 by 1024? you should have everything maxed out. sounds like you have something else wrong

SonDa5, how is the fan noise on yours, mine is loud as hell. But it does run at 850/1200 fine. need to try afterburner to see if i can get more.

xBanzai89 said:
SonDa5 question for you. I am in the process of figuring out what I want to go for. 5770 crossfire or if I should go for one of the 6800 cards. What would you recommend? I am playing @ 1680x1050.
Click to expand...

If you are going to buy another HD5770 for Xfire I think you would be just as well off by selling your HD5770 and upgrading to a HD6850. Wouldn't cost as much if you sold your HD5770 and used money towards the HD6850.

Performance wise looks like a single HD6850 over clocked would give a Xfire HD5770 set up a good run for the money. It would be close.

ninerfan said:
SonDa5, how is the fan noise on yours, mine is loud as hell. But it does run at 850/1200 fine. need to try afterburner to see if i can get more.
Click to expand...

Doesn't seem as loud to me as the exhaust type heat sinks that have the noisy fans. I wear head sets for audio. My system in general is noisy.

Valset said:
dumb question but what can't you play at that res with the 5770? esp if you OC the crap out of it
Click to expand...

Just wanting to upgrade. BC2 is a little rough for me as well. I may upgrade to a higher res monitor once the holidays roll around.

SonDa5 said:
If you are going to buy another HD5770 for Xfire I think you would be just as well off by selling your HD5770 and upgrading to a HD6850. Wouldn't cost as much if you sold your HD5770 and used money towards the HD6850.

Performance wise looks like a single HD6850 over clocked would give a Xfire HD5770 set up a good run for the money. It would be close.
Click to expand...

Thanks for the feedback. I listed my 5770 on craigslist and I'm hoping to sell it there. If I can get away with it for $50 bucks I don't think it would be bad.

Valset said:
like what? you play at 1280 by 1024? you should have everything maxed out. sounds like you have something else wrong
Click to expand...

Mass Effect
Portal
Team Fortress 2

Nothing is wrong, it's just not possible to max settings and not dip below 60 fps during intense scenes.

This is good for a start. There's one hour of MSI's Kombustor stability test on a Sapphire HD 6850 @ 945|1150 default voltage. Peak load was 68C. That's not bad for pumping out 600+ FPS for an hour. I used 80% fan speed because I didn't want to get screwed by thermals at like 55mins into the test. Tomorrow I am going to try 56% fan speed and see what happens.

http://img545.imageshack.us/img545/1968/6850oc.jpg

The card can do general benching @ 960 fine and I suspect it needs more voltage. Guess I'll find out when Afterburner gets updated.

HD 6850 Crossfire @ 960-1010 should put out some darn sweet numbers for the asking price.

Last edited:
Blacklash said:
This is good for a start. There's one hour of MSI's Kombustor stability test on a Sapphire HD 6850 @ 945|1150 default voltage. Peak load was 68C. That's not bad for pumping out 600+ FPS for an hour. I used 80% fan speed because I didn't want to get screwed by thermals at like 55mins into the test. Tomorrow I am going to try 56% fan speed and see what happens.

http://img545.imageshack.us/img545/1968/6850oc.jpg

The card can do general benching @ 960 fine and I suspect it needs more voltage. Guess I'll find out when Afterburner gets updated.

HD 6850 Crossfire @ 960-1010 should put out some darn sweet numbers for the asking price.
Click to expand...

what do they sound like at that setting? at 65c I doubt you need them that high. but yeah, this def looks like the new value cards for the over clockers. now if there is a hack to enable the other shaders....

Valset said:
what do they sound like at that setting? at 65c I doubt you need them that high. but yeah, this def looks like the new value cards for the over clockers. now if there is a hack to enable the other shaders....
Click to expand...

What does it sound like @ 80%? Weeeeeeeeeeeeeeeeee! It's pretty annoying. At 56% it is a distant low whoosh. Not jarring at all.

There is a rumor going around you may be able to turn a 6850 into a 6870 with a BIOS edit or flash. It's early yet though.

Blacklash said:
What does it sound like @ 80%? Weeeeeeeeeeeeeeeeee! It's pretty annoying. At 56% it is a distant low whoosh. Not jarring at all.

There is a rumor going around you may be able to turn a 6850 into a 6870 with a BIOS edit or flash. It's early yet though.
Click to expand...

if that happens I may trade out my 5870. that would be a hell of a deal :D

Valset said:
if that happens I may trade out my 5870. that would be a hell of a deal :D
Click to expand...

If MSI do something like a "Cyclone" or "Lightning" version of the 6970, I will likely jump on that. They would likely; OC well, be relatively quiet and have darn good thermals.

there is suppose to be an issue with that game and the 6800. Nvidia wanted it used and AMD didn't. kinda of a ongoing debate I think
