    wanted something i little easier to work on than the NCase m1, so far i like the h200i

    SF600w psu, i5 8600k @ 5.2 , gtx 1080, 16gb, samsung 960 evo 512 and 256 gb m.2 drive, kraken x52 cooler




    Last edited: Mar 22, 2018
    revenant and Chimpee like this.
  2. Engr62

    Engr62 Limp Gawd

    Messages:
    187
    Joined:
    Mar 24, 2015
    Wow! Beautiful system!

    I have my main system in a NZXT S340 Elite case, and to be quite honest, it was one of the tougher cases for me to build in. It has a nice clipping system for cable management, but there is just not a lot of room for cable routing between the motherboard tray and case side panel. I had an especially tough time trying to run a SATA cable between my 3 HDDs to the front-mount SSD (on the PSU shroud)--so much so that I broke one of the SATA adapters on the cable.

    How is the air flow in this case for cooling your GPU? I've got two 120 mm fans pulling air in the front, and two 120 mm fans ejecting air at the back & top. But I still can't keep my GTX 1070 lower than the mid 70's C when gaming.

  3. Putz

    Putz I have a custom title

    Messages:
    5,380
    Joined:
    Jul 8, 2002
    i have the gpu and cpu loaded 24/7 mining when i dont game, kraken is set to performance and still pretty quiet


  4. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    9,966
    Joined:
    Oct 7, 2000
    looks good. you build it or order it from nzxt bld?

  5. Putz

    Putz I have a custom title

    Messages:
    5,380
    Joined:
    Jul 8, 2002
    people order pre built computer on HardOCP? dont admit to that or Kyle might boot you lol

    Last edited: Mar 22, 2018
  6. Engr62

    Engr62 Limp Gawd

    Messages:
    187
    Joined:
    Mar 24, 2015

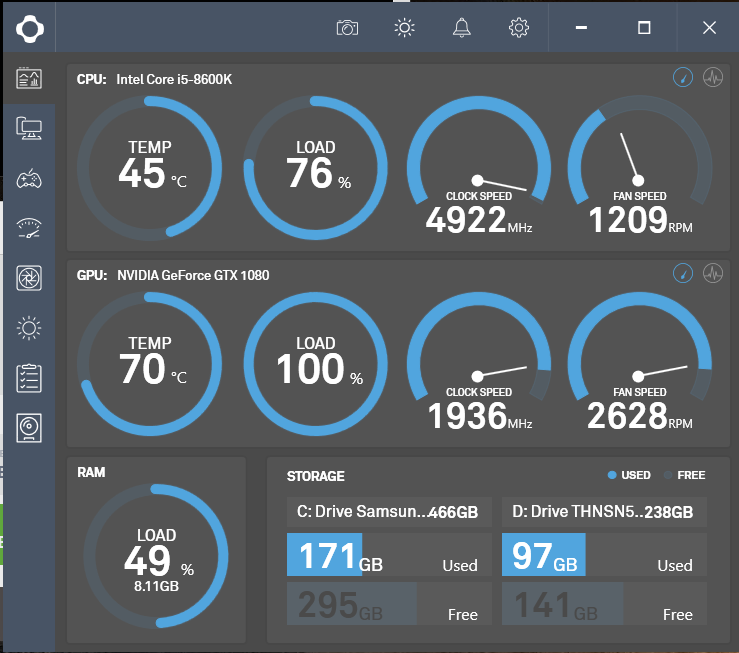

    That GPU temp looks really good. I guess your rear exhaust fan is really helping cool the GPU. Since I'm air-cooling my CPU, and the CPU HSF is inline with the rear exhaust fan, I guess I'm not getting a lot of benefit from the rear fan as far as GPU cooling.

    Anyway, you've got a really nice system there.

  7. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    9,966
    Joined:
    Oct 7, 2000
    I haven't bought prebuilt since '98 but I did just see a LTT vid on NZXTs new BLD line and they look like yours, so I asked. if you want something decent right now its easier and cheaper to buy a prebuilt.

  8. Putz

    Putz I have a custom title

    Messages:
    5,380
    Joined:
    Jul 8, 2002
    oh i had no idea NZXT did that lol

    i imagine if they use the h200i and the x52 they'd look similar

  9. KenRico

    KenRico n00bie

    Messages:
    62
    Joined:
    Dec 24, 2005
    Very Nice Build ! I did a R1600X in a Lian Li Q10WX ..your tempered glass is much better .

    I don't miss my monolith of V1200 but like the h200i because it doesn't force you into an SFX PS .

    Kenny

  10. Putz

    Putz I have a custom title

    Messages:
    5,380
    Joined:
    Jul 8, 2002

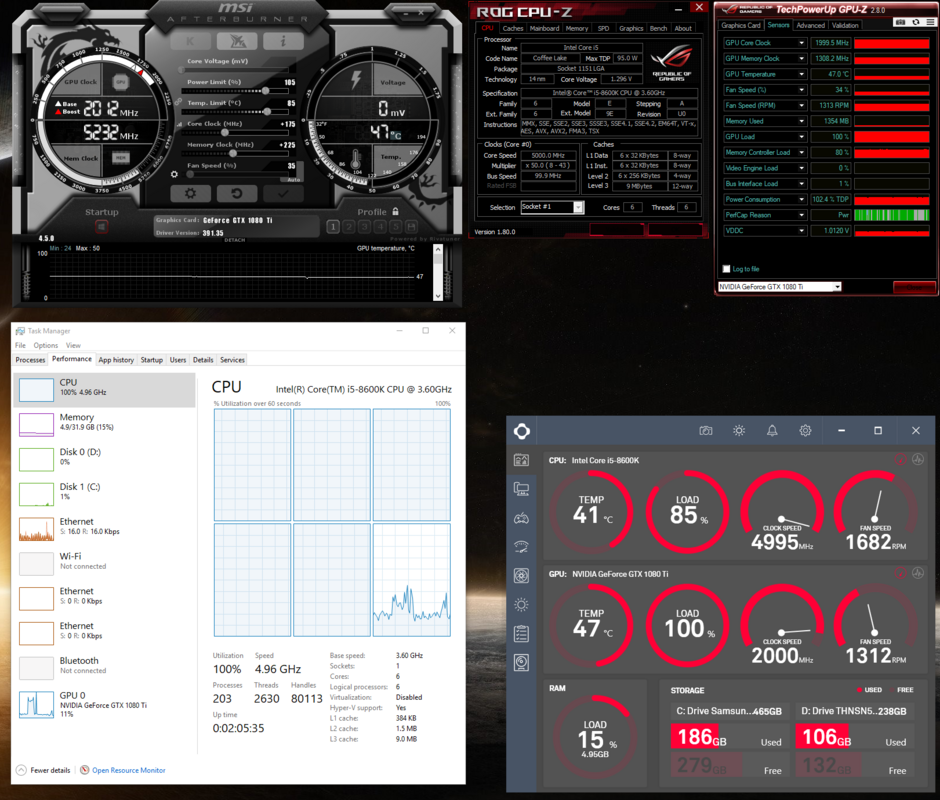

    Managed to stuff in a 1080ti and hybrid cooler




    Chimpee, revenant and pendragon1 like this.
  11. pendragon1

    pendragon1 [H]ardForum Junkie

    Messages:
    9,966
    Joined:
    Oct 7, 2000
    if you have the tube length I would recommend flipping the front rad to prevent air gurgling in the pump.

  12. Putz

    Putz I have a custom title

    Messages:
    5,380
    Joined:
    Jul 8, 2002
    wont fit flipped, but have never had any sounds of air moving through, according to NZXT it will run fine that way, im guessing with the drop in the tubes prior to pump helps

  13. Putz

    Putz I have a custom title

    Messages:
    5,380
    Joined:
    Jul 8, 2002
    change the rad fans out to the new Noctua NF-A12x25, really nice fans and the LED hides the ugly color scheme they use lol
