NZXT Dredges Up H1 PCIe Riser Debacle

[erek]

"The brand goes on to explain that the issue has been avoided in the new PCIe riser cable with two safety measures. First, there is a physical boss, or "shoulder" that extends into the PCB through-hole to protect the PCB from the screw threads and to ensure that there is a consistent and guaranteed gap between the screw and the PCB. Secondly, NZXT has changed the design of the PCB such that there are no power planes or traces surrounding the screw hole—every trace around the screw is grounded, and that ground plane extends externally to a copper screw pad on the top and bottom of the PCB, adding another layer of protection. NZXT notes that the screw pad may be missing in some early review samples, which is something you can observe in our review of the H2 Flow, but it is included in the final mass production versions of the case. NZXT claims that these measures have eliminated the failure mode that caused issues with the original H1 chassis."

Source: https://www.techpowerup.com/346873/...eassure-h2-flow-buyers-it-cannot-happen-again



[Randall Stephens]

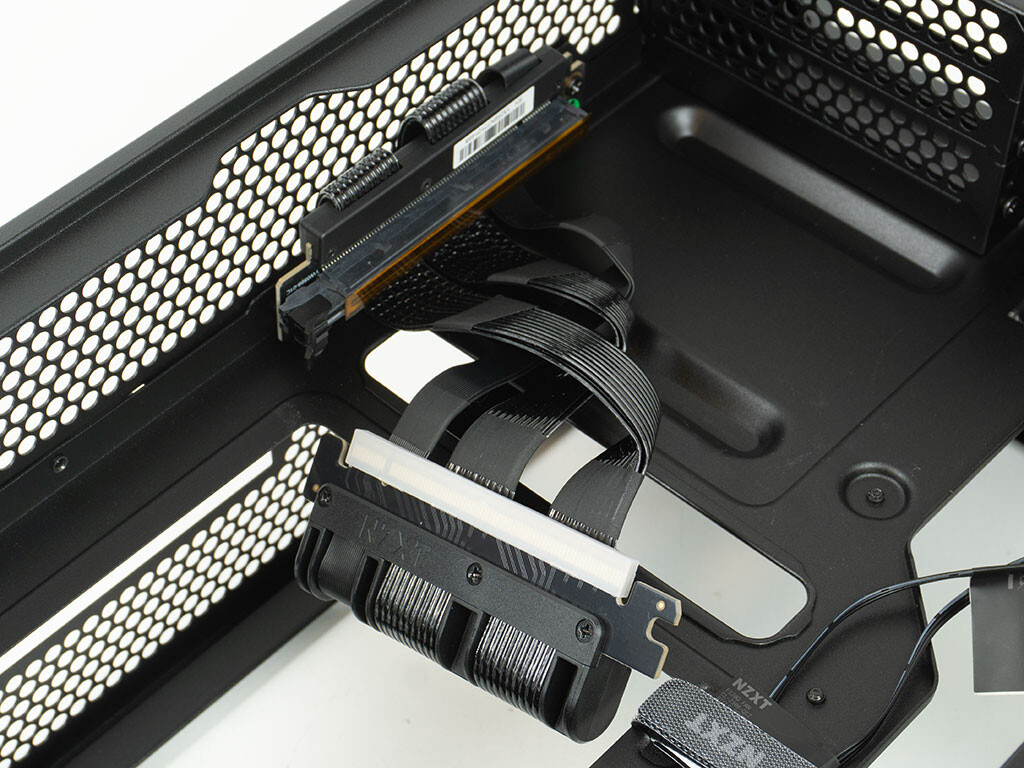

"The brand goes on to explain that the issue has been avoided in the new PCIe riser cable with two safety measures. First, there is a physical boss, or "shoulder" that extends into the PCB through-hole to protect the PCB from the screw threads and to ensure that there is a consistent and guaranteed gap between the screw and the PCB. Secondly, NZXT has changed the design of the PCB such that there are no power planes or traces surrounding the screw hole—every trace around the screw is grounded, and that ground plane extends externally to a copper screw pad on the top and bottom of the PCB, adding another layer of protection. NZXT notes that the screw pad may be missing in some early review samples, which is something you can observe in our review of the H2 Flow, but it is included in the final mass production versions of the case. NZXT claims that these measures have eliminated the failure mode that caused issues with the original H1 chassis."

View attachment 788401

Source: https://www.techpowerup.com/346873/...eassure-h2-flow-buyers-it-cannot-happen-again

“We messed up the last time, here’s how we are going to avoid this again.”

Seems like good marketing.
