LCD screen in case that doesn't use HDMI

S

setz3r

n00b
Joined
Aug 10, 2016
Messages
31
Hello there, I have grown to like the idea of having a screen in the case for hardware temperature readings, and there is obviously many ways to do this. But I REALLY don't want to use a HDMI video output from the GPU to drive the screen which seems to be the standard for all the methods I have seen. I know you can put an android phone in there and connect it to wifi but I actually don't use wifi, I'm all wired, so thats not an option for me either.

I actually like the method Lian Li has done in the Uni FAN TL LCD Fan https://lian-li.com/product/uni-fan-tl-lcd/ Obviously its an insane gimmick, but it is using usb data to provide bandwidth to the screen, which seems very similar in concept to "displaylink". This is how I would like to do it. I do not mind using power from the PSU to power the screen as they have done, I just really don't want it setup as a traditional multi-monitor setup in windows and have to use a video output from my GPU.

Is their anyway to do such a thing ? I would like a screen that can be setup entirely internally in the case. Display bandwidth via USB, essentially a "usb videocard", and powered either by a connection to the PSU or by USB power. Any help appreciated.

Next motherboard you buy keep an eye out for an "eDP" video-connector.

Those are made for internal video and power transport.

I use one on my bench with an asrock side panel 13.3 kit. Nothing special


pendragon1 said:
does you mobo have a 3.1/2 header availible? if so, get one each of these:
https://www.amazon.com/3-5inch-Computer-Monitor-Temperature-Secondary/dp/B0CSXMKPJJ
https://www.amazon.com/MOTONG-Female-Header-Extension-0-98ft/dp/B09H25S3PC

if not, add this:
https://www.amazon.com/RIITOP-USB3-2-Adapter-10Gbps-Expands/dp/B0CN91GRR7
Click to expand...
That screen looks great, I wouldn't mind slightly bigger but that is exactly the style I am looking for. Thanks for the links. Also, I'm in the process of making a new build this month, so my motherboard options are open, I'll try and get a mobo that can be easily configured for usb-c compatibility with a screen like this..

As an Amazon Associate, HardForum may earn from qualifying purchases.
Carlyle2020 said:
Next motherboard you buy keep an eye out for an "eDP" video-connector.

Those are made for internal video and power transport.

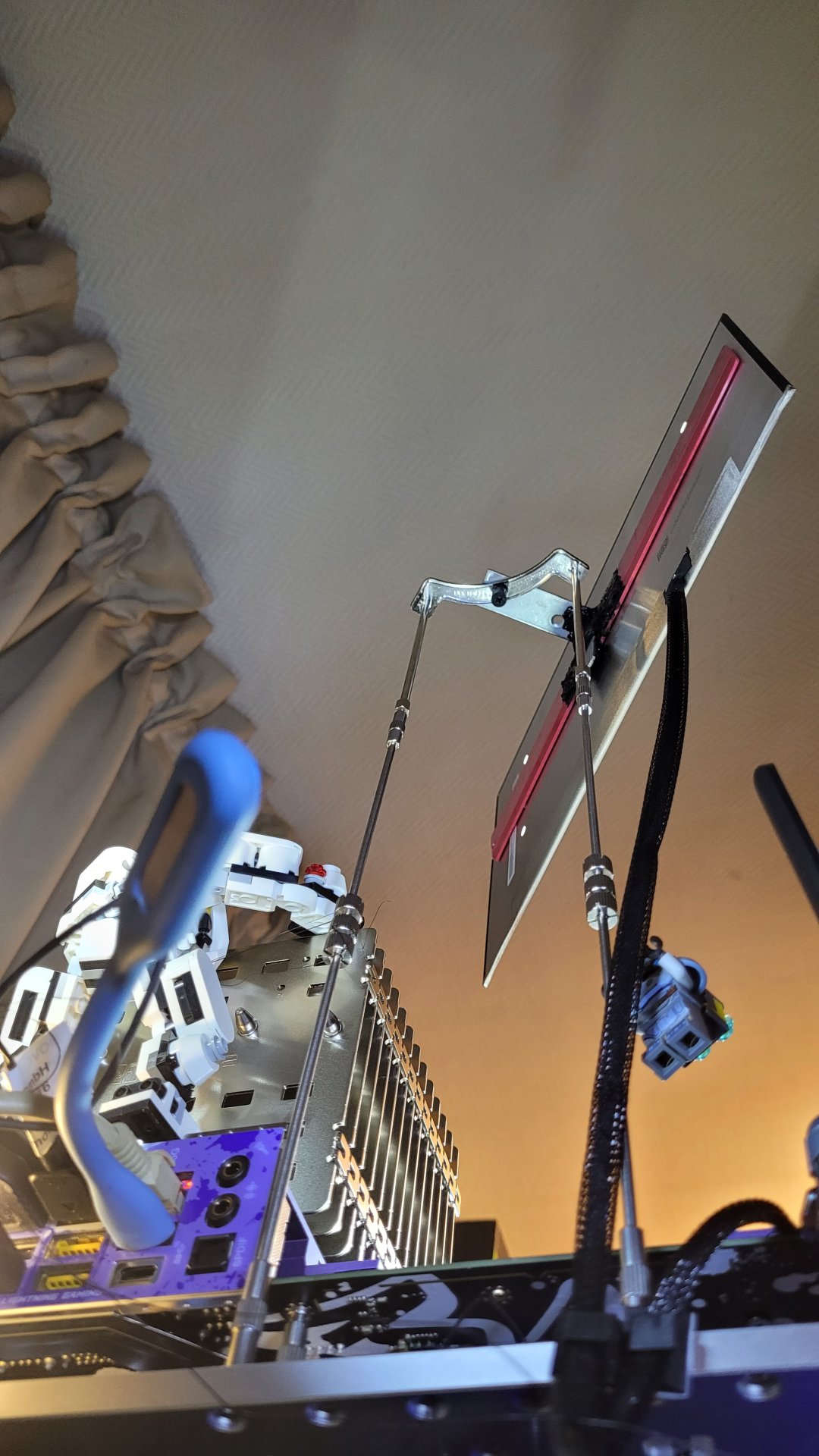

I use one on my bench with an asrock side panel 13.3 kit. Nothing special

View attachment 683833
Click to expand...
I'm not even familiar with this connector at all, sounds like it would be perfect for what I'm looking to do, I will look into that as well, thank you.

As an Amazon Associate, HardForum may earn from qualifying purchases.
It can also be connected via usb 2.0?
Nifty!

... so it can be install it on .. basically any internal usb connector.
