HELP - Delta Fan wires pinout

Vlad_13

[H]ard|Gawd
Joined
Jun 22, 2006
Messages
1,830

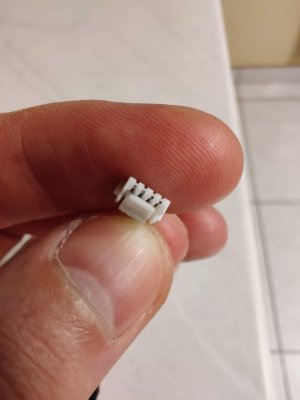

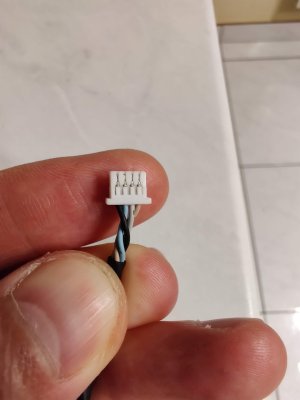

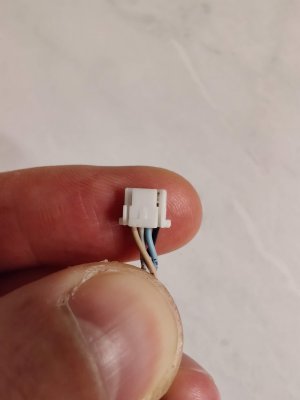

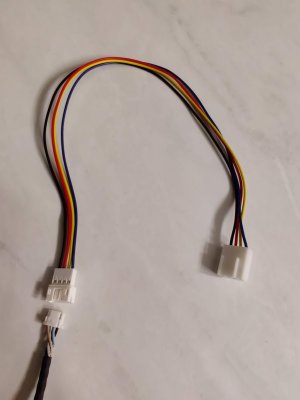

So I've got my self a new Delta AFB1212HE-00 from AliExpress (I just love Delta fans, it's my PC fetish - Delta fans), also I've ordered 1.25 4-pin to 4-pin fan header cable but when I saw a fan connector I was surprised as it was first time I saw this type of connector, it's very small. I do have regular PWM PC fan 4-pin connectors so I can wire the fan up but I don't know this wire configuration - Brown; Grey; Light Blue; Black.

My question is which wire corresponds to what? Please Help if you know thanks a lot!!!



Last edited:

pendragon1

Fully [H]
Joined
Oct 7, 2000
Messages
29,949
i would assume is standard pwm just different colors. black being ground etc.


Vlad_13

[H]ard|Gawd
Joined
Jun 22, 2006
Messages
1,830
Right black is ground and the rest of them are? :banghead:
I don't want to assume and fry the fan or mobo.....


pendragon1

Fully [H]
Joined
Oct 7, 2000
Messages
29,949

give the black and blue 12v, if it spins up full blast great. connect the others and try it, shouldnt fry the board. ive plugged dells goofy rewired ones in a normal header by mistake and it didnt hurt the board.
edited speeling

Last edited:

Vlad_13

[H]ard|Gawd
Joined
Jun 22, 2006
Messages
1,830
Nope nope and nope. Black is Ground, Brown is +, Blue is Tach, and Gray is PWM. How about that?! After seeing that black and blue didn't work I thought gg for my brand new fan, then I tried black and Gray - nothing. Black and Brown - swoooosh!

Last edited:

pendragon1

Fully [H]
Joined
Oct 7, 2000
Messages
29,949
Nope nope and nope. Black is Ground, Brown is +, Blue is Tach, and Gray is PWM. How about that?! After seeing that black and blue didn't work I thought gg for my brand new fan, then I tried black and Gray - nothing. Black and Brown - pfszzzzz!
weird. so its workin?


Vlad_13

[H]ard|Gawd
Joined
Jun 22, 2006
Messages
1,830
It is working, Thanks :) This thing is sooooooo quiet on 700-1200RPM almost same way as it was off, and on full - Wow! I never thought a fan can move so much air. Weird thing is there is literarily 0 Info on this fan on internet, none on their website, it's their latest stuff or sumthing...

Old(er) fan I took out

Last edited:

pendragon1

Fully [H]
Joined
Oct 7, 2000
Messages
29,949
It is working, Thanks :) This thing is sooooooo quiet on 700-1200RPM almost same way as it was off, and on full - Wow! I never thought a fan can move so much air. Weird thing is there is literarily 0 Info on this fan on internet, none on their website, it's their latest stuff or sumthing...

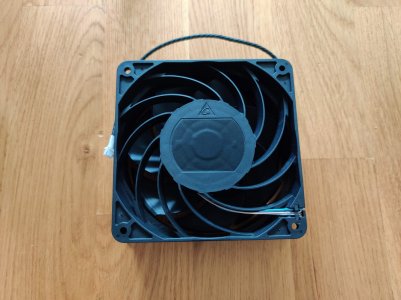

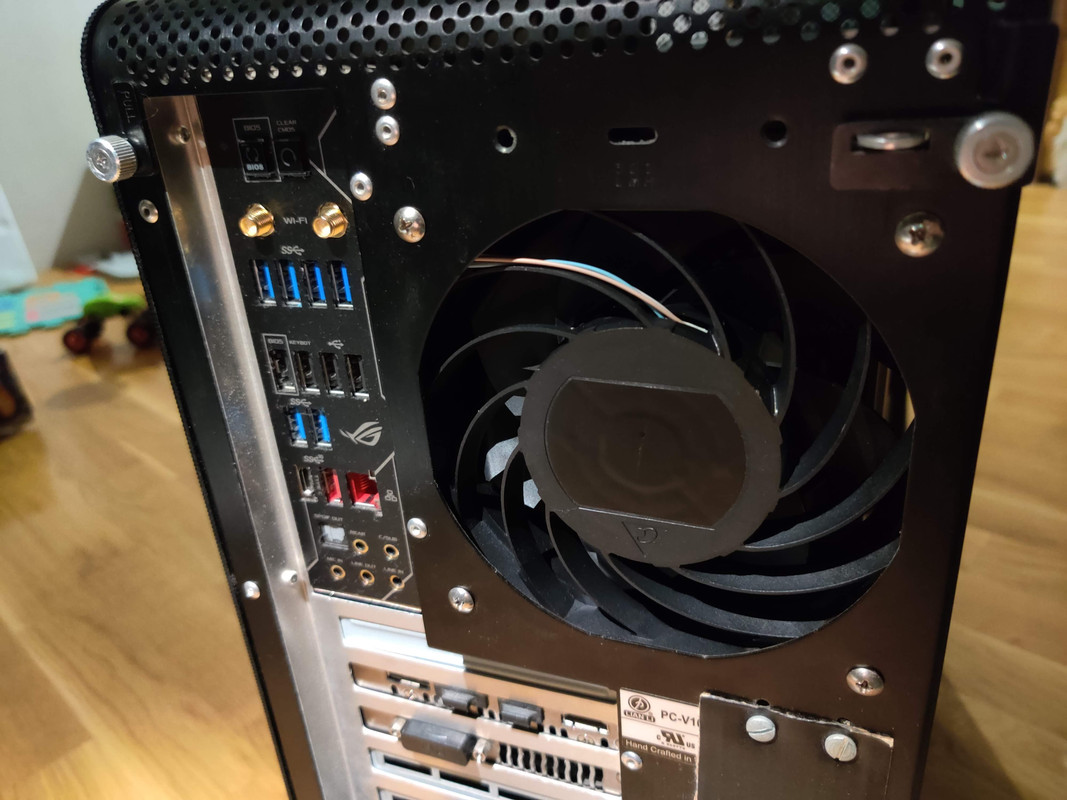

View attachment 359085

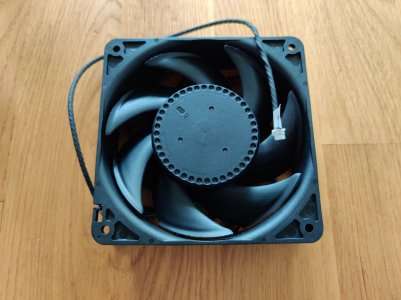

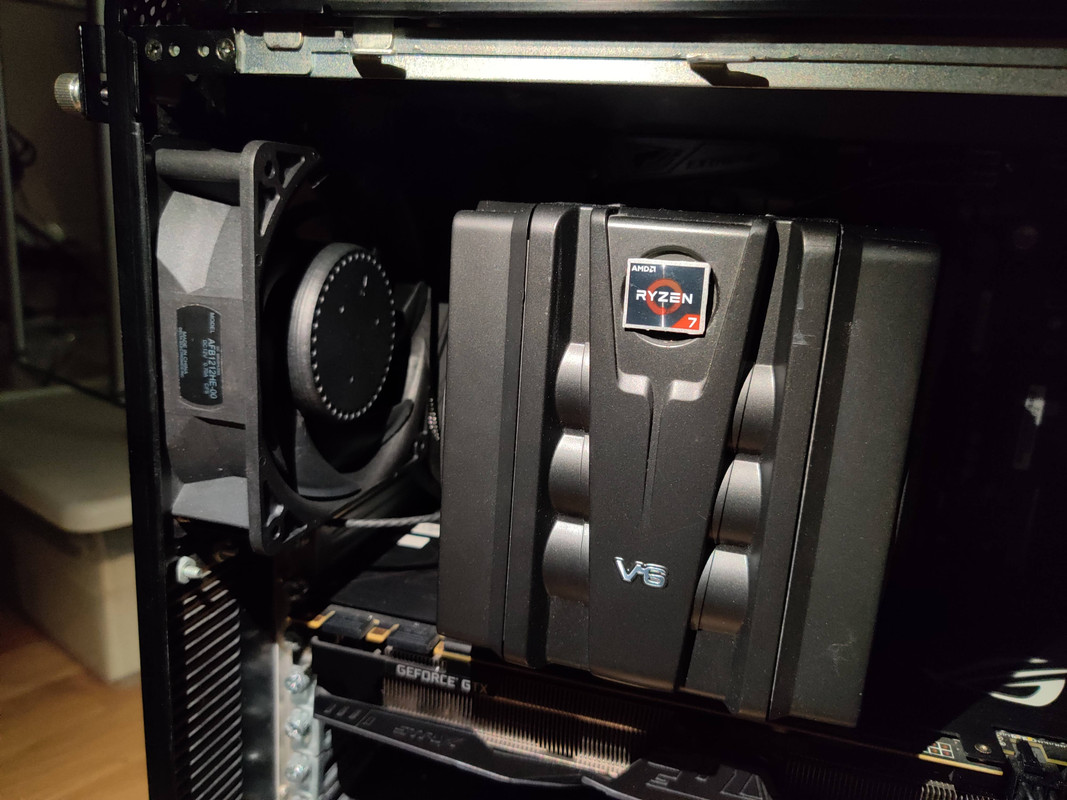

View attachment 359086

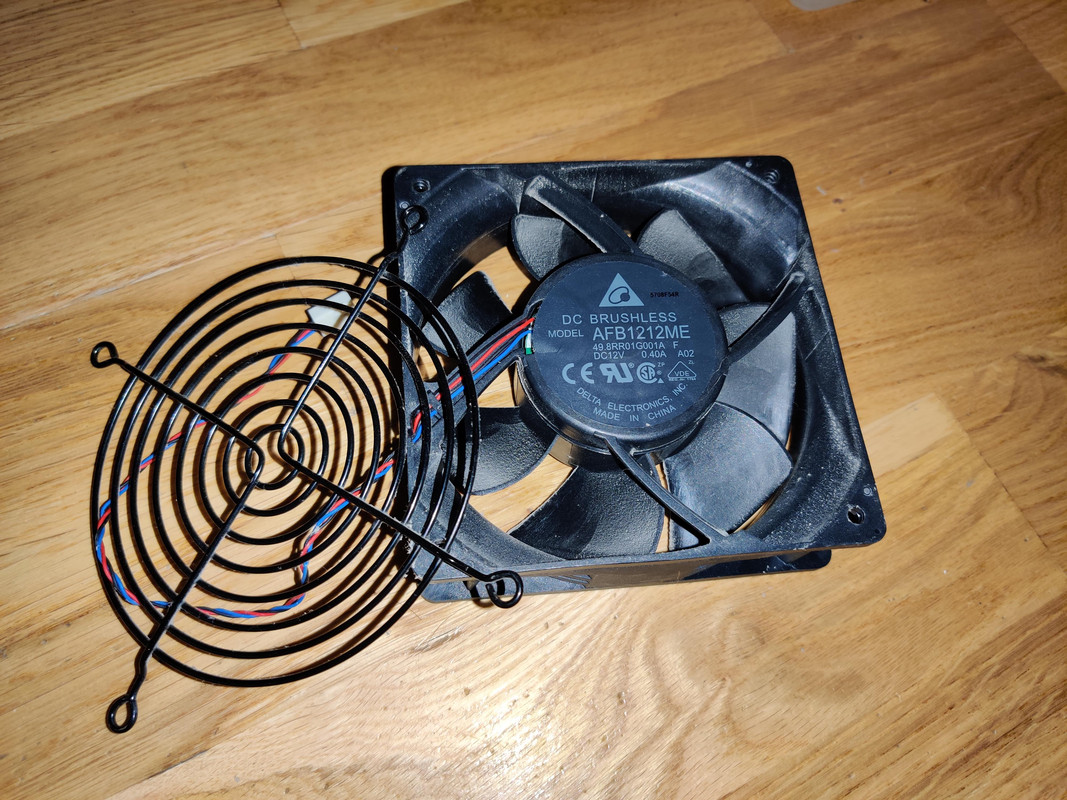

Old(er) fan I took out

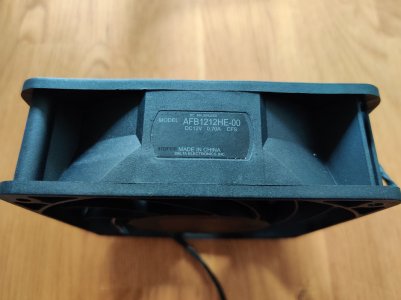

View attachment 359087
i saw just the basics when i was looking for the pinout. .32 .7a, ~73.6w(i think), 105cfm
made correction, numbers were backwards

Last edited:
