Effect of FPS on input latency

[Mr Evil]

Something that's bothered me for a while now is that some competetive gamers target extremely high FPS, but surely the improvements are quickly going to be swamped by other sources of latency? There's only one way to find out: Science!

For this experiment you will need:

* An oscilloscope. Preferably a fancy DSO capable of automatically calculating the delay between two signals.
* A mouse modified to allow button presses to be recorded by the oscilloscope. Simply soldering wires across the switch will do.
* A photodiode fast enough and sensitive enough to detect a monitor changing from dark to light.
* A way of changing the screen brightness when the mouse button is pressed, such as a game. I used UT3 because I'm familiar with modding it, it's old enough to run very fast, and it has an easily configured frame rate limiter.

Here's how I modded the mouse. It's a really old one that's only kept as a spare, so I don't care about extra wires sticking out of it:



I created a very simple mutator for UT3 that turns the whole screen black by default, and then changes it to white when the left mouse button is pressed. If anyone wants to reproduce these results, the mutator is here: https://mrevil.asvachin.com/comp/latency/UTMutator_Latency.zip

I used my 'scopes ability to run basic maths on input channels to normalize the signals from the mouse and photodiode so that they both appear as rising edges from 0 to 1, which makes them easier to compare (the physical mouse button signal falls from 5V to 0V when pressed, while the photodiode rises from about 3mV to 37mV). Here's what that looks like on the 'scope:

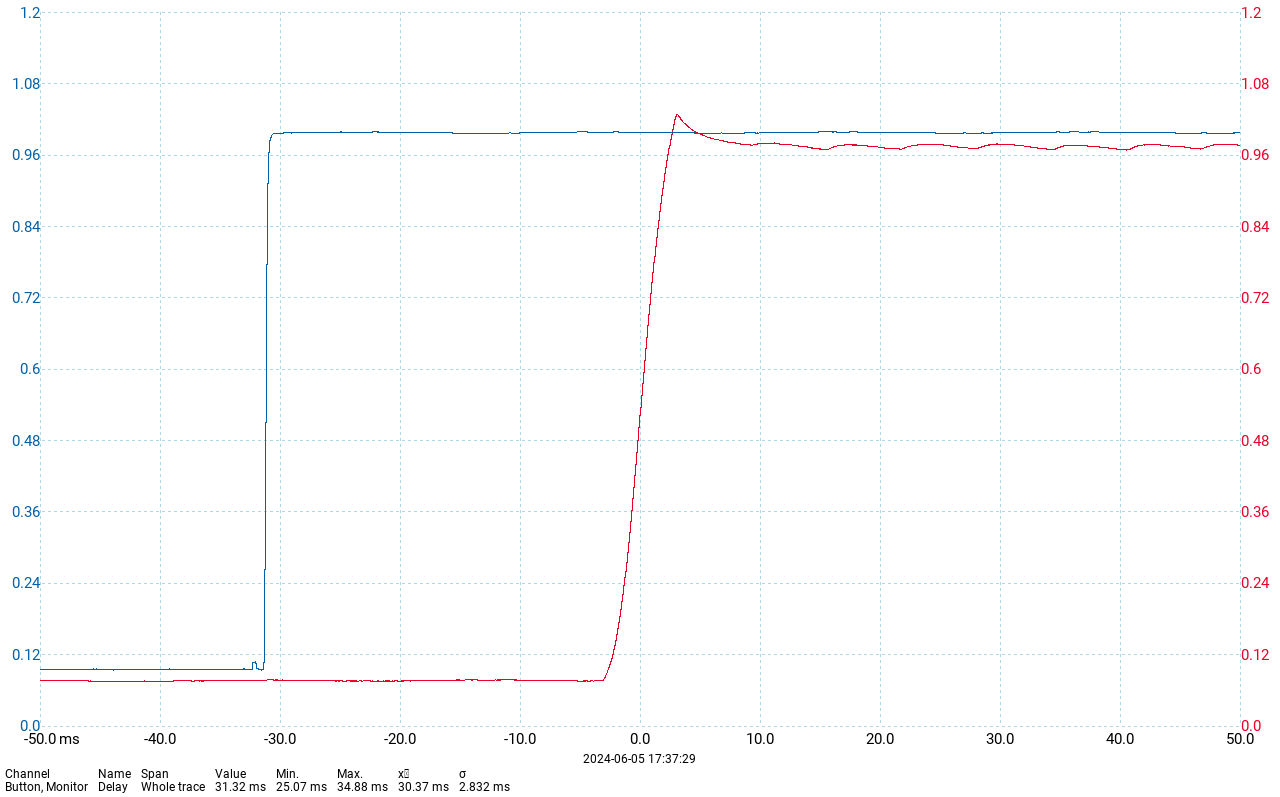

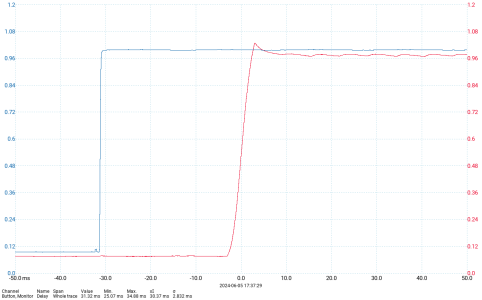

The blue trace is the mouse button, and red is the photodiode. The photodiode clearly shows the monitor's response time of a few milliseconds, including a very small amount of overshoot. There are some statistics underneath for the time between the rising edges of the two traces, which the 'scope conveniently calculates automatically. This is the input latency.

Settings: FreeSync on, VSync off, 4k@165Hz.

With this setup, I ran UT3 and clicked the mouse 50 times at each of several frame rates (which can be changed in-game with a console command, e.g. set engine.gameengine maxsmoothedframerate 60). I then plotted the results:

I also plotted latency vs. frame time:

The blue dashed line is a line of best fit, which intercepts the y-axis at at 21ms. So there's 21ms of latency in everything other than the time taken to render the frame. In other words, even if my machine rendered infinite frames per second, it could never take less than 21ms between pressing the mouse button and something happening on-screen.

So yes, there's some benefit from running at higher frame rates, though it rapidly decreases. And for some reason it stops improving completely at 360 FPS. I'd like to test a different game to see if that 360 limit is something specific to UT3, but since I gave up multiplayer FPSes some time ago, I don't have anything newer. Maybe someone else with the appropriate equipment would like to have a go?

EDIT: I just realized that the mouse is old enough to have a lower polling rate than mice have now. And indeed, a quick test shows 128Hz compared to modern 1kHz mice. So the input latencies measured above would all be about 3.4ms lower with a newer mouse.



[spine]

Yes, the latency is mostly affected by the game engine.

Do the same again with Quake 2 and you'll be shocked. You're looking at like 150ms in that game, yet, I never hear people mention this. Here's a video I made over a decade ago...

I'd be interested to see what your more scientific measure actually is for this game...

I remember the Railgun just being completely useless. You have to over train your target and it doesn't fire where you were pointing when you clicked, no, there's a delay and then it fires where you're currently looking. Which is weird because turning and looking is snappy, it's simply the firing is delayed.



[Mr Evil]

I hadn't thought of trying older games. I played Q2 a lot when it was new, and still have a copy, so I tested it. It doesn't have muzzle flash sprites, and I'm not going to spend time learning how to mod it, so I stood in a dark corner (in the game, not IRL) and used the light from the blaster to illuminate the walls.

Here's a sample from the 'scope:



These are the raw signals. Blue is the mouse, falling to 0V when pressed, and red is a wall lighting up as detected by the photodiode. Latency ranged from 50-150ms, which is a lot.

FPS is limited to 83 by default, but can be changed using the "cl_maxfps" console command. It wouldn't render more than 1000 fps, and it started stuttering at that rate too. Up to 900 worked fine, but it had no effect on input latency.

I never noticed it was so bad when I played. Probably because there was also 200ms of latency from using dial-up internet.



[MrGuvernment]

It did always make me curious when pro gamers list their settings, back in the CS days, running 640x480 to show things bigger, all ingame details off or low, everything to suck out every last FPS. For most, i feel your ISP is now the biggest issue with Inet latency being so inconsitent most of the time vs monitor FPS or mouse DPI settings.



[spine]

Thanks for testing Quake 2!
Still amazes me how little was said about it, especially considering it was the era of CRTs with no display lag. That said, I think it was the move to LCDs which introduced the concept latency that really made people become aware of the problem. Some of the first LCDs, especially ones with only VGA input were shockingly bad.

The original Unreal was about the lowest latency game I remember back then. I think original UT was the same, but subsequent editions were noticably slower.

The original half-life and Day of Defeat were pretty damn snappy, even on 56k modem. The german rifle (K98?) was like a railgun, it was awesome!
