Dual Pumps.

Discussion in 'Water Cooling' started by RogueTadhg, Mar 6, 2019.

  1. RogueTadhg

    RogueTadhg [H]ard|Gawd

    Messages:
    1,525
    Joined:
    Dec 14, 2011
    How do people use dual pumps? Do I really need to buy a special pump top?

  2. Spartacus09

    Spartacus09 Gawd

    Messages:
    912
    Joined:
    Apr 21, 2018
    You don't have to, many folks just placed them in two different spots in the loop, that's best for redundancy rather than extra water flow since the flow increase is linear, you would get better pressure though.
    Anything past about 1GPM is pretty negligible in cooling difference unless your loop is really restrictive and a single D5 does that easily.

    Edit: Whats your goal with your loop?

    Last edited: Mar 6, 2019
  3. RogueTadhg

    RogueTadhg [H]ard|Gawd

    Messages:
    1,525
    Joined:
    Dec 14, 2011
    I'd like to be able to have two video cards and one CPU on a single loop. Overclock both of them as far as they'll go without doing any hardware modification and be able to cool all three to 30-50 C.\

    Right now I've got 3 560 radiators, will be going push. I've got plans to go to 4 or even 5 560 radiators. It's an external watercooling loop for the most part.

  4. Dullard

    Dullard [H]ard|Gawd

    Messages:
    2,005
    Joined:
    Jun 28, 2012

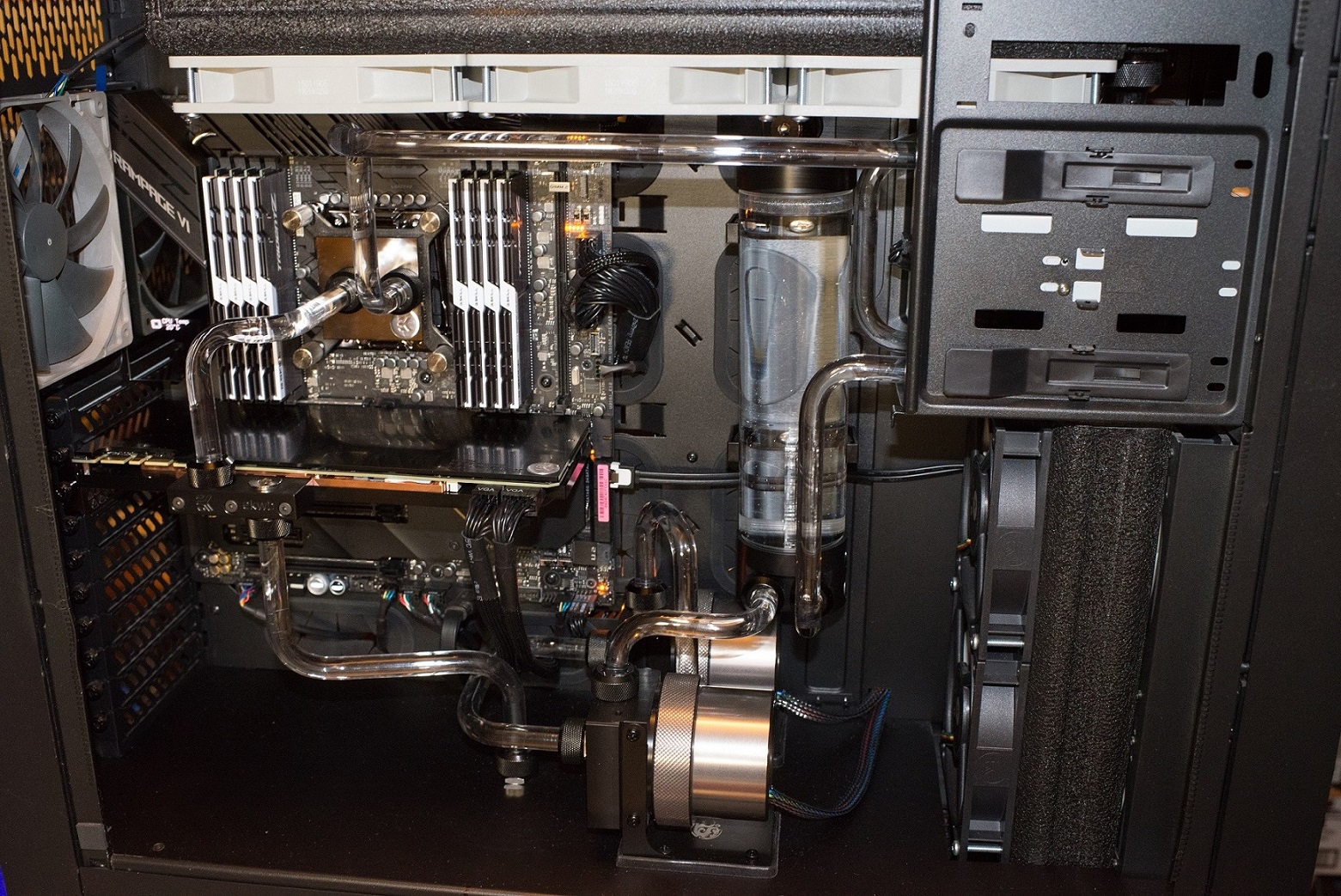

    I just piped 'em together. I do have 4 radiators in this rig, but mainly did it to keep the flow up without running the pumps wide open.


    atp1916 likes this.
  5. Arcygenical

    Arcygenical Will Watercool for Crack

    Messages:
    24,671
    Joined:
    Jun 10, 2005
    The best part about dual pumps is the redundancy... Though most D5's run for years, and years, even decades, before failing.

  6. Dodge245

    Dodge245 Limp Gawd

    Messages:
    179
    Joined:
    Oct 8, 2018
    Looks like one pump leads into the other? Would it not be better to have Pump > Component > Radiator > Pump > Component > Radiator > Res?

    I feel like having Pump > Pump, that the second pump would resist the water flow going into it somewhat, therefore, nullifying the effect you were going for.

  7. Dullard

    Dullard [H]ard|Gawd

    Messages:
    2,005
    Joined:
    Jun 28, 2012
    Nope, Martin's Liquid Lab did the tests - the 2nd pump can be turned off and even then it offers very little flow resistance. Pumps can be run at different speeds (even different pumps), all sorts of things and it's nothing but positives.

    https://martinsliquidlab.wordpress.com/2011/04/26/pump-setup-series-vs-parallel/

    The format is a little strange on that page - the 2nd and 3rd page links are just above the "Comments" tag at the bottom.

    Dodge245 likes this.
  8. Dodge245

    Dodge245 Limp Gawd

    Messages:
    179
    Joined:
    Oct 8, 2018
    Good read, thanks for that, did think there would be higher than 2% resistance. So to OP you don't need a special pump and looks like you can run both without any issues.

  9. Spartacus09

    Spartacus09 Gawd

    Messages:
    912
    Joined:
    Apr 21, 2018
    Something to take from this as well, he actually RECOMMENDS using pumps of different speeds and types due to noise harmonics.

  10. Dullard

    Dullard [H]ard|Gawd

    Messages:
    2,005
    Joined:
    Jun 28, 2012
    I tried running them at different speeds off 2 different fan headers on the mobo, but I never did get them operating just like I wanted - they never tracked with each other very well and the differing speeds were more distracting than just using a Y splitter. If I had a nice controller I still think it'd be a good idea.

  11. Brian_B

    Brian_B 2[H]4U

    Messages:
    2,555
    Joined:
    Mar 23, 2012
    The only issue I take with his testing is "redundancy" for two pumps in parallel. In the field, you always have a discharge check valve that prevents flow from one pump "short circuiting" backwards through a non-operating pump. He didn't have that, and found out that, yup, the flow will short circuit through the non-operating pump rather than go through the circuit.

    That isn't exactly pertinent to the OP though - other than unless it's a mission critical high availability system, you don't really want pumps in parallel anyway.

    Only reason I would run pumps in series - one pump alone isn't getting you the flow rate you need. You need an awful lot of flow restriction for one D5 (or similar) to not provide what you need in a PC. They are overkill pumps as it is for most PC setups. And even then, rather than running two in series, I would just get a single larger pump...

  12. Nicepants42

    Nicepants42 Gawd

    Messages:
    737
    Joined:
    Aug 30, 2004
    I got two D5 varios second hand in 2005. One of them died around 2014, the other is still going.

    So I will admit that the value we place on redundancy might be slightly overblown.

    However, when that first pump eventually died, it was really, really nice to be able to continue using the PC and replace the pump when it was convenient. It's also nice to be able to use speed setting 2-3 on the varios rather than 4-5; a bit less noise, and a positive effect on pump life also.

    When I first set them up they were simply piped into each other. Then, once Martin came along, I decided to dremel out the ports for a bit smoother flow. Then, I got super lucky on [H] when a hail-Mary PM led to me buying a nice dual D5 top. In all cases, these upgrades, while nice, were mostly psychological - although the dual top I have now has the pumps facing the same direction for fast and easy speed knob access.

  13. Tsumi

    Tsumi [H]ardForum Junkie

    Messages:
    12,981
    Joined:
    Mar 18, 2010
    It doesn't happen because the restriction of the loop is far greater than the pump.

    In any case, two pumps in series adds head pressure but does not increase maximum flow, i.e. the maximum theoretical flow is that of a single pump with no restriction. Pumps in parallel double the maximum theoretical flow but do not increase maximum head pressure.
