DNK-PRIME. CNC Milling PC case

Discussion in 'Small Form Factor Systems' started by woodoodm, Aug 7, 2017.

  1. woodoodm

    woodoodm n00b

    Messages:
    6
    Joined:
    May 19, 2015
    November 2018 Update:
    • We finished production and starts assembly.
    • We accept pre-orders on December 2018 on our new web.
    • During last year, we made some modifications for easily assembly and better appearance.
    We redesigned case mainframe. Now top aluminum part is removable for easily assembling


    AC Socket was moved deeper inward the case for better appearance


    Laser Marking was added


    More precisely milling for Power Button (tolerance 0.05mm)


    Grade A aluminum surface finishing and glossy chamfer with diamond tooling (not easily take a good photo of it...)


    304SS polished steel feet with black matt silicone


    All the parts of the case is custom designed, except AC cord extender, USB3.0 cable and PCI-e riser

    End of the Update


    Main concept

    • Emphasis on appearance and grade A surface finishing
    • Materials: Aluminum body + 304SS frame
    • Production technologies: Aluminum extrusion and high precision CNC milling
    • Designed specially for Mini-ITX components
    • Small size
    Cooling

    To maximize air passage, we apply lamella design. This design provides up to 50% more air pass area, than regular holes, and works from bottom to top without "air pockets".


    Specification
    • Overall dimensions: 280 x 140 x 200mm
    • Net weight: 1.8kg
    • Material: Aluminum 6063
    • Storage: 2 x 2.5"
    • Cooling: CPU coolers with height up to 48mm
    • Power Supply: SFX, SFX-L
    • USB connectors: 1 External USB 3.0 on front panel
    • Indicators: White power LED, green HDD LED on front panel
    • Mainboards support: Mini-ITX
    • PCI-E 16x cards support: 2 slots. Up to 180 x 131mm
    Package content
    • DNK | PRIME PC Case
    • 50cm internal AC power cord extender for power supply
    • 25cm PCI-e 16x extender cable
    • 50cm USB 3.0 extender cable
    • All necessary Fixing elements
    • Transportation box

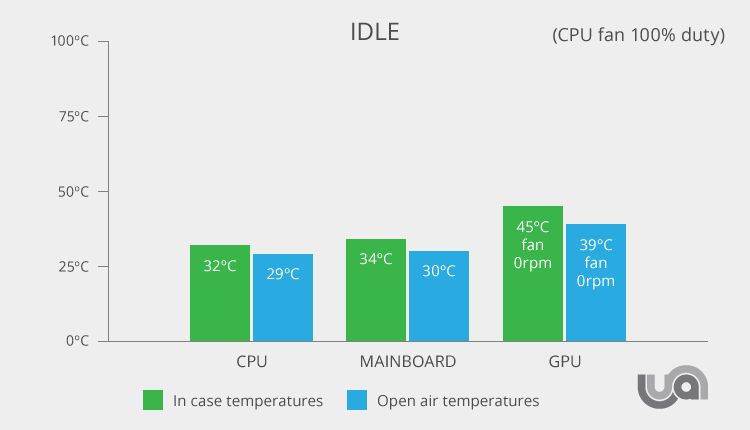

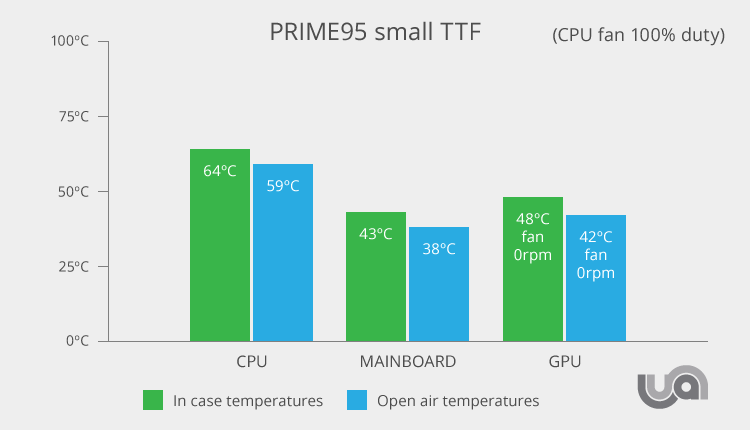

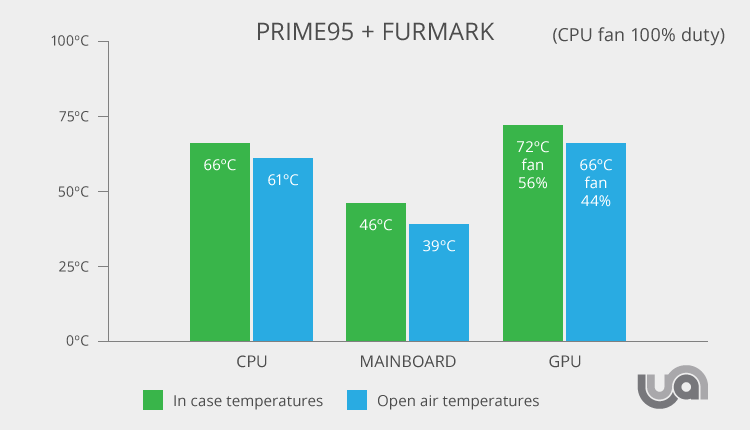

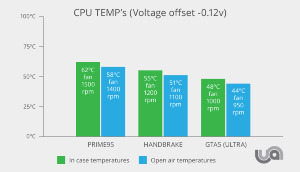

    Test configuration

    • CPU: Intel Core i7-6700
    • Mainboard: ASUS Z170I PRO GAMING
    • GPU: Gigabyte GTX1060 3G mini ITX
    • RAM: 2 x 8G DDR4 2400 Kingston HyperX
    • PCI-e SSD: LITEON T10 240G M.2 2280
    • HDD: 2 x Seagate 1Tb 2.5 HDD (ST1000LM014) (RAID 0)
    • Cooling: CRYORIG C7
    • Power supply: Corsair SF450

    FAQ

    Status of the project?
    We accept pre orders with shipping at the beginning of December 2018.

    How much it's will be cost?
    During pre-orders $196 + shipping cost.

    Where do you ship?

    USA | Canada | EU Countries | Australia | Middle East

    Warranty obligations?

    We provide 1 year full warranty for the case and 2 weeks for returning without any reason.


    Attached Files:

    Last edited: Jun 21, 2019
    Neapolitan6th, DG25 and Kwirek like this.
  2. rfarmer

    rfarmer [H]ard|Gawd

    Messages:
    1,130
    Joined:
    May 9, 2014
    Well this is a bit of a surprise, came out of nowhere. I had been seriously thinking about Fire's MI-6 but this case gives me pause. Really nice design.

  3. Boil

    Boil [H]ard|Gawd

    Messages:
    1,375
    Joined:
    Sep 19, 2015
  4. masteralef

    masteralef n00b

    Messages:
    61
    Joined:
    Apr 4, 2017
    Definitely pushing it in terms of GPU size though- I think that an MSI Aero 1070 will fit, but it's close. Certainly nothing in the 1080 range, even the Zotac minis.

  5. Boil

    Boil [H]ard|Gawd

    Messages:
    1,375
    Joined:
    Sep 19, 2015
    Gigabyte is supposed to be working on a GTX 1080 that is the same size as their GTX 1070 ITX (so it will fit in their eGPU chassis)...?

    omer deniz likes this.
  6. Frazhna

    Frazhna Limp Gawd

    Messages:
    152
    Joined:
    Jun 27, 2013
    you caught my attention, now tell me where you heard about this please!:woot:

  7. Boil

    Boil [H]ard|Gawd

    Messages:
    1,375
    Joined:
    Sep 19, 2015
    From this article on SFFN...

    "When asked if the GTX 1080 would fit, we were told something to the effect that it will soon and that they’re working on it. Make of that what you will."

    omer deniz likes this.
  8. darksable

    darksable Limp Gawd

    Messages:
    431
    Joined:
    Mar 9, 2015
    The name of this thing just kills me. I think (well, at least I hope) that it wasn't done intentionally and DNK is an acronym that means something to you, but... I can't help but see it as "Dank Prime" every single time I read it.

    Last edited: Aug 10, 2017
    omer deniz and jamesman32 like this.
  9. DG25

    DG25 Gawd

    Messages:
    544
    Joined:
    Dec 15, 2006
    How thick are the side panels (where the vents are located)?

  10. woodoodm

    woodoodm n00b

    Messages:
    6
    Joined:
    May 19, 2015
    Fins in 1.2mm thickness, and 8 mm deep. And there is 4 thick bars, for shape supporting. On the top, middle and bottom of the part.

    DG25 likes this.
  11. omer deniz

    omer deniz n00b

    Messages:
    13
    Joined:
    Mar 16, 2017
    I think, must be an alternative cheap, long time but safe shipping option. Design looks great.

  12. AP2

    AP2 [H]ard|Gawd

    Messages:
    1,395
    Joined:
    Jun 25, 2007
    Love it everything about it! I will be purchasing 2.

  13. woodoodm

    woodoodm n00b

    Messages:
    6
    Joined:
    May 19, 2015
    We provide some updates at final design and put them to the first post.

  14. woodoodm

    woodoodm n00b

    Messages:
    6
    Joined:
    May 19, 2015
    Soft "PAINKILLER" wires from Taobao and first video review. !!! From the first batch of 200pcs 28pcs left !!!



    Neapolitan6th likes this.
