Areca 1880ix CPU Heatsink Replacement

B

Brainbug

Weaksauce
Joined
Feb 15, 2012
Messages
92
Due to some changes in the configuration of my server, the Areca 1880ix wasn't getting the same airflow as it was previously, and the CPU was hitting ~80C. Replacing the stock heatsink with an Enzotech, has dropped temps by over 30C.

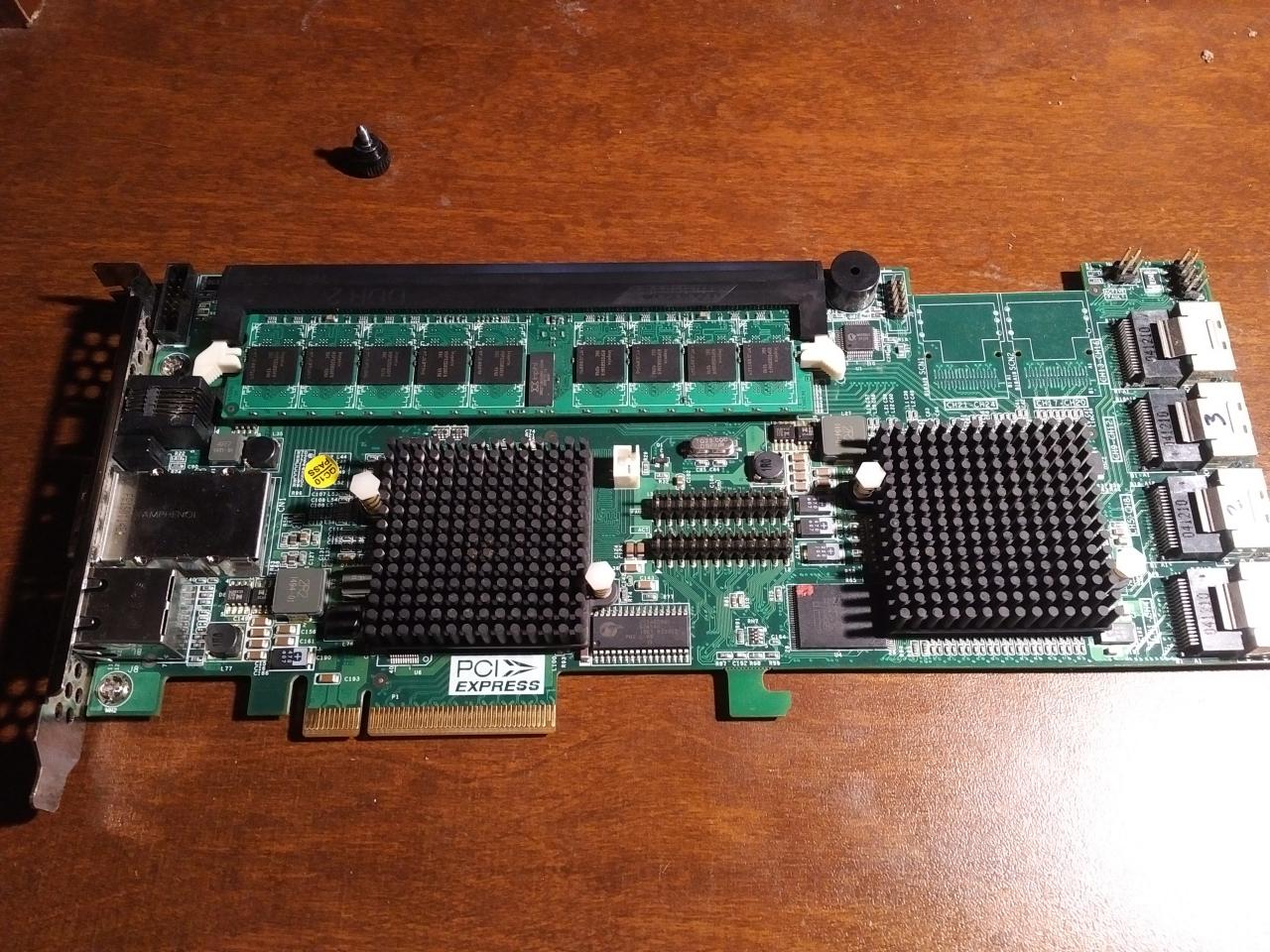

Raid Card. Old style, before the single large heatsink

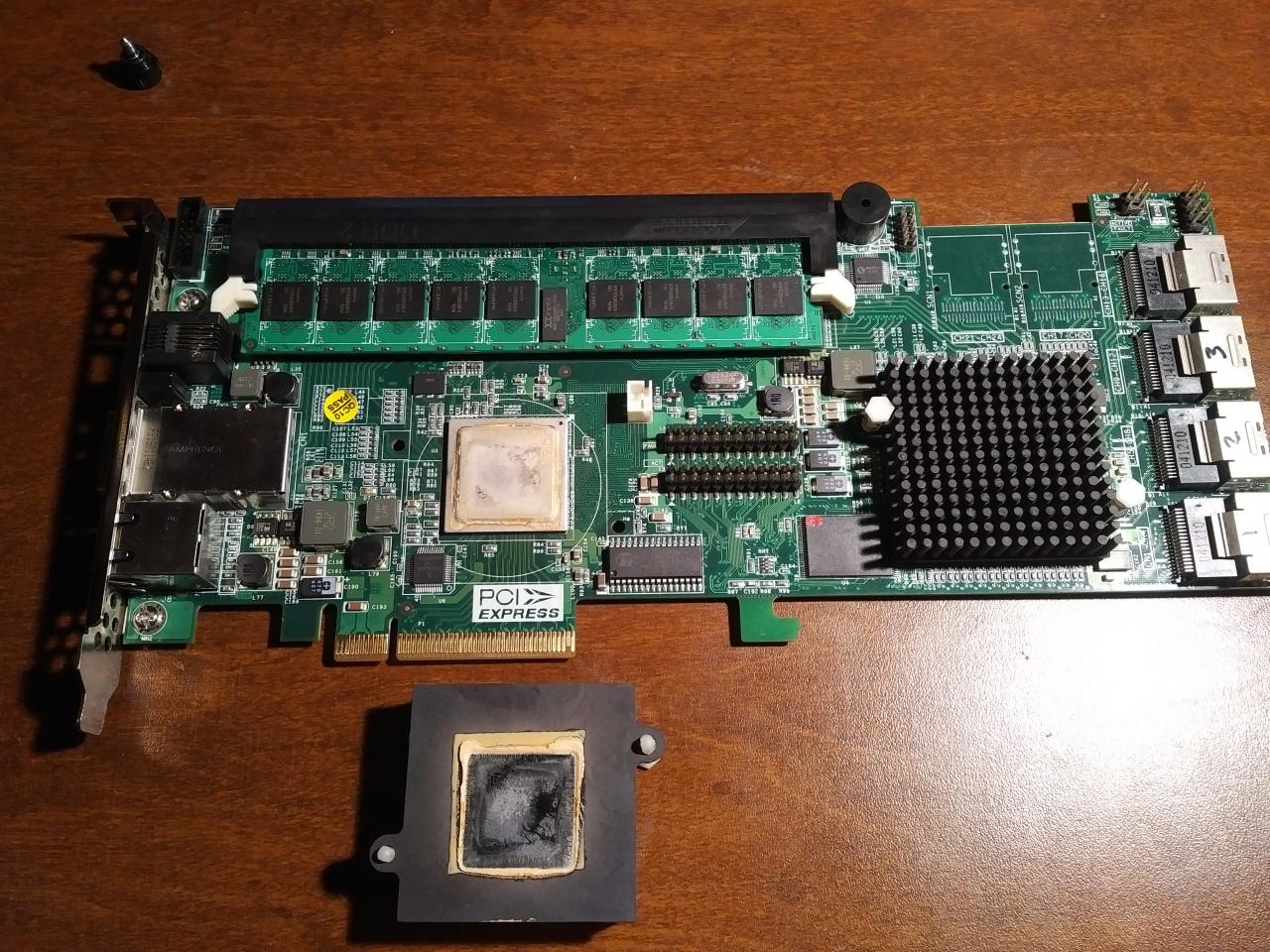

Use a heat gun to heat up the CPU heatsink then gently twist and it will pop off.

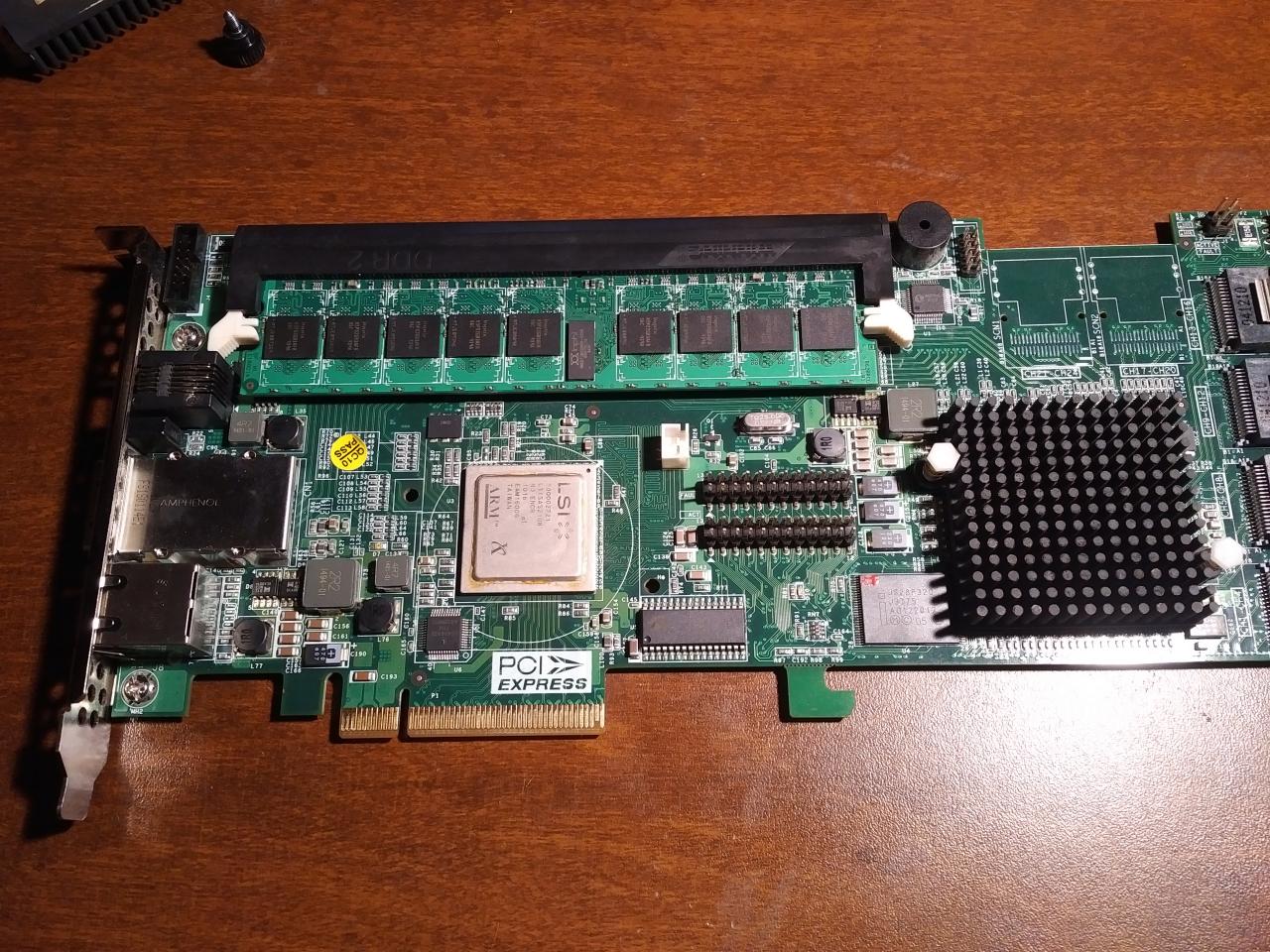

Clean the CPU with 99% isopropyl alcohol

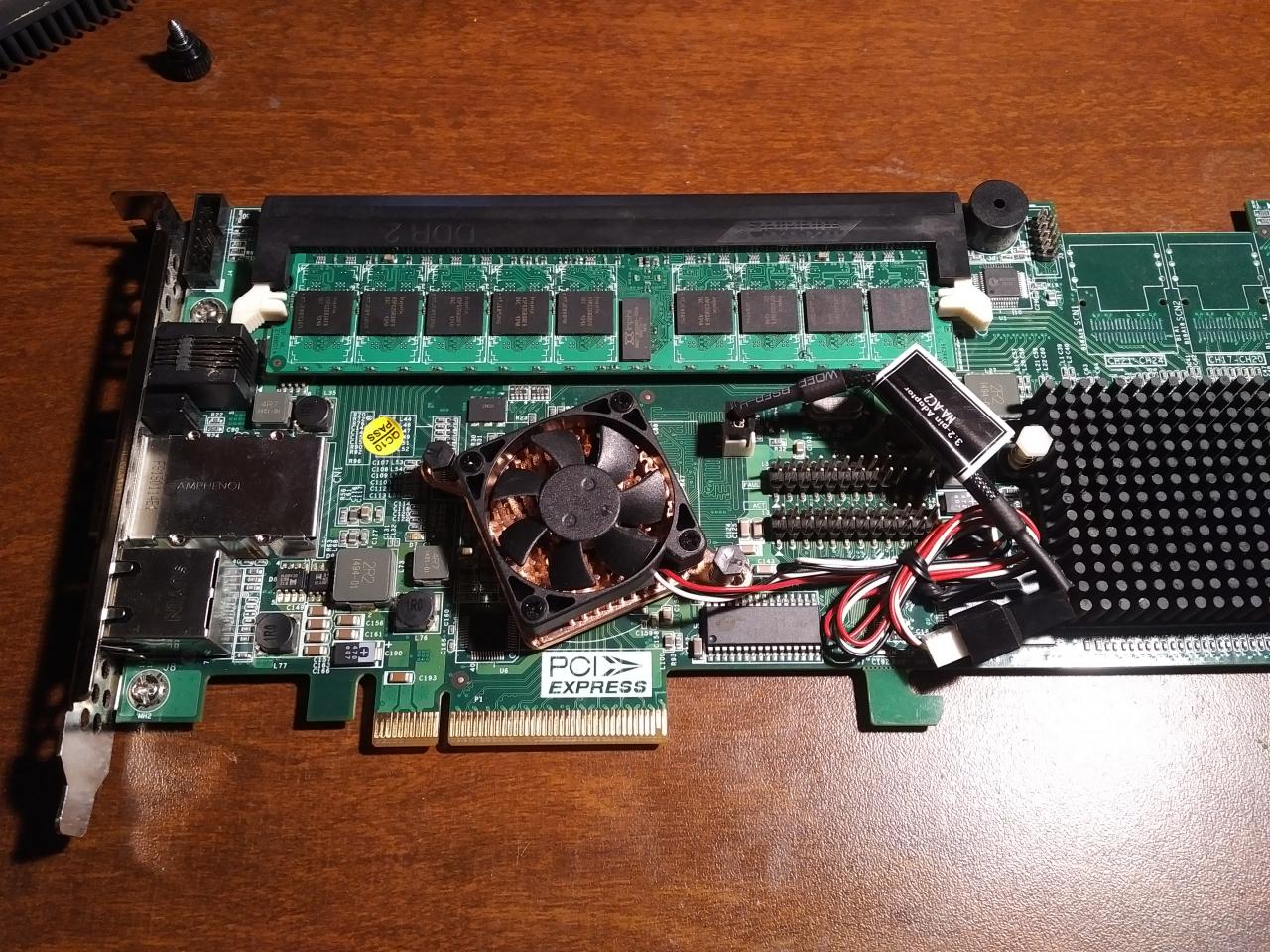

Add thermal compound, and install the SLF-1. I used a 2-pin adapter from a noctua fan to connect to the fan header included on the raid card.

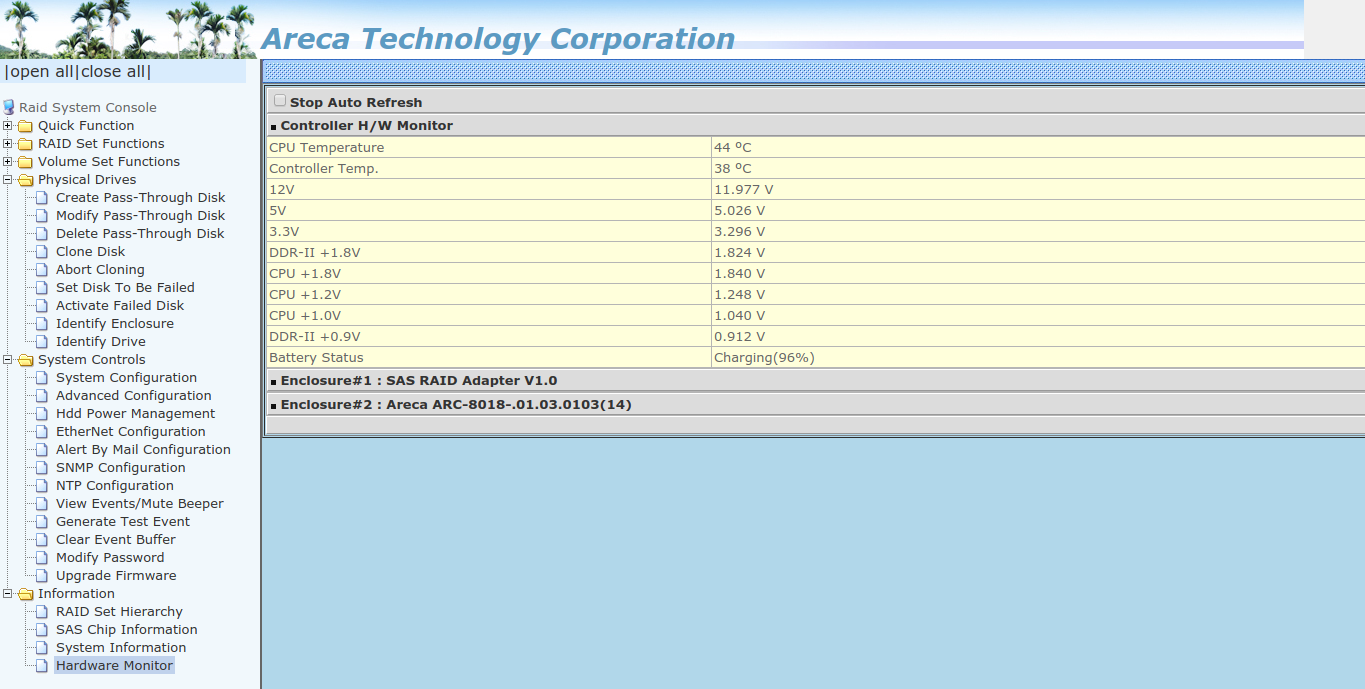

Enjoy the lowered temps.
