7980xe on Way out?

Shadowarez

Limp Gawd
Joined
Jul 8, 2019
Messages
382
Temps are varying wildly between cores some are 20c-50c its been delidded and relidded im not 100% if it was superglue or tha gasket sealer.

i have a 7900x incase this goes sideways also i fi does i got a new keychain

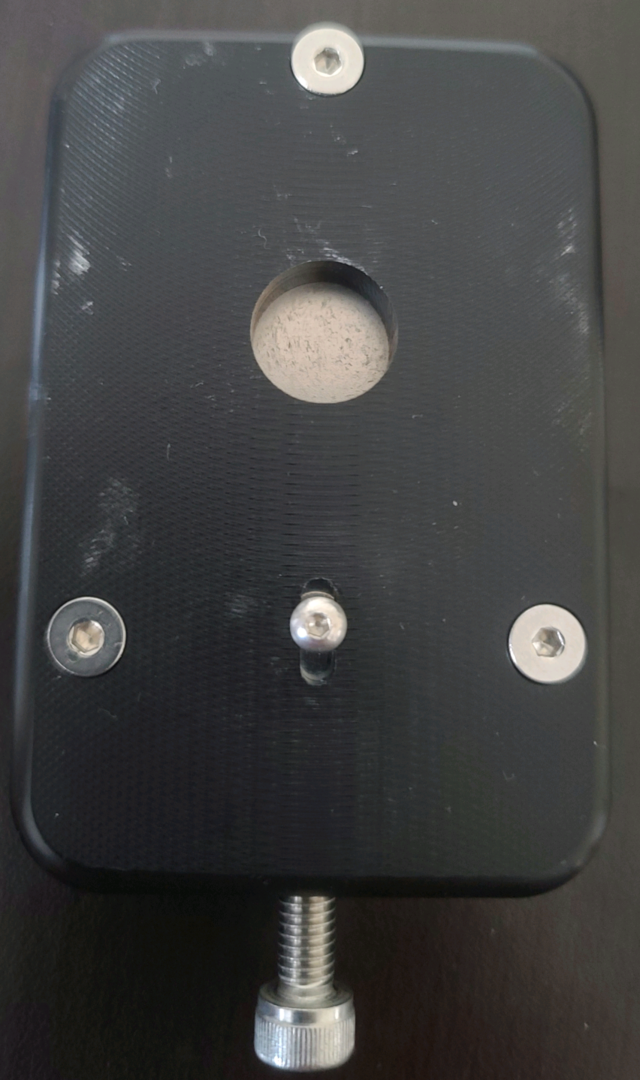

im debating buying the delid die mate x tool as well.

Joined
Apr 16, 2018
Messages
930
Sounds like its already gone sideways if temps are varying that greatly. The heatsink isnt making good contact anymore. Time to pull it and redo the liquid metal and reseat the ihs.


Shadowarez

Limp Gawd
Joined
Jul 8, 2019
Messages
382
would it matter what it was relidded with i bought htis 2nd hand from a extreme ocer yrs ago. and at first temps were amazing but as time went on it crept up. the cooler im using is the NH-U12A in the corsiar 1000D i have 8 GT 120 fans up top exhausting air like mad. but im guessin this thing just cant keep up anymore, ill see what happens at default settings, when under load. then tune a nice oc in with stable voltages.

Last edited:

lopoetve

Fully [H]
Joined
Oct 11, 2001
Messages
31,091
I seem to remember that some of the stuff wears out over time for TIM, but I could be wrong - never got that extreme myself.

Joined
Apr 16, 2018
Messages
930
Yeah, most liquid metal should be reapplied every year or so or temps get bad. What i should have said is the ihs and die arent making good contact anymore due to the liquid metal needing to be replaced.

  • Like
Reactions: Dan_D
like this

Shadowarez

Limp Gawd
Joined
Jul 8, 2019
Messages
382
welp i found the issue i was told it was LM well i delidded it myself, this is what i found


Attachments

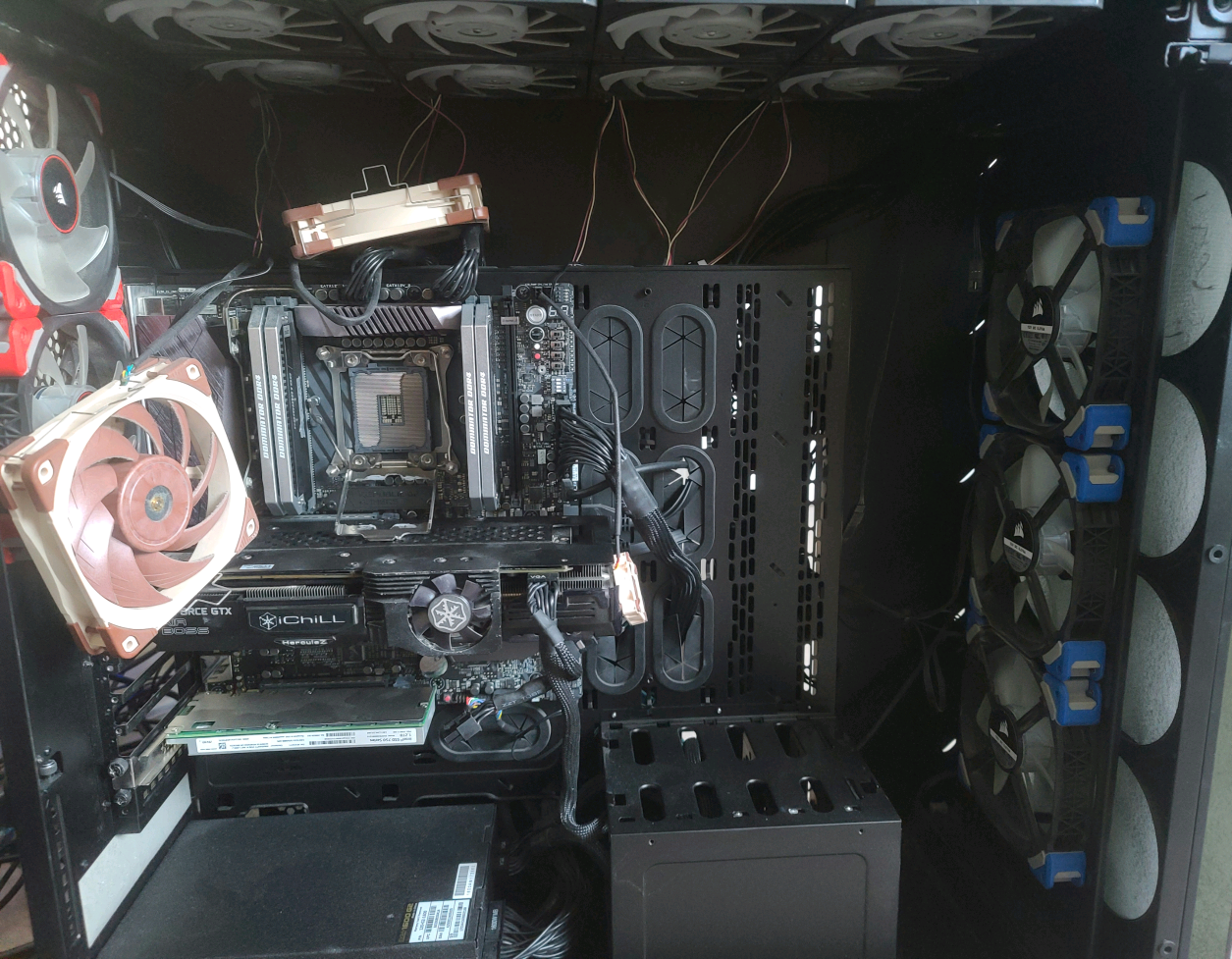

  • Torn out.png
    Torn out.png
    2.1 MB · Views: 0

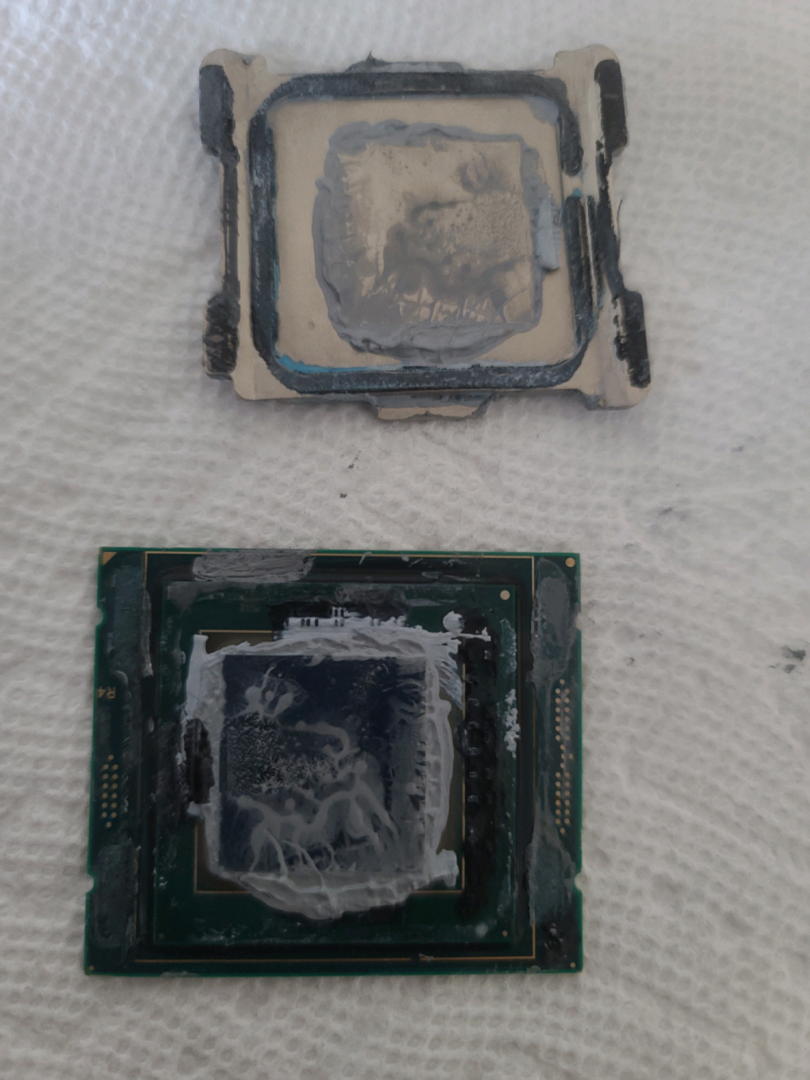

  • NOT LM.png
    NOT LM.png
    1.2 MB · Views: 0

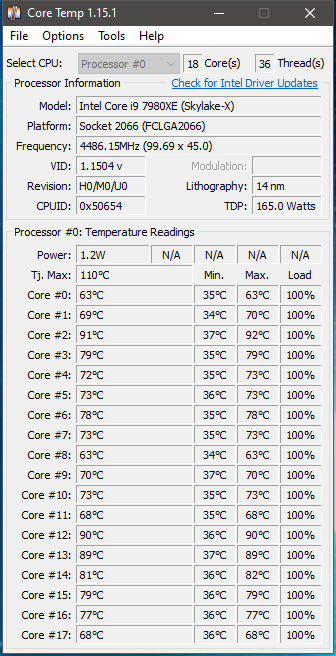

  • WoW 2.png
    WoW 2.png
    39.4 KB · Views: 0

Shadowarez

Limp Gawd
Joined
Jul 8, 2019
Messages
382
load temps would instantly hit 110c on 8-10 cores now its below that and doesnt downclock.


Shadowarez

Limp Gawd
Joined
Jul 8, 2019
Messages
382
yeah it was like thin runny too im waiting on a direct die kit. but in mean time i used that really pricey kroknaut $161 for 33g lol on the outside IHS.


Attachments

  • 1611694157484.png
    1.7 MB · Views: 0
  • 1611694165128.png
    1.7 MB · Views: 0
Joined
Apr 16, 2018
Messages
930
WTF!? why would they go to all the trouble of delidding it only to completely fuck it up? What a meathead. Well at least they sealed it up so the tim didnt leak all over the socket and get into the pins.
And now that you know what NOT to do haha.
Dude return that shit its only $115 at amazon!
