Alright.

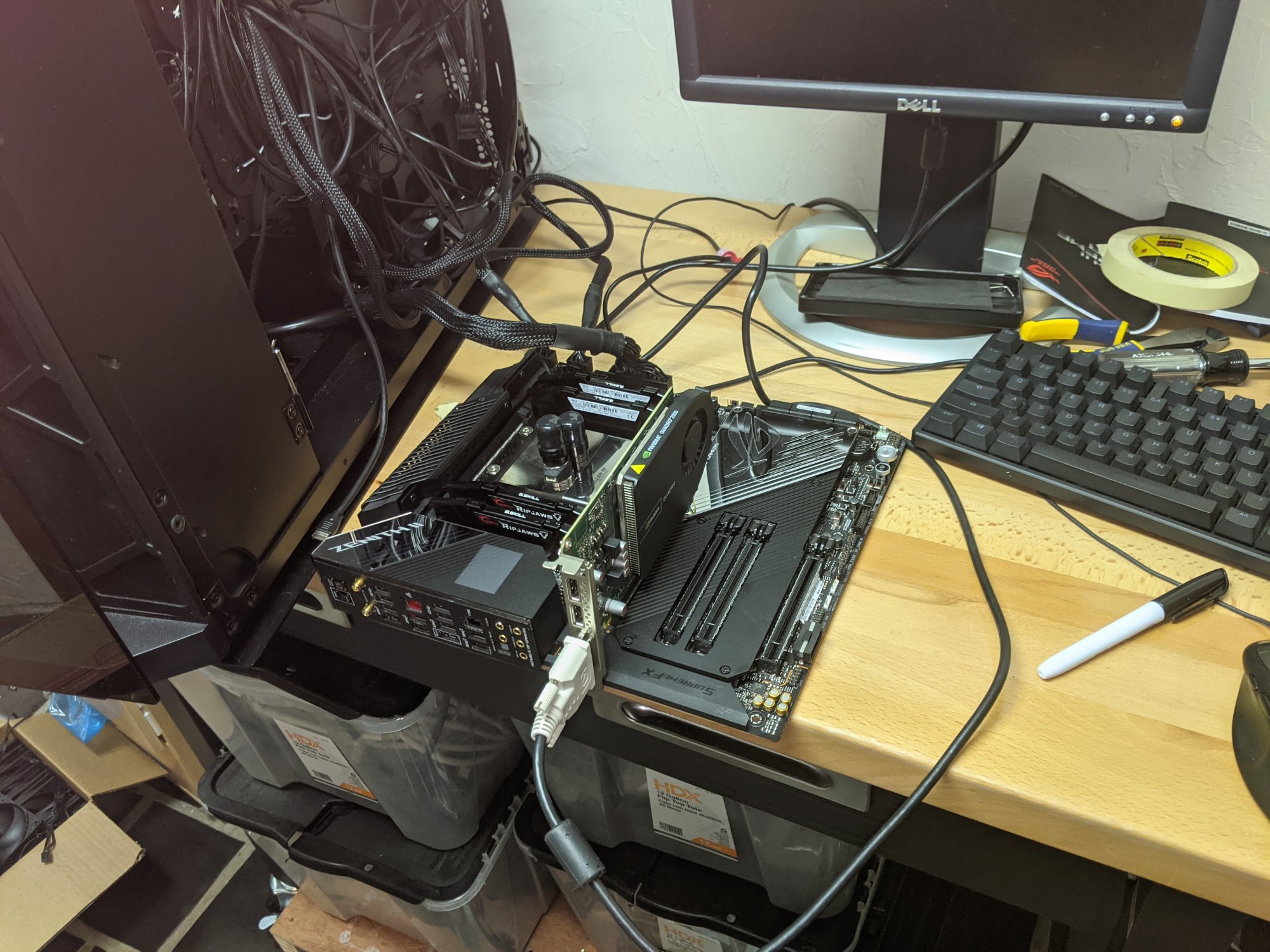

Ready for an open air test using an old Quadro I had kicking around.

If this doesn't work I am all out of ideas.

Fingers crossed!


Zarathustra[H]

Fully [H]
Joined
Oct 29, 2000
Messages
31,700
Ooop!

Power supply switch flipped on, and we have a Christmas tree!



(I hope for the love of God those blinding things can be disabled in the bios. I don't want to install any Asus LED control software just to turn shit off)

Lol wut. Even the audio ports emit more light than the alien spaceship in Close Encounters of the Third Kind...

I definitely just whistled the "5 notes" to myself.





Now to see if it actually posts!

Last edited:

Zarathustra[H]

Fully [H]
Joined
Oct 29, 2000
Messages
31,700


Success!!

After one more trip to Microcenter for the damn M.2 screws and risers, I'll have my system back tomorrow :)

Need to flash the latest BIOS.

The Asus webpage they say "Before running the USB BIOS Flashback tool, please rename the BIOS file(Z2EA.CAP)using BIOSRenamer."

Anyone know if I need a special BIOS renamer tool, or if this is just a matter of renaming the firmware file?


Zarathustra[H]

Fully [H]
Joined
Oct 29, 2000
Messages
31,700
So, the good people at MicroCenter comped me a $14.99 m.2 screw, standoff and heatsink kit to make up for the fact that the motherboard was missing the screws.

I wasn't sure they would, but it never hurts to ask.

Originally I was going there for just the screw/standoff kit, but while the website said they had two in stock, no one could find them, but we did find a similar kit, with the same screws and standoffs, and also a heatsink.

I installed my secondary m.2 drive on the bottom, (in the third m2 slot) and left the second slot open so I can more easily add a drive in the future.

There is no space for a heatsink between the board and the case, but I think if I put thermal tape on it it will contact the motherboard tray, and it can serve as a heat spreader.

It's tough to measure, but I think it will work.



It will be really close. Either it will contact and lower the temp a few degrees, or it will be a TINY bit too short, and will actually act as an insulator.


Last edited:

Zarathustra[H]

Fully [H]
Joined
Oct 29, 2000
Messages
31,700

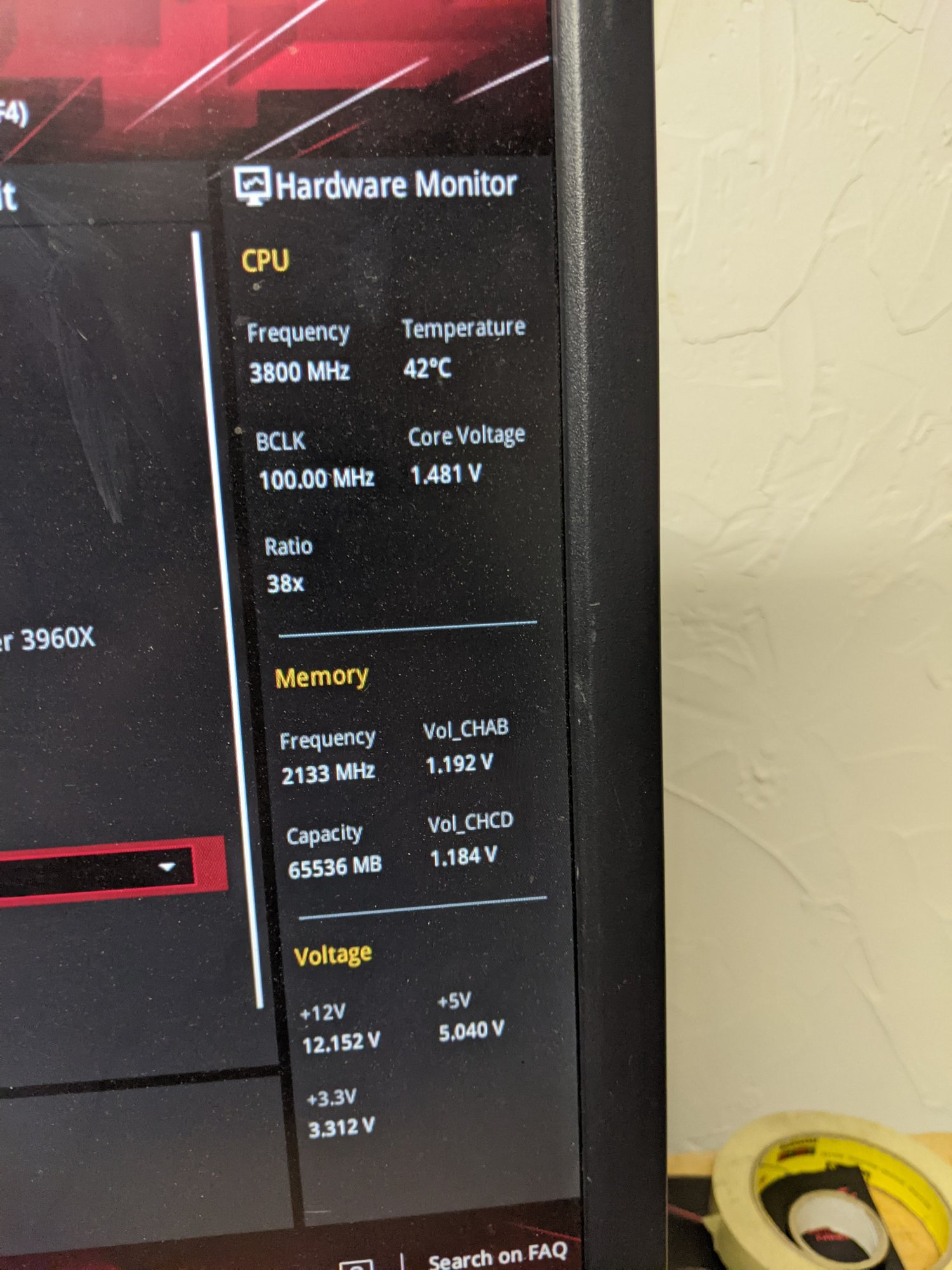

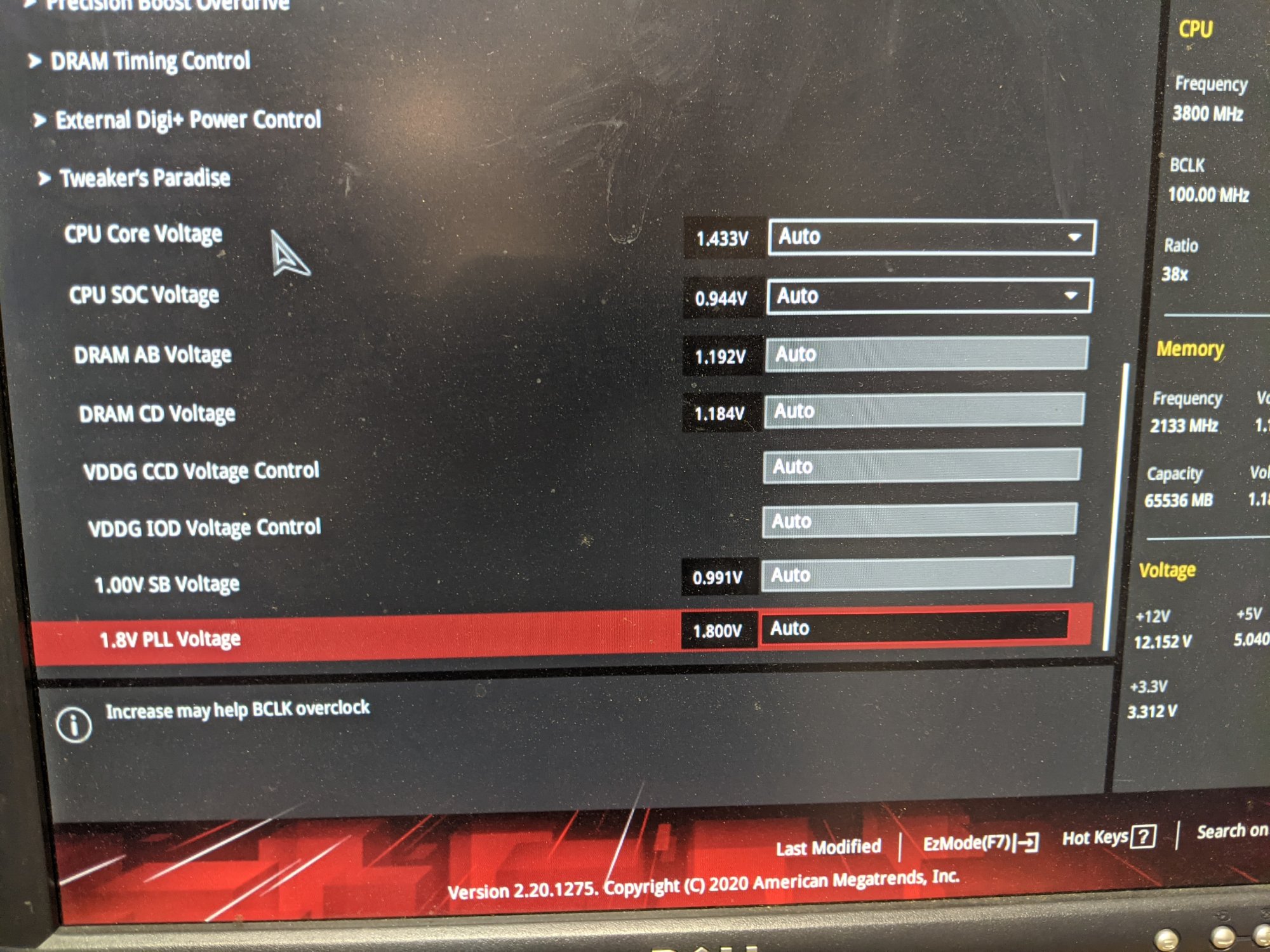

Alright, we are up and running, but I just poked into the BIOS.

Is it just be or do these stock voltages look absolutely insane? I re-loaded "optimized defaults" just to be sure and they are still very very high.




(Please forgive the dirt on the spare monitor from the basement)


Zarathustra[H]

Fully [H]
Joined
Oct 29, 2000
Messages
31,700
Alright, we are up and running, but I just poked into the BIOS.

Is it just be or do these stock voltages look absolutely insane? I re-loaded "optimized defaults" just to be sure and they are still very very high.


View attachment 313307 View attachment 313306

(Please forgive the dirt on the spare monitor from the basement)


Looks like I was worrying for no reason. Apparently according to AMD Robert on reddit, Threadrippers can burst all the way up to 1.55v at stock settings. Seeing this in BIOS is normal, and on desktop at idle I am seeing anywhere from 1.05v to 1.2v.

I'm a little bit jumpy after being forced to RMA two of these in a year.


tunatime

Well...OK
Joined
Sep 15, 2011
Messages
4,356
Looks like I was worrying for no reason. Apparently according to AMD Robert on reddit, Threadrippers can burst all the way up to 1.55v at stock settings. Seeing this in BIOS is normal, and on desktop at idle I am seeing anywhere from 1.05v to 1.2v.

I'm a little bit jumpy after being forced to RMA two of these in a year.
What caused you to lose two tr? My 3960 has been trouble free...but like you the frist time I saw 1.46v stock vcore in bios then 1.55v gaming I was like holy hell that's a lot of vcore.... How did the two that died clock vs the new one?


Zarathustra[H]

Fully [H]
Joined
Oct 29, 2000
Messages
31,700
Well it's up and running, and I just realized I haven't taken any final pictures. Will have to do that ASAP!


Zarathustra[H]

Fully [H]
Joined
Oct 29, 2000
Messages
31,700
What caused you to lose two tr? My 3960 has been trouble free...but like you the frist time I saw 1.46v stock vcore in bios then 1.55v gaming I was like holy hell that's a lot of vcore.... How did the two that died clock vs the new one?

I will have to look at this. I haven't looked at clocks yet since installing the new one.


Zarathustra[H]

Fully [H]
Joined
Oct 29, 2000
Messages
31,700

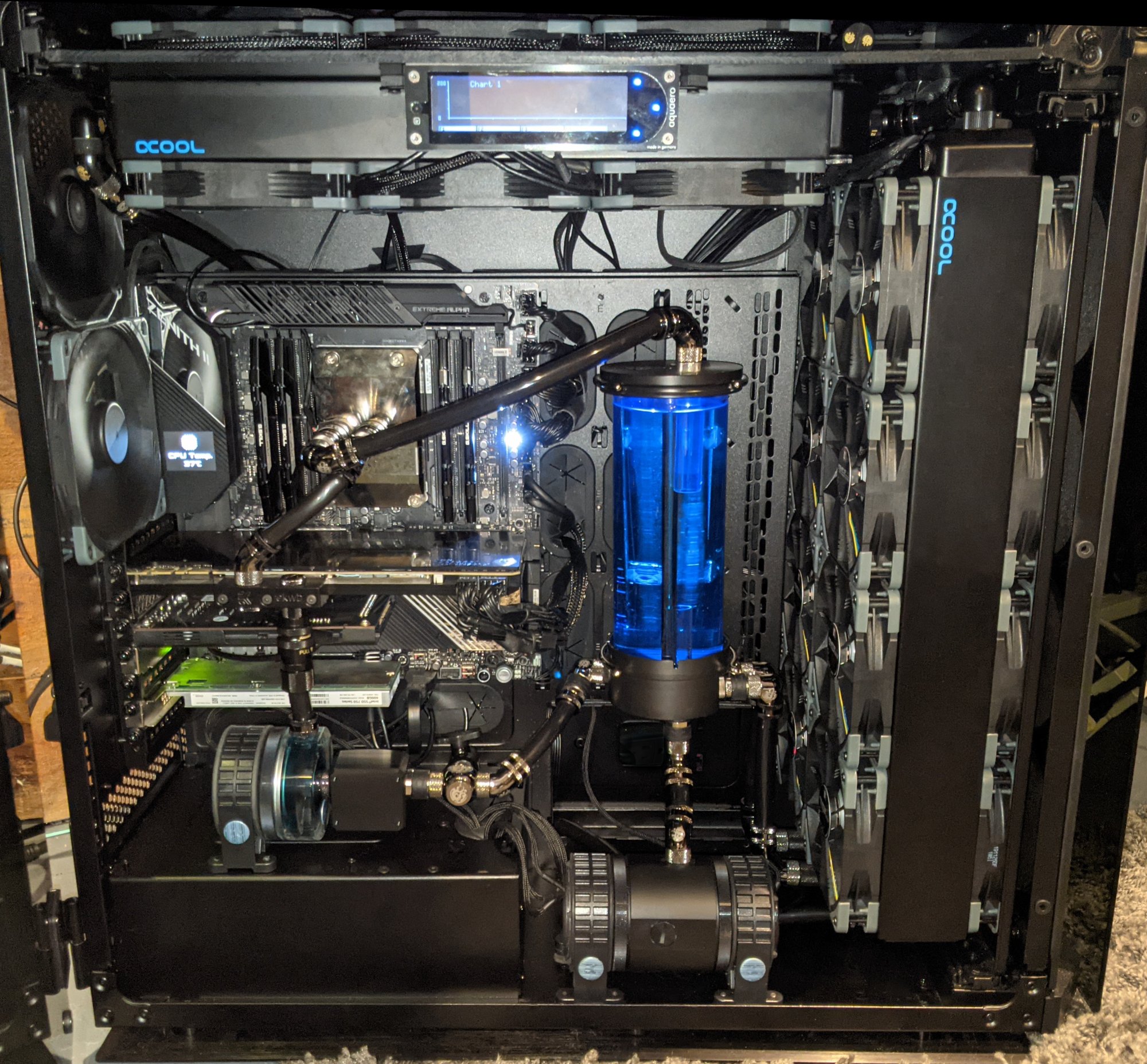

Here's a quick cellphone pic. I'll have to break out the DSLR for a real pic at another time. (one in which I remove the little stickers over the EK logo's :p

Quite a few changes since last time.



1.) The Noctua Fans - as previously explained - flaws and all - are back in there. I'm still having speed control issues, but my Aquaero based workaround makes me able to live with them.

2.) Motherboard changed from the Gigabyte Board that only caused problems, to an Asus ROG Zenith II Extreme Alpha. I never thought I'd buy this expensive board with all of its Cristmas tree lights, but it was the only one I could get immediately locally, and I was done waiting.

3.) The plumbing has changed significantly.

3.1) There are now two loops sharing the same reservoir, one dedicated to cooling/radiators and one dedicated to the hot blocks with the coolant mixing in th reservoir, an idea which I had originally toyed with in this thread. The motivation behind it is that you can make up for a restrictive loop by adding more pumps in series, but it scales poorly. Each pump you add, adds much less flow than the one before it. Instead, if we reduce the restrictiveness of the loop by breaking it into smaller parts, each pump will have to work less hard to get the same amount of flow.

3.2) To that end, I used my existing loop with its two pumps as my radiator loop, running a tube behind the motherboard tray up to the top radiators, and back down on the bottom right. I also added a third pump to feed the blocks only. Flow has significantly increased, though I don't want to quote numbers right now, as I believe I am having flow sensor problems. (I have two, one per loop and they give very different readings for the same flow...)

If I can ever get that top bracket which is always out of stock, I plan on replacing my one 420 radiator up top with two 360 crossflow radiators. Then I plan on splitting up the dual pumps, instead converting the cold side to two loops, one front, and one back, so I'll have a three loop system, two cold sides, one hot side, everything blending in the reservoir.

3.3) I decided to add a second Aquaero to help control everything, primary because I already had cone kicking around from my fan speed trouble shooting, and it made life easier. The one with the screen up top controls the pumps and fans on the cold side. There is another one hidden behind the motherboard tray that controls the hot side pump.

3.4) I have added more thermal sensors than I really need for control just to help me monitor and diagnose. The Aquaero that controls the cold side has four Aquabus Calitemp sensors, cold loop intake (right under the reservoir before the two pumps, two cold loop returns (one for front radiator, one for rear radiator) and one near the reservoir for the intake to the hot side. The only one that is actually used for control is the hot side intake sensor. My theory here is that it is the job of the cold side to provide the hot side with cool coolant. If the hot side intake is too hot, then the cold side isn't working hard enough. Both pumps and fans are controlled off of this sensor with the pump speed revving up a half a degree below the fans.

The hot side aquaero has two thermal sensors. One intake right before the pump, a duplication of the one near the reservoir, but the two Aquaero units can't share the same sensors, so... And then the hot side return temperature sensor. The only sensor used for control on this side is the hot side return sensor. The Theory here is that if the return coolant is hotter than expected, the coolant is sitting too long in the blocks and heating up too much, thus the hot side pump speed is too slow.

4.) This board has more addressable RGB lights and headers than you can shake a stick at. I'm not so much into that, so I disabled it all and run it in stealth mode. I was pleasantly surprised that this could be done in BIOS without installing any software. I decided to leave the OLED screen on. While I initially thought it was a silly and excessive idea to have that screen there, it's actually very useful for diagnosis and a quick glance temperature readout when running. I'm still not sure why it needed to be OLED though. A cheaper screen tech would have done just as well.

Here is an example of the OLED screen during Post and boot. Once post is over, it stops diagnosis codes,does a quick ROG logo animation, and then starts displaying CPU temp:


This - at least - is the default behavior. I'm sure it is configurable if I decide to install the Asus software, but I don't feel like doing that.

I also added a single white 5mm LED to a clear end cap at the bottom of the reservoir. This illuminates the reservoir just enough that I can easily see coolant levels. I was concerned it would be too bright, so I actually soldered the LED to a 4pin fan connector and plugged it into the hot side Aquaero, and use the fan header in voltage control mode to alter the brightness. Turns out I didn't need to worry. Due to the dark tint on the side windows, it isn't too bright, even in its' brightest mode.

If I felt like having fun, I could set a fan curve and have the res get brighter the hotter the coolant is, or something like that, but for now I am leaving it as is.

I think that pretty much explains what I have done.

Just hope this CPU lasts longer than the last two did.

Joined
Oct 23, 2018
Messages
627
Looks like I'm a bit too late, but next time, just toss your M.2 drives onto the DIMM.2 card. They get great airflow there and are very easy to access. I believe those are just direct access PCI-E lanes without any proprietary funny business other than the physical shape of the card. I had good results with this on my Asus X299 build.

For your fans, do you have to run them as PWM? My Corsairs work with all three methods that the Aquaero supports (Power/Speed/PWM). If the PWM is what's wonky on the Noctuas, try one of the others and see what happens.

I second your dislike of the Corsair 1000D. I thought it would be a gigantic case that could fit everything and be simple to work in. It almost is that, except nearly every critical dimension ends up being short by just a couple of mm here and there. The useful capacity would probably be doubled if it were just tweaked a little here and there.


Zarathustra[H]

Fully [H]
Joined
Oct 29, 2000
Messages
31,700
So, I finally got around to doing some CPU stress testing.

At stock settings I ran 48 Prime95 threads in "mixed" mode for a couple of hours.

Ambient temp was 74°F (23C)

Once heat soaked the coolant held at my setpoint of 31°C with fans stabilizing at about 600rpm (out of a max of about 1800rpm)

The Tdie once heat soaked reported as varying between 48°C and 52°C depending on which test Prime95 was running at the time, which isnt half bad for a Threadripper, and is much better than what I recorded before, confirming something was definitely wrong with the system before. (Either that, or my new "pre-heat and smear paste on thin using a nitrile glove" method is much more effective than my old methods)

In modern games the coolant also holds at my 31°C setpoint, with the Pascal Titan hitting no higher than 38°C core temp while boosting at max, which ranges between ~2030 and 2080Mhz. Fans go a bit higher during gaming though, hitting anywhere between 850 and 1100 rpm.

The interesting part is that in my old case, a Corsair 750D those fan speeds would have been audibly bothersome to me, but in the 1000D they are much more mellow. Something about the case just makes the fan noise less noticible.

I still have some kinks to work out, but in general I am very happy with the results..
