The OFFICIAL post pics of your SFF thread...
- Thread starter FLECOM
- Start date
Thanks, that means a lot. I'm on a very tight budget now that I'm playing stay at home dad so I'm working with what I have to fuel my hobby. I will post plenty of pictures to come when I get the water in, also have a couple more ideas for it to really make it a "mod" rather than just a theme.
Concentric
[H]ard|Gawd
- Joined
- Oct 15, 2007
- Messages
- 1,029
Yea really nice work, especially given your budget situation. Plus you're adding water!? Kudos!
Is the whole case custom panels? Looks like they're cut by CNC?
Hey sorry for the late response. It's a Danger Den case so yeah they're all CNC cut. My HDD bracket is coming in a couple days then I have to bend it. After that I can get to work on water.
Miptzi
n00b
- Joined
- Feb 2, 2013
- Messages
- 11
my entry to the forum:
i5 3330
GB-H77N-WIFI
H70
MSI GTX660ti P.E.
2x2GB Vengenace
3x2tb Western digital 20ears
128GB Corsair Nova
i5 3330
GB-H77N-WIFI
H70
MSI GTX660ti P.E.
2x2GB Vengenace
3x2tb Western digital 20ears
128GB Corsair Nova
I like what you've done with this build. I've had my eye on that case for a while, any regrets/additional thoughts after building in one? Also, given the smaller size of the front fans, are they very loud?
Modred189
Can't Read the OP
- Joined
- May 24, 2006
- Messages
- 16,513
What case is it?
EDIT- NM, Node 304 by Fractal.
EDIT- NM, Node 304 by Fractal.
Miptzi
n00b
- Joined
- Feb 2, 2013
- Messages
- 11
fans, even on HIGH settings ( the case has a controller for the 3 onboard fans) are quiet.
yhey did a decent job on the fans, probably not sleeve bearing. OR a very good sleeve bearing...
I regret only that the memories get a little covered by the HDDs. Cant use ultramega heatsinks or ram coolers, and I have a Arctic PWM TURBO II around here....
no big deals at the end, the case delivers. WIth the right mobo, you can get almost ANY cooler on it.
redivulpis
Limp Gawd
- Joined
- Sep 10, 2011
- Messages
- 223
Project Lambda before a major restructure.
As shown:
ASRock FM2A75M-ITX
A10-5600K cooled by a Scythe Big Shuriken w/ PWM modded 4250rpm Gentle Typhoon
8GB Samsung RAM
120 OCZ Agility SSD (System & Major Apps)
300GB WD Velociraptor (Games & Data : not hooked up in the pic)
160W PicoPSU w/ 192W brick
Decided I wasn't particularly impressed with the performance oh just the A10 alone, though admittedly I've found that the x75 chipset isn't exactly the best match for it. May pick up an A8 Trinity to throw in instead...
As shown:
ASRock FM2A75M-ITX
A10-5600K cooled by a Scythe Big Shuriken w/ PWM modded 4250rpm Gentle Typhoon
8GB Samsung RAM
120 OCZ Agility SSD (System & Major Apps)
300GB WD Velociraptor (Games & Data : not hooked up in the pic)
160W PicoPSU w/ 192W brick
Decided I wasn't particularly impressed with the performance oh just the A10 alone, though admittedly I've found that the x75 chipset isn't exactly the best match for it. May pick up an A8 Trinity to throw in instead...
Last edited:
That's wild dude! Good work.

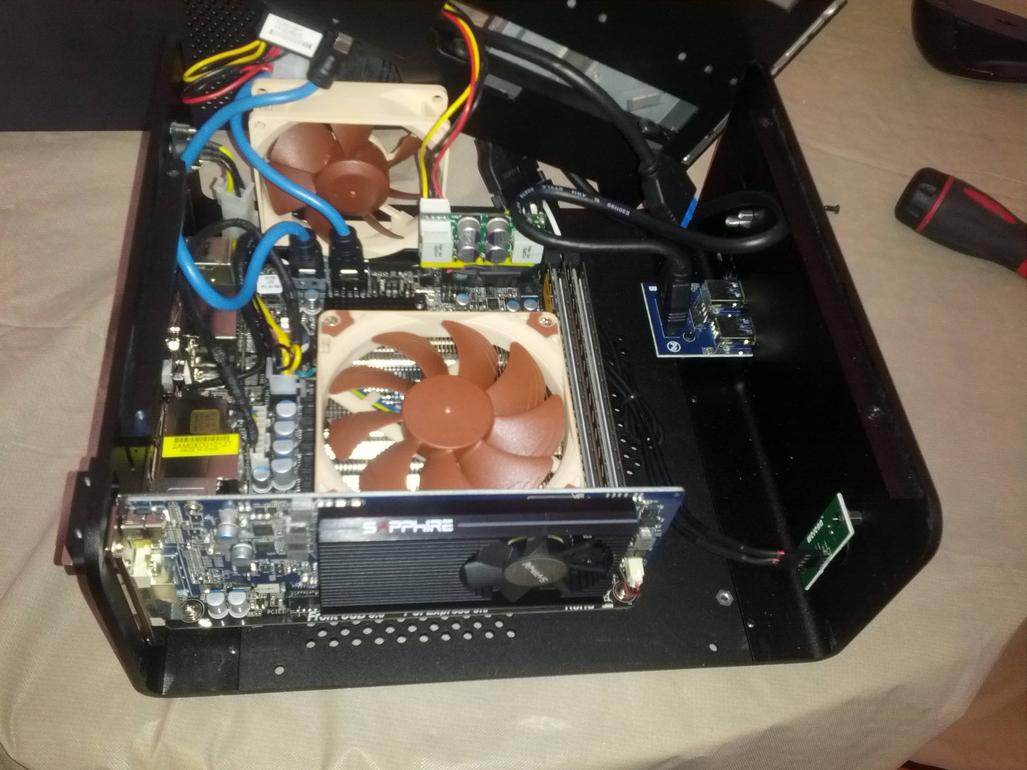

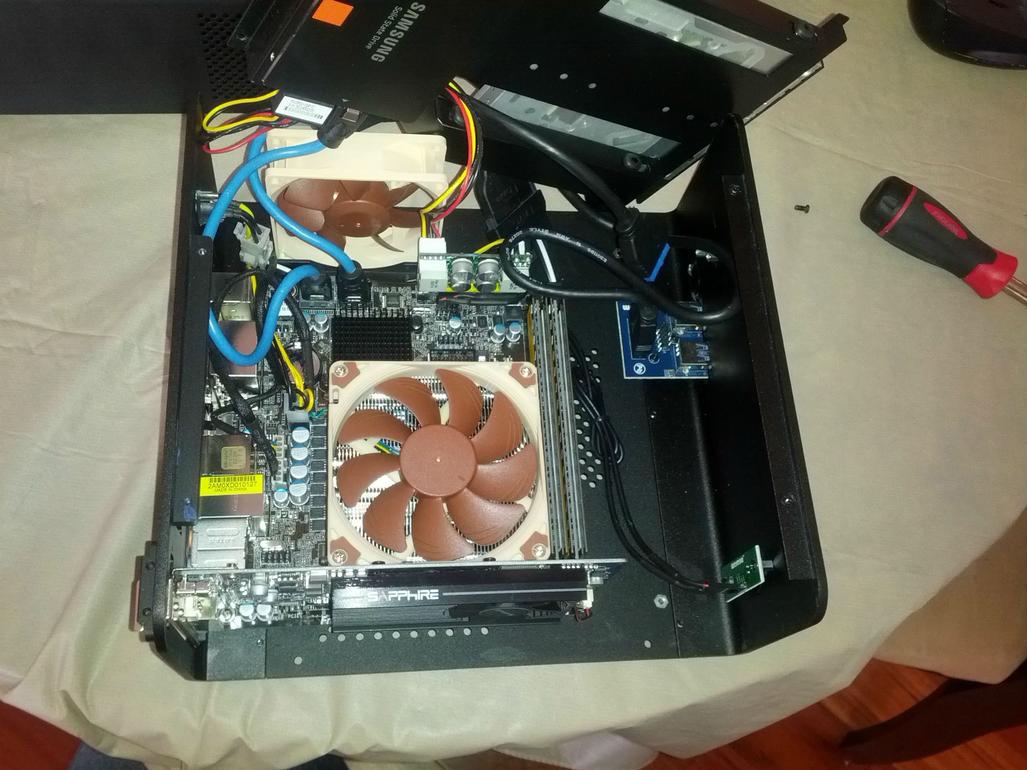

Changed the cooler over in mine from a H80 to a Noctua NH-C12P SE14. So much quieter, that H80 was really getting on my nerves. So glad it's out. The Noctua is a great fit for my setup, cpu runs a couple of degrees warmer, but nothing major. Couldn't be happier.
Changed the cooler over in mine from a H80 to a Noctua NH-C12P SE14. So much quieter, that H80 was really getting on my nerves. So glad it's out. The Noctua is a great fit for my setup, cpu runs a couple of degrees warmer, but nothing major. Couldn't be happier.
WorldExclusive
[H]F Junkie
- Joined
- Apr 26, 2009
- Messages
- 11,549
I like.
NeloDiavolo
Limp Gawd
- Joined
- Nov 1, 2010
- Messages
- 373
My first SFF build for my brother. I'm rather excited about building another for myself.
Parts: AsRock Z77E-ITX mobo, Intel i5-3470 CPU, 16GB Corsair Vengeance RAM, EVGA 660 SC 2GB videocard, 64GB Crucial SSD, 1TB Seagate Barracuda HDD, Seasonic G-550 power supply, Cooler Master 120 Elite case.
Nice and compact. Especially compared to my Cooler Master Stacker 830.
A tight fit but it actually stays rather cool. Even while gaming. A Corsair SP120 Quiet fan will help blow heat away.
The EVGA 660 SC runs the latest games at 1080p with ease. I like the design of these cards. Just seems classy and modern.
The right side is not that bad. Cable management was something I wanted to do but in the end, I figured this was good enough given the limited space.
Having no optical bay really helped with the extra slack from the power supply. The Seasonic G-550 worked rather well since overall the cables were fairly short.
Parts: AsRock Z77E-ITX mobo, Intel i5-3470 CPU, 16GB Corsair Vengeance RAM, EVGA 660 SC 2GB videocard, 64GB Crucial SSD, 1TB Seagate Barracuda HDD, Seasonic G-550 power supply, Cooler Master 120 Elite case.
Nice and compact. Especially compared to my Cooler Master Stacker 830.
A tight fit but it actually stays rather cool. Even while gaming. A Corsair SP120 Quiet fan will help blow heat away.
The EVGA 660 SC runs the latest games at 1080p with ease. I like the design of these cards. Just seems classy and modern.
The right side is not that bad. Cable management was something I wanted to do but in the end, I figured this was good enough given the limited space.
Having no optical bay really helped with the extra slack from the power supply. The Seasonic G-550 worked rather well since overall the cables were fairly short.
Last edited:
saxovtsmike
n00b
- Joined
- Mar 18, 2012
- Messages
- 10
WORK IN PROGRESS
stryder2720
Supreme [H]ardness
- Joined
- Jun 29, 2004
- Messages
- 5,738
Asrock Z77E - ITX Motherboard
I5 3570k @ 4.0ghz
8GB Samsung 1600mhz ram
EVGA GTX670 reference
Silverstone ST450 - SFG (Fan replaced with Noiseblocker Multiframe)
Samsung 256 GB 830 series SSD
2.5 inch Seagate 500gb HDD
Silverstone slim DVD burner (waiting on slimline cable. CP10 doesn't fit)
Alphacool UT60 140mm radiator
2 x 140mm Noiseblocker Blacksilent Pro PWM fans
Swiftech Apogee Drive II
EK Plexi/Nickel GPU Block
Bitspower fittings matte black.
catcherintherye
Gawd
- Joined
- Mar 26, 2010
- Messages
- 705
Antec NSK 3480, custom front panel, acrylic, painted black, with my wife's name sprayed on with custom stencil.
ChronoDog
Weaksauce
- Joined
- Oct 15, 2009
- Messages
- 111
Haha, sorryYou selfish bastard, we want to enjoy your awesome cases too!
Great job!
Mate, that thing looks awesome!!!! It's a real shame that you had all those problems with your machine. It'd be great to have one!!!
Lian Li PC-Q25 miniITX case
Intel i5-2500K @ 4.8GHz
Prolimatech Samuel 17
Samsung "Magic Memory" 2x 4GB @ 2133
AS Rock Z77E-ITX mobo
(added better antennas for WiFi)
KingWin Modular Extreme 600W PSU
XFX Radeon 6950
3M DiNoc Carbon Fibre vinyl on PSU
Added Daughter card to convert mSATA port to SSD/HDD
Drive #1 Samsung 250GB SSD 840 in Icy Dock
Drive #2 Seagate 2TB 7200RPM HDD
Drive #3 Crucial 128GB SSD m4 in Icy Dock
Drive #4 Toshiba 2TB 7200 RPM HDD
Drive #5 Western Digital 1.5TB Black HDD
Fans upgraded to Noctua for intake and cpu
Lenovo DB60 DVD-RW below video card (powered off internal USBs)
Heavy as hale LOL
Intel i5-2500K @ 4.8GHz
Prolimatech Samuel 17
Samsung "Magic Memory" 2x 4GB @ 2133
AS Rock Z77E-ITX mobo
(added better antennas for WiFi)
KingWin Modular Extreme 600W PSU
XFX Radeon 6950
3M DiNoc Carbon Fibre vinyl on PSU
Added Daughter card to convert mSATA port to SSD/HDD
Drive #1 Samsung 250GB SSD 840 in Icy Dock
Drive #2 Seagate 2TB 7200RPM HDD
Drive #3 Crucial 128GB SSD m4 in Icy Dock
Drive #4 Toshiba 2TB 7200 RPM HDD
Drive #5 Western Digital 1.5TB Black HDD
Fans upgraded to Noctua for intake and cpu
Lenovo DB60 DVD-RW below video card (powered off internal USBs)
Heavy as hale LOL
catcherintherye
Gawd
- Joined
- Mar 26, 2010
- Messages
- 705
Project Lambda before a major restructure.
As shown:
ASRock FM2A75M-ITX
A10-5600K cooled by a Scythe Big Shuriken w/ PWM modded 4250rpm Gentle Typhoon
8GB Samsung RAM
120 OCZ Agility SSD (System & Major Apps)
300GB WD Velociraptor (Games & Data : not hooked up in the pic)
160W PicoPSU w/ 192W brick
Decided I wasn't particularly impressed with the performance oh just the A10 alone, though admittedly I've found that the x75 chipset isn't exactly the best match for it. May pick up an A8 Trinity to throw in instead...
Pure smex
My "steambox". About 300mm x 300mm x 90mm. Worklog here: http://hardforum.com/showthread.php?t=1799277
aerial-
Limp Gawd
- Joined
- Mar 13, 2011
- Messages
- 193
Lian Li Q06b, Asus p8z77-i deluxe, i7 2700k @ 4.8ghz, gtx670 @ 1250/7600
cpu: Megahalems + 2 gelid slim fans, gpu cooler - gelid icy vision
Album: https://picasaweb.google.com/ae1337/LianLiQ06bITX (32 photos)
10 random pics:
cpu: Megahalems + 2 gelid slim fans, gpu cooler - gelid icy vision
Album: https://picasaweb.google.com/ae1337/LianLiQ06bITX (32 photos)
10 random pics:
Modred189
Can't Read the OP
- Joined
- May 24, 2006
- Messages
- 16,513
I'm loving the blue scheme.
That said, I'm confused. In these pictures, it looks like the GPU is too long for the case. (especially HERE)
Second, I'm not seeing any intakes on the GPU side of the case, how does it breathe? Seems like it would sit there recycling hot air.
That said, I'm confused. In these pictures, it looks like the GPU is too long for the case. (especially HERE)
Second, I'm not seeing any intakes on the GPU side of the case, how does it breathe? Seems like it would sit there recycling hot air.
Yes, you are quite confused. This an open air style case (or test bench, whatever). The only thing actually inside that box is the PSU, storage and an ODD.
You are now required to change your "I'm Smarter Than you" title to something else...
Modred189
Can't Read the OP
- Joined
- May 24, 2006
- Messages
- 16,513
AH, now those mobo standoffs make more sense. Interesting. Never heard of that case/bench/thing before. Thanks for posting it!
And being smarter doesn't necessarily mean I know more. The true genius knows when to ask!
And being smarter doesn't necessarily mean I know more. The true genius knows when to ask!
Custom mirror case
dimensions 190mm x 170mm x 60 mm
,
,
,
,
,
Worklog here: http://hardforum.com/showthread.php?p=1040592414#post1040592414
dimensions 190mm x 170mm x 60 mm
,
,
,
,
,
Worklog here: http://hardforum.com/showthread.php?p=1040592414#post1040592414
Set out to have a cool, quiet system, without having to put any radiators outside the case. Current setup can't run SLI, but can adapt the cooling slightly and move the radiator out to fit another card if needed.
Just finished my build, here are some specs and pics:
Hardware:
FT03B
Asus Rampage Formula IV Gene
Intel 4930K
Gskill 32gb RipJaws Z PC2133
Corsair AX860
EVGA 780 GTX TI SC
Samsung EVO 250GB
Hitachi 3TB 7200rpm
Cooling:
Swiftech Apogee Drive II (Disconnected as it is too loud, may eventually change this out for different block)
XSPC Raystorm GPU Block
MCP35x Pump (Primary Pump)
Alphacool ST30 280mm (Cougar 140mm fans)
Alphacool UT60 120mm (2x GT AP-15 fans)
Alphacool ST30 240mm (2x Slim Phoyba fans)
XSPC EX120mm (Slim Phyoba Fan)
EK and XSPC compression fittings
Overclock and temps:
CPU: 4.6ghz stable at 1.38v (temps idle around 30c, 75c max load)
GPU: Have not overclocked over the factory standard, temps are 27c idle, 47c max load
System is dead silent at idle with all fans and pump controlled by motherboard. Loudest component is the Hitachi hard drive under normal basic use
All case cutting for radiator and Lexan window was done by Jason at waterjetnj.com in NJ] He did an amazing job making sure everything lined up perfectly and was very clean. If anyone wants the window or any FT03 case cutting, he has my drawing saved, so it will be very easy.
Not the best pics, but just took some for now with my phone:
Just finished my build, here are some specs and pics:
Hardware:
FT03B
Asus Rampage Formula IV Gene
Intel 4930K
Gskill 32gb RipJaws Z PC2133
Corsair AX860
EVGA 780 GTX TI SC
Samsung EVO 250GB
Hitachi 3TB 7200rpm
Cooling:
Swiftech Apogee Drive II (Disconnected as it is too loud, may eventually change this out for different block)
XSPC Raystorm GPU Block
MCP35x Pump (Primary Pump)
Alphacool ST30 280mm (Cougar 140mm fans)
Alphacool UT60 120mm (2x GT AP-15 fans)
Alphacool ST30 240mm (2x Slim Phoyba fans)
XSPC EX120mm (Slim Phyoba Fan)
EK and XSPC compression fittings
Overclock and temps:
CPU: 4.6ghz stable at 1.38v (temps idle around 30c, 75c max load)
GPU: Have not overclocked over the factory standard, temps are 27c idle, 47c max load
System is dead silent at idle with all fans and pump controlled by motherboard. Loudest component is the Hitachi hard drive under normal basic use
All case cutting for radiator and Lexan window was done by Jason at waterjetnj.com in NJ] He did an amazing job making sure everything lined up perfectly and was very clean. If anyone wants the window or any FT03 case cutting, he has my drawing saved, so it will be very easy.
Not the best pics, but just took some for now with my phone:
stooleywood
Limp Gawd
- Joined
- Sep 1, 2012
- Messages
- 339
Just built this the other day, specs in signature. Might upgrade to 780ti via EVGA step up within a few months.
edit: threw in a titan to play with.
edit: threw in a titan to play with.
Last edited:
stooleywood
Limp Gawd
- Joined
- Sep 1, 2012
- Messages
- 339
Nice ^^ I have a pretty similar build, just no Titan
Which AIO is that?
Sorry for the late reply, its Corsair h100.
I need to find a way to mount 4 SSD's cleaner. I would like to remove the drive cage on the bottom.
