The Official Post Pics of your Boxen/ Folding rigs/ Farms

[Jon855]

It is hanging freely, and nothing is touching it.

That's good

Let's have a cold american beer



[Oldbenwa]

That's good

Let's have a cold american beer

One step ahead of you:



[AtomicMoose]

Photoshop goodness.



[marty9876]

Photoshop goodness.

methinks of a pose I should provide to Moosie....



[AtomicMoose]

methinks of a pose I should provide to Moosie....

Excellent



[Oldbenwa]

Photoshop goodness.

Uh-oh.....



[jmroberts70]

My lastest additions...

While I am running about 6 machines all over town (mainly the workstations I support for friends and family that have agreed to the cause). I got these three systems to setup for my church but we won't be installing them until late January so in the mean time, they're working for ME! will admit that they barely put out any heat or noise running 24-7 for the cause! I'm not sure I will miss them though since I lost a desk to their operation...



[waltherone]

Sweet, my first pic posted in the DC forum

Box on the left is my main machine(left one in sig) and one on the right is my folding-only machine that resulted from a Fry's Combo deal and the urge to tinker with some intel overclocking

Both running 24/7.

Yes I know my crap is dusty. Got a big air purifier on the way, then will do a good room cleaning.



[Artluo100]

great way to use those computer jmroberts



[rayman2k2]

bump for '07, LETS SEE THOSE PICS!



[[BRO]Alaskan]

Here are my 4 AMD SMP folders. (pic was before I got a KVM and turned them around) no optical or FDD drives. ~3700PPD



[sawatt]

Here are my 4 AMD SMP folders. (pic was before I got a KVM and turned them around) no optical or FDD drives. ~3700PPD

Don't you keep them that way to heat the room??



[ND40oz]

Movers are coming in a week and a half so I have to break all of my stuff down, but here's the home farm as it stands:

Here's my "workbench" currently has thin client, bad axe2/E6600 combo and 2.53 GHz P4 system hooked up to the KVM.

The KVM also is hooked up to this:

An HP ML370 with Dual 2.8 Xeons with a SCSI attached MSA20 holding 3 TB of drives.

Next up, the office:

Wifes system, running MCE with MSI K8N Diamond Plus and 3800+ X2 sitting on my grandfathers old desk that I need to refinish one of these days and that leads to my workhorse:

Precision 690 with dual 5160s

Hopefully it will only be down for two weeks during the move.



[[BRO]Alaskan]

Don't you keep them that way to heat the room??

When I put them into that garage I turned them aroung because the look better and I can reach the power and reset switch



[mklinger]

Here are a few pictures of my current folding farm. I used to be very active during the Genome@Home days, but faded when that project ended. After I built my new primary PC a couple months ago, I got the folding bug again big-time and for the past 3 months have been adding to the farm.

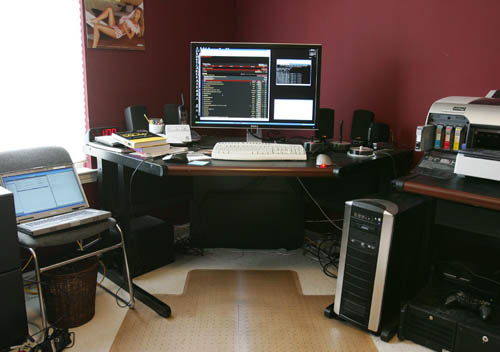

Here is a picture of my primary machine, an E6700 at 3.4 GHz with a X1950XTX. It's running XP along with the SMP client via VMWare. I also run the GPU client when not crunching the 1760 point WUs.

Also in this picture is my 2 GHz Pentium-M work laptop running the normal Windows client.

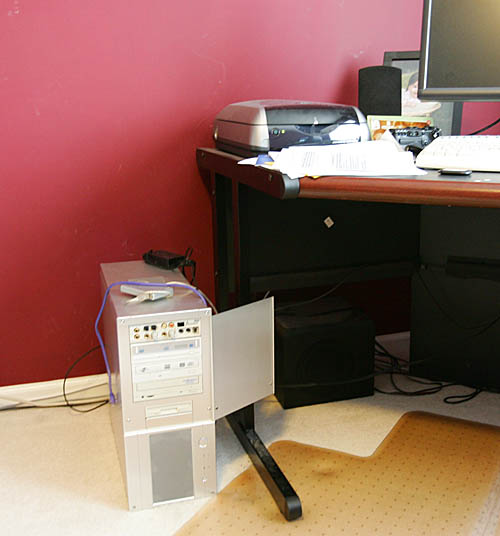

Next is my wife's machine (my old machine...). It's a 3 GHz P4 which I recently added an AGP X1950Pro for exclusive GPU folding.

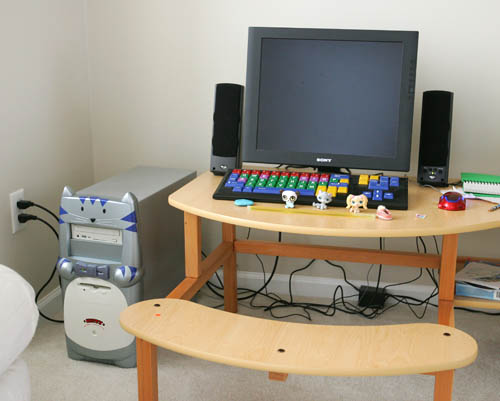

Here is my 3 1/2 year old daughter's PC. It's a Sempron 3400 running the Windows client.

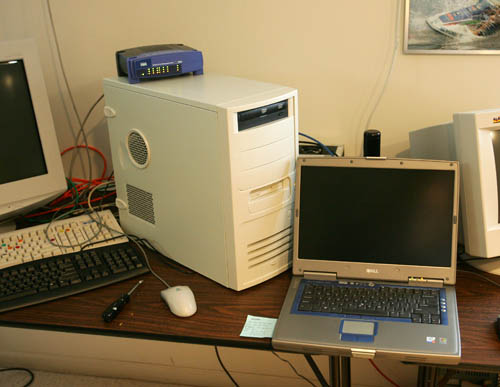

In the basement, I have a few dedicated machines. This is an E6400 running the SMP client in native Linux (SUSE 10.2) along with my old personal laptop 2.4 GHz P4 running the Windows client.

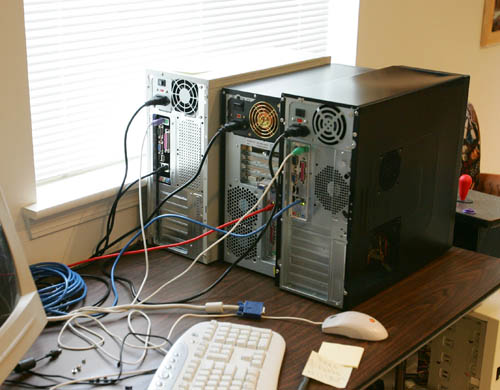

Next comes my experiments in building the best PPD per $$. Before I discovered the SMP client, I built a dedicated GPU folding machine. The PC in the middle is running a Pentium D 2.66 GHz along with a PCIe X1950Pro. The one on the left is an E6400 running the SMP client and the one on the right is a E4300 also running Linux and the SMP client.



[drizzt81]

I like the calendar in your office



[4DoorGTZ]

I'm laughing at the borged kids machine, does the "kitty" do some good cancer research?



[mklinger]

I like the calendar in your office

Yeah, that's not too bad

The best part is my wife gets me the SI swimsuit calendar (or something similar) each year for my birthday. She's a keeper!



[mklinger]

I'm laughing at the borged kids machine, does the "kitty" do some good cancer research?

Yeah, kitty is overclocked to 2.4 GHz and does some nice folding (~130 PPD) along with Dora the Explorer gaming

That little bugger may get my 1950XTX if I ever feel the need to upgrade my primary machine to an R600 based card.



[[Ao1]Powerkiller]

bump! Need to see some more folding farms! I currently have 2 folding right now. but will add two more once I get a bigger ethernet switch

Will post pics and relavant specs soon.

Also could this be made a sticky?



[[Ao1]Powerkiller]

ok here are my pics


Parents PC - 2.8Ghz Intel Celeron 4, 512MB PC2100 DDR

My PC - AMD Athlon 64 3500+ S939, 2GB PC3200 DDR

Thermaltake Case on far rgiht is the only on folding right now in this pic
3GHz Intel "Northwood" Pentium 4 HT, 512MB PC2700 DDR SDRAM

Antec Case in teh middle does not have a CPU or RAM, but will soon be ordered
ordering a AMD Athlon 64 3500+ S939 and 512MB PC3200 DDR

Dell Case on left needs a XP reinstall
800MHz Intel Pentim IIII Coppermine, 384MB PC100 SDRAM



[Imitation]

powerkiller, why not get a 3800+ X2? You'd get alot more PPD running the SMP client instead of a single console client. I'd get the X2 if you've already got the mobo, if not, grab a core2 at the end of april, you'll be glad you did. Sorry if this got OT.



[Celerator]

Imitation suggested:
I'd get the X2 if you've already got the mobo, if not, grab a core2 at the end of april, you'll be glad you did.

Are the CD2s expected to go down in price at the end of April? I'm accumulating parts for a new system, and I'm willing to wait to get a great deal...

Fold on!



[taqueso]

Are the CD2s expected to go down in price at the end of April? I'm accumulating parts for a new system, and I'm willing to wait to get a great deal...

The pricecuts are supposed to be scheduled for the 22nd. I don't think there is any official word, but the industry seems to be taking it as fact.

http://www.guru3d.com/newsitem.php?id=5086

I'm sure someone else has more links.



[Imitation]

The pricecuts are supposed to be scheduled for the 22nd. I don't think there is any official word, but the industry seems to be taking it as fact.

http://www.guru3d.com/newsitem.php?id=5086

I'm sure someone else has more links.

Yeah that's what i've heard too. I'd personally get one of the new cheap 4meg cache core2's that are listed. Hopefully they overclock decently well.



[[Ao1]Powerkiller]

powerkiller, why not get a 3800+ X2? You'd get alot more PPD running the SMP client instead of a single console client. I'd get the X2 if you've already got the mobo, if not, grab a core2 at the end of april, you'll be glad you did. Sorry if this got OT.

I am thinking about that. The only major issue I have are funds. I do have a mobo, its a Jetway 939AGP, I gotta check to see if it supports the X2 also.

I also have a question concerning th SMP Client, on my 3GHz P4 w/ hyperthreading, Will it be better running te smp client on there instead of 2 separate clients running? I have 2 clients on it now.



[taqueso]

My main rig, an opty 165 at 2.65GHz , 2gig DDR. Runs the SMP client under 32-bit Vista. I guess it is time to fix the rubber band on the optical door.

My firewall and fileserver, an Athlon XP at 1.6GHz, 2.5gig DDR, running gentoo and the standard client. It has cables hanging out of it because I was playing around with compact flash RAID.

This is what will become my new fileserver once I get around to buying a few more items, an E4300 at 2.75GHz (for now needs a new HSF) with 2gig DDR2. Right now it is "burning in" by running the SMP client under XP. Surprisingly, frame times are only a couple minutes shorter than the opty.

My mac mini, running the OSX SMP client, it is a 1.8GHz Core Duo with 1gig DDR2. I'm thinking of putting a C2D chip in it after the price cuts hit.

My MythTV HTPC, an Athlon 64 3000+ at 2.0GHz with 2gig ram, running the standard client under 32-bit gentoo. I really need to spend some time working on increasing the overclock on this one. I just booted it at 2.0 the first time and kept it there.

Two Dell Precision 450 workstations sporting dual 2.8GHz P4 Xeons and 2 gigs of DDR each. These are my work machines, one is my development PC and runs XP, the other is an internal mailserver and runs gentoo. Both run 2 copies of the standard client with HT off. Sorry for the crappy cellphone pics.

My mechanical engineer buddy's CAD workstation with E6300 at 2.8GHz with 4 gigs DDR2. Runs the SMP client under XP.


Update:

Scored another borged machine this morning after talking with one of the project managers about his wife's colon cancer survival. He was happy to help out, especially since his PC is another of the dual 2.8GHz Xeon systems and he uses it for word processing and email. It is running two copies of the standard client. My cellphone sure does suck at these under-the-desk photos.

​

p.s. Yes, I have permission to borg the boxes at work.



[Sgraffite]

The box on the left is my Opty 165 server with 1gb of ram. The box on the right is my Opty 175 workstation with 2gb of ram. I also have a Dell e1505 latop with a Core Duo T2500 and 2gb of ram that is not pictured. I need to take new pics, the flash shows a lot of dust and fingerprints.



[[Ao1]Powerkiller]

okay I have ordered te parts for te Antec case in my previouse posts. I was going to get the X2 but I am kinda low on $$$ so I got what i could afford. Here is what i ordered from NEwegg

AMD Athlon 64 3400+ S939 w/ FREE AMD 512MB Flash Drive
512MB Wintec PC3200 DDR SDRAM
Apevia 120mm Case Fan
Cooler Master Fan and Heatsink
6 pack of 80mm Cooler Master Fans
Price + Shipping - $114.47



[God_Of_Death]

finally finished spring cleaning on the farm and thought it was time to update the pics. it's been a while since i last posted them here and lots of things have changed

*AMD rack from left to right* 1.) Eta Red: 2ghz XP 2.) Iota Fruity 2.3ghz XP 3.) Kappa Green 2.3ghz XP 4.) Lambda Purple 2.3ghz XP

*Intel rack from left to right* 1.) Delta Red 3.2ghz northy 2.) Epsilon Blue 3.4ghz EE 3.) Phi White 3ghz northy 4.) Gamma Purple 3ghz northy

*ulgy antec and lian li boxen on the side from top to bottom* 1.) Nu Blue 2.2ghz XP 2.) Mu Blue 3.6ghz preshot

My main rig: 1.) Beta Monolith X2 @ 3ghz

Server: 1.) Alpha Metal 3.6ghz northy

just random pics of the farm:

my entire farm is made up of abit mobo's with the exception of my main rig and Phi White. they have asus mobo's. this is a pic of the coffins....they contain dead mobos

my simple network

UPS love

i forgot to take pics of another 2.3ghz XP named Omicron Blue and my Pentium D 3.4ghz work pc named Pi Black. If you haven't noticed, the colors in the names represent the color of the led fan or lack there of. ex: metal for metal fans or black for normal fans or fruity for multi-color fans

if my math is correct, i have 46ghz folding for the [H]orde (amd:19.4 intel:26.6) 14 pc's total.



[jmroberts70]

Holy crap! Your electric bill must sting!!



[God_Of_Death]

during the cool months it is not bad at all. once summer kicks in........... thats when it really bites



[upriverpaddler]

What are these things?



[Mohonri]

What are these things?

The black plastic things? It's a combination Expansion Slot bracket mechanism and spare parts compartment. It's fairly common on Antec cases.



[fenderltd]

Nice Death, I have been waiting to see your setup!! Yeah, Death lives in Texas so in about 2-4 more weeks once it get's hot, his bill will really skyrocket. Even without 12 computers running, the bill sky rockets in summer months



[God_Of_Death]

Nice Death, I have been waiting to see your setup!! Yeah, Death lives in Texas so in about 2-4 more weeks once it get's hot, his bill will really skyrocket. Even without 12 computers running, the bill sky rockets in summer months

it takes a small fourtune in the summer time just to stay alive.



[towert7]

if my math is correct, i have 46ghz folding (amd:19.4 intel:26.6) 14 pc's total.

Wow, how much you getting paid for your efforts? ^_^ j/k

Seriously though, how much it cost to build them? I have a funny feeling you could have had a killer audio rig that would give much more pleasure...........................



[fenderltd]

it takes a small fourtune in the summer time just to stay alive.

Trust me I know Death, I am right here with ya Maybe, you could rig up an exhaust to every pc to shoot it outside



[God_Of_Death]

Wow, how much you getting paid for your efforts? ^_^ j/k

Seriously though, how much it cost to build them? I have a funny feeling you could have had a killer audio rig that would give much more pleasure...........................

what if folding gives me pleasure........... ..........ok stop using the word "pleasure"

i don't know how much it was to build them but i have spent a few years building and selling folding boxen.

Trust me I know Death, I am right here with ya Maybe, you could rig up an exhaust to every pc to shoot it outside

i thought about it but it would suck the cool air from the room too if the AC is on that is.



[Willsonman]

Here are my boxen:
Dual core Athlon 64 @ 2.4 Ghz two instances

Sig rig:
One GPU instance and one CPU instance

Borg:
Wife's lappy single core
