The Most Badass 120mm Fan? Help me find it?

Zarathustra[H]

Extremely [H]
Joined
Oct 29, 2000
Messages
32,875
Hey all,

So I am planning on using a 120mm fan and a PC PWM fan controller for a non-computer project.

Because of this I am looking for a 120mm fan that can move as much air as possible.

Must be insane to the point where no one in their right mind would put it in their PC, and must be controllable via 4 wire/PWM.

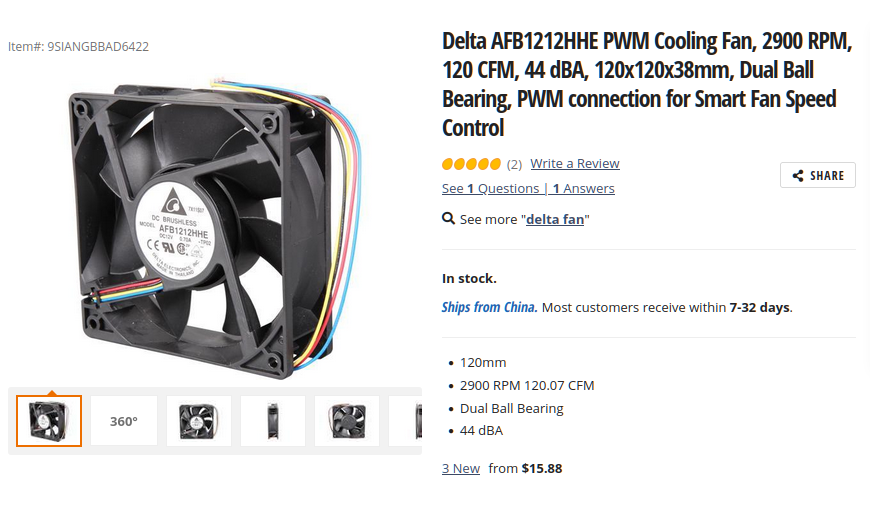

I got one of these, it was powerful, but I feel I need more.



Appreciate any suggestions!


hititnquitit

[H]ard|Gawd
Joined
Apr 16, 2018
Messages
1,294
Look closer ;)
Its got 3 different profiles to choose from.
Hybrid 500-1200rpm, performance 2000rpm and advanced 3000rpm.


Johnx64

[H]F Junkie
Joined
Apr 22, 2002
Messages
8,278
Look closer ;)
Its got 3 different profiles to choose from.
Hybrid 500-1200rpm, performance 2000rpm and advanced 3000rpm.


Still only 101cfm at max whereas the op posted one is 120cfm stating he wants to move more air...


TeeJayHoward

Limpness Supreme
Joined
Feb 8, 2005
Messages
11,061


San Ace 9CR1212P0G03
7.2A @ 12VDC (86.4W)
6200RPM
300CFM
70dBA

Best I could find. Of course, at 76mm wide, you're basically looking at the width of two fans. Might be worth comparing it to a pair of stacked Deltas if you've got 'em.


DanNeely

2[H]4U
Joined
Aug 26, 2005
Messages
4,091
San Ace 9CR1212P0G03
7.2A @ 12VDC (86.4W)
6200RPM
300CFM
70dBA

Best I could find. Of course, at 76mm wide, you're basically looking at the width of two fans. Might be worth comparing it to a pair of stacked Deltas if you've got 'em.

76mm is 3 standard case fans thick, not 2.


freeagentt

Limp Gawd
Joined
Dec 5, 2018
Messages
246
That fan is awesome. I use an NF-F12 iPPC 3k as an exhaust it works just as good as the 120x38 I had there before.. well maybe a bit better because I let it rev. The iPPC is much louder though. I originally had a big-n-little setup on my heatsink.. but the NF-A14 iPPC is good enough for the girls I fu.. I forgot I'm married so scratch that. I was using a 120x38 24v NMB running at 12v previously as an exhaust. I've never owned a Delta, but I wouldn't mind picking up some 120x25 screamers or maybe some of the same but in 140mm. I have enough 120x38s to stuff every orifice of my Meshify C. I used to swear by them.

Can you imagine sticking your dick into that San Ace lol. What a horror movie.


Nobu

Supreme [H]ardness
Joined
Jun 7, 2007
Messages
6,684
That fan is awesome. I use an NF-F12 iPPC 3k as an exhaust it works just as good as the 120x38 I had there before.. well maybe a bit better because I let it rev. The iPPC is much louder though. I originally had a big-n-little setup on my heatsink.. but the NF-A14 iPPC is good enough for the girls I fu.. I forgot I'm married so scratch that. I was using a 120x38 24v NMB running at 12v previously as an exhaust. I've never owned a Delta, but I wouldn't mind picking up some 120x25 screamers or maybe some of the same but in 140mm. I have enough 120x38s to stuff every orifice of my Meshify C. I used to swear by them.

Can you imagine sticking your dick into that San Ace lol. What a horror movie.
The promo they put on yt is pretty ridiculous. I mean, my 8" vornado could do the same thing...but it's 8" diameter. lol That San Ace literally screams, would not want it running full blast anywhere near my ears, not even in the same building. XD


Enigma

Gawd
Joined
Oct 15, 2003
Messages
793
48 watts!!
What kinda fan controller would you recommend?
I think this one would work,

Lamptron CF525
Amazon Link

Features:
- Most powerfull controller in the market
- 60w per channel
- Very high quality materials
- 5 completely independant 60w/5A channels
- Other Great Features!
- CNC milled aluminium face-plate
- Sleeved cables
- Black PCB
- No frills, just power

Specifications:
- Dimension: 148.5mm*42.5mm*76mm(5.25" Bay)
- Power Output: Up to 60 watts per channel
- Control Channel: 5 Channels
- Panel Color Available: Black Anodyzed / Silver
- DC Input: +12v (1pcs MOX4.2 5557-2*4p connectors. A.k.a PCI-E GPU 8pin)
- DC Output: 0V- 12V DC
- Connectors: 5 X 2510-3pin connectors / 8pin to 3xMolex adaptor)
- Recommend PSU wattage: 700w or higher. It is imperative that no molex multipliers are used to plug in the 3 molex adaptor suplied.


Krazy925

Supreme [H]ardness
Joined
Sep 29, 2012
Messages
6,388
I think this one would work,

Lamptron CF525
Amazon Link

Features:
- Most powerfull controller in the market
- 60w per channel
- Very high quality materials
- 5 completely independant 60w/5A channels
- Other Great Features!
- CNC milled aluminium face-plate
- Sleeved cables
- Black PCB
- No frills, just power

Specifications:
- Dimension: 148.5mm*42.5mm*76mm(5.25" Bay)
- Power Output: Up to 60 watts per channel
- Control Channel: 5 Channels
- Panel Color Available: Black Anodyzed / Silver
- DC Input: +12v (1pcs MOX4.2 5557-2*4p connectors. A.k.a PCI-E GPU 8pin)
- DC Output: 0V- 12V DC
- Connectors: 5 X 2510-3pin connectors / 8pin to 3xMolex adaptor)
- Recommend PSU wattage: 700w or higher. It is imperative that no molex multipliers are used to plug in the 3 molex adaptor suplied.
No frills but has sleeved cables lol

I do always love all the Lamptron gear I’ve bought.
