Silverstone ML09 -- My new favorite little case

Neapolitan6th

[H]ard|Gawd
Joined
Nov 18, 2016
Messages
1,115
I have recently completed a build in my new favorite readily available compact case; the Silverstone ML09.

Stock Product Photo:

Features:
-7 liter volume compact design
-SFX PSU support
-Up to 70mm aircooler support (great for the Noctua L12S)
-Supports 4 2.5in. drives within drive cage
-dual slot low profile add in card support (no riser needed)
-included slim 120mm fan (only fits for shorter CPU coolers)
-supports 2 80mm fans, slim fans will fit with a dual slot gpu (I believe)

My Build: (appologies for photo quality)

Goals: Compact and quality build on the cheap for a friend desiring to run a variety of applications and games with a basic playable level of performance.

Specs:
CPU: Ryzen 2200G w/ Vega 8 graphics
Motherboard: Asrock AB350 ITX
DDR4: Gskill Aegis 2x4gb 2400mhz (OC to 3200+)
PSU: Silverstone ST30SF 300 watts bronze rated
CPU Cooler: Noctua NH L12S (not exactly necessary, but I love cooling overhead for OCing of both the CPU and GPU)
Case: Silverstone ML09
Fans: 2x Cooler Master 80mm fans
Storage: 250gb WD Blue SSD & 500gb HDD

Pictures:
Non-Modular Cables ended up not being so bad. I would only omit the molex connectors.
Mounting ddr4 and cooler outside the case is advisable. It is easiest to hold on to the heatsink when installing the motherboard (standoffs are pre-installed)

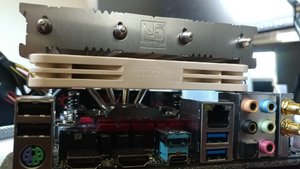

Hopefully the umdermounted fan helps with VRM temps! Tight clearance, but this cooler is quite easy to install and uninstall.
Very compact once everything is installed! (Added 2 80mm fans not shown here)
Just fits.
Plenty of room for potentially upgrading to a dual slot low profile gpu.
Stands vertical or horizontally. Body is satisfyingly thick 0.8mm steel. Front face is an acylic/plastic fingerprint risk, but it really does look quite sharp despite its material. Also it is quite rigid and resistant to flex thanks to a center interior crossbar.
Size comparison with an Xbox 360. Still quite small. Noticeably smaller than cases such as the Fractal Node 202 type cases. (Because it only supports low profile cards) I really can't see a case with these features being made significantly smaller without moving to flexATX PSUs and omitting nice to have 2.5in. drive support.

I felt like sharing my build with you all as I really do love this case and I haven't heard much talk about it. I bought it for $65 shipped so I feel it is quite the value. Quality of construction for a non-crowdfunded case is top notch. Once you screw everything in, you can bet its going to feel solid. Additionally, I feel for a compact case, it offers a sweetspot of air cooling performance (70mm clearance).

If any one has any comments or questions about the case, I would love to talk more about my experience building in it.

Last edited:

Nightfire

2[H]4U
Joined
Sep 7, 2017
Messages
2,864
I have basically the exact same setup. I am using a 2400g, Asrock ab350 ITX, and an L12s. My case is an ML06 I believe but it looks identical. The cooler barely fit (glad I didn't get Trident Z instead of my FlareX!)



Even without a GPU, this thing is HEAVY! Overall, very happy with the build.


Neapolitan6th

[H]ard|Gawd
Joined
Nov 18, 2016
Messages
1,115
Finally got around to upgrading to a dedicated GTX 1650 gpu. Gotta say, some issues with installation. The dual link DVI interfered with aligning the GPU into its slot. Had to use some pliars to make it fit. The other HDMI/DP connections are also cutting it a bit close. The chassis touches the hdmi cable when plugged in.


Nightfire

2[H]4U
Joined
Sep 7, 2017
Messages
2,864
Finally got around to upgrading to a dedicated GTX 1650 gpu. Gotta say, some issues with installation. The dual link DVI interfered with aligning the GPU into its slot. Had to use some pliars to make it fit. The other HDMI/DP connections are also cutting it a bit close. The chassis touches the hdmi cable when plugged in.
View attachment 301546View attachment 301547

Nice. I have since upgraded my setup to 1600af ($85!) and 1050ti. The gpu does fine for older games, but the NVENC is a Godsend for video encoding.

I completely removed the GPU cooler and just use an 80mm fan on the case to cool it. Works fine and the system does everything I need it to. Also, put a thin fan on the outside for CPU cooling, but probably not necessary.


Neapolitan6th

[H]ard|Gawd
Joined
Nov 18, 2016
Messages
1,115
Nice. I have since upgraded my setup to 1600af ($85!) and 1050ti. The gpu does fine for older games, but the NVENC is a Godsend for video encoding.

I completely removed the GPU cooler and just use an 80mm fan on the case to cool it. Works fine and the system does everything I need it to. Also, put a thin fan on the outside for CPU cooling, but probably not necessary.
View attachment 301642
Good idea with taking off the shroud. Always good to get more airflow into a case like this with limited options. Would love to see some more low profile options eventually, been awhile. A 7nm option would be great to see.


Nightfire

2[H]4U
Joined
Sep 7, 2017
Messages
2,864
Good idea with taking off the shroud. Always good to get more airflow into a case like this with limited options. Would love to see some more low profile options eventually, been awhile. A 7nm option would be great to see.

So much this. The 1650 is the fastest low pro card, which isnt much faster than a 1550ti. Size constraints limit to a 128 bit bus, but with gddr6, they should be able to fit a nice card in that size now.

Maybe a GTX 3050 or an RX 6500 in low profile in the upcoming future? Would be a great match for the Series S.
