SideArmD SA4 case, CNC + AIO + 9.35L

Discussion in 'Small Form Factor Systems' started by wahaha360, Nov 22, 2016.

  1. Boil

    Boil [H]ard|Gawd

    Messages:
    1,177
    Joined:
    Sep 19, 2015
    Necere wahaha360

    I just really like the idea of CPU / GPU custom loop water cooling that does not need to compromise for a window...!

    Kind of a bummer that you are going back to FlexATX (not that it is a bad thing), I was excited because the design up until the change BACK to FlexATX would have allowed me to use this SF600 I have sitting here; and it would have addressed some of the things I did not like about the M1 (no window option without losing the best placement for a radiator& the need for an external reservoir for a full custom loop)...

    I REALLY like the idea of having ALL of the WC loop components within the chassis. and if they can be (tastfully) displayed via a window, yet still offer top cooling performance, all the better...!

    Last edited: Jul 2, 2017
  2. Necere

    Necere 2[H]4U

    Messages:
    2,654
    Joined:
    Jan 3, 2003
    Heh... you're really pushing hard for this, aren't you? Alright - interest noted.

    Also I'm not set on using flex over SFX. It really depends how some of the units coming out turn out. The smaller size is nice, but the potential for increased noise isn't.

    Boil likes this.
  3. Boil

    Boil [H]ard|Gawd

    Messages:
    1,177
    Joined:
    Sep 19, 2015
    Yeah, sorry, I just want a quality (product & performance) WC loop for mITX where EVERYTHING is in the chassis, yet I can still have a little bling via the windowed panel...

    And by 'a little bling', I am talking mainly about the liquid showing thru on the reservoir & tubing; everything else would be Acetal/Nickel blocks, for that blacked out look...

    I would love to get UV-reactive fluid, and use UV LEDs (the kind that can mount in a G1/4 plug, so the UV light is not 'painting' the interior of the chassis, only interacting with the fluid itself) to light it up; since the blocks would not be showing the fluid, just the tubes & reservoir would 'glow'...

    Last edited: Jul 3, 2017
    darksable likes this.
  4. darksable

    darksable Limp Gawd

    Messages:
    433
    Joined:
    Mar 9, 2015
    They make UV 'spotlights', too, so you could do custom power cables and aim the lights just at them, so they light up along with the tubing.

  5. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    The initial project stalled, but I never gave up.

    Specification

    Material: CNCed from 10mm 6061 aluminum + 1.5mm aluminum metal brackets
    Side panels: Vented Panel / Tempered Glass / Acrylic, window on both sides
    Colors: Anodized sand blasted space gray for exterior, anodized black for interior

    Dimensions (W x H x D): 210 x 135 x 330, 9.35L
    Graphic cards support: Three-Slot Slot GPU up to 315mm
    Motherboard support: Mini-ITX
    Power Supply support: SFX
    CPU Heatsink support: 70mm height (Noctua L12S)
    Water cooling support: 120mm AIO at 30mm thick
    Drives: 2 x 2.5" HDD/SSD
    I/O ports: 2 x Type-C, Power button
    Risercard: Includes PCIe 16x hard riser

    Renderings
    * 2 x 120mm fans + 30mm thick radiator + custom DDC Block Pump

    * back panel is interchangeable to support 3 slot GPU or 2 slot GPU
    * 2 slot GPU configuration allows for 70mm CPU cooler height, ideal for Noctua L12S
    * 3 slot GPU configuration allows for 48mm CPU cooler height, ideal for AIO block pump

    * 3 slot GPU configuration provides intake clearance for 2 slot blower GPUs behind glass window

    * flip the case to get better cooling on high end parts


    Prototype Photos


    Feedback appreciated!

  6. javidan

    javidan n00bie

    Messages:
    27
    Joined:
    Apr 30, 2014
    Does just admitting that I'm pretty much a mega fan of your cases having already owned 3 of the Ncase M1s, still holding onto them *and* still appreciating all the effort into the details to two of you did for it count as feedback?

    I have been lurking and just looking at all the other concepts which haven't taken off so far hoping you'd produce yet another insane M1 alternative.

    wahaha360 likes this.
  7. Nanook

    Nanook Limp Gawd

    Messages:
    343
    Joined:
    May 21, 2016
    Love this configurable design. With CNC, you may be able to design for rounded edges and corners, where it is challenging to do so with sheet metal. Not necessarily turn it into a soft blobby mess, but the opportunity to take advantage of the machining process.

    Esso likes this.
  8. SaperPL

    SaperPL [H]ard|Gawd

    Messages:
    1,754
    Joined:
    Aug 31, 2014
    I like the idea of shifting the middle wall, but isn't CNCing this going to be overly expensive for what you want to achieve?

  9. Necere

    Necere 2[H]4U

    Messages:
    2,654
    Joined:
    Jan 3, 2003
    I appreciate that, but I should clarify that the M1 is 100% my work, while the SideArmD is 100% w360's. I have no direct involvement in its design. All I can claim credit for is the original Sidearm (no -D) name, and perhaps inspiring the layout.

  10. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    The project will be subsidized by me, so it will be very similar in price with other cases on SFF, but limited in quantity.

    SaperPL and javidan like this.
  11. Esso

    Esso Limp Gawd

    Messages:
    165
    Joined:
    Mar 14, 2007
    I am mostly lurking with high anticipation & excitement.

    Many similar projects have omitted front i/o, likely for asthetics, cost, or volume constrains.

    I would be very pleased with 1 or 2 USB-C ports... or a modular option like we’ve seen on other projects here (but prettier ;) ).

  12. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    We are working on 2x USB-C for the case.

    Esso likes this.
  13. javidan

    javidan n00bie

    Messages:
    27
    Joined:
    Apr 30, 2014
    Wow, when I saw SaperPL's reply that was my thought too, that CNC would blow the cost out of whack compared to stamping.

    And it's again, insane stuff like this where you kill yourself in terms of details gone into compatibility which blows me away.

  14. OmenemO

    OmenemO Limp Gawd

    Messages:
    131
    Joined:
    Feb 25, 2016
    fwiw, if you can ship this to New Zealand , I'd pay an unsubsidised price for it.

    wahaha360 likes this.
  15. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    * another look at the GPU intake clearance using 3 slot configuration

    * ventilated side panel


    Attached Files:

    Esso and Nanook like this.
  16. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    Target price USD 240 - 270, limited quantity

    OmenemO, Esso, AP2 and 1 other person like this.
  17. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    Update: Space Gray, Black and Silver prototypes for CES 2019

    Boil and Esso like this.
  18. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    * ventilated metal side panel

    Boil, Esso and rfarmer like this.
  19. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    Update : size comparison, to help you guys visualize (dimensions do NOT include protrusions or feet)

    Edit: fixed dimensions for Louqe Ghost!

    [​IMG]


    Attached Files:

    Last edited: Jan 7, 2019
    Jspr, OmenemO, Frazhna and 1 other person like this.
  20. QuantumBraced

    QuantumBraced Gawd

    Messages:
    553
    Joined:
    Nov 21, 2015
    Great, this solves all the issues I have with the A4 -- adequate CPU cooling, dust control, and solid windows. I think an extra 2L for all of that is worth it. I love my M1, but I've been wanting to get something tiny with windows and the M1's window option is not great for streamlined airflow. I'll be buying this.

    A couple of questions, sorry if they've already be asked on the other forum. What is the airflow clearance for the bottom intakes, i.e. length of the feet? Please say at least 1cm, I think anything less is inadequate. I'm a little confused as I don't see any feet or the case being raised at all in the renders. And how would flipping it work with airflow clearance/feet?

    And second, why not raise the PSU a bit, it seems unnecessarily low. You don't want cables to be too close to the fan.

  21. rfarmer

    rfarmer [H]ard|Gawd

    Messages:
    1,096
    Joined:
    May 9, 2014
    I asked about the case feet on SSF and this was his reply.

    QuantumBraced likes this.
  22. QuantumBraced

    QuantumBraced Gawd

    Messages:
    553
    Joined:
    Nov 21, 2015
    I see, thanks. So 5mm. That's pretty bad. :( At least with the case being fairly well sealed, the negative pressure orientation will draw air almost entirely from the bottom vents, so if you filter those you shouldn't get more dust than with the intake orientation/positive pressure. However, the graphics card would be upside down, which I really don't like. Okay, well I'll wait for some temperature tests then, but for a 120mm AIO, 5mm of airflow clearance is very restricted.

    How would flipping the case work feet-wise?

  23. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    Using 5mm feet:
    - for the 120mm AIO fan, the intake clearance is 30 + 5 = 35mm
    - for the rear fan by the mobo, it’s 5 + 5 = 10mm

    The feet can attach to the Top or Bottom Panels through the vent holes. That also means you can use other taller meet as well and attach with a screw through the same vent hole.

    Last edited: Jan 7, 2019
  24. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    More renderings, why not.

    HShaWiP.png KZ24rJg.png TgKp0Ny.png OUvO5Eg.png

    Esso likes this.
  25. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012

    Attached Files:

    Last edited: Jan 12, 2019
    rfarmer and Esso like this.
  26. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    There are two positions to mount the GPU (higher and lower), as you can see from the image below, the higher GPU mounting point gives adequate airflow room.


    Esso likes this.
  27. {NG}Fidel

    {NG}Fidel [H]ardness Supreme

    Messages:
    5,669
    Joined:
    Jan 17, 2005
    This is awesome.
    You guys sold me on SFF with the Ncase and you keep outdoing yourselves.

  28. QuantumBraced

    QuantumBraced Gawd

    Messages:
    553
    Joined:
    Nov 21, 2015
    Well to be fair, a radiator is basically a duct, so you still only have 5mm of intake clearance, but the rad/duct would help with turbulence. Also, if you put a dust filter, especially the looser ones like Demciflex or Silverstone, you're looking at even more obstruction, those filters may even touch the desk. Why not use 1cm feet? You'd get much better temps.

    Does the case come with filters by the way?

    I meant the PSU, seems like it could be moved up higher, so that the cables coming out of it don't interfere with the AIO undreneath.

    I like the idea of supporting 240mm AIOs. Would it take too much work/volume increase to accommodate regular 240mm AIOs, not just the one from Alphacool?

    Last edited: Jan 8, 2019
  29. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012

    CES 2019, special thanks to 3lfk1ng for thermal testing and volunteering his Ghost S1 + 26mm Top Hat

    Test Setup
    SideArmD Project Prototype 1
    Intel i9-9900K + Asus Z390 ITX
    Fr33Flow 48mm CPU Block + Pump Prototype 1
    Koolance HX-CU420V Radiator (120x30mm, 30FPI, *Copper)
    Noctua Sterrox Fan (120x25mm, one mounted on Koolance radiator, one beneath motherboard)
    Nvidia RTX Titan
    Samsung 960 EVO SSD



    Results
    Ambient temperature probably around ~25C
    WITHOUT OC, CPU-Z stress test max temperature ~65C
    OC all 8 core to 5ghz, (unstable & ran out of time to test more), ~85C
    * there is no side panel on the CPU side (it was late, prototype 2 is more relevant for benchmark)
    * case in pull mode, where radiator is on the bottom, 5mm feet
    * thanks to 3lfk1ng, |||, PlayfulPhoenix, 3feetcat, for helping despite insane schedule during CES



    Prototype 2 revision
    move PSU and GPU upward to allow better airflow from fans, so temps should be better
    add cable mgmt clasps

    Last edited: Jan 12, 2019
    OmenemO, Jspr, Esso and 2 others like this.
  30. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    Nothing stopping you from putting 10mm+ feet.

    We already tested the 120mm Koolance Radiator + Noctua 120x25mm Sterrox Fan via 9900K, I will post temperatures later, but it's not a concern at all, in fact, I don't think we even need 240 AIO.

    Dust filer needs some testing, there is some trade off with temperature, so TBD.

    Esso likes this.
  31. QuantumBraced

    QuantumBraced Gawd

    Messages:
    553
    Joined:
    Nov 21, 2015
    Brilliant. Maybe I'll just DIY the rest of the case while I'm at it, then I won't have to buy one at all. ;)

    Was this a shot without feet? It appears that the case is completely flush with the desk there. It's good that stock temperatures are decent, but I think it goes without saying that almost everyone would want to use filters. That's part of the problem, at 5mm a lot of filters would almost touch your desk, especially saggy ones like Demciflex or Silverstone.

    I could be wrong, I'd just like to see some testing with filters.

  32. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012

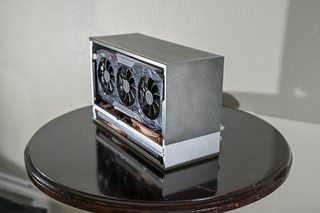

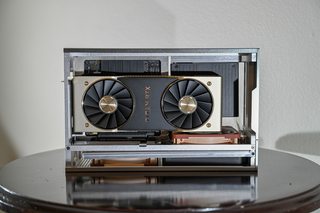

    bb65cAfm.jpg ufyXwI5m.jpg R6SzG3em.jpg w0mDuiSm.jpg zVyqhXgm.jpg qjdza5vm.jpg CDCeh9Tm.jpg QMnAxowm.jpg x0s3nIjm.jpg VaEh5X1m.jpg d4n4Kg7m.jpg 1O7q5whm.jpg MfFsW5Sm.jpg q941O8bm.jpg go52pFJm.jpg

    Last edited: Jan 14, 2019 at 1:47 PM
  33. keshon

    keshon n00bie

    Messages:
    8
    Joined:
    Oct 12, 2015
    Great visual appearance and internal structure design. But 2 x 2.5 - oh common.. No chances for a third? :)

  34. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012

    There is M.2, which is better than 2.5" SSD really.

    octagoncow and keshon like this.
  35. keshon

    keshon n00bie

    Messages:
    8
    Joined:
    Oct 12, 2015
    Oh I completely forgot about them. But looking at your pics I see that standoffs are very short - does m2 fit there especially with riser cable occupies most of the space there?

  36. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    Yes, the standoffs are spec (7mm).

    keshon likes this.
  37. wahaha360

    wahaha360 Gawd

    Messages:
    939
    Joined:
    Sep 8, 2012
    Noctua L12S fit verified, all 70mm of it (2 GPU Slot mode)

    SQztSpe.jpg uoMYHO0.jpg xQD12iL.jpg

    Boil and keshon like this.
