Rome doubles cache size as expected in Si-Soft ES leak

N4CR

Supreme [H]ardness
Joined
Oct 17, 2011
Messages
4,708
https://www.techpowerup.com/249952/amd-doubles-l3-cache-per-ccx-with-zen-2-rome

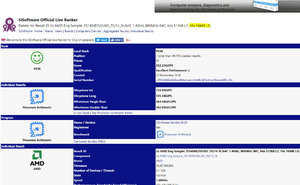

Sisoft leak of an ES shows 16mb x 16 per socket for a 2P system, which should mean that it's 2x 16mb cache per chiplet, meaning 4 core CCX is still sadly likely. Or perhaps it counts the IO chip mirroring cache? Thus is a 1x16mb, 8 core CCX...

Very interesting.


rome cache.jpg

Last edited:

defaultluser

[H]F Junkie
Joined
Jan 14, 2006
Messages
13,829
I though 8 core CCX was part of the Rome announcement. Or was that simply inferred from the other specifications provided?


N4CR

Supreme [H]ardness
Joined
Oct 17, 2011
Messages
4,708
I though 8 core CCX was part of the Rome announcement. Or was that simply inferred from the other specifications provided?
It was not confirmed, we got very little information about Rome other than the layout and chiplet combination.


cyberguyz

Gawd
Joined
Aug 28, 2014
Messages
710
I though 8 core CCX was part of the Rome announcement. Or was that simply inferred from the other specifications provided?

Each CCX still has 4 cores - they are just shrunk. Each 7nm chiplet package still holds 2x ccx. Since there are 8x 7nm packages on the Rome processor displayed, we get gives us 64 cores/128 threads.


Nobu

Supreme [H]ardness
Joined
Jun 7, 2007
Messages
5,087
I thought everything regarding IO was moved onto the 14nm IO block
Yeah, cache is still on the cpu dies, but all other i/o (main memory/storage/device access) goes through the central die.

Looks like no l4 cache? Hope they just decided it wasn't needed...


cyberguyz

Gawd
Joined
Aug 28, 2014
Messages
710
Yeah, cache is still on the cpu dies, but all other i/o (main memory/storage/device access) goes through the central die.

Looks like no l4 cache? Hope they just decided it wasn't needed...
I am guessing L4 cache can be added later on if needed. They'd just hang a pool of static ram off of the IO chip for it.


drescherjm

[H]F Junkie
Joined
Nov 19, 2008
Messages
14,889
Will it just be EPYC with this separate 14nm IO chip or does this mean TR and Ryzen will have a reduced functionality version???


cyberguyz

Gawd
Joined
Aug 28, 2014
Messages
710
Will it just be EPYC with this separate 14nm IO chip or does this mean TR and Ryzen will have a reduced functionality version???
I suspect both Epyc and the AMD Desktop chips will have the I/O die. The reason I suspect is the same as it was for the Epyc chips - IF, Mem controller and I/O aren't too healthy being built at 7nm so having the larger process chip to deal with them makes sense even on the desktop. I would also venture that AMD will not need to make changes to desktop sockets to accommodate it either.
