Network pics thread

[EvilAlchemist]

One of the network cabinets at my work i did. Contents (Top to Bottom) 48 port Cat 6 patch panel, Netgear GS748T, APC SMTL750RM2UC, Netgear GS510TPP, APC SCL500RM1UC.

Yellow wire bugs me too, just not had time to put it in the patch panel..yet!



[Cerulean]

One of the network cabinets at my work i did. Contents (Top to Bottom) 48 port Cat 6 patch panel, Netgear GS748T, APC SMTL750RM2UC, Netgear GS510TPP, APC SCL500RM1UC.

Yellow wire bugs me too, just not had time to put it in the patch panel..yet!
View attachment 379462

And the rack and other hardware to mount the rack is ... ?



[EnderW]

I'd at least sit the cover on top of it as the cpu needs those fans at the back to pull air across it to cool.

I actually had a 80mm fan sitting on top of the motherboard.



[RavinDJ]

Someone else “maintained” it before I got here today 😱



[trick0502]

bringing it back. this is what i am inheriting.



[ziggo0]

bringing it back. this is what i am inheriting.

analog cameras over cat5 is the real crime here



[trick0502]

i saw that and was wondering who that even works? it is all getting taken out and replaced. real patch panels, cisco switches, filer connection, ip cameras.



[SamirD]

analog cameras over cat5 is the real crime here

And those splices that the last time I saw was in our first hotel that was built in the 1950s and telephone from the 1970s

Fun fact: I actually used an actually AT&T 'switchboard' with the pull cables that were tip and ring when growing up. That thing was still working when replaced with a candela microswitch pbx, and man I wish we still had it--amazingly reliable as it was on 24x7 for decades without a hiccup--beautiful piece of analog technology.



[trick0502]

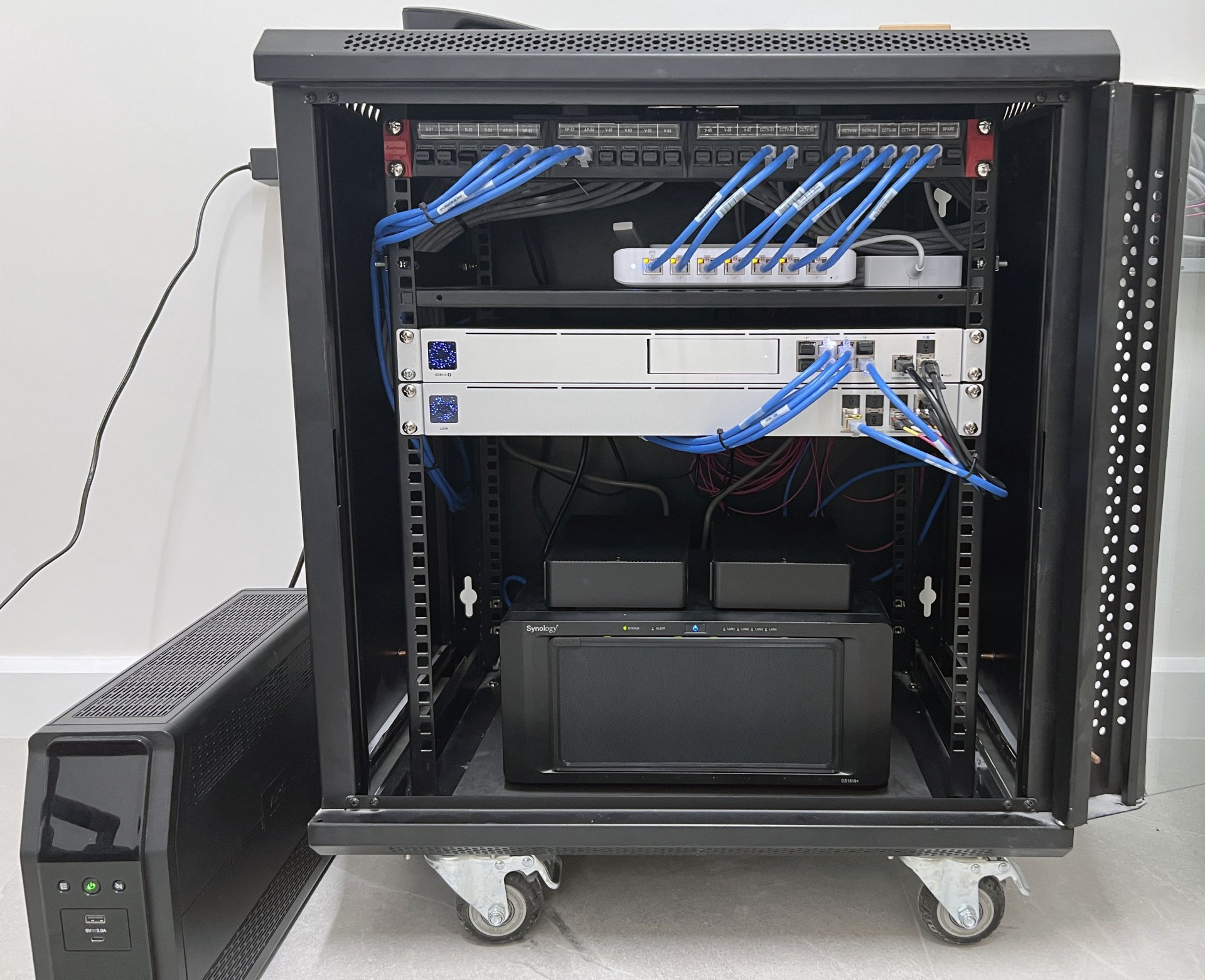

bringing it back. this is what i am inheriting.View attachment 404323

Not bad from where it started. A power outlet still needs to be installed. And when the new security system is installed the power bricks will go away.



[EnderW]



[MinPins]

Keeping this ancient thread alive...

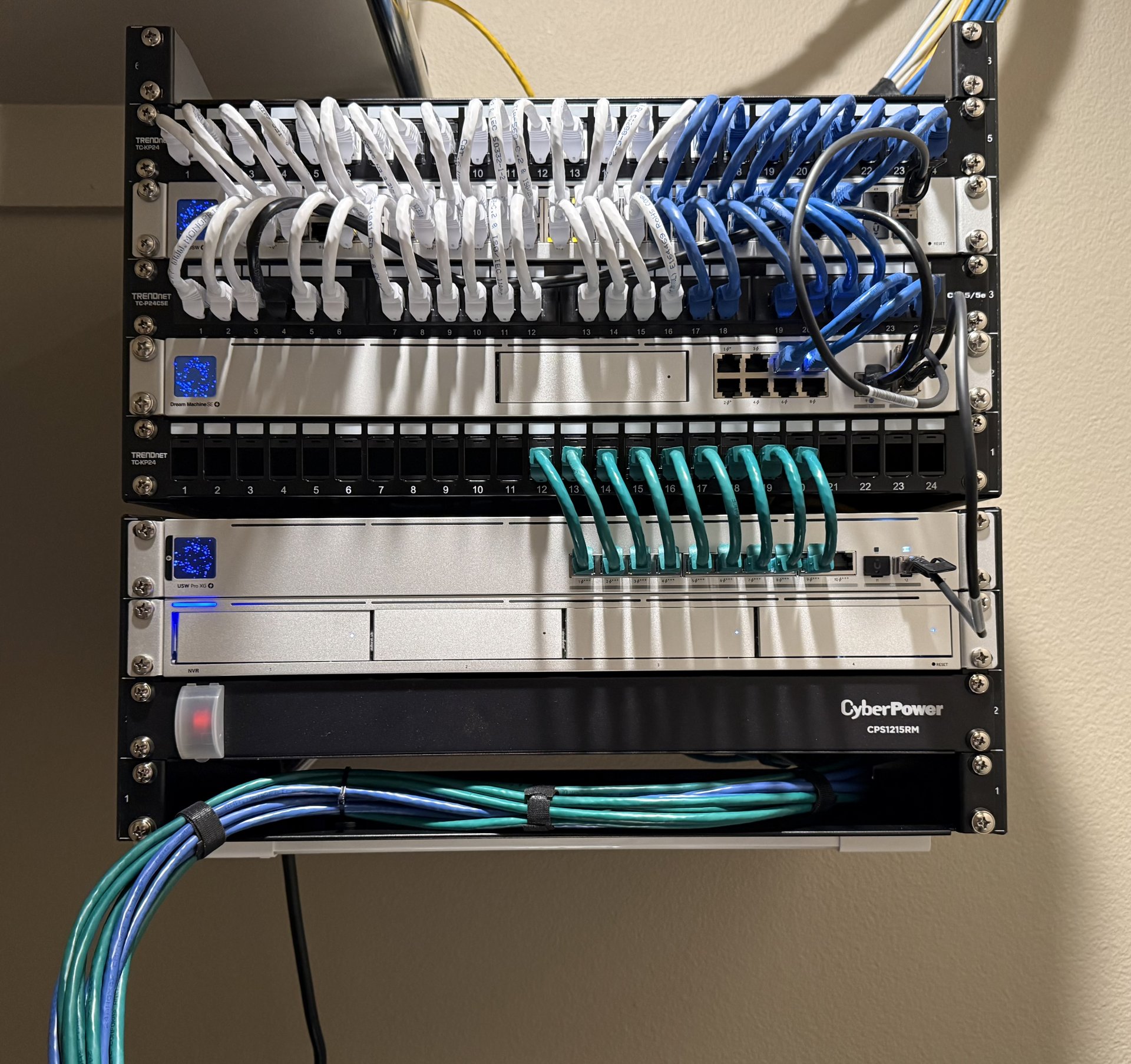

My recently revised home network rack.
Unifi UDM-Pro
Unifi USW-Pro-24-PoE
Unifi US-XG-6PoE
2 Unifi U6-Pro WAPs + 1 U6 Mesh (out in the garage)
Primary broadband: Sonic 10G Fiber (only $50/month!)
Failover broadband: Comcast 1G
Both of my PCs have Intel X550-T2 NICs

(please forgive the messy cabling, it's not pretty but it functions perfectly)



[Vengance_01]

Keeping this ancient thread alive...
My recently revised home network rack.
Unifi UDM-Pro
Unifi USW-Pro-24-PoE
Unifi US-XG-6PoE
2 Unifi U6-Pro WAPs + 1 U6 Mesh (out in the garage)
Primary broadband: Sonic 10G Fiber (only $50/month!)
Failover broadband: Comcast 1G
Both of my PCs have Intel X550-T2 NICs

(please forgive the messy cabling, it's not pretty but it functions perfectly)


View attachment 539661View attachment 539663

How in the hell do you get 10GB for 50$???!!!!!!



[MikeTrike]

How in the hell do you get 10GB for 50$???!!!!!!

Someone's brother, most likely...



[MinPins]

Nope, it's what anyone in my area (Sonoma County CA) can get it for.
I actually referred 2 of my neighbors so I am paying only $39.99 for unlimited 10G service.
https://www.sonic.com/residential/internet
My fastest download test to date (run on the UDM Pro) was just under 7Gbps, I've never hit 10.



[Vengance_01]

Nope, it's what anyone in my area (Sonoma County CA) can get it for.
I actually referred 2 of my neighbors so I am paying only $39.99 for unlimited 10G service.
https://www.sonic.com/residential/internet
My fastest download test to date (run on the UDM Pro) was just under 7Gbps, I've never hit 10.

View attachment 539780

Makes sense if it's sonic but that's really freaking fast. I will stick with my paltry 500/500 😉



[SamirD]

I wish I had Sonic available--I just found out about them.
