LC-Power LC-1403Wmi - Micro ATX Case

Discussion in 'Cases & Case Modding' started by M76, Nov 4, 2019.

  1. M76

    M76 [H]ardForum Junkie

    Messages:
    9,633
    Joined:
    Jun 12, 2012
    It is time to review another case for me, this time here is this albino, oh sorry, that is not politically correct, white case.

    But first thing's first let's plug my previous reviews:

    Coolermaster Masterbox Q300L

    Silverstone Fortress FT03
    Shuttle SX79R5
    Phanteks Enthoo Pro M
    Coolermaster HAF 935
    Silverstone Raven RV03

    Now that that's out of the way, let's see what we have here.

    The cardboard box prominently displays that this is indeed a white case.

    w03.jpg w05.jpg w04.jpg

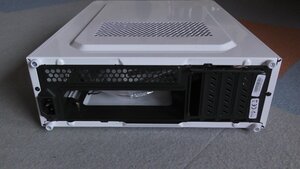

    And it is. I expected it to be smaller. It looks quite long. Not a well laid out case this is.


    Even the thumbscrews are white, that's unexpected attention to detail. The fit of the covers isn't that great though.
    w07.jpg w08.jpg

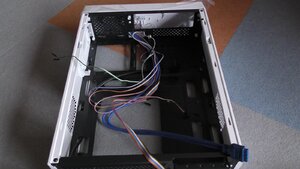

    Delving inside we find the vertical stands and the other parts. The stands are abs plastic with rough bits were they were attached to the mold. You find nothing by removing the bottom cover. Guess it's only for access to the backplate.

    w09.jpg w10.jpg

    The 3.5/ 5.25 drive bracket is removable by two screws. The front panel cables are long enough so they can be routed anywhere inside the case without having to go straight across the MB. That's a big plus.

    Continued in next post...

  2. M76

    M76 [H]ardForum Junkie

    Messages:
    9,633
    Joined:
    Jun 12, 2012
    Let's install the PSU, but where does it go, I haven't seen no bracket for it...

    w11.jpg w12.jpg
    Ah so, the small vent on the side actually pops out and there are the brackets for an SFX form factor PSU.

    w13.jpg w141.jpg
    And here I hit my first snag: the power connector on my PSU is sideways which makes the fit really tight, the extension cable is pushing very hard against the psu, so hard indeed that the small brackets of the case are being bent, and the psu sits slightly crooked in the case.

    w14.jpg w15.jpg

    Then I hit the second snag. We can forget the 5.25 bracket, the PSU is too long. SFX-L cannot be used if you want to install an 5.25 drive, or even a 3.5 properly.
    And since the 5.25 bracket is held on by rivets, not screws it cannot be removed, so it cannot be used as a brace for additional rigidity either.
    Unless I drill out the rivets destructively. But as I intend to sell this build I'm not going to do that jut yet.


    Haven't mentioned it yet, but this is a low profile case, so max cpu cooler size is 75mm, and only accommodates low profile expansion cards.
    The MB could be barely squeezed in next to the PSU, and they skimped on standoffs, I had to add one from my reserve to be able to install this micro ATX board.

    w17.jpg w18.jpg

    And this is what it looks like when you give up on cable management. I just threw in the HDD and the SSD on top of the loose cables as there is literally nothing to attach them to without the top bracket.

    So that is the end of this build review. It seems I didn't do a photo opportunity with the fully assembled case, but trust me: The case looks the same with the components inside as it did without them :)

    +
    • White which is unusual
    • Finish is nice, not this powder coated rubbish, actually polished
    • The removable side vent for the PSU is a nice touch.
    • It looks OK
    • Can be used as either a tower or desktop case.
    -

    • You can forget the 3.5" and 5.25" if you want a decent SFX PSU as the small ones top out at around 300W, wouldn't want to run a 130W TDP CPU on that.
    • The PSU brackets are flimsy, they are bent just by the cable pushing on them.
    • Not very well laid out, long for a uATX.
    • Only 80mm fans can be used as case fans.

    Score:

    Styling: 7/10
    Build Quality: 6/10
    Practicality 1/10

    Would not recommend this case as it is highly impractical, there is just no excuse for being this long for a micro atx case. And for being low profile, it is barely thinner than a regular desktop case.

    And finally here is the manufacturer link for those playing that game.

    Last edited: Nov 4, 2019
  3. M76

    M76 [H]ardForum Junkie

    Messages:
    9,633
    Joined:
    Jun 12, 2012
    I removed the 5.25 bracket and tidied things up:

    feher6.jpg feher7.jpg feher8.jpg


    feher3.jpg feher2.jpg feher5.jpg
