I have a Intel Server Board S2600GZ that I am trying to connect a video card too.

Reading through the manual I see that there are "OPT_12V_PWR_1" & "OPT_12V_PWR_2", which are both 4 pin connectors that can be used to power a video card.

Does anyone know if there is a cable that would connect to "OPT_12V_PWR_1" & "OPT_12V_PWR_2" to be able to turn into a 6+2 pin plug for the GPU or even two separate 4-pin connectors?

This is close to what I need, but the 8-pin needs to split apart since the 4 pin connectors are not next to each other - https://www.disctech.com/Dell-9H6FV...LK-hOO_D6-MAOAxfoPMptno1ukwCM3GxoCKh4QAvD_BwE

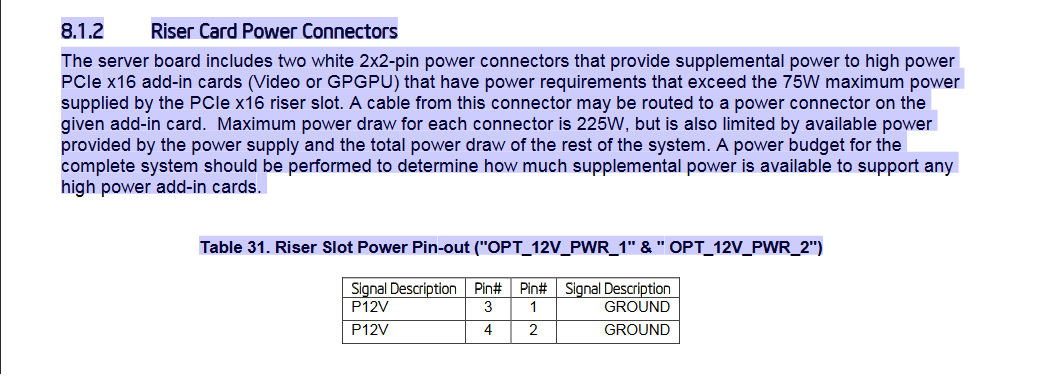

Riser Card Power.png

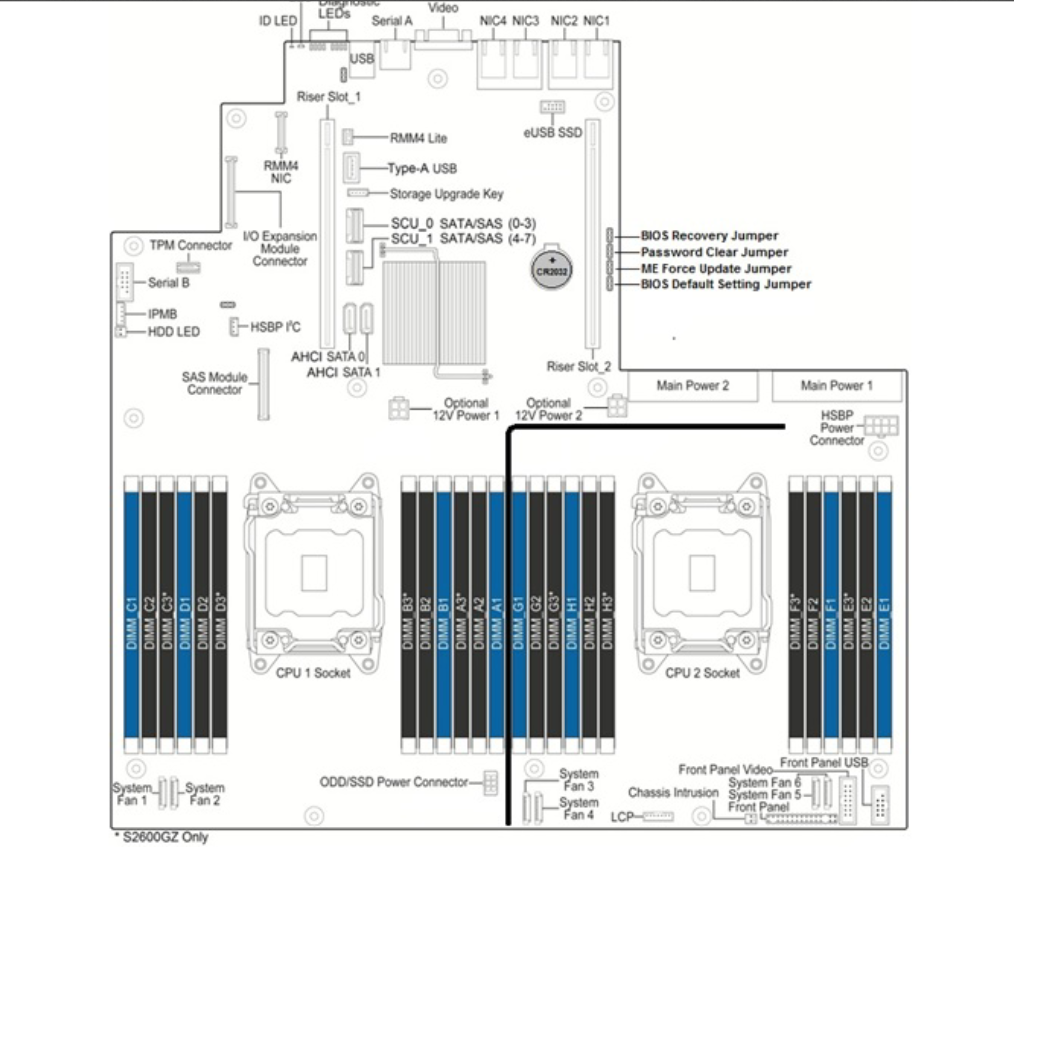

Motherboard layout.png
