Holy crap, it worked! Dead video card resurrected!

Discussion in 'Video Cards' started by Haste266, May 25, 2009.

  1. Haste266

    Haste266 [H]ardness Supreme

    Messages:
    7,324
    Joined:
    Sep 27, 2005
    i want to give antipesto93 from ocforums.com the credit for this, he is the one that gave me the idea!

    http://www.ocforums.com/showthread.php?t=606658


    my 8800gtx died a little over 3 months ago. went ahead and ordered a new video card because i figured the card is completely dead without having to pay to send it in and get it repaired because i didnt register it when i bought it initially(dumb, i know...). anyway, i am posting this message running off my 8800gtx!

    i got the idea from another forum, because some guy in the UK bought a dead 8800gtx off of ebay that had red vertical lines through the screen...my card had the same symptoms...one day it locked up on me, rebooted, then locked up on me even quicker...rebooted, red lines all over the screen and windows wouldnt even boot. i tried the card in a friends computer with the same result...

    sooooooo, i removed all bits from the card including the i/o shield and placed it gpu side down with the card raised up on 3 sides by tiny balls of aluminum foil and placed it on a very thin cookie sheet. i preheated the oven to 385f, put the card in and waited around 8-10 minutes. i carefully removed the cookie sheet and placed it on top of the oven to cool down naturally. waited about an hour and voila! =D

    supposedly this is similar to a trick used to fix dead xbox 360s. some sort of electrical connection gets frail and it eventually fails because of some tiny micro-fractures in solder joints or something....anyway heating the components up helps melt the solder and form new joints.

    im now torn as to whether i should sell this card for cheap to someone or keep it as a backup...


    pics of said baking(re-enactment)

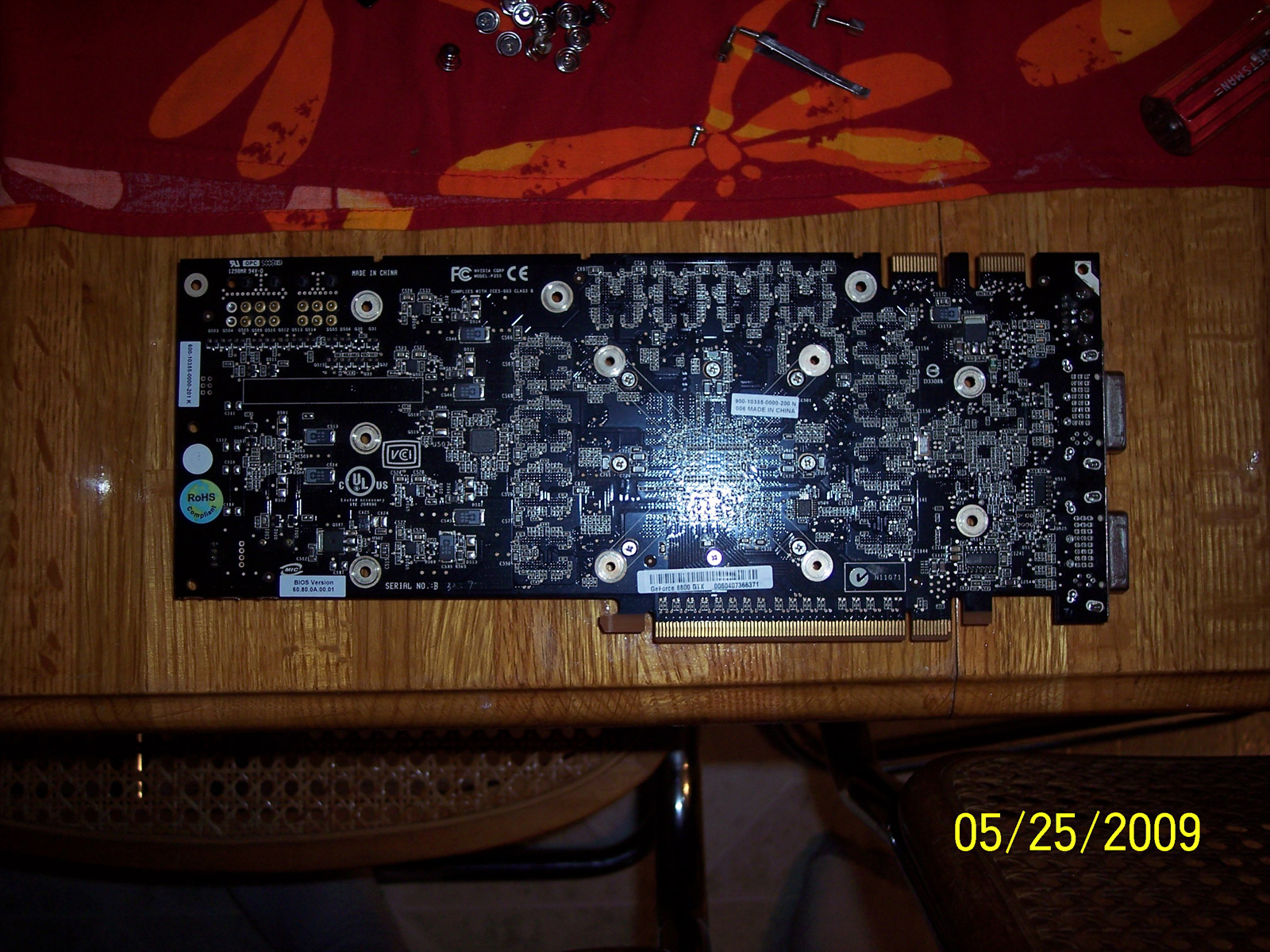

    naked!
    [​IMG]
    [​IMG]

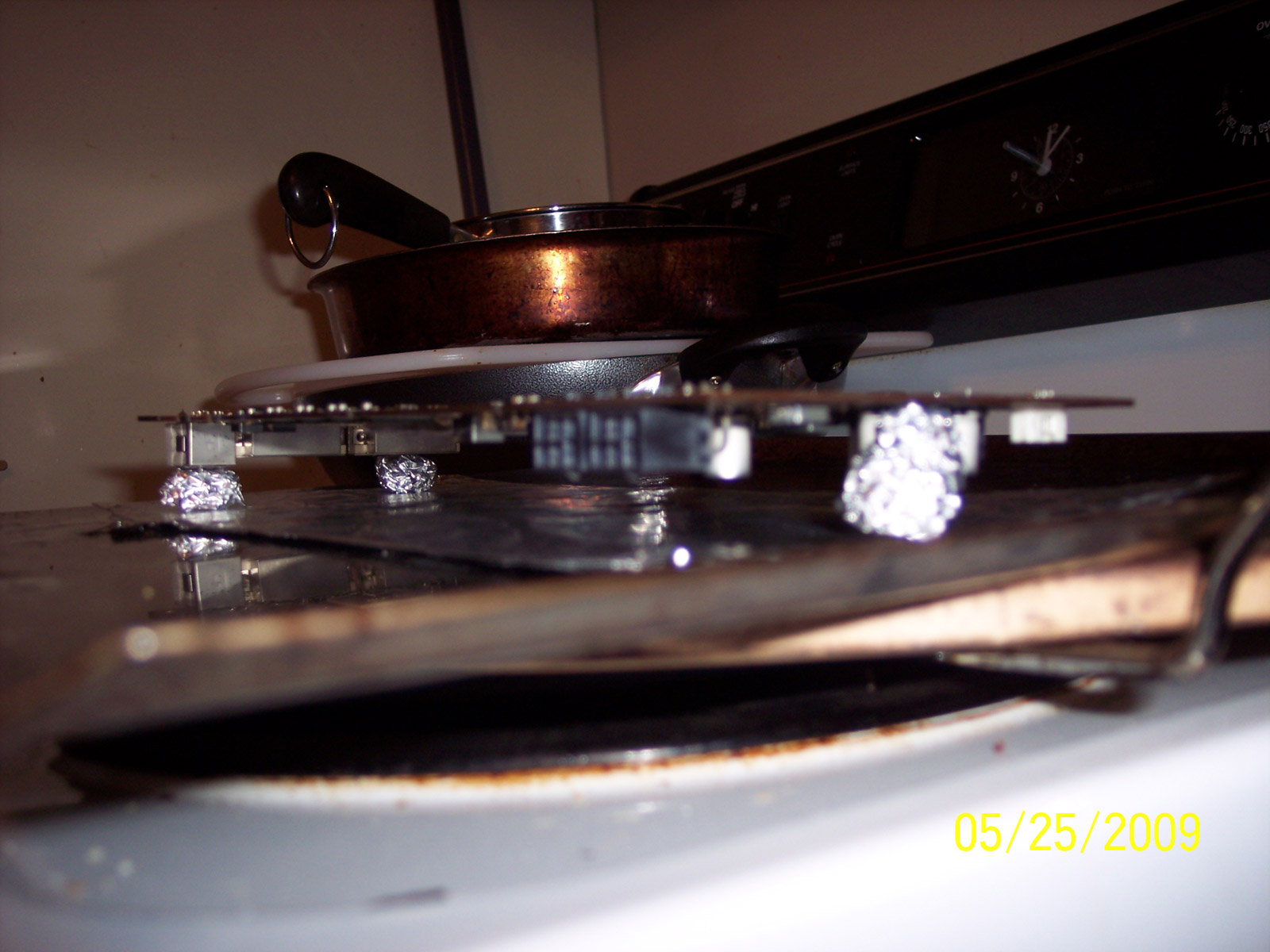

    side shot propped up on foil

    [​IMG]


    another angle

    [​IMG]

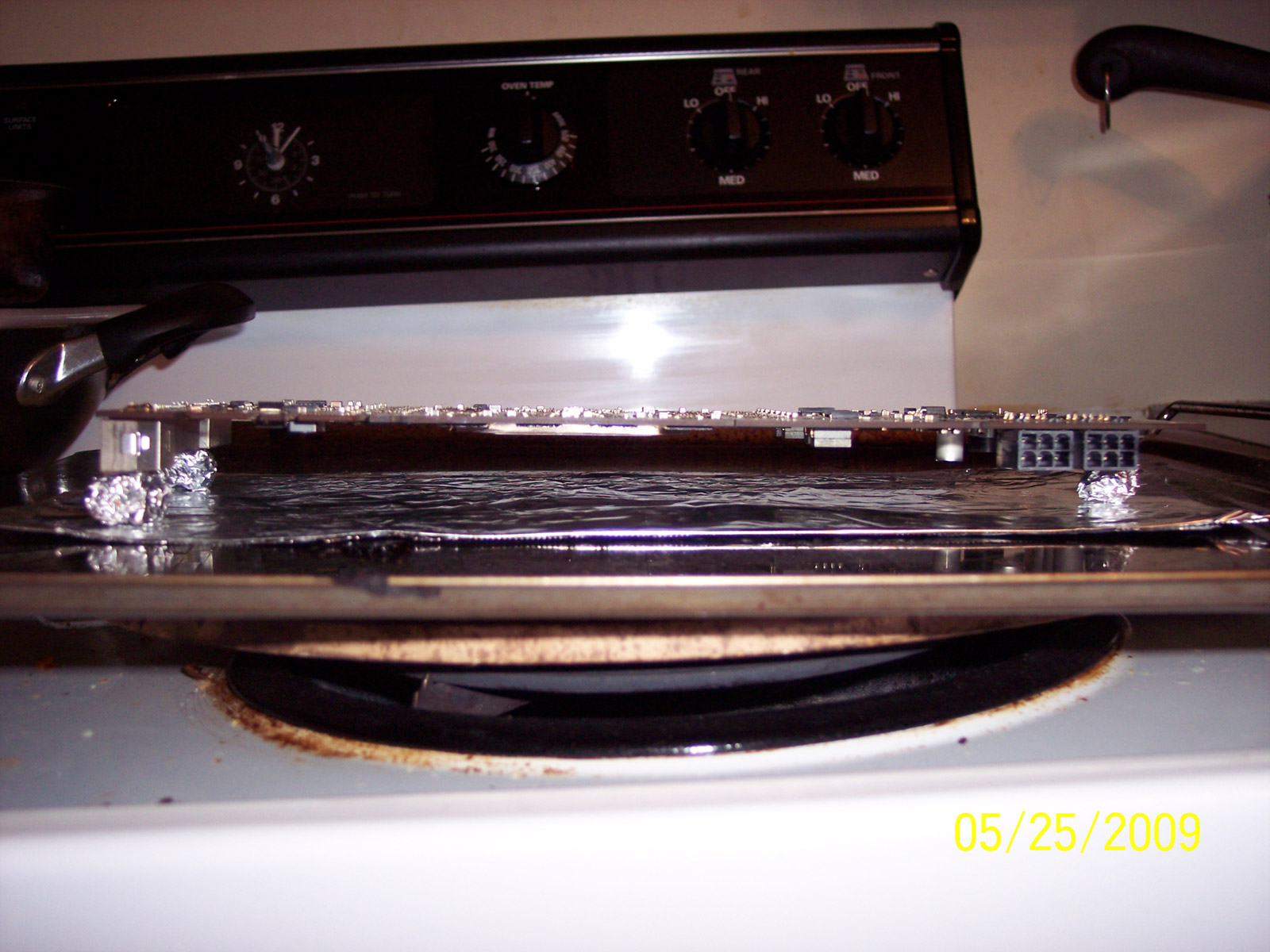

    in the oven
    [​IMG]











    akashi_tm
    has been kind enough to provide a short, easy to follow video tutorial for the baking process. i would like to remind everyone please do this with utmost caution, care and patience.


    Xtreme Bakeover - baking your video card to fix micro-fissures


    link to akashi_tm's original post about the video




    EDIT FOR LAPTOP BAKING!


    it has been a good week for baking...

    I bought a laptop with borked video because i was fairly positive it could be fixed by baking...

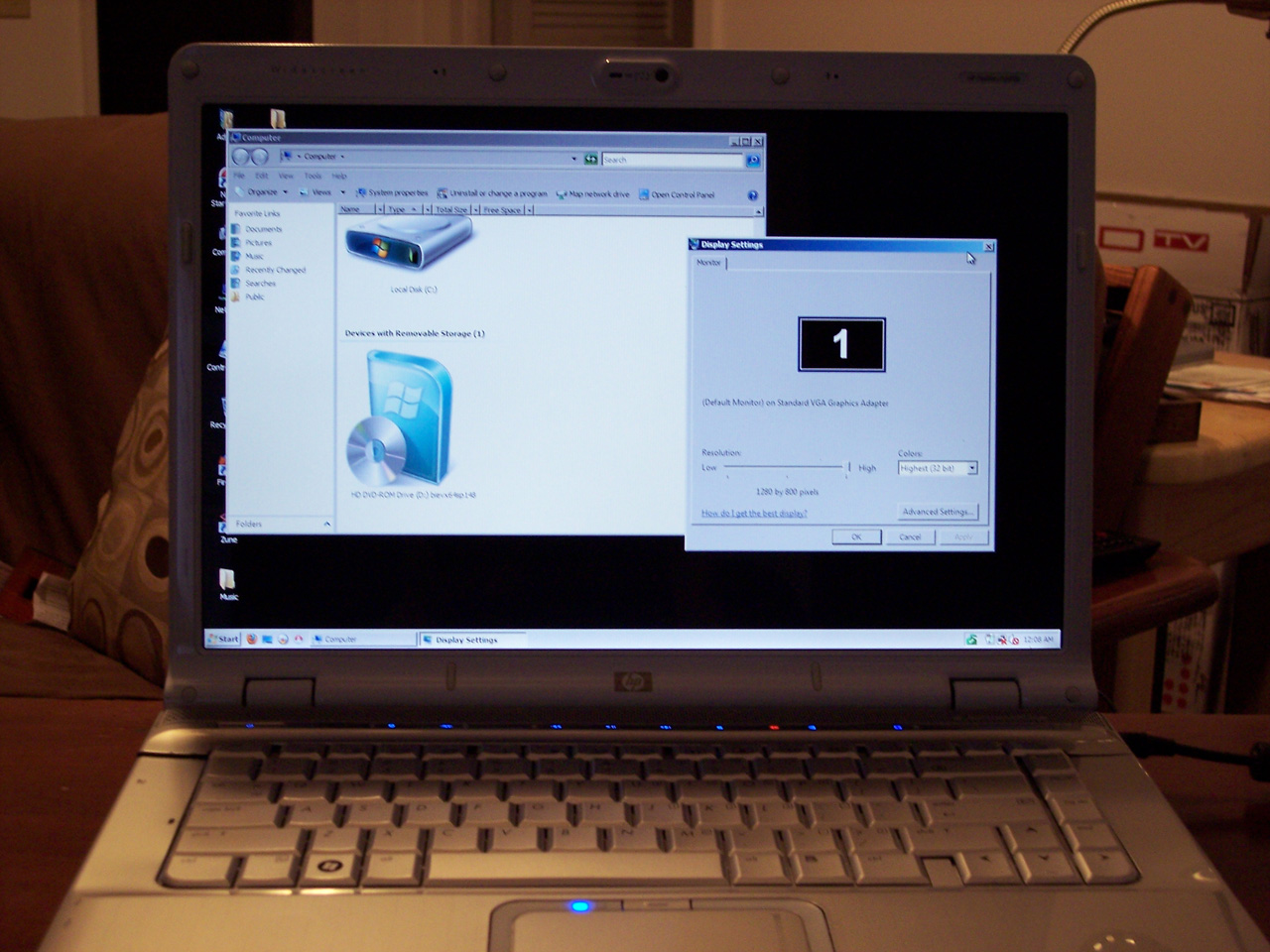

    It is working now after 7m 45s @ 385f in a conventional oven. i noticed a heavy solder smell when pulling the board out of the oven.

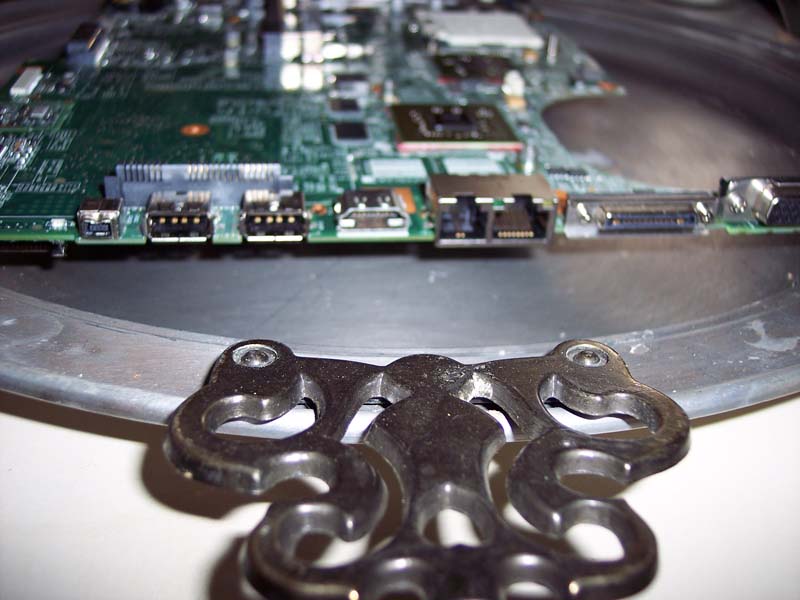

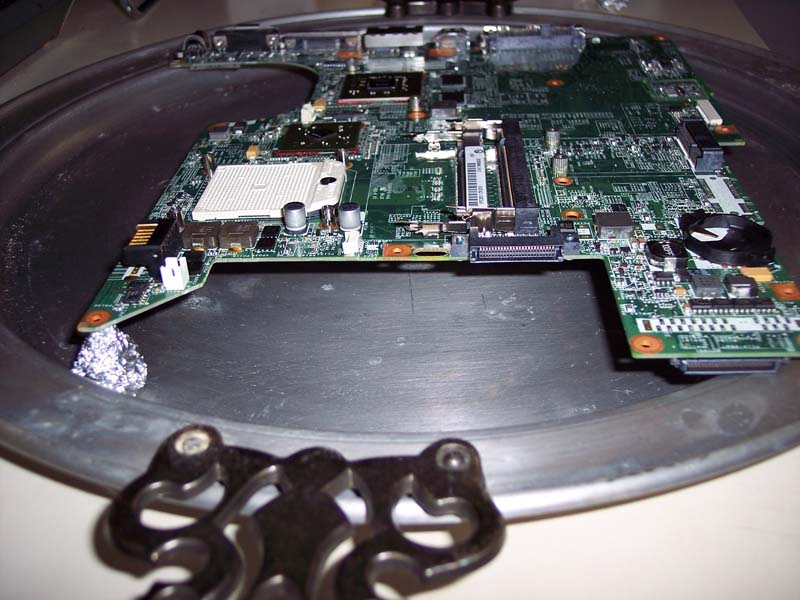

    PICS!

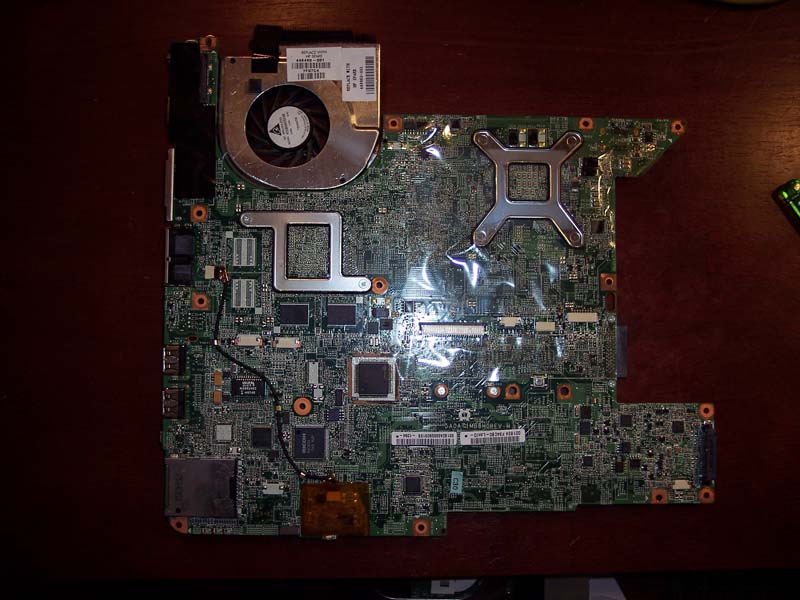

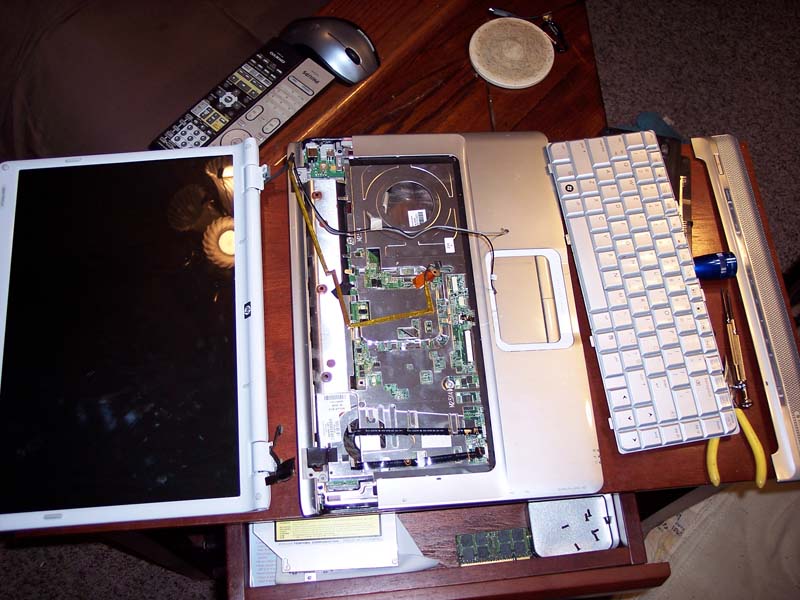

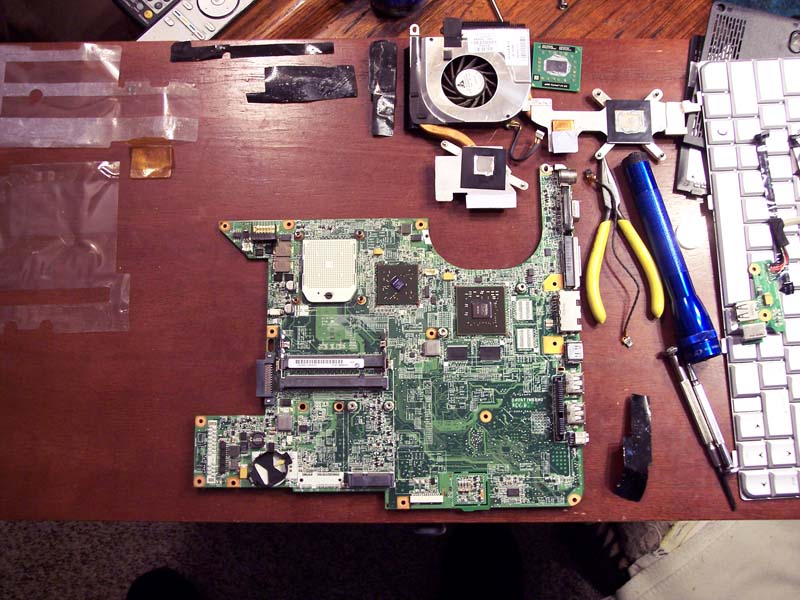

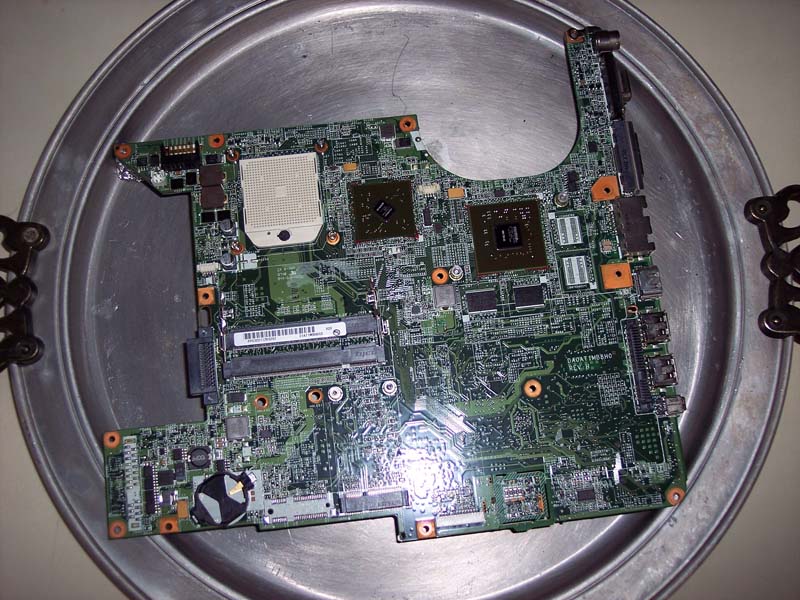

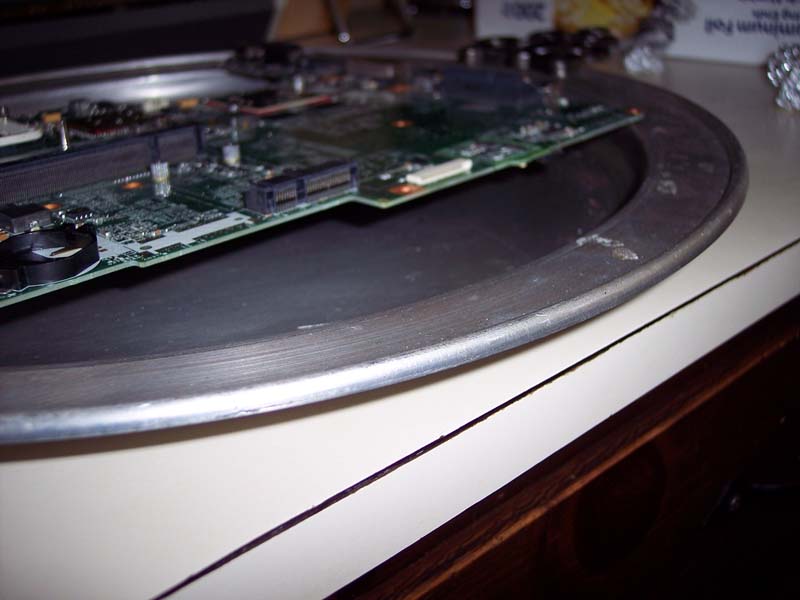

    EVERYTHING WAS REMOVED FROM THE MOTHERBOARD! All protective covers/plastic.

    [​IMG]



    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]





    gdonavan was able to get his broken 37" LCD tv to work by baking the mainboard. check out his post!


    trick_m0nkey has shown us another method of fixing a dead gpu on a laptop motherboard using a heat gun. check it out here!

    Last edited: Jul 9, 2010
  2. unrealsword

    unrealsword Gawd

    Messages:
    827
    Joined:
    May 9, 2008
    Oven? Jesus christ. Use a heat gun next time and do specific parts.

  3. Biskquik

    Biskquik Limp Gawd

    Messages:
    448
    Joined:
    Nov 13, 2007
    Aluminum foil?
    Oven?

    Are you sure these directions aren't about cooking a baked potato?

  4. Kyle_Bennett

    Kyle_Bennett HardOCP Chef Editor Staff Member

    Messages:
    39,506
    Joined:
    May 18, 1997
    Hey, the card was dead, who gives a shit about the method. Kudos to you Haste. Take pictures next time!

    Seventyfive likes this.
  5. Haste266

    Haste266 [H]ardness Supreme

    Messages:
    7,324
    Joined:
    Sep 27, 2005
    i think the card would be prone to more damage if a heat gun was used. how would you even know where to point it and for how long? i have no idea which exact part of the card was busted... at least an oven is a temperature controlled environment.

    what else could i use that is cheap and handy to support the card so it doesnt physically touch anything hot inside the oven? its not like the foil was touching any sensitive electronic parts...

    thanks. unfortunately i thought of pics after...doh! all i have left to take pics of now is the foil balls. :(

  6. __hollywood|meow

    __hollywood|meow [H]ard|Gawd

    Messages:
    1,377
    Joined:
    Feb 20, 2006
    your story is hilarious and awesome. congratulations, seems like some solder did indeed get separated from a critical joint.. what a crazy fix~!

  7. twoblueeyes78

    twoblueeyes78 n00bie

    Messages:
    43
    Joined:
    Dec 18, 2006
    Totally laughed.... I believe you that this worked but man!

  8. artless1

    artless1 2[H]4U

    Messages:
    2,316
    Joined:
    Mar 26, 2008
  9. cyclone3d

    cyclone3d [H]ardForum Junkie

    Messages:
    10,204
    Joined:
    Aug 17, 2004
    Those of you freaking out about sticking it in an oven have evidently never been in a manufacturing plant that builds automobile electronics.

    The machines apply solder paste, place all the parts on the board, and then the whole board goes through an oven to melt the solder and form the electrical connections.

    IF the oven isn't quite hot enough it can lead to premature failure. Stress or flexing of the boards can mess up solder joints as well.

    Sometimes boards that are inspected and have poor solder joints are stuck through the "reflow" oven to remelt the solder in order to make the connections better.

  10. Admiral-Awesome

    Admiral-Awesome n00bie

    Messages:
    43
    Joined:
    Sep 15, 2007
    I recently had an 8800GTS do the same thing to me. I guess instead of using it as a paper weight I'll give this a shot. lol

  11. crawford60

    crawford60 Gawd

    Messages:
    834
    Joined:
    Mar 24, 2008
    interesting way to fix it. glad this worked out for ya.

  12. Shadowfangs

    Shadowfangs Limp Gawd

    Messages:
    303
    Joined:
    Apr 15, 2009
    I used a heat gun on my PS3 To fix it, but i knew which chips to apply heat to. Kudos for your fix!!!

  13. AMD_Gamer

    AMD_Gamer Pick your own.....you deserve it.

    Messages:
    18,259
    Joined:
    Jan 20, 2002
    The oven makes a lot of sense, how do you think they solder on those BGA( Ball grid array) integrated circuits such as the north bridge and south bridge and video card ram? they put it into an oven just like this guy did.

  14. Trombe

    Trombe Gawd

    Messages:
    891
    Joined:
    Jan 25, 2007
    This is strangely awesome and I might resort to it soon enough. Did you also have to remove the headspreader off the core to pull this off?

  15. criccio

    criccio [H]ardForum Junkie

    Messages:
    10,610
    Joined:
    Mar 26, 2008
    Modder of the year award for the OP.

  16. ivandurago

    ivandurago [H]ard|Gawd

    Messages:
    1,312
    Joined:
    Jun 5, 2008
    Hmmm,
    I may have to try this w/ my 7800gt when I get back to school, it was having similar problems to this.
    Awesome story Haste, congratulations on the success!

  17. stealthy123

    stealthy123 2[H]4U

    Messages:
    3,151
    Joined:
    Feb 4, 2005
    I will be baking a fresh batch of 1950xtx this evening because of this thread.

  18. uss enterprise

    uss enterprise Limp Gawd

    Messages:
    215
    Joined:
    Feb 5, 2009
    Wow.
    What an insane repair method.
    Good job!

  19. Grenst

    Grenst n00bie

    Messages:
    52
    Joined:
    Jan 17, 2009
    haha grats on the fix!! you should post a worklog next time with some pix :D

  20. Nobi125

    Nobi125 [H]ard|Gawd

    Messages:
    2,005
    Joined:
    Jun 7, 2005
  21. Haste266

    Haste266 [H]ardness Supreme

    Messages:
    7,324
    Joined:
    Sep 27, 2005

    nope. i only took off all the bits that had screws excluding the ones around the heatspreader itself.


    went ahead and re-enacted the baking so i could get some pics up for anyone interested. i edited my first post

  22. stealthy123

    stealthy123 2[H]4U

    Messages:
    3,151
    Joined:
    Feb 4, 2005
    may wanna clean that oven:p

  23. Red Falcon

    Red Falcon [H]ardForum Junkie

    Messages:
    9,208
    Joined:
    May 8, 2007
    Wow, I'm really impressed and that makes total sense about fixing the tiny fractures in the soldiering. Great work! :cool:

  24. RadXge

    RadXge 2[H]4U

    Messages:
    2,740
    Joined:
    Aug 3, 2006
    Does a resurrected video card eat brains?

  25. Udgnim

    Udgnim Gawd

    Messages:
    864
    Joined:
    Sep 29, 2008
    lol attempt to reflow solder

  26. mtrupi

    mtrupi Gawd

    Messages:
    669
    Joined:
    Mar 26, 2007
    Only comment I can think to add is 385F is on too low to make solder reflow. However the oven may spike higher. Also 8-10 minutes is a long time so keep a close eye on the board. Preheating the board 120C then careful use of a heatgun might be safer. Glad it worked and just wanted to add some thoughts on this may, or may not, be done more reliably.

  27. Monkeypillow

    Monkeypillow Gawd

    Messages:
    884
    Joined:
    Aug 31, 2006
    This method might wok better. A heat gun could blow the solder over to areas where it doesn't belong, whereas the over just reflows the solder.

    Congrats on the fix.

  28. Proxy

    Proxy Pumpkin Ghost

    Messages:
    4,342
    Joined:
    Apr 25, 2005
    Ok... That is just awesome!:D

  29. budec

    budec Gawd

    Messages:
    748
    Joined:
    Jul 10, 2002
    Nice trick!

    I would be careful about this though. Heating up, melting down or burning electronics can release toxins into the air that could cause brain damage and/or death.

  30. Majin

    Majin 2[H]4U

    Messages:
    2,477
    Joined:
    Feb 4, 2005
    I bought 2 8800GTX cards back in 2007 and 3 months back one of them died on me. Computer froze and crashed, but since I had them running in SLI some times it would work for a few mins. Anyways I figured it out by taking the cards out and putting them in one at a time. Found the one that casued red lines and glitches all over the screen and RMAed it to BFG (got to love 100% life time warrenty).
    So I get it back and what happens... 1 month later the other card has the same death! I sware to god I think they build these things to fail on purpose. Any ways sent the other card RMA and now I am happy to say both are back to running at 100% SLI happiness.

    I would have never thought to try to do this to fix a card, but now I know what to do when these cards die on my again and if it doesnt work, RMA again I guess. Awesome Post!

  31. haffey

    haffey Gawd

    Messages:
    541
    Joined:
    Oct 6, 2008
    awesome work. that's pretty much the same way i, along with other fixers, fix 360s. you're right about that.

    btw, do you have the link to the original suggestion?

  32. Kendrak

    Kendrak [H]ard|DCer of the Year 2009

    Messages:
    22,871
    Joined:
    Aug 29, 2001
    Sell it to a folder for cheap. They will use everything that card has left.

  33. khanis

    khanis Limp Gawd

    Messages:
    481
    Joined:
    Jan 2, 2009
    Yum, can I get some? :p

  34. Sabrewulf...

    Sabrewulf... Gawd

    Messages:
    911
    Joined:
    Jan 18, 2008
    Another success story and I'll toss in my old X850XT that recently took a big dump. WTF, it's useless as it is now.

    Sorry, there will not be any pics of my oven... :eek:

  35. CleanSlate

    CleanSlate [H]ardness Supreme

    Messages:
    5,120
    Joined:
    Mar 28, 2003
    I might just have to call horse chunks on this one.


    Edit: The most common forms of solder flow at 370F. I recant my "horse chunks". I think this worked.

    Last edited: May 26, 2009
  36. erek

    erek Gawd

    Messages:
    593
    Joined:
    Dec 20, 2005
  37. ALL4AMD

    ALL4AMD I Go to Court for Fun.

    Messages:
    7,381
    Joined:
    Jun 6, 2002
    this was my thought too. IIRC solder takes about ~700F to flow

    [​IMG]

  38. biztyke

    biztyke 2[H]4U

    Messages:
    2,312
    Joined:
    Apr 6, 2007
    wiki says under 400F.

    i could definitely see this working, and seems like a fantastic way to reseat all the connections. i know the same method(more or less) is used successfully on rrod 360s.

    good job OP!

  39. Pkirk618

    Pkirk618 [H]ardness Supreme

    Messages:
    5,775
    Joined:
    Sep 12, 2002
    one has to wonder how many cards could have been saved with this method.

  40. ALL4AMD

    ALL4AMD I Go to Court for Fun.

    Messages:
    7,381
    Joined:
    Jun 6, 2002
    ok so i was thinking something else which is why i said IIRC ;)

    [​IMG]
