Gauging interest in build-your-own case kits

Discussion in 'Cases & Case Modding' started by Spotswood, Jan 8, 2013.

  1. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009

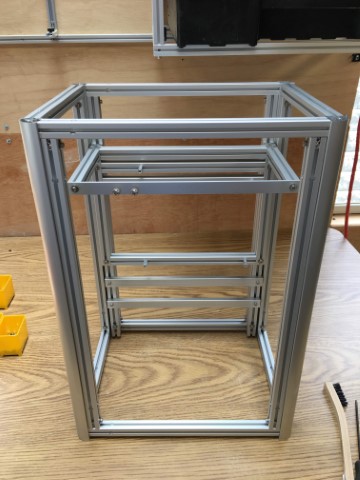

    A key design feature of the case frame is between the front panel and the inner frame (shown below) there is a bottom fed air duct.

    The frame will eventually be filled-in with some AL sheeting.




  2. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    In order to bolt together the door frames (via M6 button head bolts threaded into the ends of the horizontal parts) , I had to drill an access hole for the hex wrench.


    The holes are closed with nice shiney plugs.


    The doors are attached to the frame with beefy anodized aluminum hinges. Low-head cap screws would make them less beefy (skinnier-er ;)).



    dvsman likes this.
  3. Kelvarr

    Kelvarr [H]ardness Supreme

    Messages:
    4,124
    Joined:
    Jul 19, 2001
    Can you give any kind of ballpark cost as to what a standard ATX case would cost? And does that include panels, or is that open frame?

  4. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    Figure $.0078/mm for the extrusion, plus $45 for the set of back and PSU plates. There's a bit of redundant beams in this model, but as-is, it would cost ~$60. That price includes machining and fasteners.


  5. Kelvarr

    Kelvarr [H]ardness Supreme

    Messages:
    4,124
    Joined:
    Jul 19, 2001
    What about panels?

  6. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    Set of plain aluminum panels will be around $100.

  7. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    This was going to be the first frame.

    Standard or reverse ATX motherboard orientation. Thirty-five millimeters of space behind the motherboard for 3 HDs or 4 SSDs (via rubber grommets). Optional PSU and motherboard backplates (not shown).

    Dimensions: 19-1/4 x 14-1/4 x 9-7/8 inches.



    This is the back:

    The area behind the motherboard:

    Side panels can be attached via studs, bolts, or by engaging bolt heads into the slotted extrusion (like most other case's side panels are attached).

    Last edited: Jun 9, 2019
  8. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    Reality likes this.
  9. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    Here's a case designed specifically for an AIR cooled DTX/mini-ITX rig. Long 3 slot GPU. 165mm max CPU cooler height. Shown with an ATX PSU, dual 140mm intake, 140mm exhaust, and dual 120mm bottom intake. The placement of the motherboard can be adjusted vertically. This design allows for easy shrinking of case height for SFX PSU or shorter GPU etc.


    Last edited: Jun 29, 2019
    Reality likes this.
  10. threehundredsixftw

    threehundredsixftw n00b

    Messages:
    47
    Joined:
    Jul 31, 2019
    i need like 40-50 feet of that lol

  11. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    I started to build a prototype of the vertical mini-ITX/mini-DTX case this week.

    Some of the details of the case are:

    Dimension: 435 x 235 x 300mm (height x width x depth)
    Motherboard support: mini-ITX/mini-DTX (90-degree rotated)
    CPU cooler height: 150mm
    GPU support: maximum length of 325mm
    PSU: SFX or ATX
    Fans: 5 x 120mm
    Storage: 2 x SSD/HD

    First up was the removable motherboard tray:




    dvsman likes this.
  12. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    Drives attach to the extrusion via rubber grommets.




    Finished cutting and assembling the rest of the frame.




  13. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    All of the side panels will be cut on the CNC. Here's a quick time lapse of the PSU cut out:





    hurleybird likes this.
  14. pentiumiiislota

    pentiumiiislota Limp Gawd

    Messages:
    154
    Joined:
    Feb 20, 2018
    Looks awesome so far.

    Spotswood likes this.
  15. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009

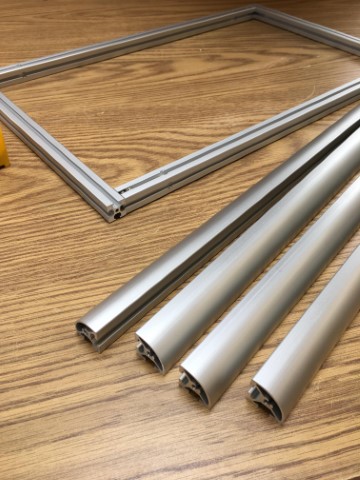

    Nuts can be inserted into the extrusion via small milled-out areas. By "capturing" a nut between two others (4mm long set screws are used to retain the two outer nuts), you have the ability to fasten to a fixed location and without having to drill and tap a thread e.g. a side panel.




  16. pentiumiiislota

    pentiumiiislota Limp Gawd

    Messages:
    154
    Joined:
    Feb 20, 2018
    How much would the atx or matx case, with front and rear panels be roughly?

    Last edited: Aug 14, 2019
  17. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    I only realized after cutting the left side panel that the two fan hole cutouts were - um, ugly. So, I remounted that sheet to the inside of the case and cut another solid sheet, thus creating a bottom fed air duct to keep the GPU nice and cool.



    :cool:

    Krenum and IKV1476 like this.
  18. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009

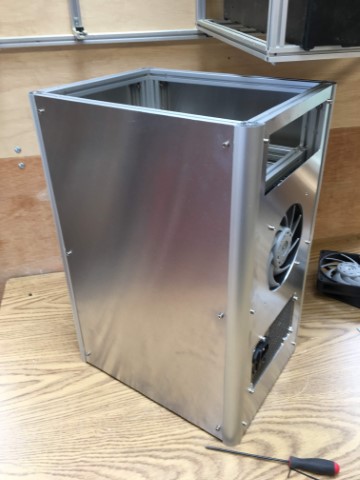

    The prototype is done.



    Please tell me what you think of the design, fabrication, etc.!

    IKV1476 likes this.
  19. threehundredsixftw

    threehundredsixftw n00b

    Messages:
    47
    Joined:
    Jul 31, 2019
    did you have to do something to keep the sheeting from vibrating?

  20. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    The panels are secured with 6 fasteners, so no vibrating at all, and in fact I'm contemplating just going with 4x fasteners per panel.

  21. Wang191

    Wang191 [H]ard|Gawd

    Messages:
    2,026
    Joined:
    Nov 30, 2000
    What's the cost of the extrusion you're using/proposing versus something like the Maker Beam product. How would you compete?
    The pictures shown in this thread depict a higher quality and more professional product than Maker Beam so I think that is one area where this case kit would excel.

    Spotswood likes this.
  22. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    The extrusions I use are less expensive than MakerBeam XL and will include all required machining i.e. drilled, threads tapped, milled, etc.

  23. Kardonxt

    Kardonxt 2[H]4U

    Messages:
    2,967
    Joined:
    Apr 13, 2009
    Not to be a stalker since I always seem to stumble into Spotswood's threads..... but..... I purchased a couple of his original mining chassis way back in the day and was very happy with them. My 5830 setup even made [H] front page!

    It looks like quality has been refined further over the years and I would not hesitate to purchase a Spotswood design If I was in the market.

    Spotswood likes this.
  24. hititnquitit

    hititnquitit Limp Gawd

    Messages:
    506
    Joined:
    Apr 16, 2018
    Looks good man. Very clean lines. Just spit ballin here but this what ive been wanting but dont have the skill to create.
    Dual 420 rads in front and a pair of 360s up top. With the rads above the mb without covering any of the mb components. With your psu shroud on the bottom to hide a evga 1300 g2 and room to mount pumps and reservoirs. Eatx mb tray. Some kind of mesh in front with filters to allow for solid airflow. The same badass mesh covering the 360 mounting area on top. Maybe a radiator chamber below the psu shroud with room for a pair of 360s or 420s. With the same mesh and filter system as the front. Finish it off with a tempered glass window. :D
    Id pay good money for that case!

    Spotswood likes this.
  25. Kardonxt

    Kardonxt 2[H]4U

    Messages:
    2,967
    Joined:
    Apr 13, 2009
    Better add casters to that list so you can move it once fully built lol.

    hititnquitit likes this.
  26. Spotswood

    Spotswood Gawd

    Messages:
    706
    Joined:
    Sep 5, 2009
    So, you want a Caselabs STH10 or THW10? :cool:

    Last edited: Sep 21, 2019
  27. hititnquitit

    hititnquitit Limp Gawd

    Messages:
    506
    Joined:
    Apr 16, 2018
    Had no idea either of those existed... Hmm The thw10 is close? but not really what id like to build. The strip down the center of the front is fugly. I would hide the pw switch etc on the blank side to keep the single piece front mesh panel nice and clean.
    I wont clutter up your thread with the rest of my dislikes/changes. Some day ill find a way to make it happen :D

    Spotswood likes this.
  28. DogsofJune

    DogsofJune 2[H]4U

    Messages:
    2,742
    Joined:
    Nov 7, 2008
    The more I look at these, the more I like. I'd be interested in a matx with water setup. Plenty of room for an itx board and a big graphics card

    Spotswood likes this.
