EVGA RTX 3090 KingPin Hydro Copper - awesome temp drops!

pclausen

Gawd
Joined
Jan 30, 2008
Messages
646
Got my KP HC block yesterday and finally got around to installing it this morning.

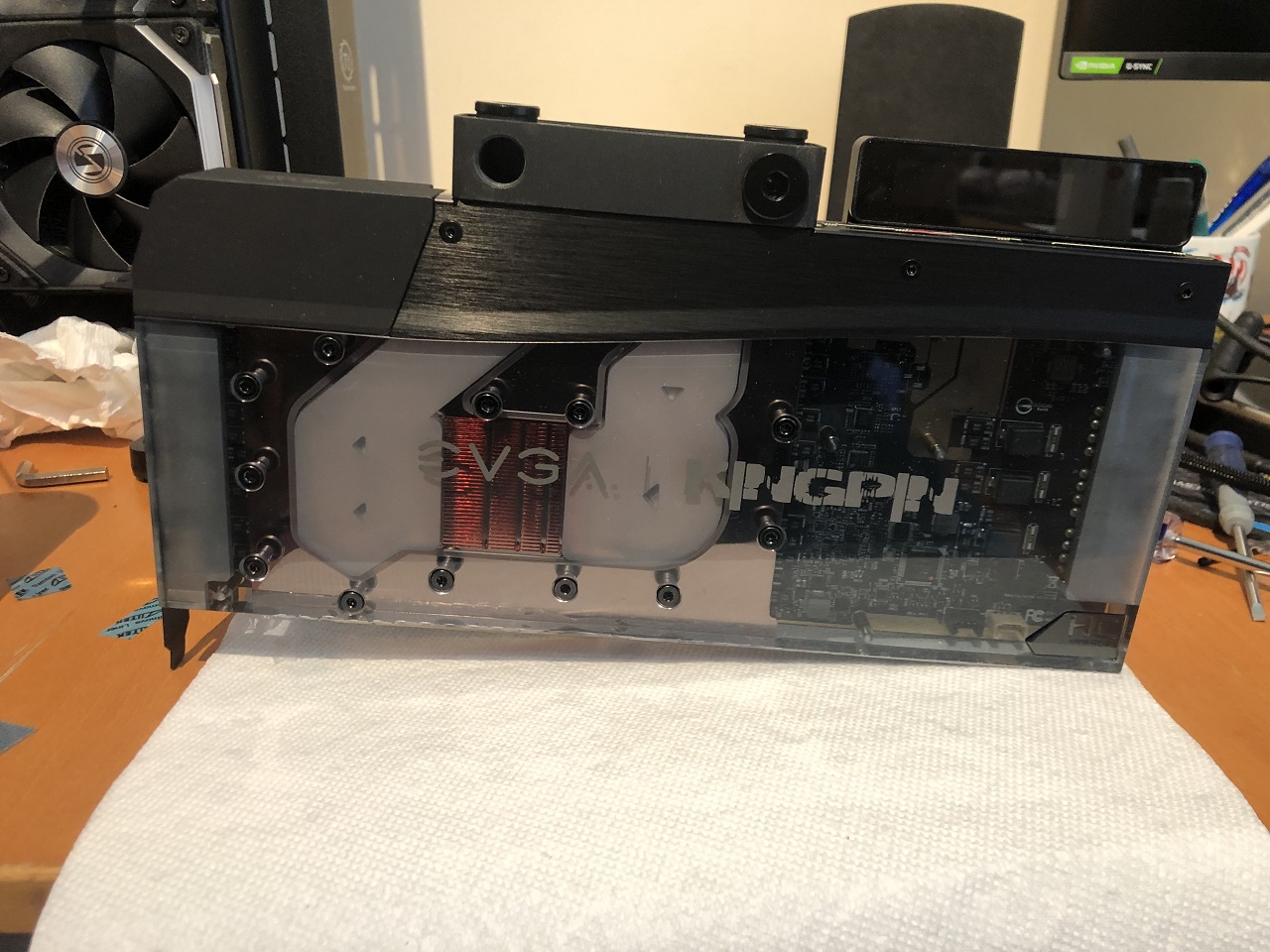

All done:



Installed in rig:

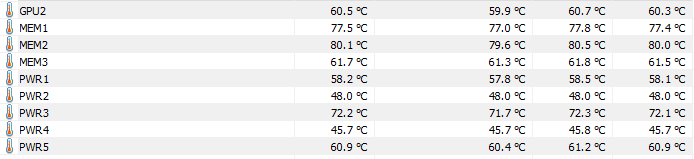

Before temps:

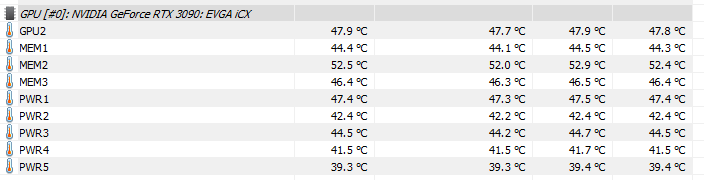

After:




So while the core itself only dropped a degree from when Hybrid, I see significant drops everywhere else. I guess that kind of makes sense since the hybrid used a 360 rad for just the GPU already.

As the the deltas, I have:

Ambient 25C
Water 31C
GPU 38C (per above)

Last edited:

lobstar

Limp Gawd
Joined
Nov 24, 2004
Messages
285
Nice! I notice the memory is kinda spicy on those screen caps. Is that while mining?


rtnlsltn

n00b
Joined
Feb 5, 2015
Messages
8
Were the 'before' mem temps with the fan blowing on the backplate? I'd expect those rear memory modules to be hot regardless of the cooler.


Evil Scooter

2[H]4U
Joined
Sep 22, 2000
Messages
3,252
Nice! Water really makes a huge diff!

What tubing & fittings are you using?

I'm still on old school Tygon with clamps and looking to upgrade.
