Devotion: a Hardcore Shift X - watercooled, oc'd to the limit, RGBW custom cables.

SHNS0

n00b
Joined
Sep 30, 2011
Messages
21


A huge ITX system that is all about beauty and raw power.

Supported by Watercool
Made with <3 by Enter Plasma


Main Features:
9900K & RTX 2080 with heavy OC in a Shift X
Custom, high end, high performance Watercooling
Custom RGBW Cables in MDPC-X Sleeve
Custom Illumination
"Fixing" the Phanteks Shift X and pushing its limits with sheer brute force
A lot of other fancy small details worth checking out



Hardware List:

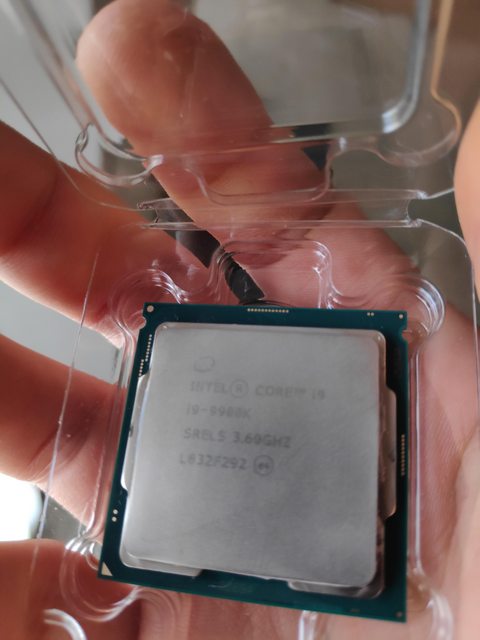

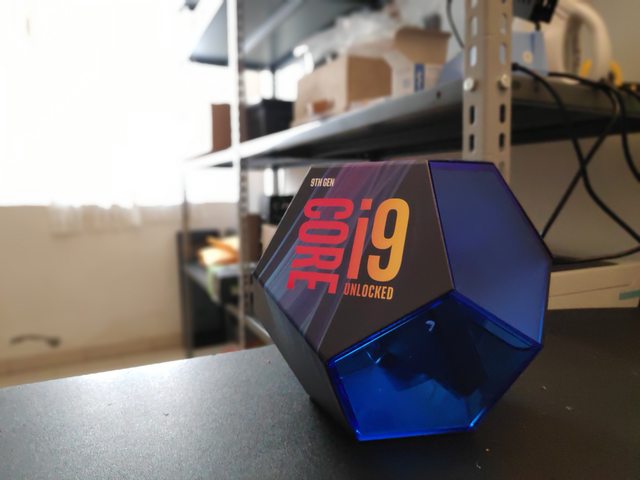

CPU: Intel Core i9 9900K
GPU KFA2 RTX 2080 OC

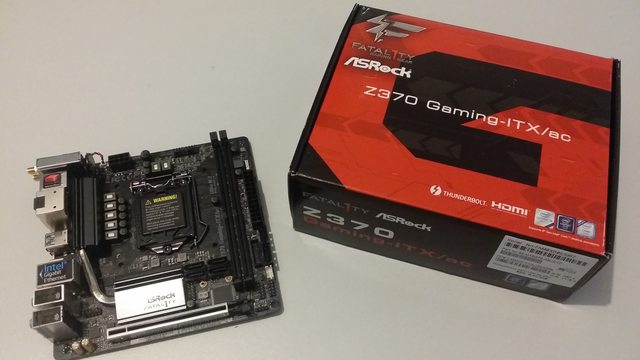

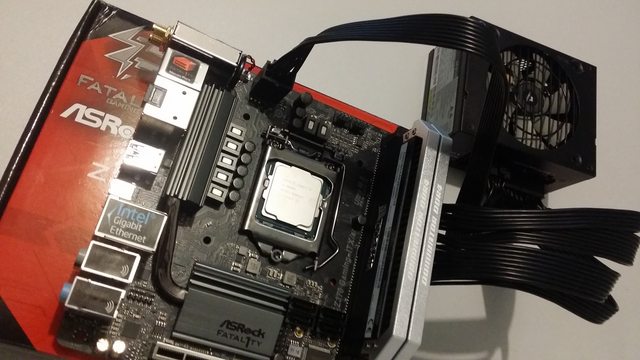

Motherboard: Asrock Z370 ITX Fatal1ty
Ram: Corsair Dominator Platinum DDR4 16GB 3000
SSD: Samsung 970 EVO 1TB
PSU: Corsair SF750
Case: Phanteks Shift X
RGB Controller: Raspberry Pi Zero WH

Cooling / Accessories:

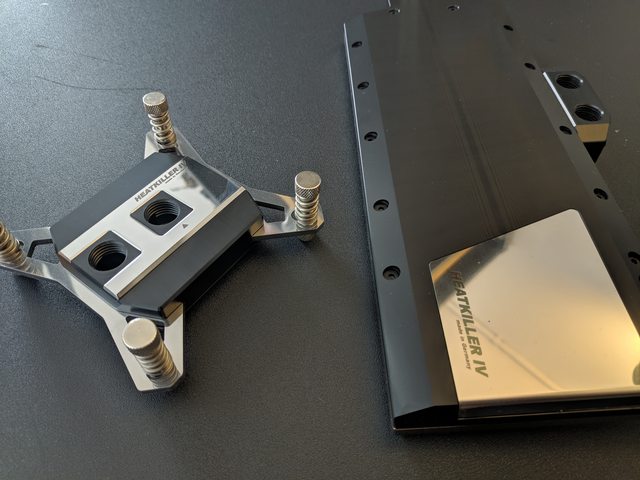

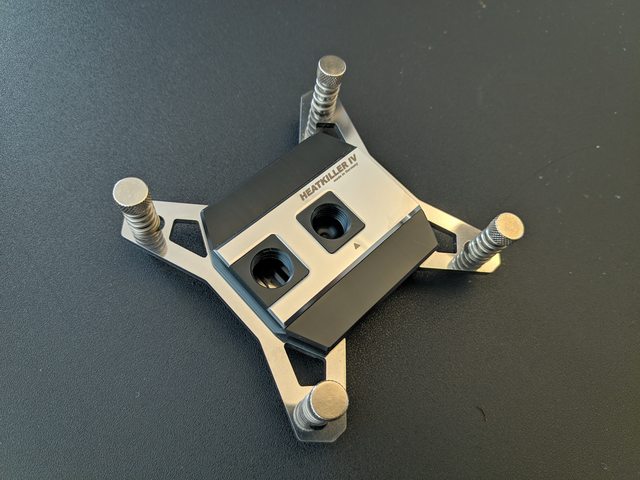

CPU: Watercool Heatkiller IV Pro Acetal Ni

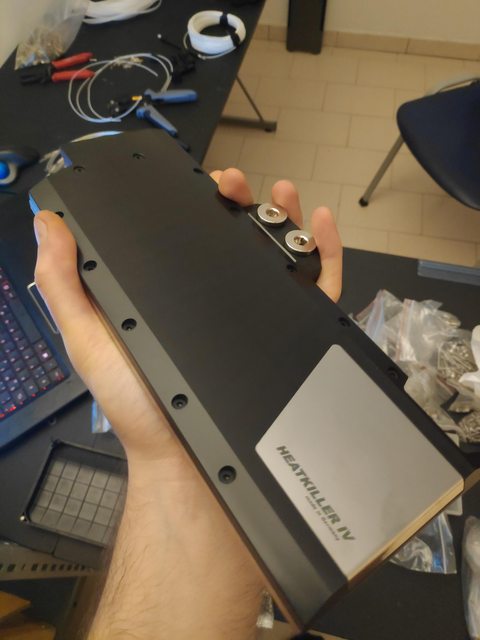

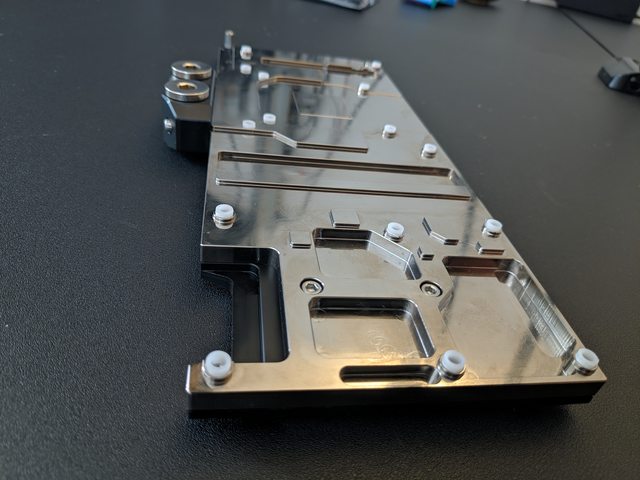

GPU: Watercool Heatkiller IV RTX 2080 Acetal Ni

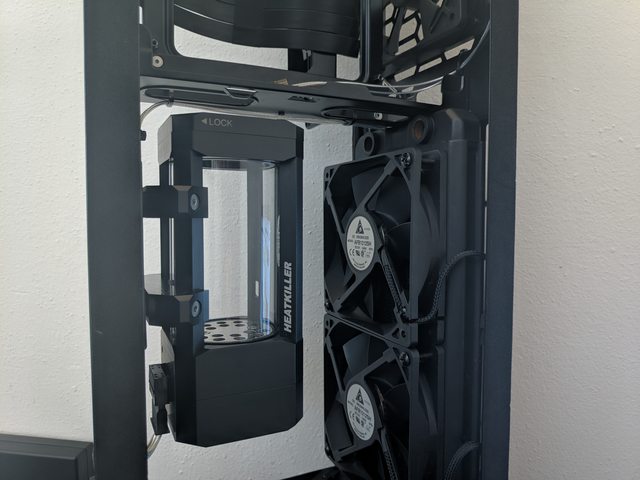

Reservoir: Watercool Heatkiller Tube 100 DDC

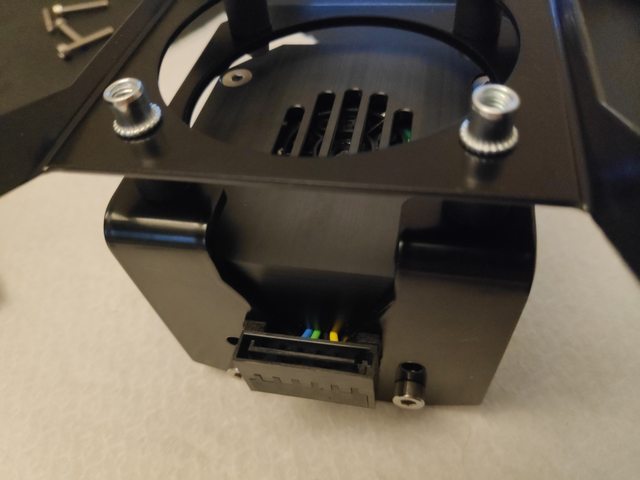

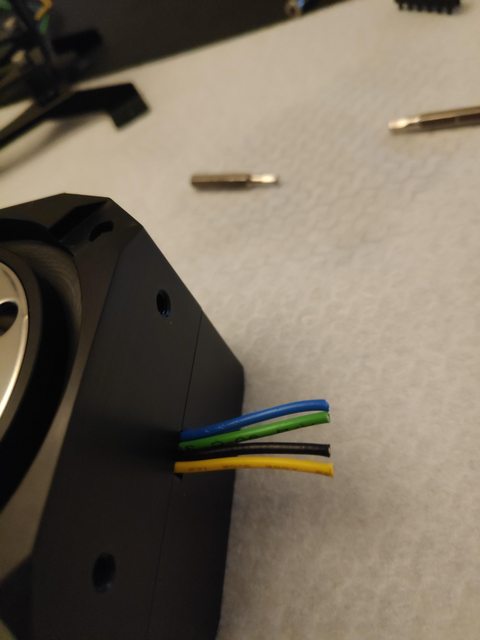

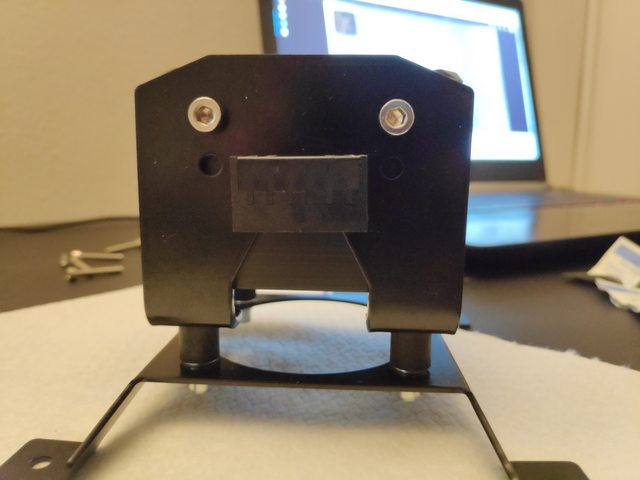

Pump: EK DDC 3.2 PWM
Rads: Hardware Labs Nemesis GTS 240 + 120
Fittings: Barrow Black
Tubing: Barrow PETG 14/10
5x Delta AFB1212SH Fans
EVGA Powerlink
PCI-E 3.0 Riser for Phanteks Shift X
Aluminium M.2 Heatsink

Custom Stuff:
Stainless Steel Screws + Alu Washers
RGBW Sleeved Cables with MDPC-X Carbon BTI & Transparency
RGBW Light Bars, other illumination in White
Twister Mod Stickers (Fans)
Custom Motherboard IO Plate



A big shoutout for the help, support and/or inspiration to:
Jacob (Watercool Heatkiller)
Daniel (Twister Mod / Twister7800GTX)
Nils (MDPC-X / Million Dollar PC)
All the customers of Enter Plasma that supported me over the past 3+ years

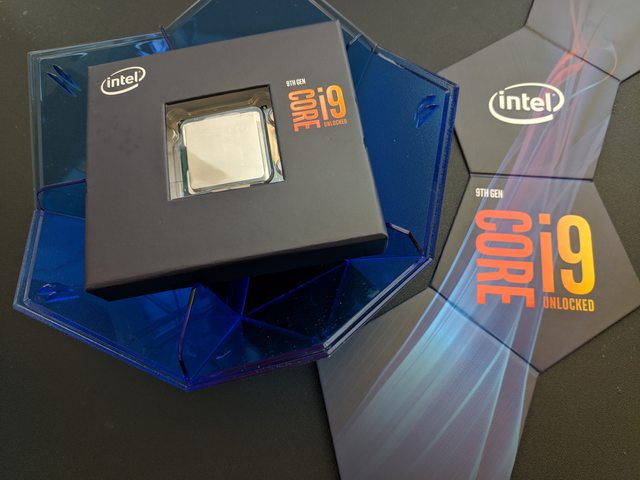

First Pics:








































Last edited:

Engr62

Gawd
Joined
Mar 24, 2015
Messages
669
I'm really interested to see how the Z370 ITX VRMs hold up with the i9-9900K. I'll definitely keep an eye on your thread.


SHNS0

n00b
Joined
Sep 30, 2011
Messages
21
I'm really interested to see how the Z370 ITX VRMs hold up with the i9-9900K. I'll definitely keep an eye on your thread.

It will probably be ok. The VRM have a beastly Delta right in front of them ;)


SHNS0

n00b
Joined
Sep 30, 2011
Messages
21
UPDATE #1: Finally received the last hardware, work is getting done

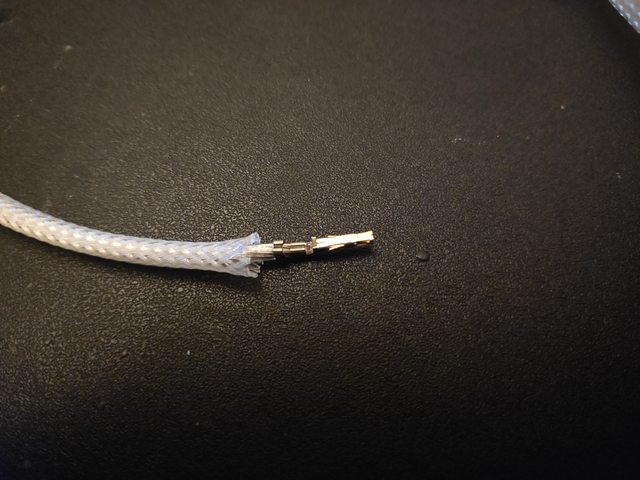

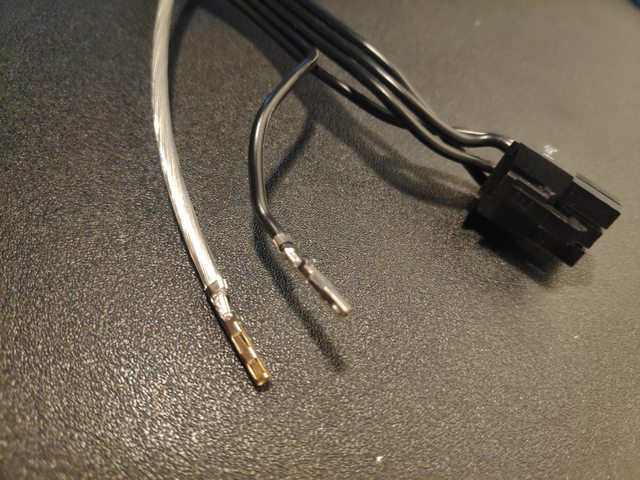

Started doing the first tests with RGBW cables, using MDPC-X Transparency sleeve and MDPC-X transparent AWG15 wire.

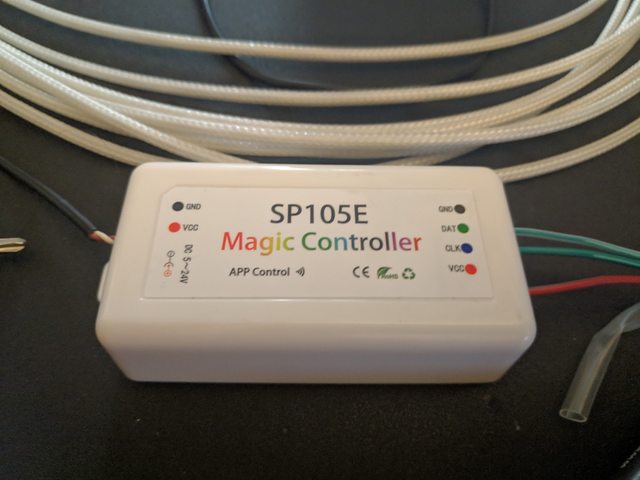

The controller is a random addressable chinese one that can be controlled with an app. It's not bad, but it's a bit buggy. Not an ideal solution, but I'll keep it for now.


The LED strips for the cables, on the other hand, are glorious. These are addressable RGBW, 144 LEDS / meter. They're beautiful, and also inhumanely expensive lol.









Got the latest shipment from China that was delayed for more than a week unfortunately.

A lot of fancy stuff, but turns out I need more screws. Some of the sizes were incorrect.







Fancy stainless steel screws. I absolutely love these, specially together with the aluminium washers.











Also got a new clear IEC connector to re-make the stock PSU extension for the case. It lights up really well

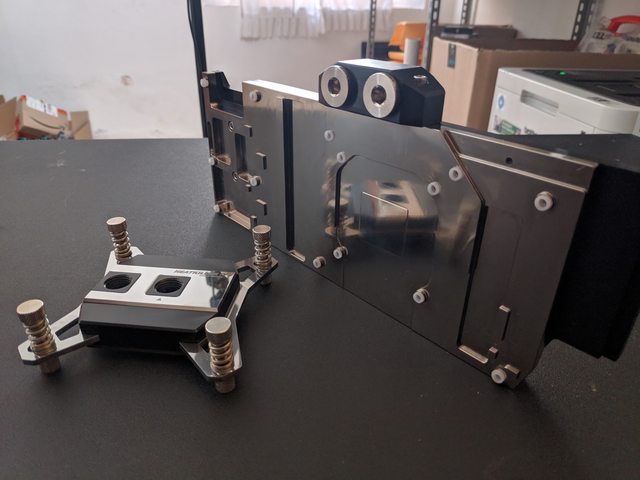

Some other stuff that arrived recently: SSD, hardline watercooling gear, cable and sleeving material from MDPC-X, and some aluminium bars for LED strips that I'm still not sure about using for this project.













And the replacement riser I'll be using. Unfortunately the original Phanteks riser doesn't seem to be PCI-E 3.0 capable.









NEXT: A lot of cables

Last edited:

SHNS0

n00b
Joined
Sep 30, 2011
Messages
21
UPDATE #2: Fan cables & LED's in the works







Work has been slow but steady.

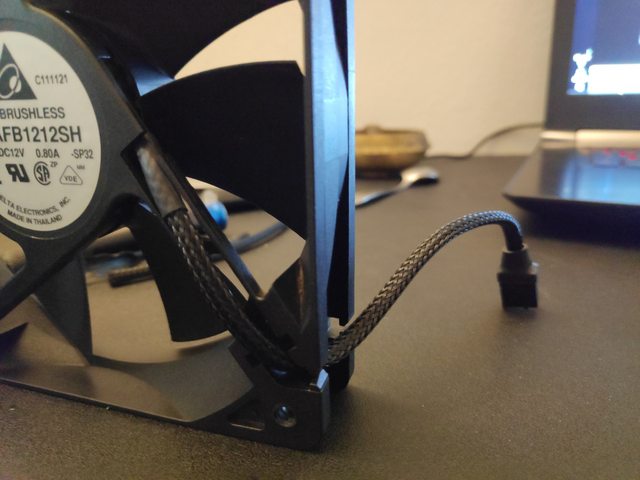

I'm currently doing all the splitter cables for fans, LED's and the sorts. They still have to be sleeved of course!

It is a massive work but it's very important - using as less space as possible for cables is top priority for maximizing airflow.









Here's where some of the addressable LED's will go, these will light up the cables from the bottom.





And this is a rough idea of how they'll turn out.

These are not the cables for the project, but I'm thinking about going with this same color scheme (Carbon BTI + Transparency)







This is a rough idea of how the back will be cable managed.







I also had this chinese RGB controller that I though of using, but it was HUGE







So I pried it open...





... And burned the Bluetooth controller trying to desolder those green cable clamps, LOL.

WELL, I guess I'll take the opportunity to do something I've been wanting to try for a while. Using a Raspberry!

It will arrive around next week so we'll see about that.



I also ended up upgrading to a Corsair SF750 Platinum

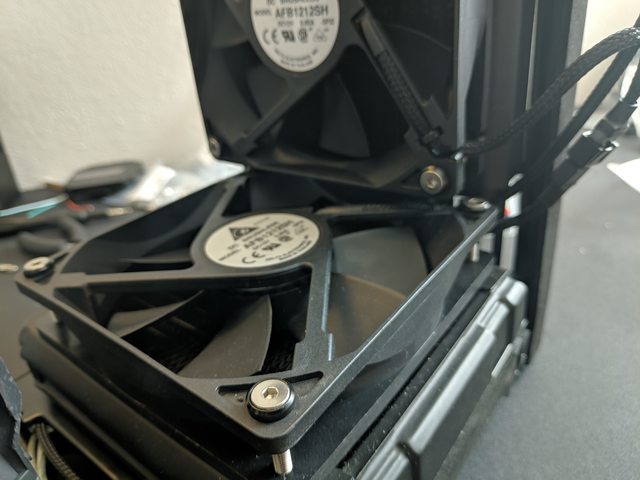

And I was able to fit another fan on the bottom, for a 120 push/pull. Can't have enough fans in here.





Another issue is these fan screws that have to be trimmed. I'm using M4's and they either come in sizes 30mm or 35mm.

30mm is too short and won't screw in the rad. 35mm is too long and will hit on the fins before screwing in all the way.

These are stainless steel, it's not easy to cut. I'm gonna have to figure out some way.


In the pic you can also see some black aluminium columns that I got to cover up the screw thread. I think it looks really cool!





And finally, this is how I'm ending up with the fan configuration. It's all negative pressure, and the air will be sucked in from the whole of the back.





NEXT: Finished secondary cables, installing the hardware and doing the main cables!

Last edited:

SHNS0

n00b
Joined
Sep 30, 2011
Messages
21
Sorry for the long disappearance. It was completed, but not without a lot of challenges, a lot of revisions, and a lot of personal drama.

Here's the final pics:











Older pics of the previous revision and some hint of battlestation: Devotion Beta.



I had to disregard some objectives I had in the beginning, like the RGBW cables.

But I'm very happy to have reached one of the main objectives which was to stuff a fully overclocked, high end system in a Shift X without turning into a fusion energy experiment​



Final specs:
- Intel 9900K @ 5ghz rock solid
- Asus Z390 Strix ITX
- 16GB Corsair Dominator Platinum RAM
- Nvidia RTX 2080
- Corsair SF750 Power supply
- Samsung 970 Evo Plus 1TB SSD
- Phanteks Shift X Case

Cooling:
- 4x Delta AFB1212SH fans, 1x PC Cooler Corona 120 fan
- Watercool Heatkiller CPU block, GPU block, Reservoir
- EK DDC pump
- HWLabs Nemesis GTS 120 + 240 radiators
- Barrow fittings
- EK ZMT tubing

Other / Accessories:
- ADT third party riser for Phanteks Shift & Shift X
- EVGA Powerlink for GPU
- Initially MDPC-X Carbon BTI sleeving on cables, then made new cables with Silver-plated FEP transparent wires
- Full set of stainless steel countersunk screws with black aluminium washers

Last edited:
D

Deleted member 82943

Guest
Sorry for the long disappearance. It was completed, but not without a lot of challenges, a lot of revisions, and a lot of personal drama.

Here's the final pics:



View attachment 237128

View attachment 237129

View attachment 237130

View attachment 237131

View attachment 237132

View attachment 237133



Older pics of the previous revision and some hint of battlestation: Devotion Beta.



I had to disregard some objectives I had in the beginning, like the RGBW cables.

But I'm very happy to have reached one of the main objectives which was to stuff a fully overclocked, high end system in a Shift X without turning into a fusion energy experiment​



Final specs:
- Intel 9900K @ 5ghz rock solid
- Asus Z390 Strix ITX
- 16GB Corsair Dominator Platinum RAM
- Nvidia RTX 2080
- Corsair SF750 Power supply
- Samsung 970 Evo Plus 1TB SSD
- Phanteks Shift X Case

Cooling:
- 4x Delta AFB1212SH fans, 1x PC Cooler Corona 120 fan
- Watercool Heatkiller CPU block, GPU block, Reservoir
- EK DDC pump
- HWLabs Nemesis GTS 120 + 240 radiators
- Barrow fittings
- EK ZMT tubing

Other / Accessories:
- ADT third party riser for Phanteks Shift & Shift X
- EVGA Powerlink for GPU
- Initially MDPC-X Carbon BTI sleeving on cables, then made new cables with Silver-plated FEP transparent wires
- Full set of stainless steel countersunk screws with black aluminium washers
what a beaut, good job!

Joined
Feb 6, 2013
Messages
534
This is a real testament to what can be done with soft tubing if done right. I swear at first glance I would say that that is a nice Hardline build. Very clean and really a pro job. I love this case and it has been done to death and I say that as a compliment because this is one of the best I have seen.


SHNS0

n00b
Joined
Sep 30, 2011
Messages
21
This is a real testament to what can be done with soft tubing if done right. I swear at first glance I would say that that is a nice Hardline build. Very clean and really a pro job. I love this case and it has been done to death and I say that as a compliment because this is one of the best I have seen.

Thanks a lot ;)
I tried going hard tubing, but it's really not my thing from both a building and reliability point of view.

The project in fact started nearly 2 years ago, pretty much when the case released. A lot of personal issues prohibited me from finishing earlier unfortunately. Won't take this long for the next project.
