DAN HSLP-48: A powerful sub 50mm heatsink

Vlad502 said:
Micron/SuperMicro MTA18ADF2G72AZ-2G3 is too 16GB ECC VLP UDIMM. Apacer have too Industrial DDR4 Non-ECC VLP like Innodisk, but i can`t find price and where is possible to buy.
Click to expand...

You can get the Innodisk from here:

http://www.dpie.com/dram/ddr4/innodisk-ddr4-low-profile-dimm

A UK based but can ship worldwide
Part number: M4U0-AGS1WCSJ



As for the Apacer , if someone in the US maybe can give them a call ?

http://industrial.apacer.com/en-ww/WhereToBuy/Offices

http://industrial.apacer.com/en-ww/WhereToBuy/Distributors


The Apacer and the Innodisk looks identical, both un-buffered and nonECC

Last edited:

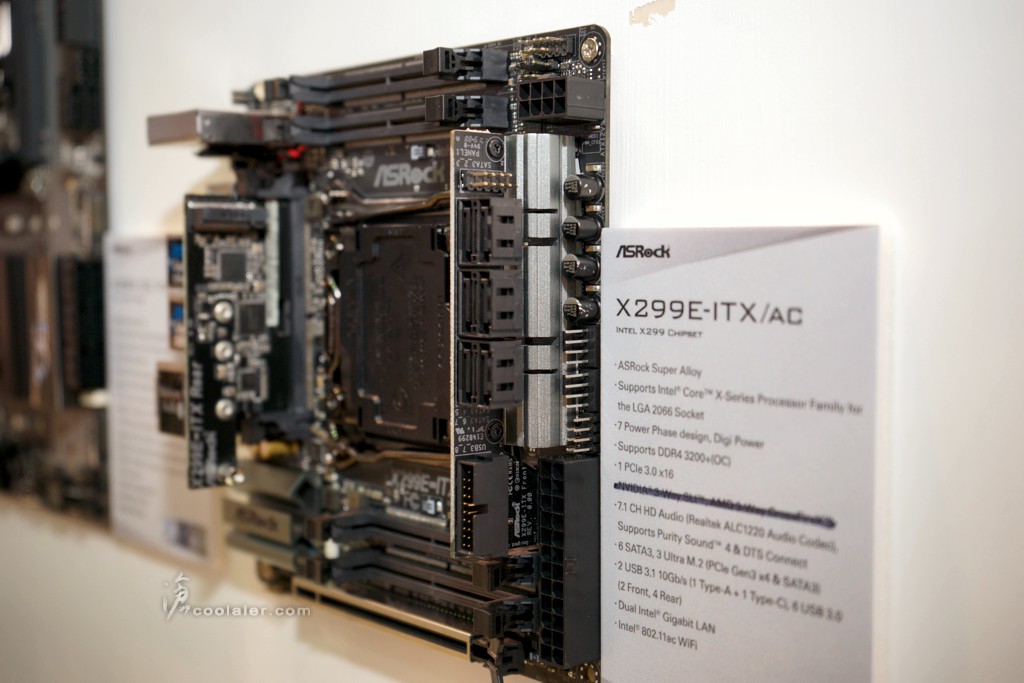

This is pure madness. I hope the riser cards are removable or they may be too tall for the new heatsink.

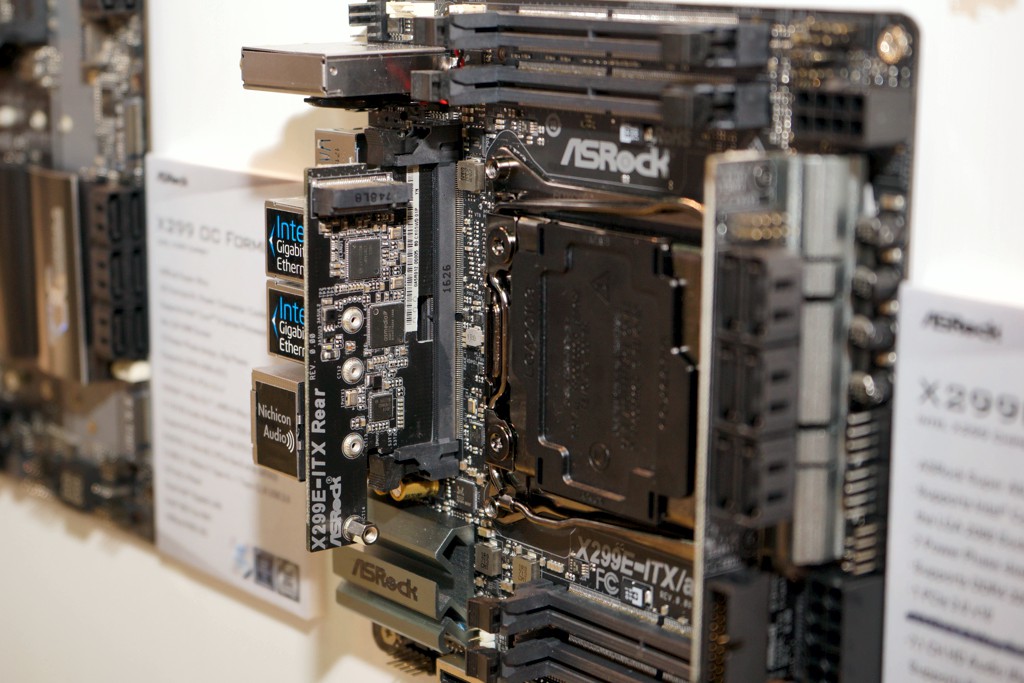

Here is another picture:



It looks like the m.2 riser is slotted in something called 1626, anybody know the type of slot (mini-PCIe?). I don't think the sata riser is detachable, haven't found a good picture of it yet.


[edit] Is it me, or does the m.2 riser slot look exactly like to SO-dimm slots?[/edit]

Last edited:
Here is another photo:




human_crosse said:
Wait..... what.... I understand everything on the spec sheet and i can read properly.. but that...... AMD 3-way crossfire X and NVIDIA 3-way SLI?? .... really ASROCK on an ITX???? hahahaha....
Click to expand...

Jspr said:
Today you learn about bitfurcation
Or here on [H] or SFFN

Don't make fun or point out retarded stuff just because you don't know stuff..
Click to expand...

see how they strike-through the "NVIDIA 3-way SLI - AMD 3-way crossfire"

more photos:
http://www.coolaler.com/threads/mini-itx-asrock-x299e-itx-ac.345032/

Last edited:
Ah, its just the Cu version of the C1, sorry, I looked on their website couldn't find the same model, must have had sh*t in my eyes.


To redeem myself, a useful excerpt from the same site:
CRYORIG’s Cu (Copper) enhanced Performance Edition coolers is a new twist to CRYORIG’s award winning CPU coolers. In traditional heatsink fin designs Aluminum provides a good combination of performance, weight and cost. But Copper provides roughly twice the heat conductivity compared to Aluminum. This is why CRYORIG is hand picking some of their most acclaimed coolers and fitting them with brand
Click to expand...

Jann5s said:
But Copper provides roughly twice the heat conductivity compared to Aluminum.
Click to expand...
Improved conductivity is cool (ha!) but in SFF cases, dissipation via surface area/fan power is the more limiting factor. Having said that, copper will help if the other factors are taken care of, so fingers crossed for Dan's tests!

DanielDavisWA said:
In your spec on page 1 the fan dimensions are 100x100x15 and fin dimensions of 130x120x60. It sounds like the just announced http://noctua.at/en/nf-a12x15-pwm.html would fit perfectly although LP RAM man need to be used...
Click to expand...

The last 4 or so pages of this thread repeatedly discusses this, including the difficulty of locating DDR4 VLP ram. Dondan will be testing this when he actually gets the samples.

Kbird27 said:
Anyone else wondering how it's going to stack up with the 92mm AIO?
Click to expand...
See these:
https://hardforum.com/threads/dan-a...in-the-world.1799326/page-174#post-1042697345

https://hardforum.com/threads/dan-a...in-the-world.1799326/page-277#post-1042983296

Nexus 7000 Low R2 with 3GHz 5820K : 60.6°C
Asetek 545LC AIO 92mm with 3GHz 5820K : 53.8°C

So around 5°C behind AIO cooler, because HSLP-48 supposed to be better than Nexus 7000 R2 with 3-5°C, but will see.

Vlad502 said:
5820k is 140W TDP and LP coolers under 50mm are capable under 100W TDP.
If you overclock it, you need cooler that can handle more than 140W TDP.
For example Raijintek Pallas (68mm height): FX 8350 OC and 6700K OC
Click to expand...

Dynatron has the t318 rated at 165w and the r15 rated at 150w and both are 27mm tall.

I use the t318 as my x99e uses a narrow ilm socket. The r15 will fit the new x299e's square socket. But we are really just waiting for the HeatSinkLowProfile-48

There is also an all copper version of the C7 which is slated to probably be one of the first to hit production. It is really nicely made but man are the units deceptively heavy.

Welp, this would explain why Noctua didn't want to back the HSLP-48. They had plans of their own. Still too tall at 70mm...



We should start a list of the best mitx mobos that are compatible with the cooler.

Ca11idus said:
Welp, this would explain why Noctua didn't want to back the HSLP-48. They had plans of their own. Still too tall at 70mm...


Click to expand...

This is almost twice the size of the HSLP48. This is in no way targets any case smaller than 12L.

They certainly seem to be sticking to 4 heat pipes with their designs, they weren't trying to mislead Dan when they said 4 is enough. I still want 12 heat pipes though ;)
